Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1104) — 192 parça

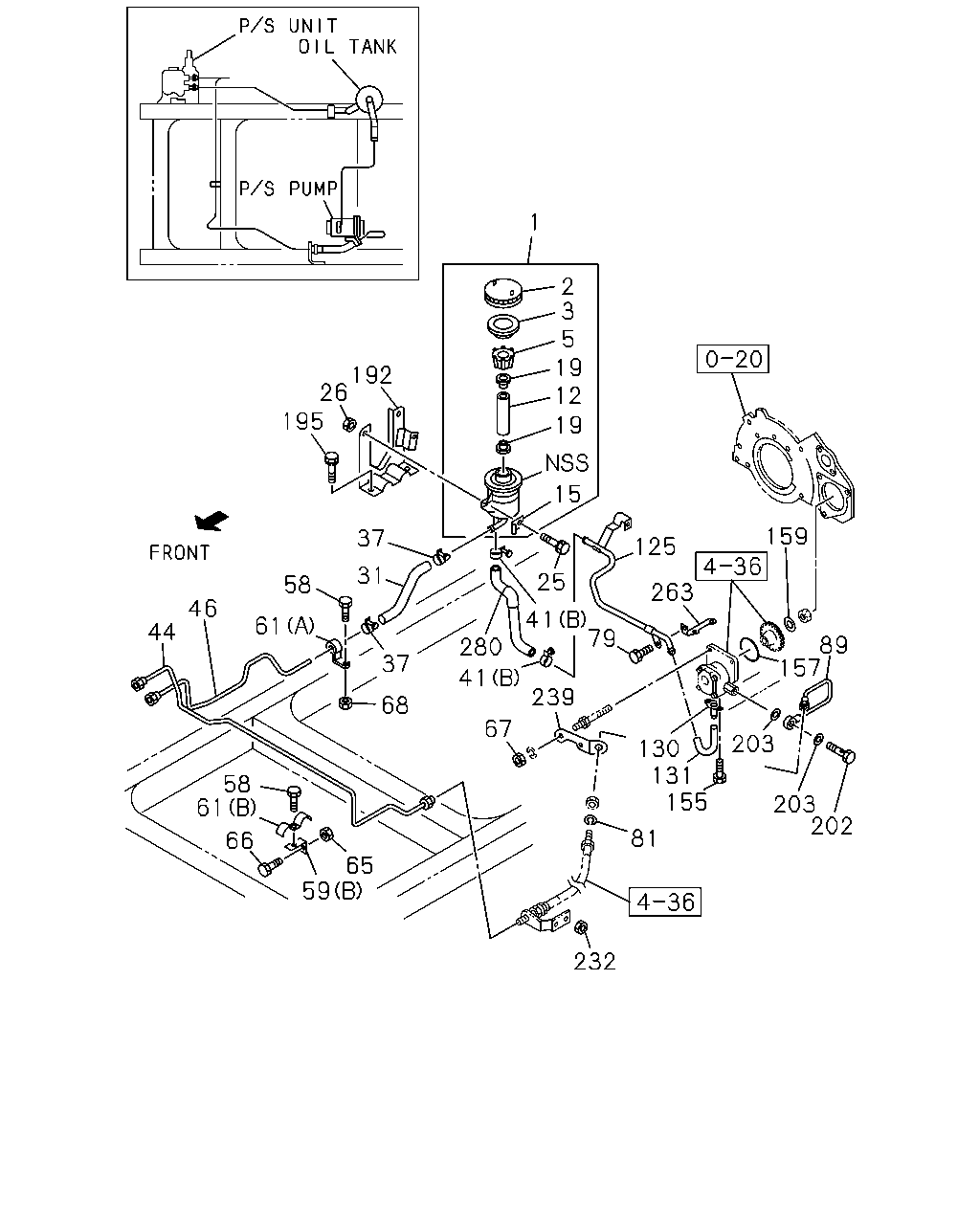

1 2 3 5 19 12 192 26 195 19 15 125 159 37 263 31 25 58 46 41 79 61 44 89 157 280 37 41 239 68 67 203 130 131 155 58 61 203 202 81 66 65 59 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21210-152-6	01	1	9202-	●	●
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9202-		●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9202-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9202-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21235-004-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9202-		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21249-007-1	04	1	9202-	●	●
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9202-		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9202-	●	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18	0-28010-818-0	04	1	9202-9204	●	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
26	NUT; OIL TANK TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	04	1	9202-	●	●
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-549-1	01	1	9202-	●	●
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9202-		●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-049-0	01	1	9202-9203		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-303-0	01	1	9204-9205		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-395-0	01	1	9206-9212		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-757-0	01	1	9301-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21113-957-0	01	1	9202-9202	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-291-0	01	1	9203-9209	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-291-0	01	1	9210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-469-0	01	1	9210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-051-0	01	1	9202-		●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=60	1-47475-455-0	01	1	9202-9202	●
59	BRACKET; CLIP,OIL PIPE (B) L=60	1-47475-455-0	01	1	9202-9202		●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (B) L=60	1-47475-455-0	01	1	9203-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=50	1-47475-299-2	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-47476-925-1	01	1	9203-	●	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=13 L=20	9-09525-235-0	01	1	9202-9202	●	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9203-	●	●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-		●
65	NUT; BRKT M8	9-09110-408-0	01	1	9202-9202	●	●
65	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9203-9207	●	●
65	NUT; BRKT 6HE1 STD ENG(46L) M10 FLANGE	5-09440-006-0	02	1	9202-		●
65	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9203-		●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9202	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28010-825-0	02	1	9203-9204	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
67	NUT; BRKT 6HE1 STD ENG(46L) M10	9-09110-510-0	01	1	9202-		●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	02	1	9202-	●	●
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9202-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-546-0	01	1	9202-9212	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-594-0	01	1	9301-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21113-506-0	01	1	9202-9212		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9301-		●
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9202-	●	●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94393-982-0	01	1	9202-9202		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-446-0	01	1	9203-9307		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9308-		●
130	ADAPTER; P/S PUMP 6HE1 STD ENG(46L)	8-94396-340-1	01	1	9202-		●
131	HOSE; RUBBER,P/S 6HE1 STD ENG(46L)	8-94396-331-1	01	1	9202-		●
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9202-	●	●
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 STD ENG(46L)	8-94396-678-0	01	1	9202-		●
159	WASHER; PL,ADAPTER 6HE1 STD ENG(46L)	1-09503-099-1	01	1	9202-9308		●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21219-080-2	01	1	9202-	●	●
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9202-		●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9202-9211	●	●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-	●	●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9407		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9408-		●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9202-9310	●	●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9202-	●	●
232	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
239	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21119-071-2	01	1	9202-	●	●
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9203-		●
263	BRACKET; P/S PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47475-599-0	01	1	9202-	●	●
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9202-		●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-613-0	01	1	9202-9403	●	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-908-0	01	1	9404-	●	●
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9202-		●

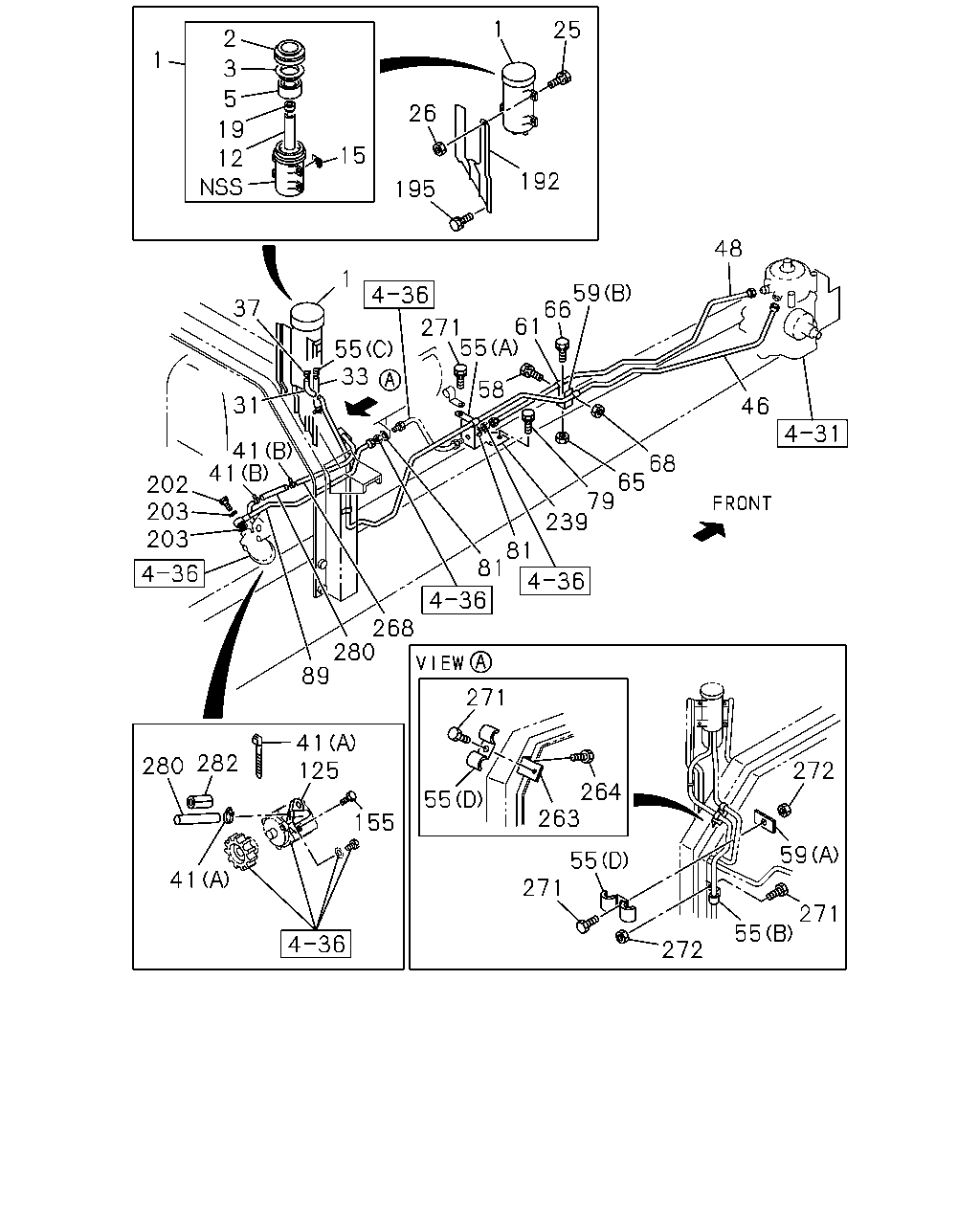

1 25 2 1 3 5 26 19 15 12 192 195 48 1 59 66 61 37 271 55 55 33 58 31 46 41 41 68 65 79 239 202 203 203 81 81 268 280 89 271 41 125 282 280 272 264 263 55 155 59 55 41 271 271 55 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21210-152-6	01	1	9202-	●	●
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9202-		●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9202-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9202-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21235-004-1	01	1	9202-	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9202-		●
15	PLATE; FILTER,OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21249-007-1	04	1	9202-	●	●
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9202-		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9202-	●	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18	0-28010-818-0	04	1	9202-9204	●	●
25	BOLT; OIL TANK BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
26	NUT; OIL TANK TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	04	1	9202-	●	●
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-		●
31	HOSE; P/S OIL TANK,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-549-1	01	1	9202-	●	●
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9202-		●
33	HOSE; RUBBER,POWER STRG 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-612-1	01	1	9202-	●	●
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	9202-	●	●
41	CLIP; HOSE,P/S 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21113-957-0	01	1	9202-9202	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-291-0	01	1	9203-9209	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-291-0	01	1	9210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-21114-469-0	01	1	9210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-051-0	01	1	9202-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21113-821-0	01	1	9202-9202	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-290-0	01	1	9203-9212	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-749-0	01	1	9301-	●	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=15 H=24 L=20	1-09700-606-0	03	1	9202-	●	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (D) ID=19 & 16 L=21.5 & 21.5	1-09700-979-0	01	1	9202-	●	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=32	1-09704-085-0	02	1	9202-	●	●
55	CLIP; P/S RUBBER HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=16 L=50	9-09525-586-0	01	1	9202-	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
58	BOLT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=60	1-47475-455-0	01	1	9202-9202	●
59	BRACKET; CLIP,OIL PIPE (B) L=60	1-47475-455-0	01	1	9202-9202		●
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (B) L=60	1-47475-455-0	01	1	9203-		●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=50	1-47475-299-2	01	1	9202-	●	●
59	BRACKET; CLIP,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-47476-925-1	01	1	9203-	●	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=13 L=20	9-09525-235-0	01	1	9202-9202	●	●
61	CLIP; OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9203-	●	●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9202-		●
65	NUT; BRKT M8	9-09110-408-0	01	1	9202-9202	●	●
65	NUT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9203-9207	●	●
65	NUT; BRKT 6HE1 STD ENG(46L) M10 FLANGE	5-09440-006-0	02	1	9202-		●
65	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9203-		●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9202	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28010-825-0	02	1	9203-9204	●	●
66	BOLT; BRKT,OIL PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
79	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9202-		●
81	WASHER; LK,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	02	1	9202-	●	●
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9202-		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-546-0	01	1	9202-9212	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-594-0	01	1	9301-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21113-506-0	01	1	9202-9212		●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9301-		●
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9202-	●	●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94393-982-0	01	1	9202-9202		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-446-0	01	1	9203-9307		●
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9308-		●
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9202-	●	●
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21219-080-2	01	1	9202-	●	●
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9202-		●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9202-9211	●	●
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X25 W/LK WASHER	0-50041-025-0	03	1	9212-	●	●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9407		●
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9408-		●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9202-9310	●	●
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-	●	●
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9202-	●	●
239	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21119-071-2	01	1	9202-	●	●
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9203-		●
263	BRACKET; P/S PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47475-599-0	01	1	9202-	●	●
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9202-		●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18	0-28010-818-0	02	1	9202-9204	●	●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
264	BOLT; PIPE BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21113-699-1	01	1	9202-9403	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21113-399-0	01	1	9404-	●	●
271	BOLT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
271	BOLT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	03	1	9205-9309	●	●
271	BOLT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	04	1	9310-	●	●
272	NUT; P/S OIL PIPE FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	03	1	9202-	●	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21112-613-0	01	1	9202-9403	●	●
280	HOSE; P/S OIL PUMP,INL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21114-908-0	01	1	9404-	●	●
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9202-		●
282	SLEEVE; RUBBER,PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
