4-33 — STEERING LINKAGE (#1103) — 14 parça

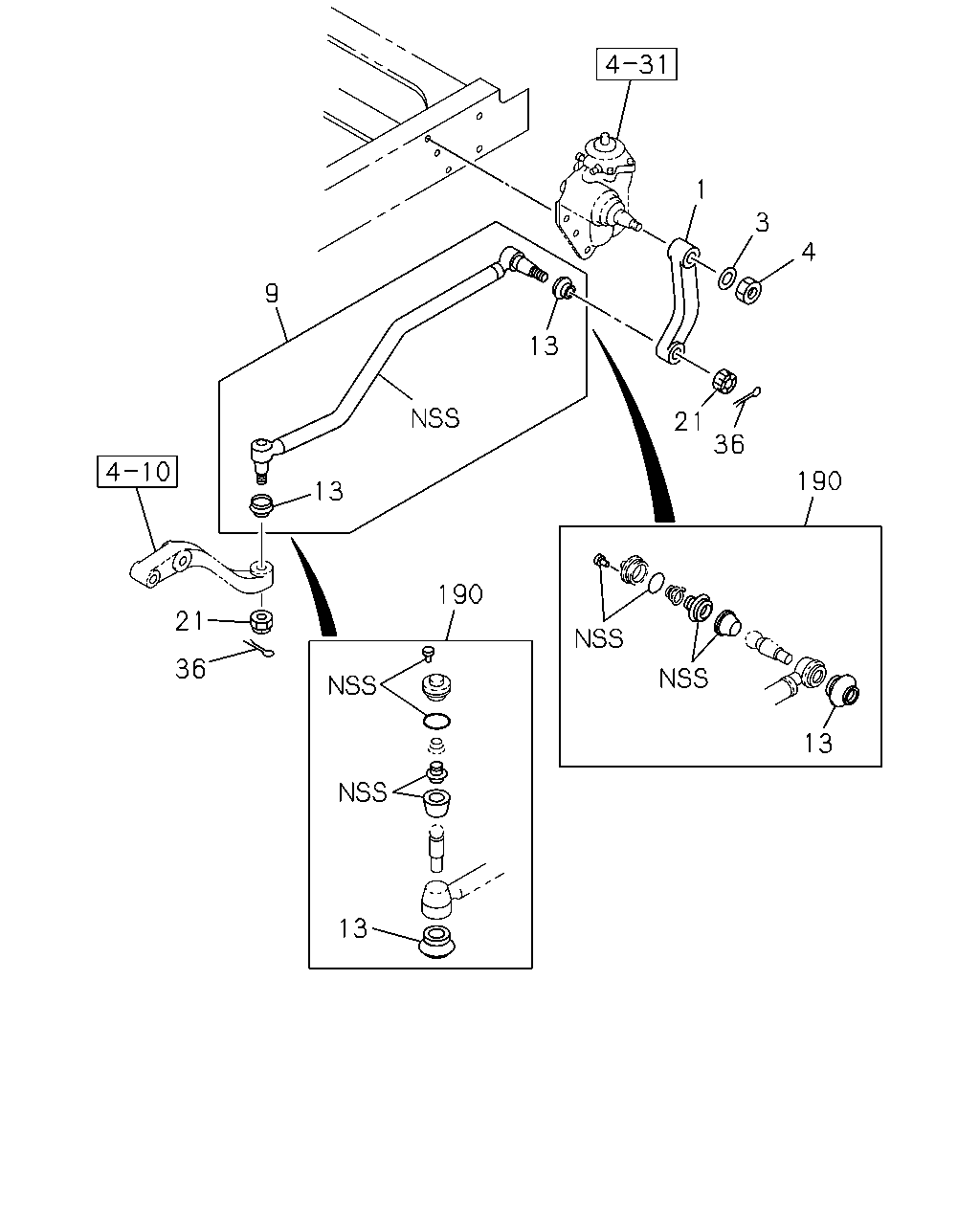

çizim 94038
1 3 4 9 13 21 36 190 13 190 21 36 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-389-0 01 1 9202- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9202- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9202- ● ●
9 LINK; DRAG
FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-44380-001-1 01 1 9202-9410 ● ●
9 LINK; DRAG 1-44380-111-2 01 1 9411- ● ●
9 LINK; DRAG
EXC. FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-44380-014-1 01 1 9202-9305 ● ●
9 LINK; DRAG
EXC. FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-44380-055-0 01 1 9306-9410 ● ●
13 BOOT; DRAG LINK
FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-43159-078-0 02 1 9202-9305 ● ●
13 BOOT; DRAG LINK 1-43159-078-0 02 1 9306- ● ●
13 BOOT; DRAG LINK
EXC. FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-43159-080-0 02 1 9202-9305 ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9202- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9202- ● ●
190 REPAIR KIT; DRAG LINK
EXC. FRT AXLE GRESE ,NON MENTENANCE<B3L> 		1-85574-041-0 02 1 9306-9410 ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 9411- ● ●
