Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#11022) — 207 parça

66 64 65 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO	1-83460-088-1	01	1	0106-
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	0106-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-

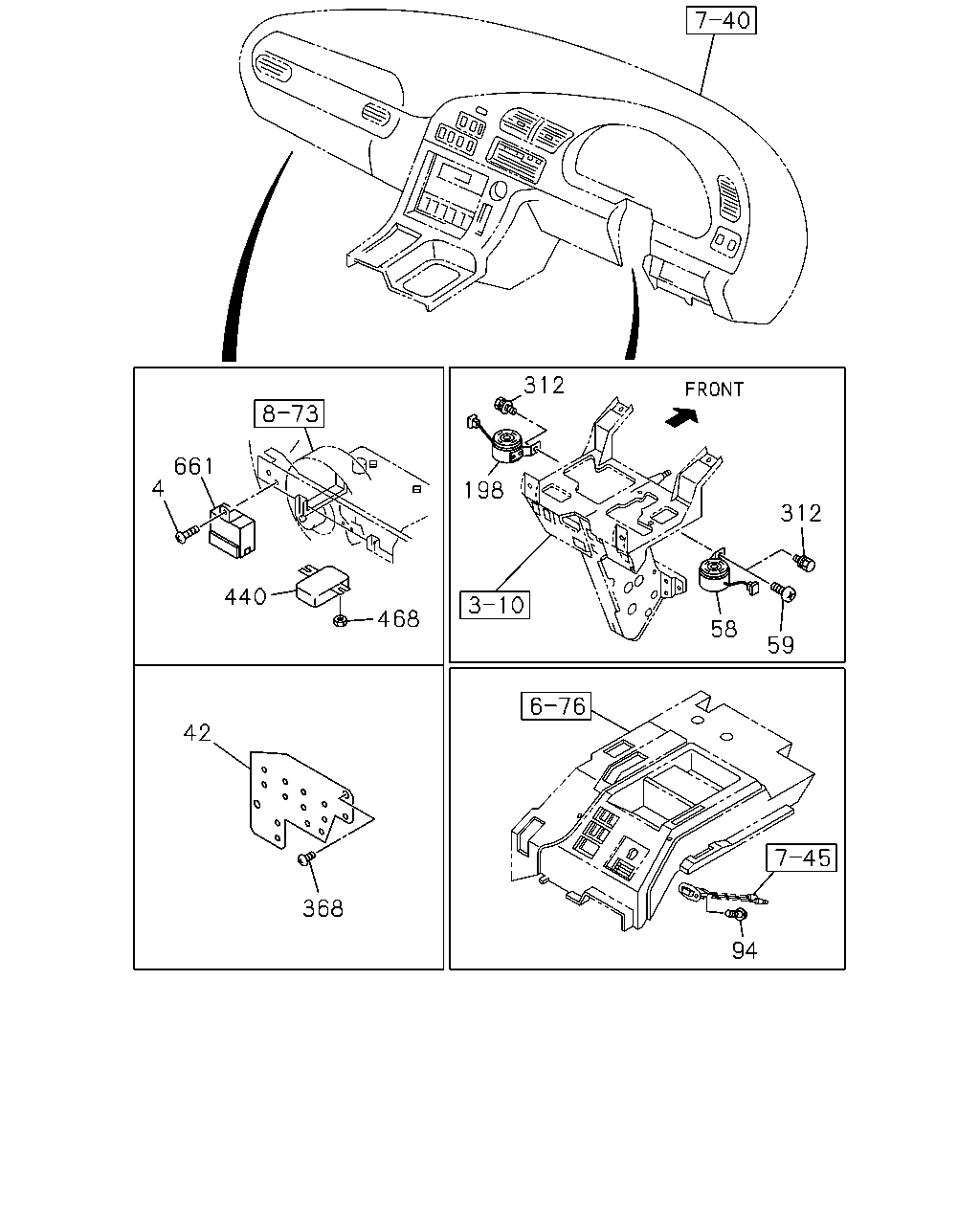

312 661 4 198 312 440 468 58 59 42 368 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0106-
42	BRACKET; RELAY WARNING BUZZER-SPEED<RF8>	1-82698-351-1	01	1	0106-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0106-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0306-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0106-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
198	BUZZER WARNING BUZZER-SPEED<RF8>	1-83460-032-0	01	1	0106-
312	BOLT; BUZZER WARNING BUZZER-SPEED<RF8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-0305
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-0305
312	BOLT; BUZZER WARNING BUZZER-SPEED<RF8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0306-
368	SCREW; RELAY FIX WARNING BUZZER-SPEED<RF8> M5X14	8-94279-325-0	03	1	0106-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0106-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0106-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0106-

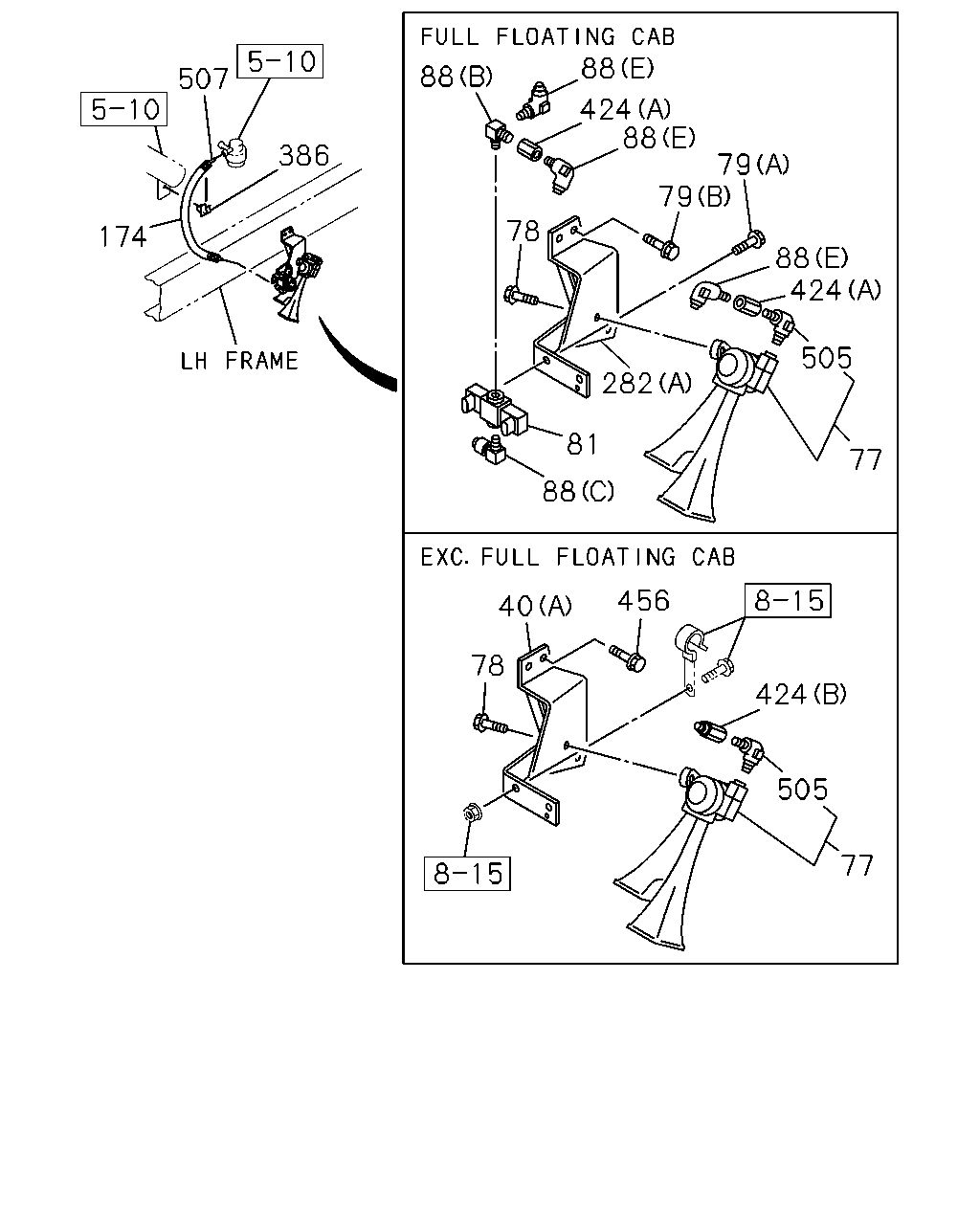

88 88 424 88 507 386 79 79 78 174 88 424 505 282 81 77 88 456 40 78 424 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-741-1	01	1	0106-0110
77	HORN ASM	1-83430-041-2	01	1	0106-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M8X12 FLANGE	0-28080-812-0	01	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X35 FLANGE	0-28681-035-0	02	1	0106-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0106-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0106-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0106-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) PT1/4	1-09664-211-0	02	1	0106-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0106-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0106-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

89 89 284 89 210 34 602 34 210 285 261 34 424 90 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0106-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (D)	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0106-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0106-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0106-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0106-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X50 FLANGE	0-28080-650-0	02	1	0106-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X50 FLANGE	0-28050-650-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0106-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) PT1/4	1-09664-211-0	02	1	0106-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0106-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0106-

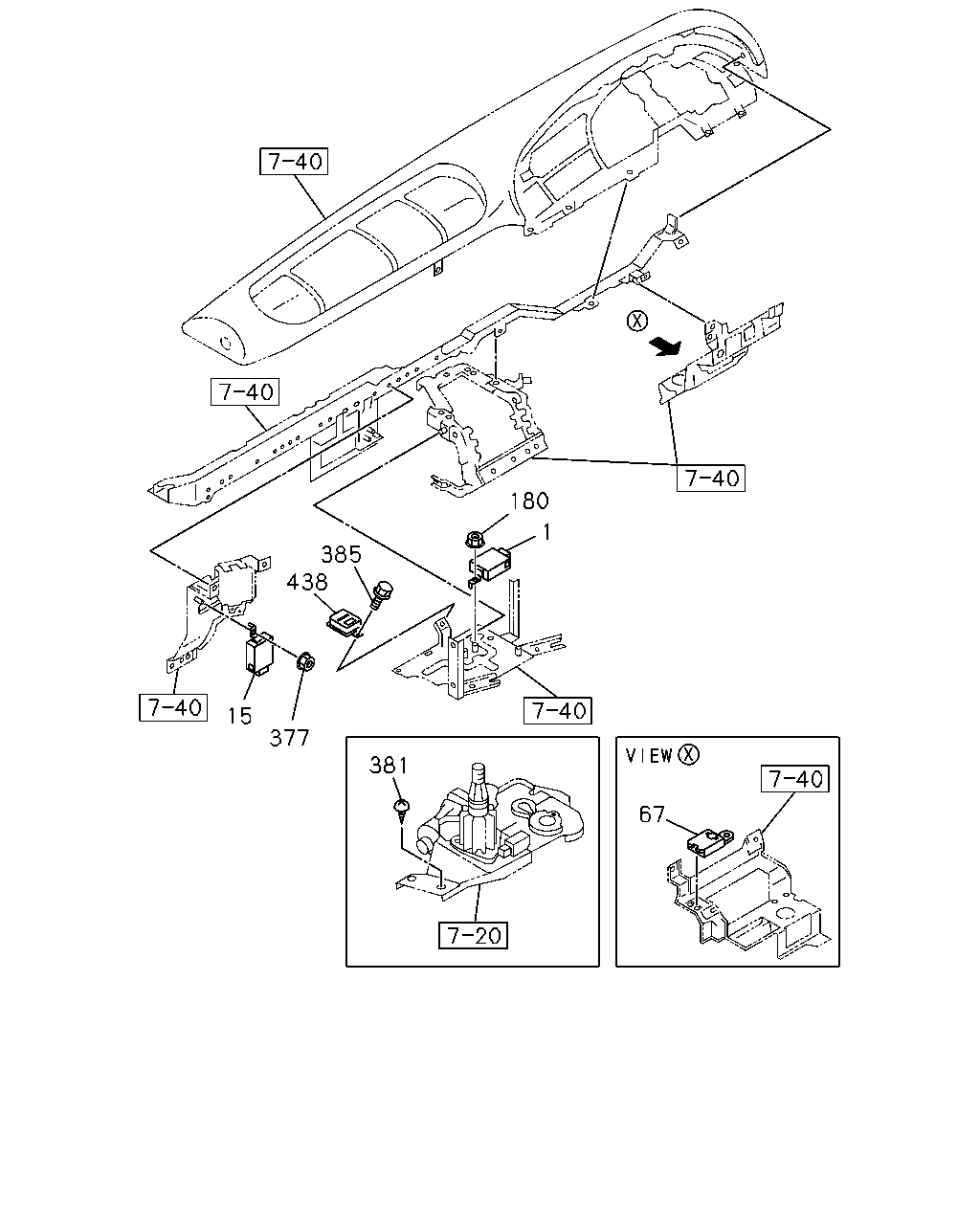

180 1 385 438 15 377 381 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	0106-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0106-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0106-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0106-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0106-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	0106-0210
385	BOLT; CONT UNIT WARNING BUZZER-SPEED<RF8> M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0106-
438	UNIT; SPD CONTROL WARNING BUZZER-SPEED<RF8>	1-82550-323-0	01	1	0106-

89 34 90 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0106-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (D)	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0106-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0106-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0106-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0106-0512
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0106-

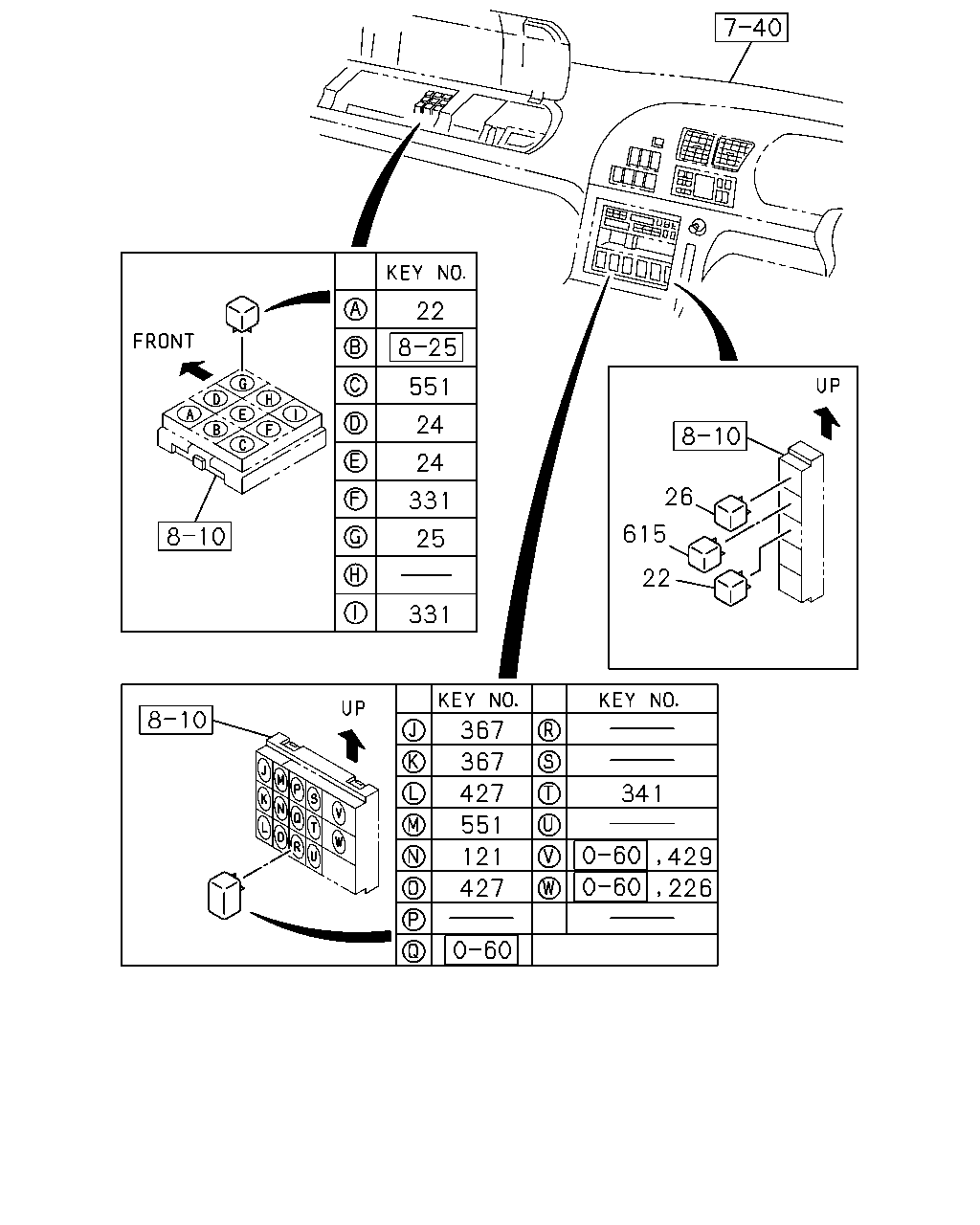

22 551 24 24 26 331 615 25 22 331 367 367 427 551 121 427 341 429 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A MATSUSHITA	8-97173-035-1	02	1	0106-
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
551	RELAY; TRANSMISSION WARNING BUZZER-SPEED<RF8> 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
551	RELAY; TRANSMISSION WARNING BUZZER-SPEED<RF8> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
551	RELAY; TRANSMISSION WARNING BUZZER-SPEED<RF8> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
615	RELAY; TRAILER 24V 12.5A JIDECO	8-97062-815-1	01	1	0106-0111
615	RELAY; TRAILER 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

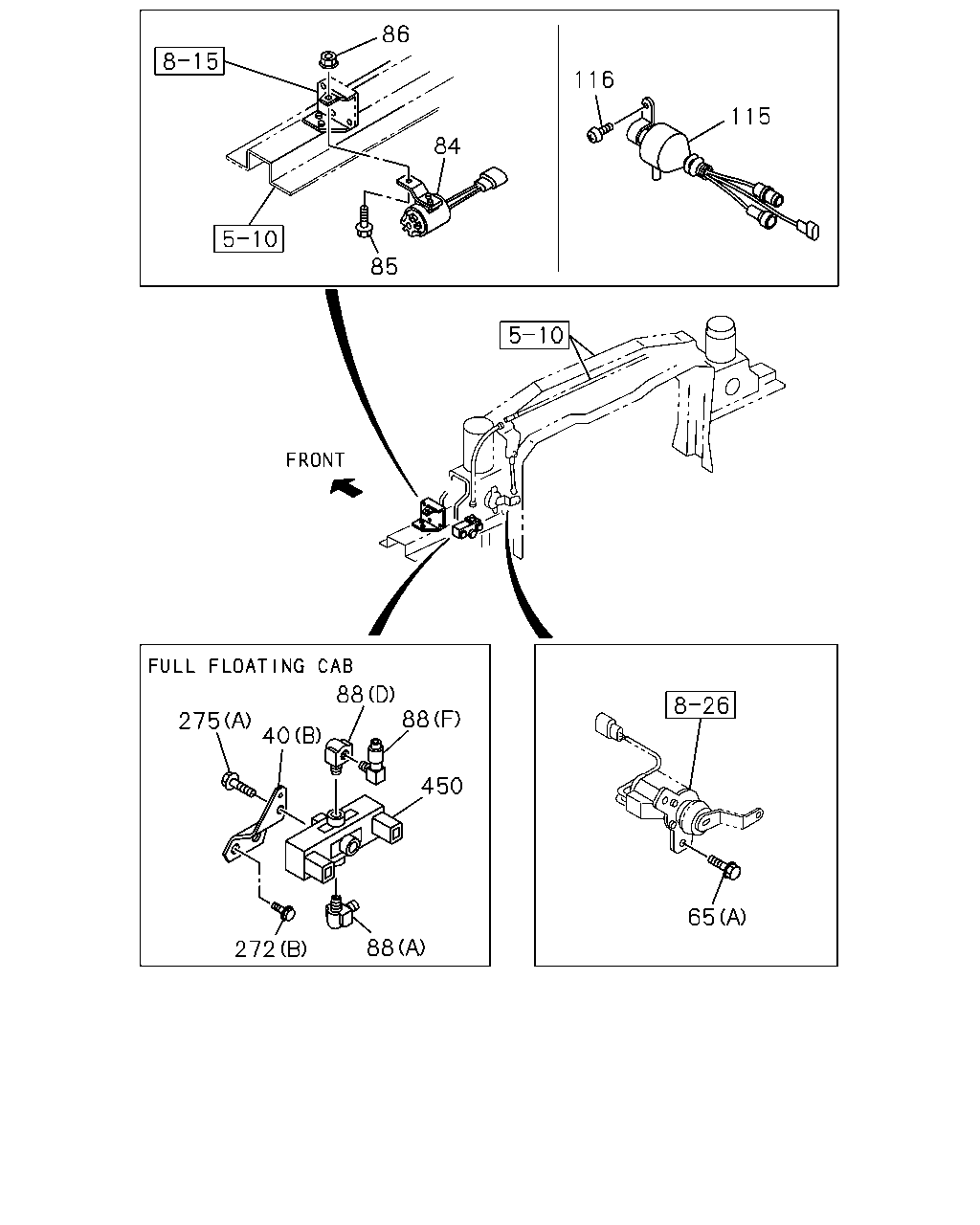

86 116 115 84 85 88 88 275 40 450 65 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0106-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-741-1	01	1	0106-0110
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0106-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0106-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0106-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0106-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0106-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
275	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
275	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0106-

290 275 272 34 286 261 34 714 33 39 34 261 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM)	1-82563-871-2	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0106-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0106-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (D)	1-09661-006-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0106-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	0601-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	0106-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0106-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
275	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
275	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
286	BRACKET ZF M/T<X9E>	1-82569-278-0	01	1	0106-
290	NUT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0106-0602
290	NUT ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U)	1-82563-871-2	01	1	0106-

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
275	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0106-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0106-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0106-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0106-0602
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91180-210-0	01	1	0603-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X50 FLANGE	0-28080-650-0	02	1	0106-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X50 FLANGE	0-28050-650-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
