◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#11017) — 439 parça

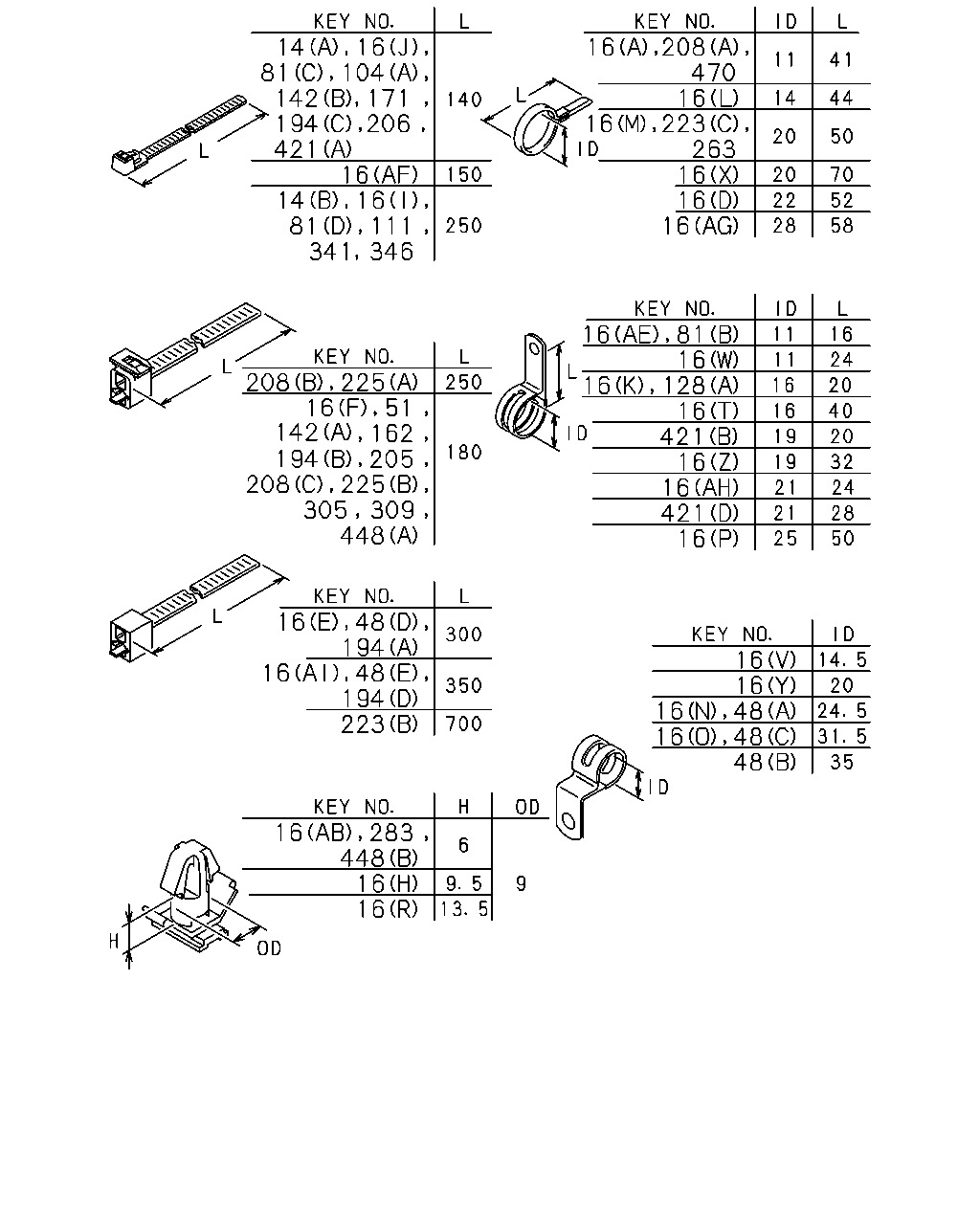

çizim 25355
14 16 81 104 142 171 194 206 421 16 14 16 81 111 341 346 225 208 208 16 51 142 162 194 205 225 305 309 448 16 48 194 16 48 194 223 16 283 448 16 16 48 48 16 16 48 16 16 16 421 16 16 421 16 128 16 16 81 16 16 16 16 263 16 223 16 470 208 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0106-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0106-0404
14 CLIP; BAND,HARNESS
RLD GOVERNOR(SD7) (A) L=140 		5-09707-031-1 01 1 0405-
14 CLIP; BAND,HARNESS
REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0405-
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(AG) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (Q) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (Q) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0106-0106
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 04 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(AH) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
(O) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0106-
16 CLIP; HARNESS
(P) ID=25 L=50 		1-09701-019-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0106-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AI) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(S) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
FULLER M/T<X9B> (AB) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0106-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0205
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 L=24 		9-09525-045-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
FULLER M/T<X9B> (I) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0106-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0106-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0106-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0106-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0106-0111
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0106-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 06 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0106-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0106-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0106-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0106-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0106-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0106-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0106-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0106-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0106-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5) (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0106-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) (C) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0106-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0106-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (C) L=180 		1-09707-162-1 01 1 0112-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		1-09707-126-0 01 1 0106-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41 		1-09700-403-0 01 1 0106-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (B) L=700 		1-09707-190-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0112-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0106-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0106-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 04 1 0112-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0106-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0106-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0106-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0106-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0106-
çizim 76637
5 185 224 1 178 178 178 178 178 503 530 510
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5) L=360 		1-82699-476-1 01 1 0106-0403
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) L=360 		1-82699-476-1 01 1 0404-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0106-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0106-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0106-
178 GROMMET; HARNESS
(D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0106-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0106-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0106-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0106-
510 GROMMET; SCREW
D=9X9 L=8 M6 		8-94222-314-0 02 1 0106-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0106-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
180X40 		1-72498-019-0 04 1 0106-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0106-

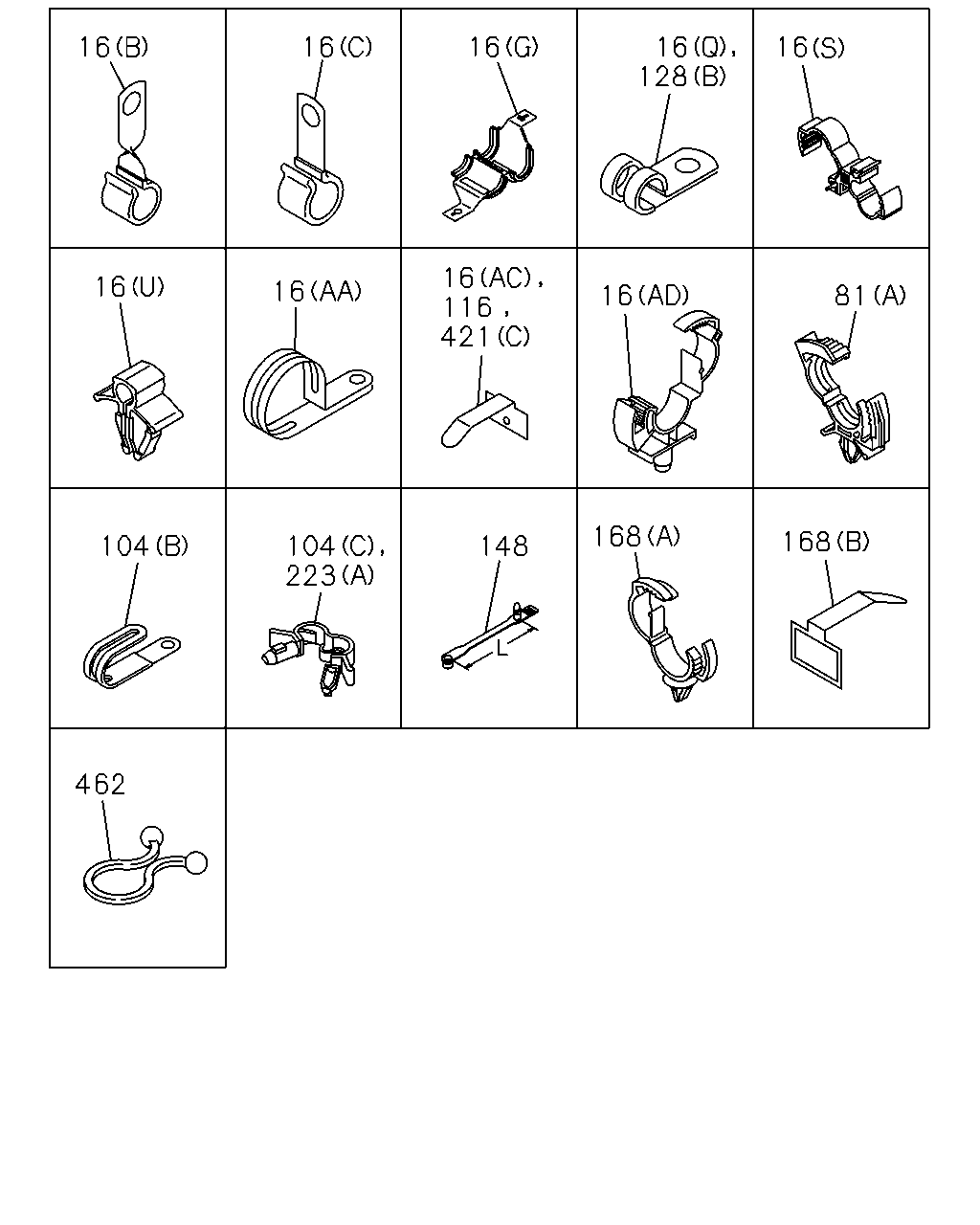

çizim 78307
16 16 16 16 128 16 116 421 16 16 16 81 168 168 104 104 223 148 462 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(AG) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150 		1-09707-145-1 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (Q) ID=19 L=28 		9-09525-856-0 01 1 0106-0606
16 CLIP; HARNESS
ZF M/T<X9E> (Q) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0106-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0106-0106
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106-
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 04 1 0106-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106-
16 CLIP; HARNESS
(AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0106-0402
16 CLIP; HARNESS
(AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0403
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) (AA) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0404-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-0109
16 CLIP; HARNESS
(AH) ID=21 L=24 		8-94176-807-1 01 1 0110-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106-0106
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0109-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
(O) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0106-
16 CLIP; HARNESS
(P) ID=25 L=50 		1-09701-019-0 02 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0106-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0212-
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0106-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106-0504
16 CLIP; HARNESS
(AI) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0106-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0106-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 06 1 0106-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 0106-
16 CLIP; HARNESS
(S) ID=6-10 & 6-10 		1-09709-192-1 01 1 0106-0106
16 CLIP; HARNESS
FULLER M/T<X9B> (AB) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0106-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0106-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0106-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0106
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106-0205
16 CLIP; HARNESS
FULLER M/T<X9B> (K) ID=16 L=20 		9-09525-535-0 01 1 0106-0205
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(K) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0106-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0106-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0106-0106
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0106-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0106-0108
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		0-95235-025-0 01 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 L=24 		9-09525-045-0 01 1 0106-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 L=24 		0-95235-045-0 01 1 0607-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 02 1 0106-0106
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
FULLER M/T<X9B> (I) L=250 		5-09707-030-1 02 1 0106-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0106-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (AC) L=20 		1-09987-246-2 04 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0106-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0106-0205
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0106-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0106-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0106-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0106-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0106-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0106-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0106-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0106-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (B) L=700 		1-09707-190-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 02 1 0106-0111
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 0112-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0106-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0106-0106
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-
çizim 78525
119 255 38 133 150 64 239 38 88 524 294 340 219 38 38 219 38 423 242 313 38 139 38 38 516 358 38 242 313 38 313
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 07 1 0208-0512
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0403
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0403
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5),RLD GOVERNOR(SD7) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0106-0106
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0107
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0108
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0403
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 03 1 0106-0512
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 09 1 0106-0207
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 02 1 0208-0512
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 07 1 0601-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0106-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0106-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0106-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0106-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0106-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER 		0-50040-812-0 01 1 0106-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER 		0-50540-812-0 01 1 0601-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0208-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
FULLER M/T<X9B> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0106-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0106-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0106-0207
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0208-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0603-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0106-0110
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0106-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0106-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0106-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0106-0106
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0106-0512
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
313 BOLT; BRKT
ZF M/T<X9E> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
313 BOLT; BRKT
ZF M/T<X9E> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0106-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0106-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 78711
312 312 312 312 312 324 334 342 312 342 375
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (F) 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(A) L=45 B=20 		1-47477-716-1 01 1 0106-
312 BRACKET; CLIP HARNESS
(D) 		1-47478-769-0 01 1 0106-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0106-0106
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
(E) 		1-82699-199-0 01 1 0106-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-239-0 01 1 0106-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82698-258-0 01 1 0106-
334 BRACKET 1-53458-362-0 01 1 0106-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0106-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0106-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
