Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10874 - CXZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41B - FUEL FILTER AND BRACKET
▶

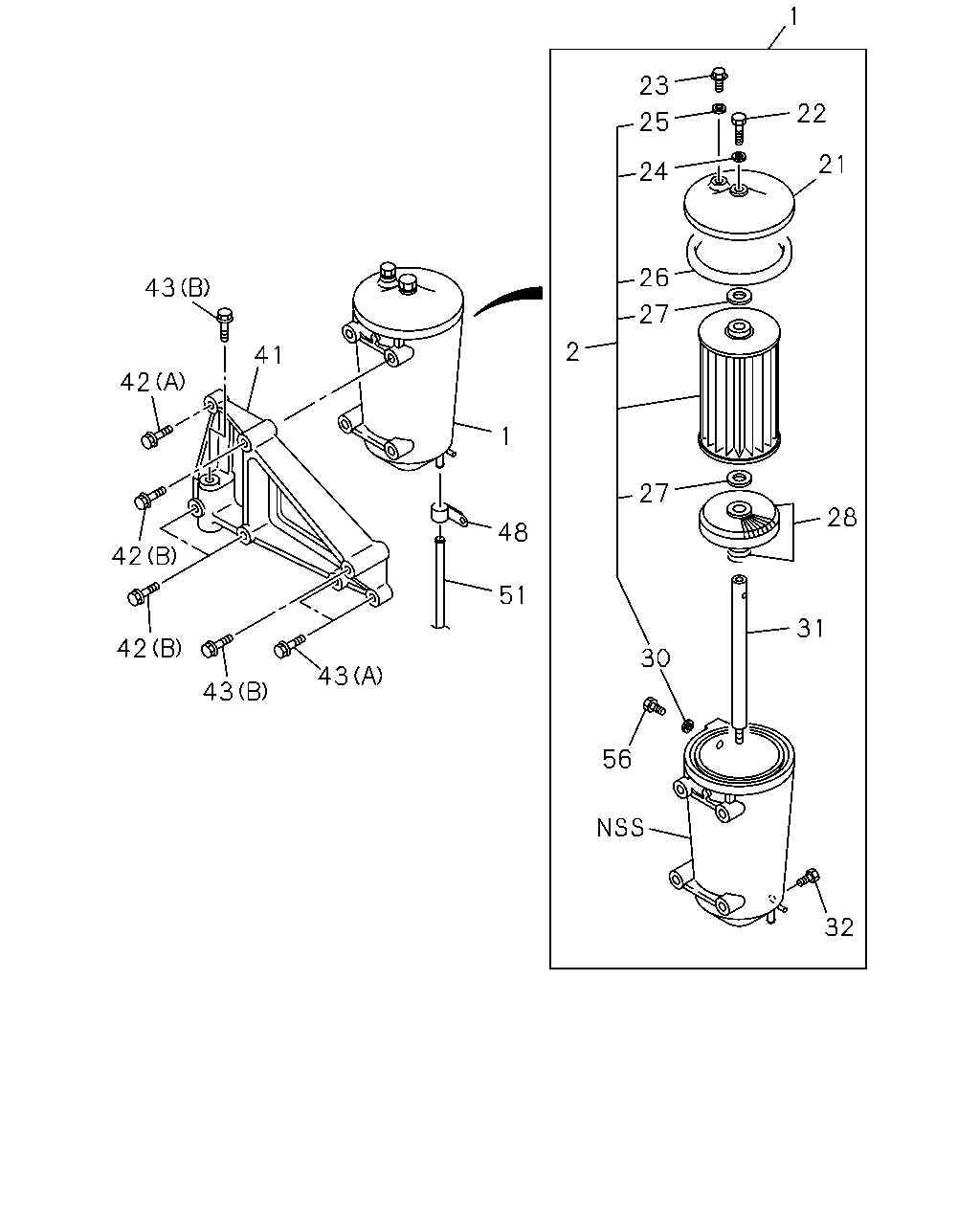

0-41B — FUEL FILTER AND BRACKET
(#11012) — 37 parça
Tümü
A - 10PE1S
B - 10PE1N
C - 10PE1H
1
23
22
25
21
24
26
43
27
2
41
42
1
27
28
48
42
51
31
42
30
43
43
56
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FILTER ASM; FUEL
1-13200-820-1
01
1
0105-0106
●
●
●
1
FILTER ASM; FUEL
1-13200-820-2
01
1
0107-
●
●
●
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0105-0106
●
●
●
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0107-
●
●
●
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0105-0106
●
●
●
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0107-
●
●
●
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0105-0106
●
●
●
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0107-
●
●
●
23
PLUG; COVER
1-13219-074-0
01
1
0105-0106
●
●
●
23
PLUG; COVER
1-13219-074-0
01
1
0107-
●
●
●
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0105-0106
●
●
●
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0107-
●
●
●
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0105-0106
●
●
●
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0107-
●
●
●
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0105-0106
●
●
●
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0107-
●
●
●
27
GASKET; ELEMENT
1-09630-007-0
02
1
0105-0106
●
●
●
27
GASKET; ELEMENT
1-09630-007-0
02
1
0107-
●
●
●
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0105-0106
●
●
●
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0107-
●
●
●
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0105-0106
●
●
●
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0107-
●
●
●
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0105-0106
●
●
●
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0107-
●
●
●
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0105-0106
●
●
●
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0107-
●
●
●
41
BRACKET; FUEL FILTER
1-19755-090-0
01
1
0105-
●
●
●
42
BOLT; FUEL FILTER
(A) M10X28
0-28081-028-0
01
1
0105-
●
●
●
42
BOLT; FUEL FILTER
(B) M10X60 FLANGE
0-28081-060-0
03
1
0105-0512
●
●
●
42
BOLT; FUEL FILTER
(B) M10X60 FLANGE
0-28051-060-0
03
1
0601-
●
●
●
43
BOLT; BRKT
(A) M10X40 FLANGE
0-28181-040-0
02
1
0105-0512
●
●
●
43
BOLT; BRKT
(A) M10X40 FLANGE
0-28151-040-0
02
1
0601-
●
●
●
43
BOLT; BRKT
(B) M10X75 FLANGE
8-94399-669-1
02
1
0105-
●
●
●
48
CLIP; VINYL PIPE
ID=11 L=36.5
9-09915-274-1
01
1
0105-
●
●
●
51
PIPE; VINYL
L=750 SERVICED BY L=10000
9-09914-909-0
01
1
0105-
●
●
●
56
PLUG; FUEL FILTER
M14X9
9-99202-314-0
01
1
0105-0106
●
●
●
56
PLUG; FUEL FILTER
M14X9
9-99202-314-0
01
1
0107-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
