0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#11006) — 58 parça

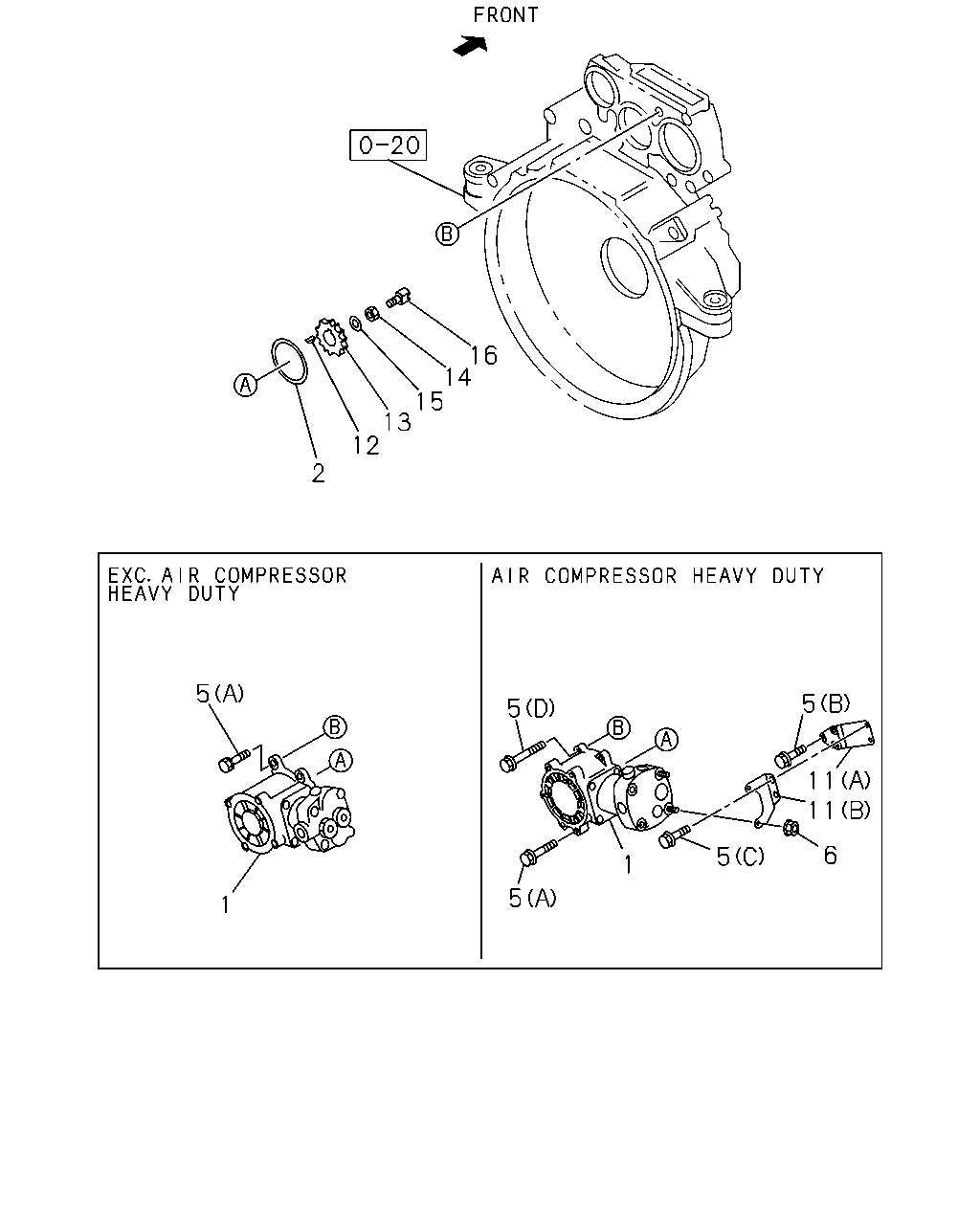

16 14 15 13 12 2 5 5 5 11 11 6 5 1 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19100-305-2	01	1	0105-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	0105-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) M10X18 FLANGE	0-28181-018-0	03	1	0105-	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A) M12X90 FLANGE	0-28181-290-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (D) M12X140 FLANGE	0-28186-214-0	03	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (D) M12X140 FLANGE	0-28156-214-0	03	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C) M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (C) M10X20 W/LK&PL WASHER	0-50641-020-0	01	1	0601-	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE	0-28181-235-0	04	1	0105-0512	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE	0-28151-235-0	04	1	0601-	●	●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-19187-030-0	01	1	0105-	●	●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19187-031-0	01	1	0105-	●	●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0105-	●	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-1	01	1	0105-	●	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	0105-0512	●	●	●
14	NUT; GEAR M20	0-91111-520-0	01	1	0601-	●	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	0105-	●	●	●
16	ADAPTER	1-12539-010-0	01	1	0105-	●	●	●

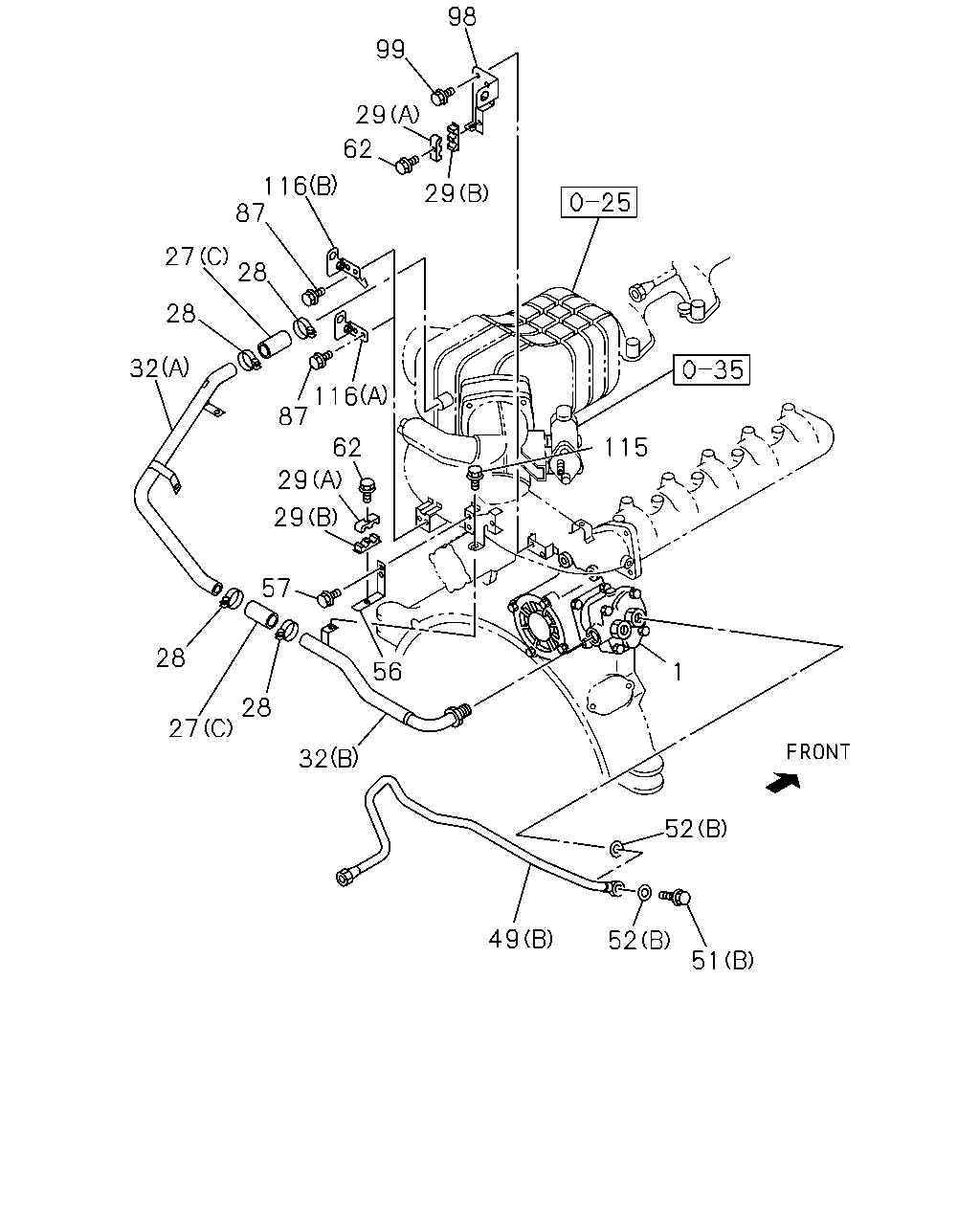

98 99 29 62 116 87 29 27 28 28 32 116 87 115 62 29 29 57 28 56 1 28 27 32 52 49 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19100-305-2	01	1	0105-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	0105-	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0106	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0107-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0106	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0108-	●	●	●
29	CLIP; AIR PIPE (A) ID=9 & 11 L=28	1-09701-193-1	02	1	0105-	●	●	●
29	CLIP; AIR PIPE (B) ID=9 & 11 L=28	1-09701-194-1	02	1	0105-	●	●	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-902-0	01	1	0105-	●	●	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19192-984-0	01	1	0105-	●	●	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-983-0	01	1	0105-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19193-073-0	01	1	0105-	●	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) (B)	1-19192-928-0	01	1	0105-	●	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19192-956-0	01	1	0105-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-0106	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0107-0107	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0108-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-0106	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0107-0107	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0108-	●	●	●
56	BRACKET; AIR PIPE FIX	1-19199-228-0	01	1	0105-	●	●	●
57	BOLT; BRKT,AIR PIPE M6X12 FLANGE	0-28080-612-0	02	1	0105-0512	●	●	●
57	BOLT; BRKT,AIR PIPE M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●	●
62	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	0105-0512	●	●	●
62	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-	●	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
98	BRACKET; AIR & OIL PIPE	1-19199-227-0	01	1	0105-	●	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
115	BOLT; AIR PIPE M6X12 FLANGE	0-28080-612-0	03	1	0105-0512	●	●	●
115	BOLT; AIR PIPE M6X12 FLANGE	0-28050-612-0	03	1	0601-	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-13319-028-0	01	1	0105-	●	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (A)	1-22196-326-1	01	1	0105-	●	●	●
