0-35B — ENGINE CONTROL VALVE AND LEVER (#11002) — 110 parça

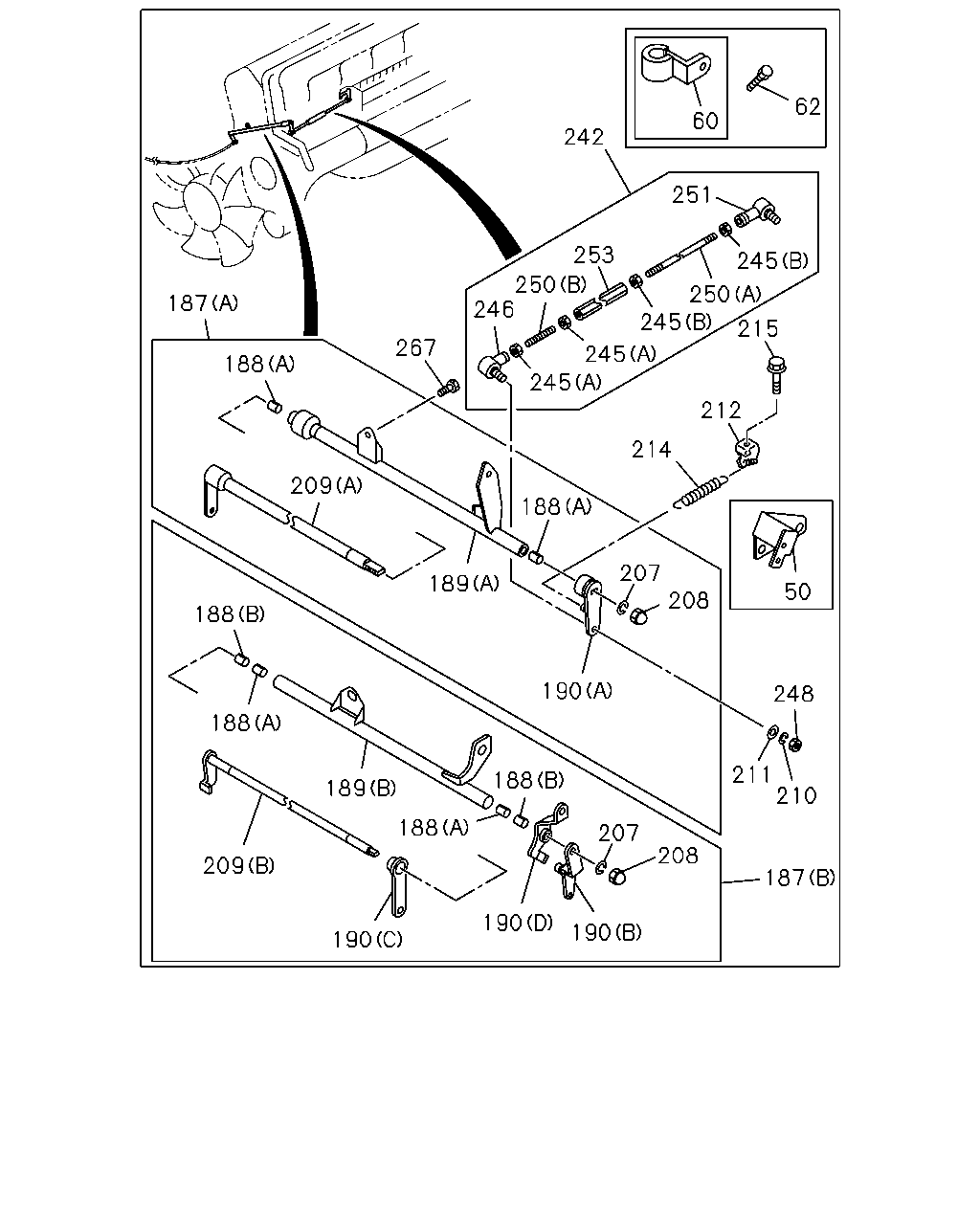

62 60 242 251 253 250 246 245 250 245 245 245 187 215 267 188 212 214 209 188 189 207 208 50 188 190 248 188 188 211 210 189 188 207 208 209 187 190 190 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	BRACKET; ENG CONT CABLE MIXER TRUCK<RA2>	1-23335-493-0	01	1	0105-	●	●
60	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0105-			●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	0105-0512	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28050-616-0	02	1	0601-	●	●	●
187	CONTROL ASM; ENG MIXER TRUCK<RA2> (B)	1-23300-329-0	01	1	0105-	●	●
187	CONTROL ASM; ENG EXC. MIXER TRUCK<RA2> (A)	1-23300-326-0	01	1	0105-	●	●
188	BUSHING; CONT SHAFT (A)	1-09330-053-0	02	1	0105-	●	●
188	BUSHING; CONT SHAFT MIXER TRUCK<RA2> (B)	1-09330-059-0	02	1	0105-	●	●
189	BRACKET; ENG CONT MIXER TRUCK<RA2> (B)	1-23335-492-0	01	1	0105-	●	●
189	BRACKET; ENG CONT EXC. MIXER TRUCK<RA2> (A)	1-23335-482-0	01	1	0105-	●	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (E)	1-23335-503-0	01	1	0105-			●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (B)	1-23311-353-0	01	1	0105-	●	●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (C)	1-23311-354-0	01	1	0105-	●	●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (D)	1-23311-355-0	01	1	0105-	●	●
190	LEVER; ENG CONT EXC. MIXER TRUCK<RA2> (A)	1-23311-352-0	01	1	0105-	●	●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	0105-0603	●	●
207	WASHER; LK,CONT LEVER ID=8.2	0-91510-508-0	01	1	0604-	●	●
208	NUT; LEVER	1-09984-015-0	01	1	0105-	●	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0105-0206			●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0207-			●
209	SHAFT; ENG CONT MIXER TRUCK<RA2> (B)	1-23331-130-0	01	1	0105-	●	●
209	SHAFT; ENG CONT EXC. MIXER TRUCK<RA2> (A)	1-23331-128-0	01	1	0105-	●	●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	0105-0603	●	●
210	WASHER; LK,JOINT BALL ID=5.1	0-91510-505-0	02	1	0604-	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	0105-	●	●
212	BRACKET; SPR EYE	1-23335-486-0	01	1	0105-	●	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206			●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0207-			●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	0105-	●	●
215	BOLT; BRKT SPR EYE M10X16 FLANGE	0-28181-016-0	01	1	0105-0512	●	●
215	BOLT; BRKT SPR EYE M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●
242	LINK ASM L=216	1-23314-177-0	01	1	0105-	●	●
245	NUT; LINK (A) M5 LH THREAD	9-09840-277-0	02	1	0105-	●	●
245	NUT; LINK (B) M5	9-99110-405-0	02	1	0105-	●	●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	0105-	●	●
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	0105-0512	●	●
248	NUT; JOINT BALL M5	0-91110-505-0	02	1	0601-	●	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	0105-	●	●
250	ROD; ROD TO JOINT (A) M5X120	9-08400-512-0	01	1	0105-	●	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	0105-	●	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	0105-	●	●
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	0105-0512	●	●
267	BOLT; ENG CONT M10X30 FLANGE	0-28151-030-0	01	1	0601-	●	●

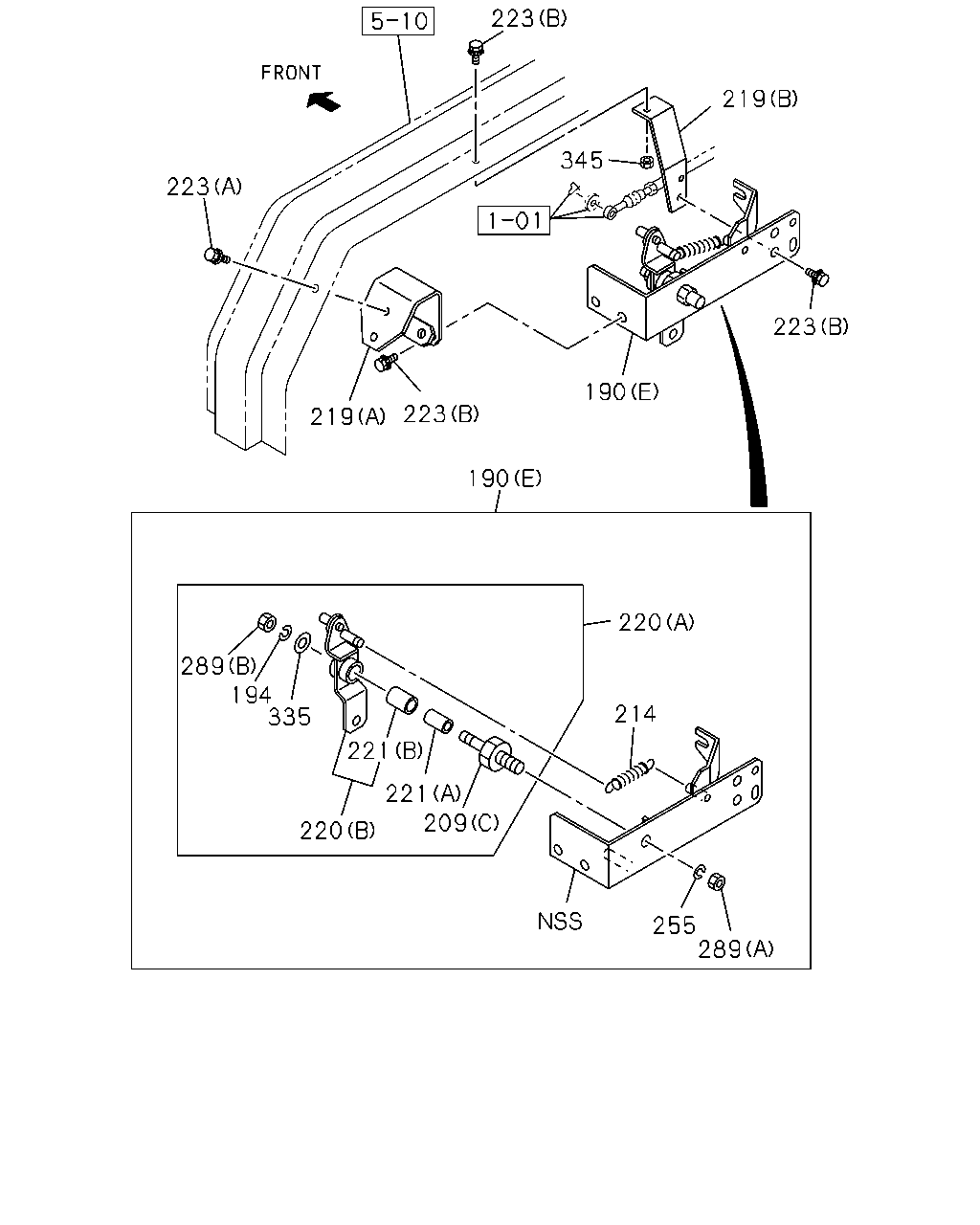

223 219 223 223 190 223 219 190 220 289 194 335 214 221 221 209 220 255 289 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (E)	1-23335-503-0	01	1	0105-			●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (B)	1-23311-353-0	01	1	0105-	●	●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (C)	1-23311-354-0	01	1	0105-	●	●
190	LEVER; ENG CONT MIXER TRUCK<RA2> (D)	1-23311-355-0	01	1	0105-	●	●
190	LEVER; ENG CONT EXC. MIXER TRUCK<RA2> (A)	1-23311-352-0	01	1	0105-	●	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0105-0206			●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	0207-0603			●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	0-91510-508-0	01	1	0604-			●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0105-0206			●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-14336-002-1	01	1	0207-			●
209	SHAFT; ENG CONT MIXER TRUCK<RA2> (B)	1-23331-130-0	01	1	0105-	●	●
209	SHAFT; ENG CONT EXC. MIXER TRUCK<RA2> (A)	1-23331-128-0	01	1	0105-	●	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0105-0206			●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	0207-			●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	0105-	●	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0105-0206			●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	0207-			●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	0105-			●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23311-359-0	01	1	0105-			●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23311-360-0	01	1	0105-			●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0105-0206			●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	0207-			●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0105-0206			●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	0207-			●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512			●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28650-820-0	05	1	0601-			●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512			●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0105-0206			●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	0207-0603			●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	0-91510-510-0	01	1	0604-			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0105-0206			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	0207-0512			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	0-91110-510-0	01	1	0601-			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0105-0206			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	0207-0512			●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	0-91111-508-0	01	1	0601-			●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0105-0206			●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	0207-			●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	0105-0602			●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91180-108-0	01	1	0603-			●

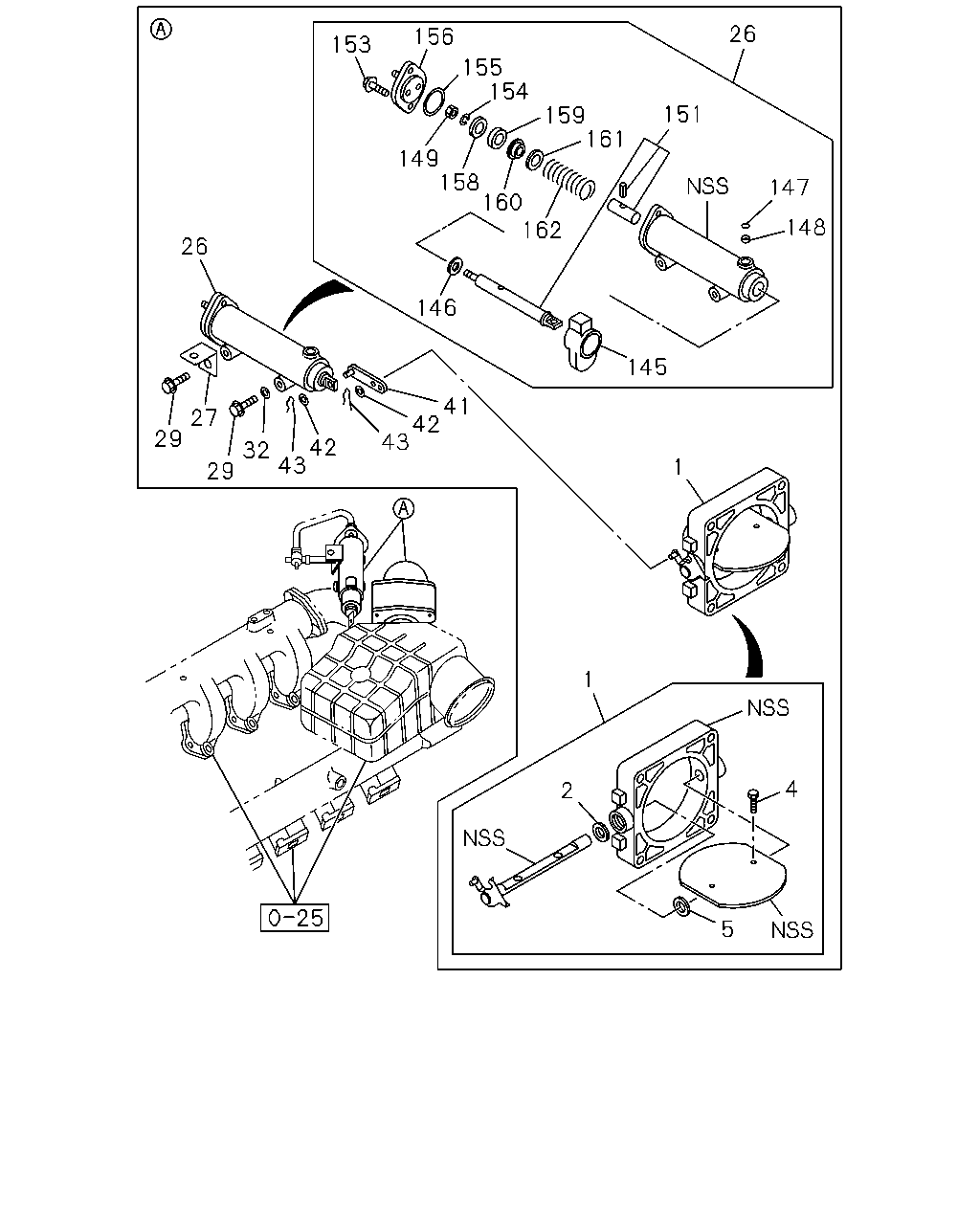

26 156 153 155 154 151 159 161 149 158 160 162 147 148 26 146 145 41 42 43 27 29 32 42 43 29 1 1 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHUTTER ASM; INT	1-14310-219-1	01	1	0105-	●	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	0105-	●	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	0105-	●	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	0105-	●	●	●
26	CYLINDER ASM; CONT	1-22190-527-1	01	1	0105-	●	●	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	0105-	●	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●	●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	0105-	●	●	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	0105-	●	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	0105-	●	●	●
145	COVER; BREATHER	1-22199-008-0	01	1	0105-	●	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	0105-	●	●	●
147	RING; RET	9-88510-331-0	01	1	0105-	●	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	0105-	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	0105-	●	●	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	0105-	●	●	●
153	BOLT; CONT CYL	1-33739-326-0	02	1	0105-	●	●	●
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	0105-	●	●	●
156	COVER; CONT CYL	1-22189-162-1	01	1	0105-	●	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	0105-	●	●	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	0105-	●	●	●
160	PLATE	1-22199-020-0	01	1	0105-	●	●	●
161	RING; WEAR	1-22199-002-0	01	1	0105-	●	●	●
162	SPRING; CONT CYL	1-22199-018-0	01	1	0105-	●	●	●
