◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51297 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55C - FRONT LEAF SPRING ▶
4-55C — FRONT LEAF SPRING (#110012) — 63 parça

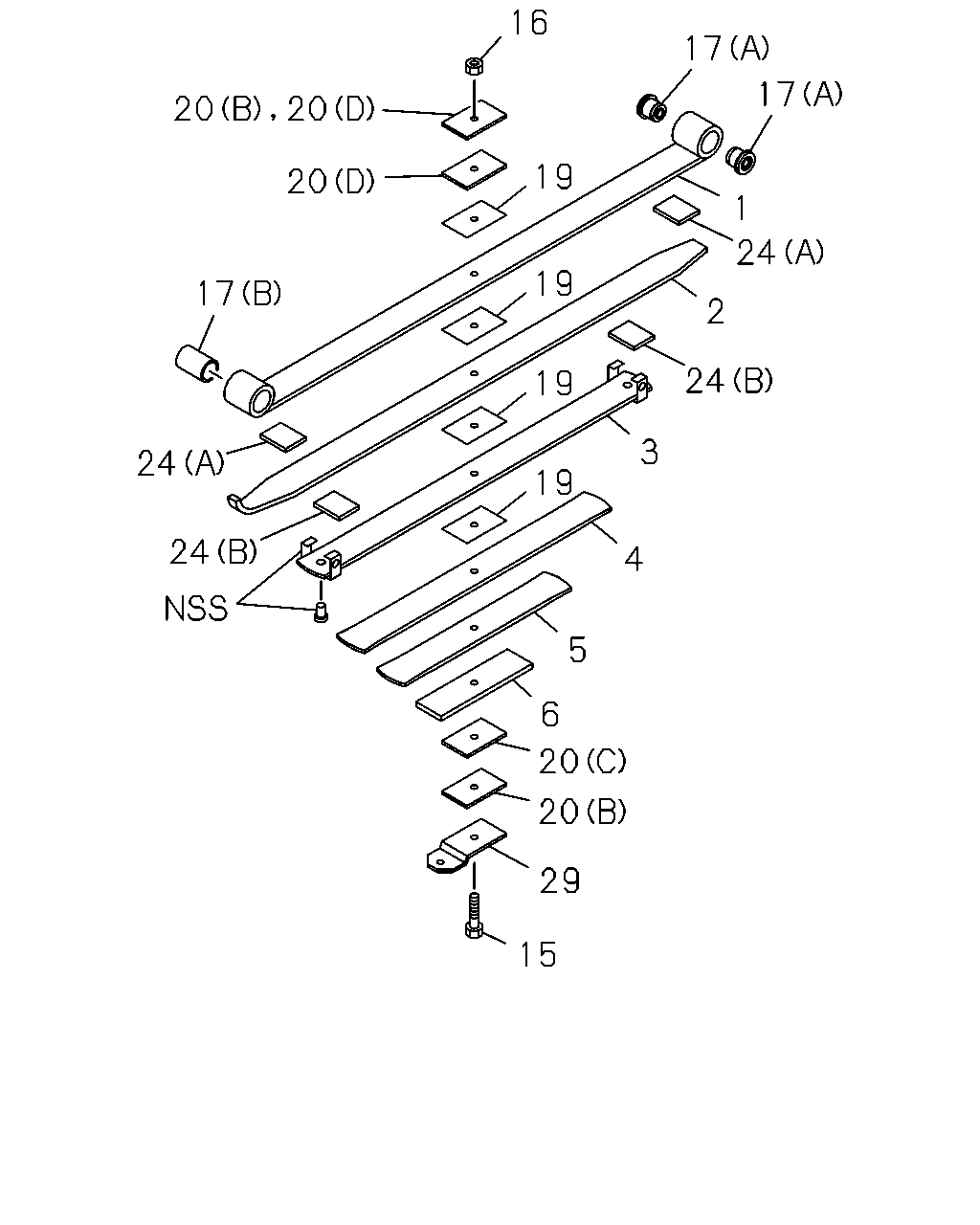

çizim 320045
20 20 20 17 24 24 15 29 20 20 6 5 4 3 19 19 24 2 24 1 17 17 16 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-370-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-379-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-293-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-299-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-072-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-100-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-107-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-128-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-371-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-380-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-294-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-300-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-073-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-101-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-108-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-129-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-372-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-381-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-295-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-301-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-074-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-102-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-109-1 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-130-1 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-373-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-382-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-296-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-302-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-075-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-103-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-110-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-131-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-374-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-383-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-297-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-303-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-076-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-104-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-111-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-132-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98079-922-0, 98079922 		8-98081-375-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98079-920-0, 98079920 		8-98081-384-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98154-915-0, 98154915 		8-98094-298-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98154-916-0, 98154916 		8-98094-304-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: H = 8-98190-546-1, 98190546 		8-98193-077-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: E = 8-98190-541-1, 98190541 		8-98193-105-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: F = 8-98190-542-1, 98190542 		8-98193-112-0 01 1 -
6 07.415 SPRING; LEAF,NO 6,FRT
ASM PART: G = 8-98190-545-1, 98190545 		8-98193-133-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=110 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542 		8-98081-376-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98152-295-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-97084-845-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542 		8-98041-368-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98041-368-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542 		8-98077-684-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D) ASM PART: C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98094-959-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(A) ASM PART: E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-97084-848-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
(B) ASM PART: E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98193-187-0 02 1 -1505
24 07.436 LINER; LEAF SPR,FWD FRT
07.506, (B) ASM PART: E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98193-188-0 02 1 1506-
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98079-920-0, 98079920, B = 8-98079-922-0, 98079922, E = 8-98190-541-1, 98190541, F = 8-98190-542-1, 98190542 		8-94342-292-1 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-98154-915-0, 98154915, D = 8-98154-916-0, 98154916, G = 8-98190-545-1, 98190545, H = 8-98190-546-1, 98190546 		8-98152-826-0 01 1 -
