◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35A - ENGINE CONTROL VALVE AND LEVER ▶
0-35A — ENGINE CONTROL VALVE AND LEVER (#11001) — 169 parça

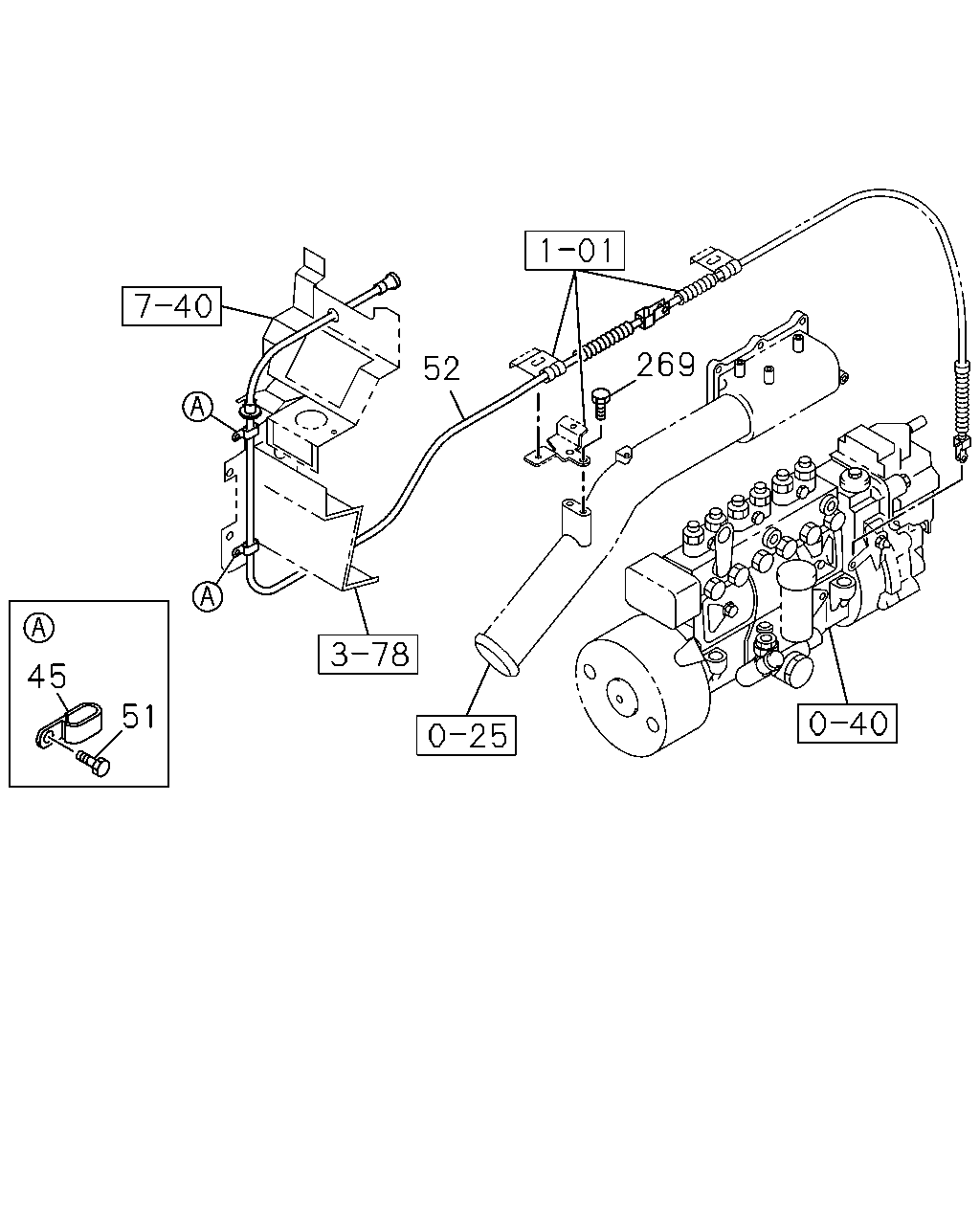

çizim 22090
269 52 45 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 02 1 0105-0106 ●
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		9-09525-035-0 02 1 0105-0106 ● ●
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 02 1 0107- ●
45 CLIP; FUEL CUT CABLE
ID=11 L=20 		9-09525-035-0 02 1 0107- ● ● ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0106 ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0106 ● ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107- ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107- ● ● ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=3334 		1-73907-534-0 01 1 0105- ●
52 CABLE; FUEL CUT
L=3334 		1-73907-534-0 01 1 0105- ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=3199 		1-73907-528-0 01 1 0105- ●
52 CABLE; FUEL CUT
L=3479 		1-73907-677-0 01 1 0105-0106 ●
52 CABLE; FUEL CUT
L=3479 		1-73907-677-0 01 1 0107-0404 ● ●
52 CABLE; FUEL CUT
L=3479 		1-73907-720-0 01 1 0405- ● ●
269 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 0105-0106 ●
269 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 0107-0512 ● ●
269 BOLT; BRKT FIX
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ●

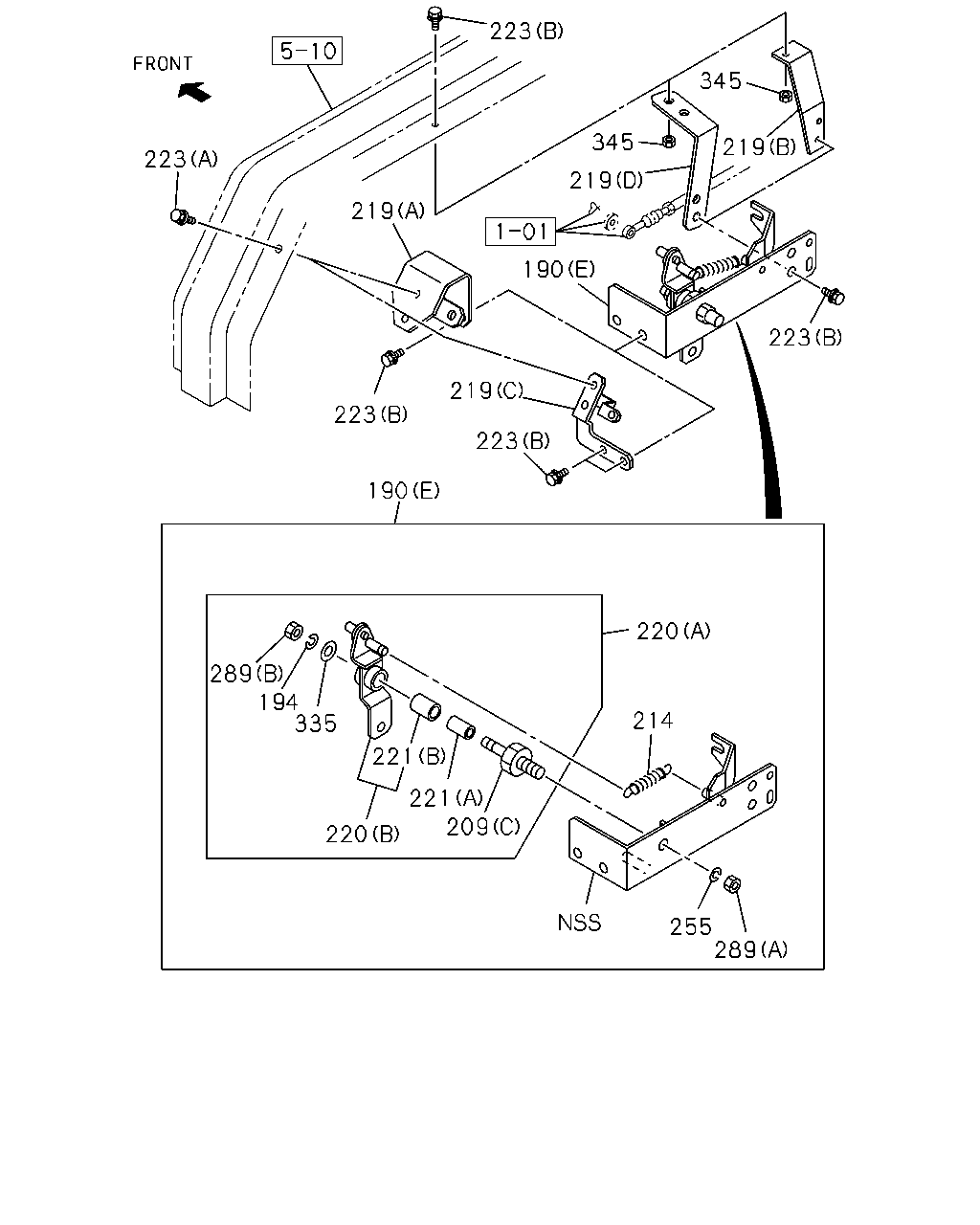

çizim 77112
223 345 345 219 223 219 219 190 223 219 223 223 190 220 289 194 335 214 221 221 209 220 255 289
BalonParca AdiParca NoAdetTipApplied Date A B C D
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (F) 		1-23335-547-0 01 1 0105-0106 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-547-0 01 1 0105-0106 ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (F) 		1-23335-547-0 01 1 0107-0109 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-547-0 01 1 0107-0109 ● ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (F) 		1-23335-504-0 01 1 0105-0109 ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-504-0 01 1 0110-0206 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-504-0 01 1 0110-0206 ● ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (G) 		8-97219-466-3 01 1 0207- ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (G) 		8-97219-466-3 01 1 0207- ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (E) 		1-23335-503-0 01 1 0105- ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0105-0206 ● ● ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2 		9-09150-508-0 01 1 0207-0603 ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2 		0-91510-508-0 01 1 0604- ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-14336-002-1 01 1 0105-0206 ● ● ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-14336-002-1 01 1 0207- ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 0105-0206 ● ● ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) 		8-94481-840-1 01 1 0207- ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-580-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-580-0 01 1 0207- ● ● ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-581-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-581-0 01 1 0207- ● ● ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-579-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-545-0 01 1 0105-0109 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-545-0 01 1 0105-0109 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-572-0 01 1 0110-0202 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-572-0 01 1 0110-0202 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-575-0 01 1 0203-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-575-0 01 1 0203-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-23335-575-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-546-0 01 1 0105-0202 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-546-0 01 1 0105-0202 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-574-0 01 1 0203-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-574-0 01 1 0203-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (D) 		1-23335-574-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 0105-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B) 		1-23335-460-2 01 1 0105- ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0105-0106 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0105-0106 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0107-0206 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0107-0206 ● ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-551-0 01 1 0105-0106 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-551-0 01 1 0105-0106 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-551-0 01 1 0107-0109 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-551-0 01 1 0107-0109 ● ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (D) 		1-23335-505-0 01 1 0105-0109 ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-505-0 01 1 0110-0206 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-505-0 01 1 0110-0206 ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-23311-359-0 01 1 0105- ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-23311-360-0 01 1 0105- ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0105-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-09330-057-0 01 1 0207- ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0105-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-09330-058-0 01 1 0207- ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512 ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0105-0206 ● ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 0207-0603 ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2 		0-91510-510-0 01 1 0604- ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0105-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		9-09110-410-0 01 1 0207-0512 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		0-91110-510-0 01 1 0601- ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0105-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8 		9-09111-408-0 01 1 0207-0512 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8 		0-91111-508-0 01 1 0601- ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0105-0206 ● ● ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) 		5-09503-135-0 01 1 0207- ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●

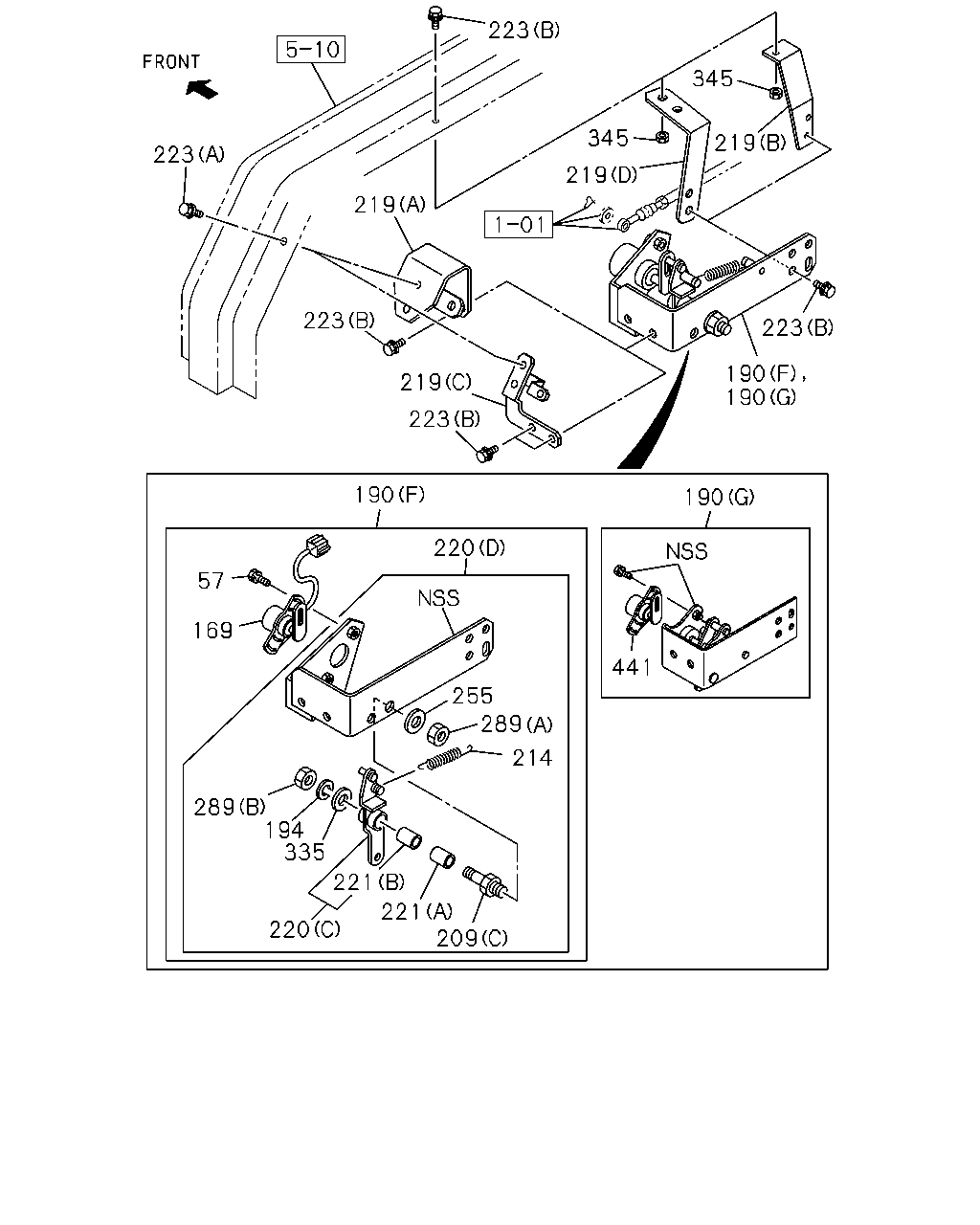

çizim 80878
223 345 345 219 223 219 219 223 223 190 190 219 223 190 190 220 57 169 441 255 214 289 194 335 221 221 209 220 289
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0105-0106 ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0105-0106 ● ●
57 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0107-0206 ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0107-0206 ● ● ●
169 SENSOR
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0105-0106 ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0105-0106 ● ●
169 SENSOR
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0107-0206 ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0107-0206 ● ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (F) 		1-23335-547-0 01 1 0105-0106 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-547-0 01 1 0105-0106 ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (F) 		1-23335-547-0 01 1 0107-0109 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-547-0 01 1 0107-0109 ● ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (F) 		1-23335-504-0 01 1 0105-0109 ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-504-0 01 1 0110-0206 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (F) 		1-23335-504-0 01 1 0110-0206 ● ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (G) 		8-97219-466-3 01 1 0207- ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (G) 		8-97219-466-3 01 1 0207- ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (E) 		1-23335-503-0 01 1 0105- ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0105-0206 ● ● ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2 		9-09150-508-0 01 1 0207-0603 ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.2 		0-91510-508-0 01 1 0604- ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-14336-002-1 01 1 0105-0206 ● ● ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-14336-002-1 01 1 0207- ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 0105-0206 ● ● ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) 		8-94481-840-1 01 1 0207- ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-580-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-580-0 01 1 0207- ● ● ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-581-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-581-0 01 1 0207- ● ● ●
219 BRACKET; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-579-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-545-0 01 1 0105-0109 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-545-0 01 1 0105-0109 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-572-0 01 1 0110-0202 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-572-0 01 1 0110-0202 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-575-0 01 1 0203-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23335-575-0 01 1 0203-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-23335-575-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-546-0 01 1 0105-0202 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-546-0 01 1 0105-0202 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-574-0 01 1 0203-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-574-0 01 1 0203-0206 ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (D) 		1-23335-574-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 0105-0206 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 0207- ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B) 		1-23335-460-2 01 1 0105- ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0105-0106 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0105-0106 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0107-0206 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (C) 		1-23311-357-0 01 1 0107-0206 ● ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-551-0 01 1 0105-0106 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-551-0 01 1 0105-0106 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-551-0 01 1 0107-0109 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-551-0 01 1 0107-0109 ● ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (D) 		1-23335-505-0 01 1 0105-0109 ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-505-0 01 1 0110-0206 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (D) 		1-23335-505-0 01 1 0110-0206 ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-23311-359-0 01 1 0105- ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-23311-360-0 01 1 0105- ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0105-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-09330-057-0 01 1 0207- ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0105-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-09330-058-0 01 1 0207- ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512 ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0105-0206 ● ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 0207-0603 ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=10.2 		0-91510-510-0 01 1 0604- ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0105-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		9-09110-410-0 01 1 0207-0512 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		0-91110-510-0 01 1 0601- ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0105-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8 		9-09111-408-0 01 1 0207-0512 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) M8 		0-91111-508-0 01 1 0601- ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0105-0206 ● ● ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) 		5-09503-135-0 01 1 0207- ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
441 SENSOR; THROTTLE POSITION
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0207- ●
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0207- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
