4-65B — REAR LEAF SPRING (#110003) — 46 parça

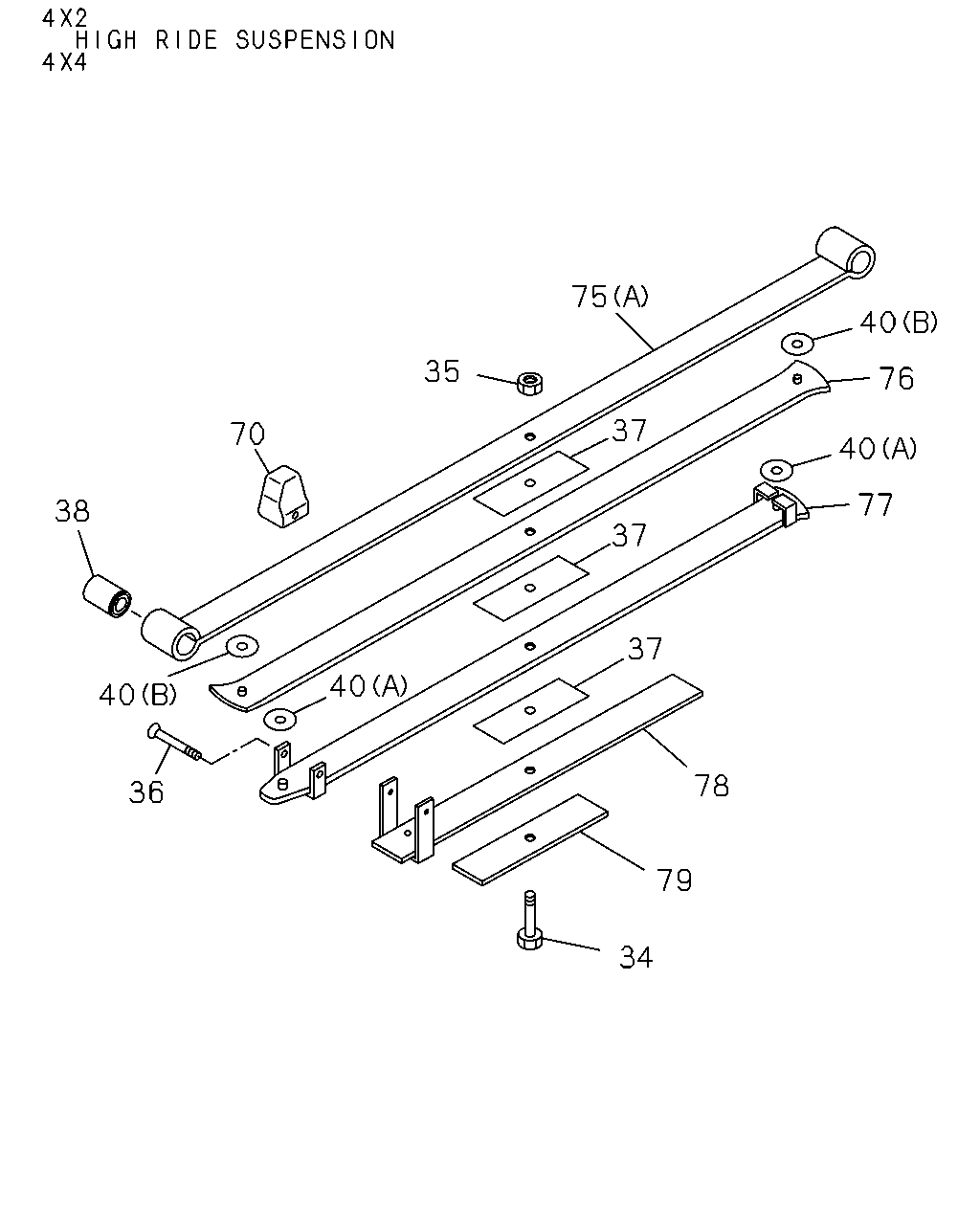

75 35 70 38 40 36 40 79 34 78 37 37 37 77 40 76 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-011-3, 97947011, F = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-

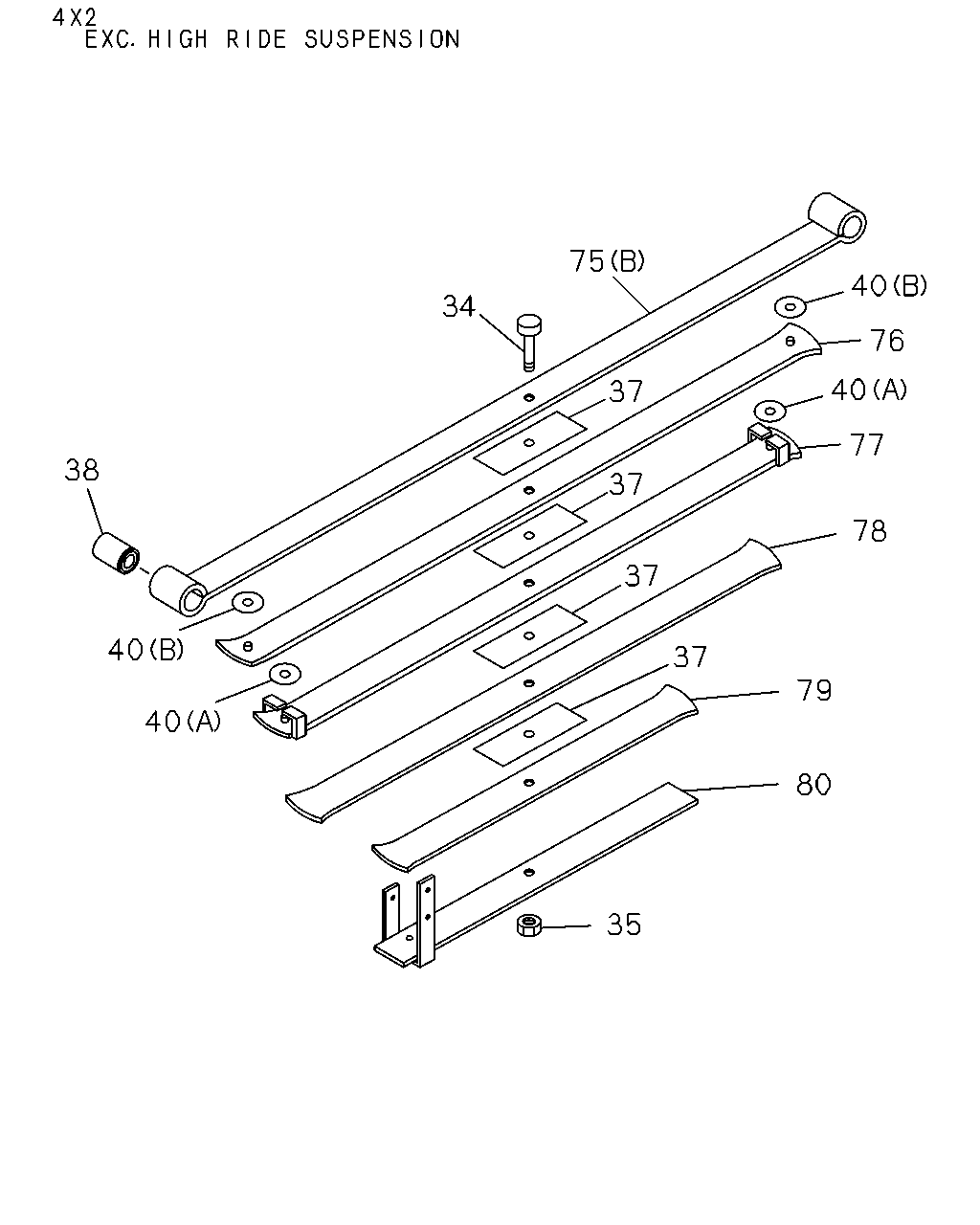

75 34 38 40 40 35 80 79 37 37 37 37 78 77 40 76 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97947-009-2, 97947009, B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, D = 8-98215-677-0, 98215677, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-218-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-430-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-446-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-431-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-447-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-432-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-011-3, 97947011, F = 8-98215-684-0, 98215684	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683	8-98174-370-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-433-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344	8-97947-449-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-98215-883-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97947-009-2, 97947009, D = 8-98215-677-0, 98215677	8-97947-434-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-011-3, 97947011, C = 8-98174-344-2, 98174344, E = 8-98215-683-0, 98215683, F = 8-98215-684-0, 98215684	8-97947-450-1	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: A = 8-97947-009-2, 97947009	8-97947-435-1	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: D = 8-98215-677-0, 98215677	8-98215-879-0	01	1	-
