Sayfa 4-65A - Isuzu EPC

4-65A — REAR LEAF SPRING (#110002) — 248 parça

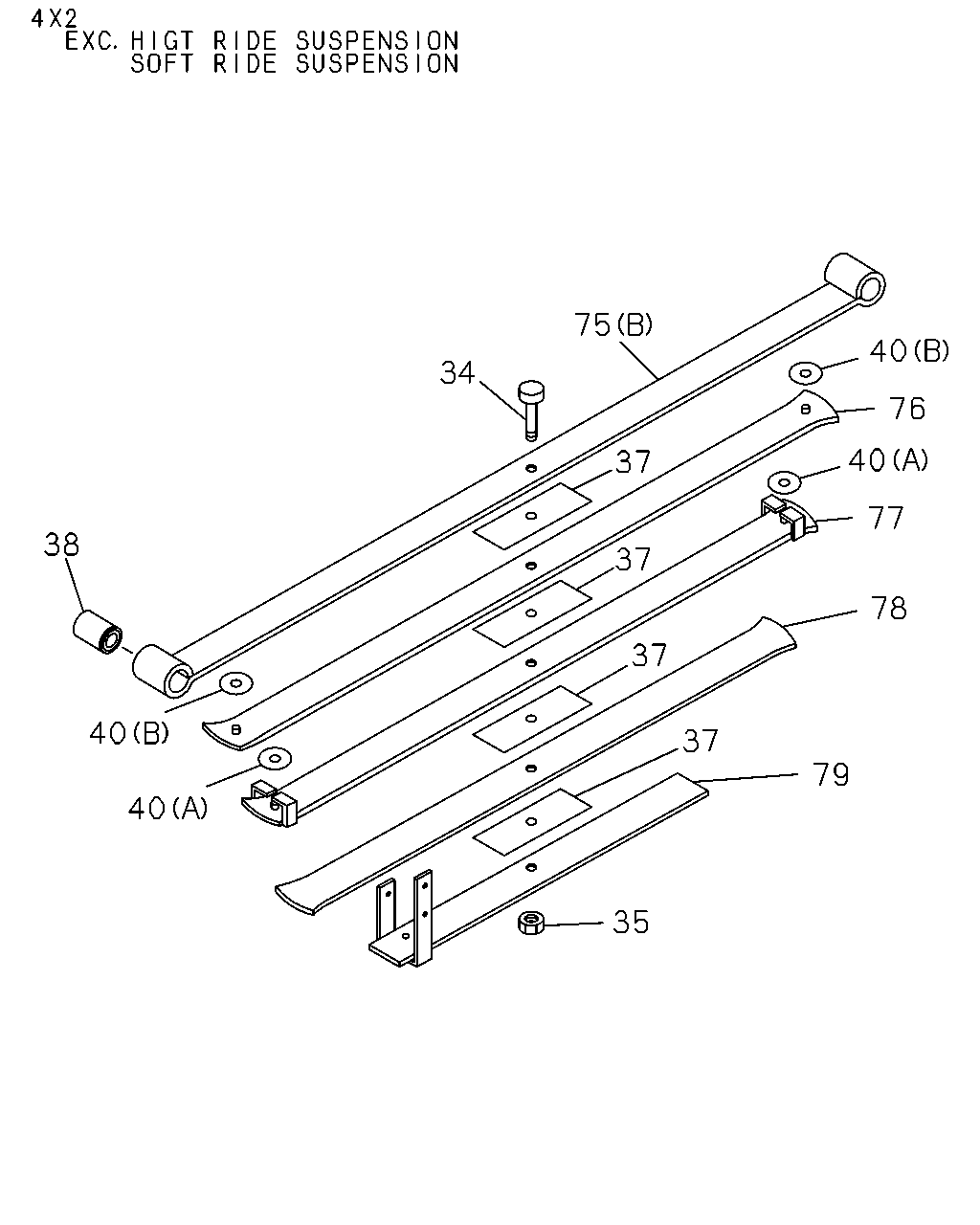

38 34 75 40 76 40 77 78 79 37 37 37 37 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: G = 8-98218-545-0, 98218545	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, L = 8-98218-556-0, 98218556	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: G = 8-98218-545-0, 98218545	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: L = 8-98218-556-0, 98218556	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-567-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-568-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: K = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98218-545-0, 98218545	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: L = 8-98218-556-0, 98218556	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: G = 8-98218-545-0, 98218545	8-98215-880-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

38 34 75 40 76 40 77 78 79 35 37 37 37 37 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: G = 8-98218-545-0, 98218545	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, L = 8-98218-556-0, 98218556	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: G = 8-98218-545-0, 98218545	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: L = 8-98218-556-0, 98218556	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-567-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-568-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: K = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98218-545-0, 98218545	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: L = 8-98218-556-0, 98218556	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: G = 8-98218-545-0, 98218545	8-98215-880-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

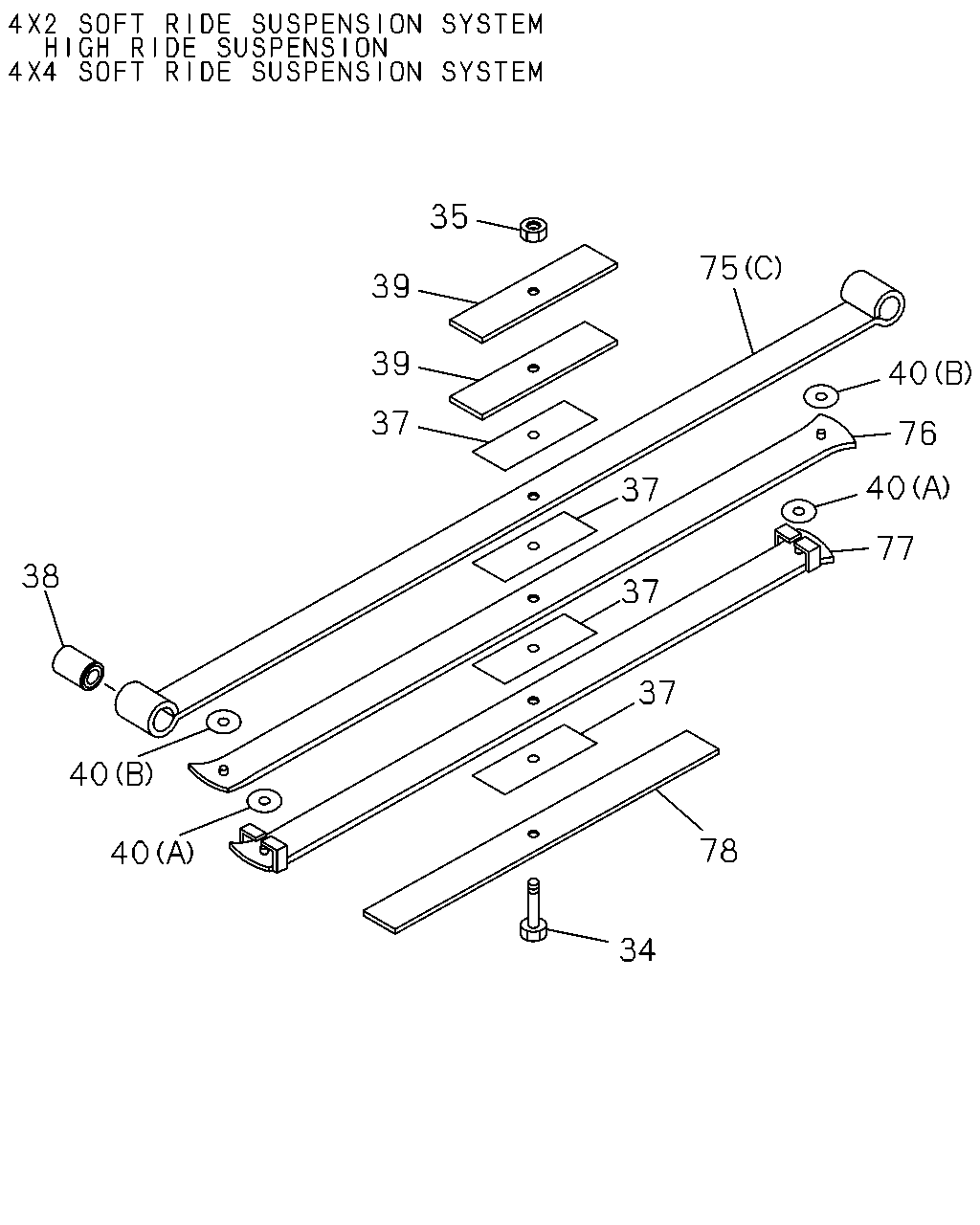

35 39 39 37 75 40 76 40 77 37 37 37 78 34 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: G = 8-98218-545-0, 98218545	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, L = 8-98218-556-0, 98218556	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-97947-171-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: L = 8-98218-556-0, 98218556	8-98161-304-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: G = 8-98218-545-0, 98218545	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: L = 8-98218-556-0, 98218556	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-567-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-568-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: K = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98218-545-0, 98218545	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: L = 8-98218-556-0, 98218556	8-98215-884-0	01	1	-

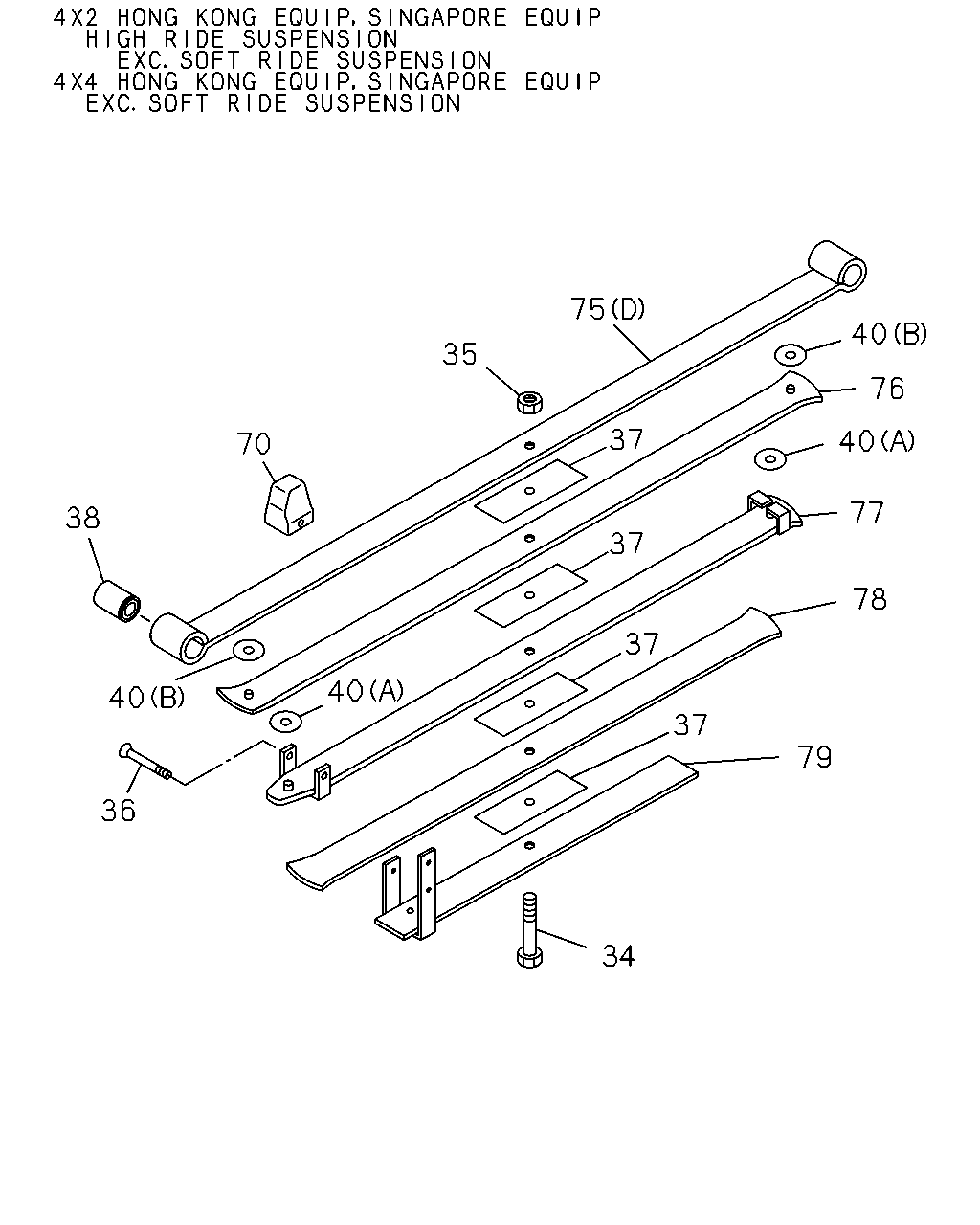

75 35 70 38 40 36 40 34 37 79 78 77 40 76 40 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: G = 8-98218-545-0, 98218545	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, L = 8-98218-556-0, 98218556	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, J = 8-98218-551-0, 98218551	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, J = 8-98218-551-0, 98218551	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: G = 8-98218-545-0, 98218545	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: L = 8-98218-556-0, 98218556	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-567-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-568-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: K = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98218-545-0, 98218545	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: L = 8-98218-556-0, 98218556	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: G = 8-98218-545-0, 98218545	8-98215-880-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

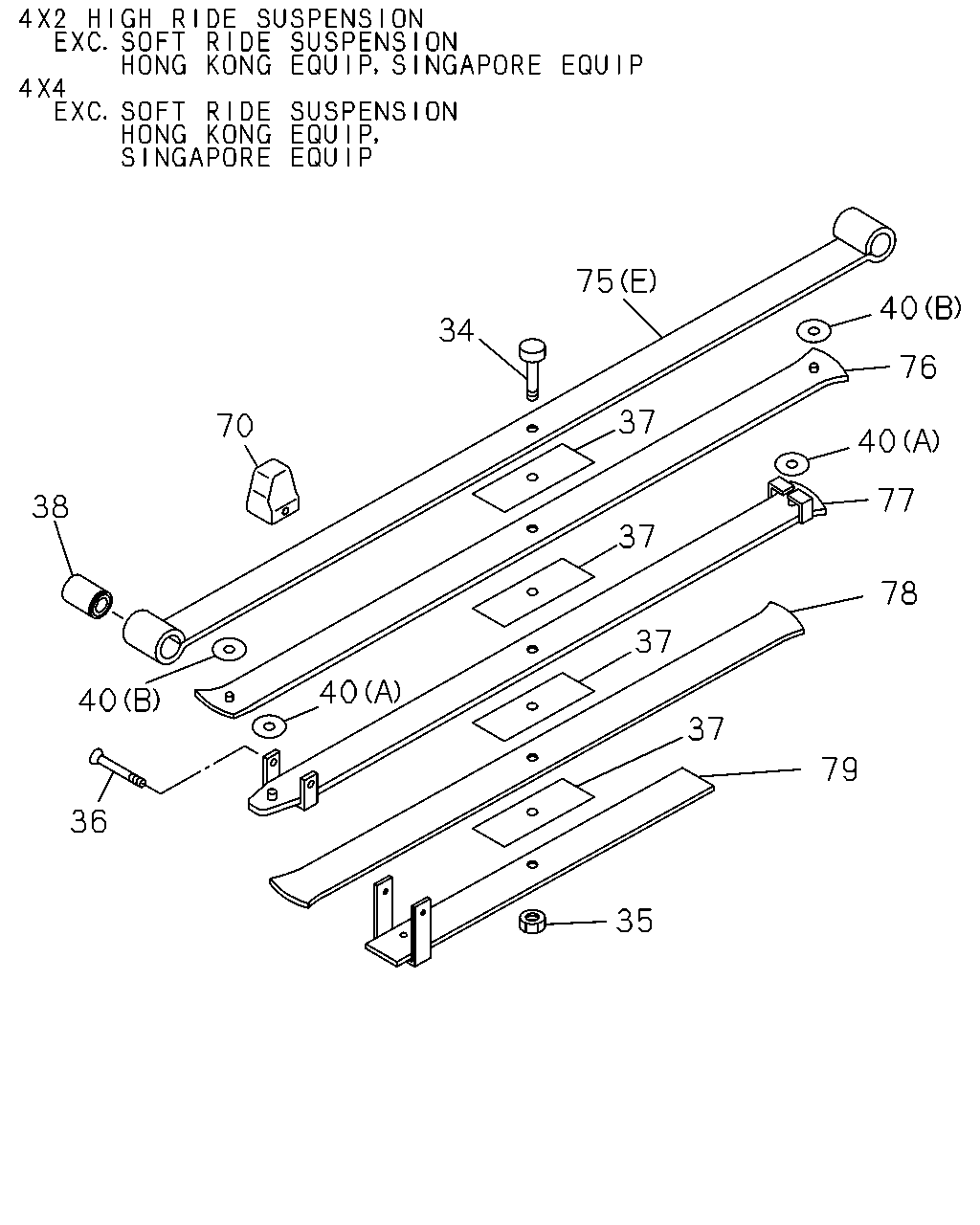

38 70 34 75 40 76 40 77 78 79 37 37 37 37 35 40 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X58 ASM PART: G = 8-98218-545-0, 98218545	8-97947-210-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, L = 8-98218-556-0, 98218556	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, J = 8-98218-551-0, 98218551	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545	8-97947-195-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-546-5, 97946546, B = 8-97947-008-2, 97947008, C = 8-98174-020-3, 98174020, D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: F = 8-98218-543-0, 98218543, G = 8-98218-545-0, 98218545, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552, L = 8-98218-556-0, 98218556	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: A = 8-97946-546-5, 97946546, E = 8-98193-440-2, 98193440, H = 8-98218-548-0, 98218548, J = 8-98218-551-0, 98218551	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-425-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: G = 8-98218-545-0, 98218545	8-97947-436-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-441-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: L = 8-98218-556-0, 98218556	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-953-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-426-2	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-442-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-954-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-563-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-567-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98218-571-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-427-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-97946-546-5, 97946546	8-97947-443-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98174-020-3, 98174020	8-98174-369-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98193-440-2, 98193440	8-98193-955-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98193-439-2, 98193439	8-98193-956-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-543-0, 98218543	8-98218-566-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-545-0, 98218545	8-98218-568-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: I = 8-98218-549-0, 98218549	8-98218-572-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-548-0, 98218548	8-98218-573-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: J = 8-98218-551-0, 98218551	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: K = 8-98218-552-0, 98218552	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: L = 8-98218-556-0, 98218556	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-97947-008-2, 97947008, F = 8-98218-543-0, 98218543	8-97947-428-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: G = 8-98218-545-0, 98218545	8-97947-439-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020, H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-97947-444-2	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440, J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: L = 8-98218-556-0, 98218556	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-97947-008-2, 97947008	8-97947-429-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-97946-546-5, 97946546, C = 8-98174-020-3, 98174020	8-97947-445-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98193-439-2, 98193439, E = 8-98193-440-2, 98193440	8-98193-958-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-543-0, 98218543	8-98215-878-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: G = 8-98218-545-0, 98218545	8-98215-880-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: H = 8-98218-548-0, 98218548, I = 8-98218-549-0, 98218549	8-98215-881-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: J = 8-98218-551-0, 98218551, K = 8-98218-552-0, 98218552	8-98215-882-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
