◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#1100) — 59 parça

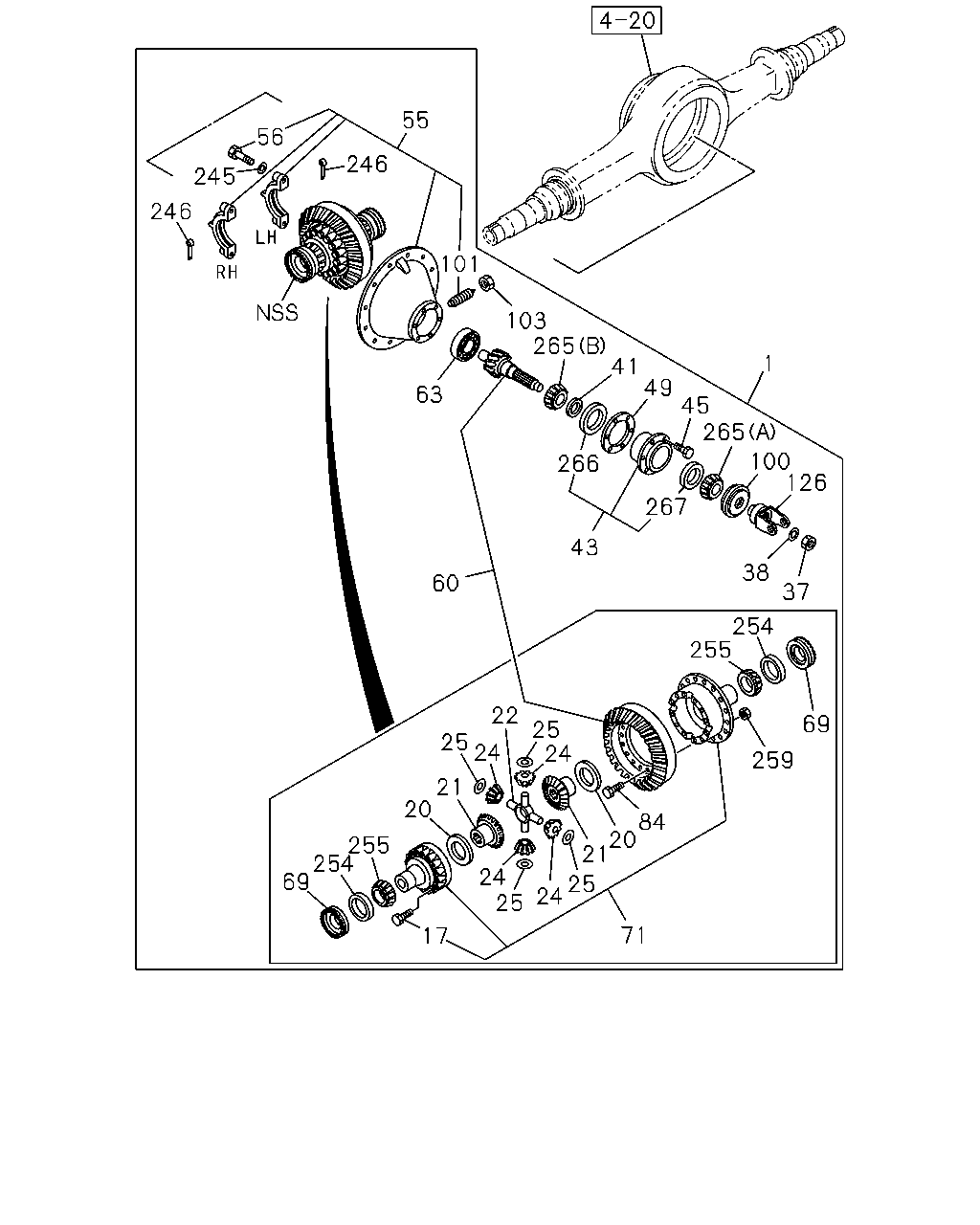

çizim 27293
55 56 246 245 246 101 103 265 41 49 45 265 1 63 266 100 126 267 43 38 60 37 254 255 22 69 25 24 25 24 259 21 20 84 20 21 255 254 69 24 25 25 24 71 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
37/8 		1-87061-756-0 01 1 9202- ●
1 DRIVE ASM; FINAL,RR
39/8 		1-87061-408-0 01 1 9202- ●
1 DRIVE ASM; FINAL,RR
37/7 		1-87061-631-0 01 1 9202- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-87061-405-0 01 1 9202- ●
1 DRIVE ASM; FINAL,RR
35/6 		1-87061-633-0 01 1 9202- ●
1 DRIVE ASM; FINAL,RR
39/9 		1-87061-843-0 01 1 9407- ●
17 BOLT; DIFF CAGE SETTING 1-87061-366-0 12 1 9202- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-87061-400-0 02 1 9202- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-87061-325-0 02 1 9202- ● ● ● ● ● ●
22 PIN; CROSS,DIFF PINION 1-87061-367-0 01 1 9202- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-87061-316-0 04 1 9202- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-87061-317-0 04 1 9202- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-87061-363-0 01 1 9202- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-87061-364-0 01 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.667" 		1-87061-338-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.668" 		1-87061-339-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.669" 		1-87061-340-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.670" 		1-87061-341-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.671" 		1-87061-342-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.672" 		1-87061-343-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.673" 		1-87061-344-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.674" 		1-87061-345-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.675" 		1-87061-346-0 AR 1 9202- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=0.676" 		1-87061-347-0 AR 1 9202- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-87061-365-0 01 1 9202- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-87061-355-0 06 1 9202- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.003" 		1-87061-320-0 AR 1 9202- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.005" 		1-87061-321-0 AR 1 9202- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.010" 		1-87061-322-0 AR 1 9202- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.020" 		1-87061-323-0 AR 1 9202- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.030" 		1-87061-324-0 AR 1 9202- ● ● ● ● ● ●
55 CARRIER; DIFF 1-87061-330-0 01 1 9202- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-87061-757-0 04 1 9202- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
37/8 		1-87061-755-0 01 1 9202- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-87061-409-0 01 1 9202- ●
60 GEAR SET; FINAL DRIVE,RR
37/7 		1-87061-632-0 01 1 9202- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-87061-331-0 01 1 9202- ●
60 GEAR SET; FINAL DRIVE,RR
35/6 		1-87061-634-0 01 1 9202- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-87061-842-0 01 1 9407- ●
63 BEARING; PINION PILOT 1-87061-333-0 01 1 9202- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-87061-354-0 01 1 9202- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-87061-358-0 01 1 9202- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-87061-329-0 01 1 9202- ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-87061-337-0 16 1 9202- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-87061-319-0 01 1 9202- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-87061-334-0 01 1 9202- ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-87061-359-0 01 1 9202- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-87061-349-0 01 1 9202- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-87061-758-0 04 1 9202- ● ● ● ● ● ●
246 PIN; COTTER,LOCK PLATE 1-87061-332-0 02 1 9202- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-87061-371-0 01 1 9202- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-87060-592-0 01 1 9202- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-87061-372-0 01 1 9202- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-87060-594-0 01 1 9202- ● ● ● ● ● ●
259 NUT 1-87061-335-0 16 1 9202- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-87061-353-0 01 1 9202- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-87061-362-0 01 1 9202- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-87061-361-0 01 1 9202- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-87060-974-0 01 1 9202- ● ● ● ● ● ●
