◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33A - FAN AND FAN BELT ▶
0-33A — FAN AND FAN BELT (#10998) — 216 parça

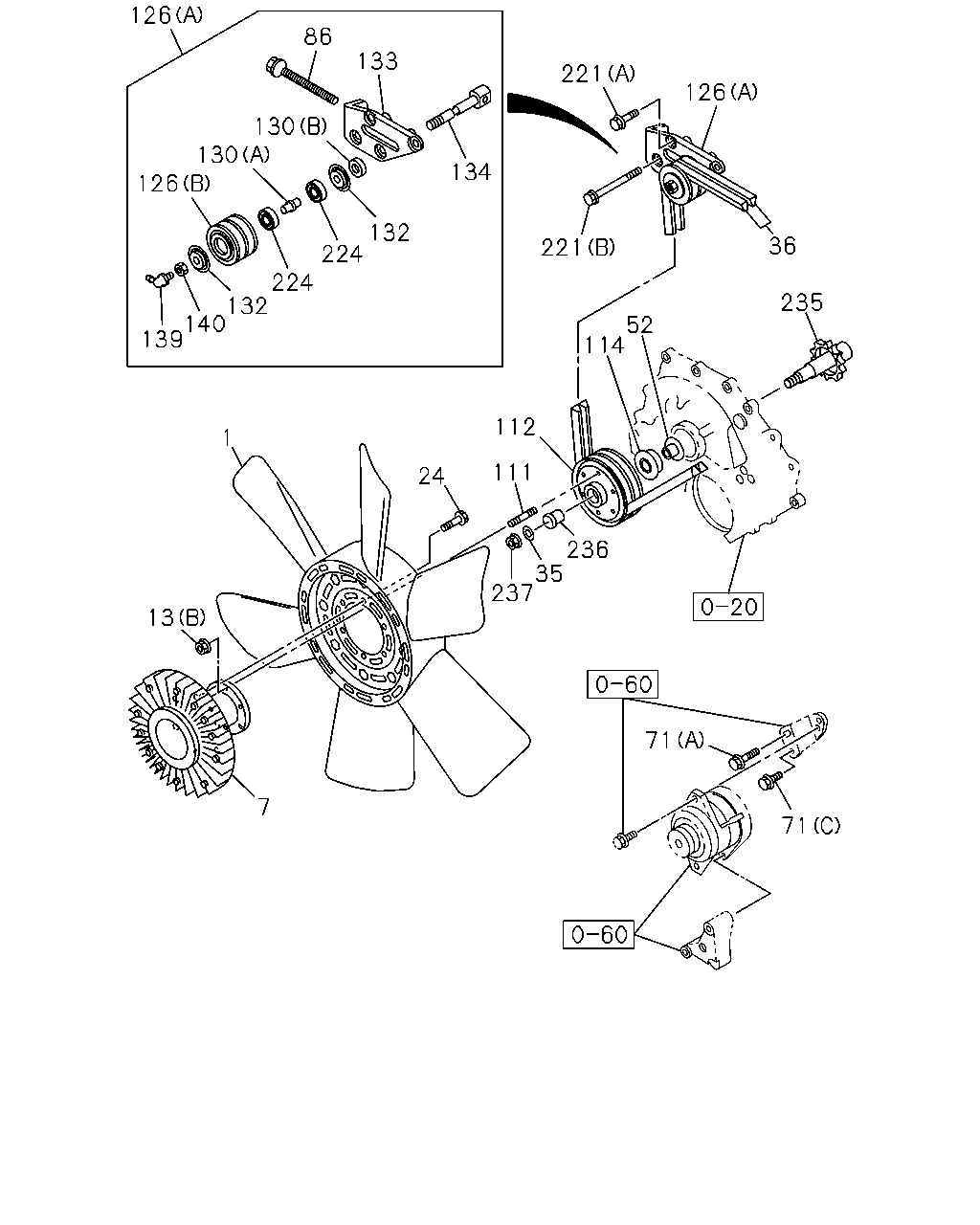

çizim 77523
126 86 133 221 126 130 130 126 134 132 224 224 132 140 139 36 221 235 52 114 112 1 111 24 236 35 237 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-224-0 01 1 0105- ●
1 FAN; COOLING 1-13660-286-1 01 1 0105-0106 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 0107- ● ● ●
7 COUPLING; FAN 1-21650-209-1 01 1 0107- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
RLD GOVERNOR(SD7) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN
ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-204-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-188-1 01 1 0105- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 0105-0602 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-208-0 06 1 0603- ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0105-0106 ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0107-0602 ● ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ● ●
24 BOLT; FAN
M10X35 		0-28191-035-0 06 1 0107-0512 ●
24 BOLT; FAN
M10X35 		0-28161-035-0 06 1 0601- ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 0105-0512 ● ●
24 BOLT; FAN
M10X40 FLANGE 		0-28761-040-0 06 1 0601- ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0105-0106 ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0107-0312 ● ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 0401- ● ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0105-0106 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0107- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0105-0106 ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0107- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 0105- ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28156-011-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105-0105 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105- ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0107- ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0105-0106 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0107-0604 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 0605- ● ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-2 01 1 0105- ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0105-0106 ● ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0107- ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0105-0106 ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0107- ● ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-364-3 01 1 0107- ●
126 PULLEY; IDLE
(A) 		1-13660-358-2 01 1 0105- ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-1 01 1 0105-0106 ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-2 01 1 0107- ● ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0105-0106 ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0107- ● ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0105-0106 ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0107- ● ● ●
132 COVER; DUST 1-13664-009-1 02 1 0105-0106 ● ●
132 COVER; DUST 1-13664-009-2 02 1 0107- ● ● ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 0105- ● ●
133 BRACKET; IDLE PULLEY 1-13669-198-4 01 1 0107- ●
134 SPINDLE; IDLE PULLEY 1-13665-064-0 01 1 0107- ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 0105- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0105-0106 ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0107-0512 ● ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0105-0106 ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0107-0512 ● ● ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0601- ● ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0105-0512 ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 0105-0512 ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28151-090-0 03 1 0601- ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0107-0512 ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 02 1 0107-0512 ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0105-0106 ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0107- ● ● ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 0105- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0105-0106 ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0107- ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0105-0106 ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0107- ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0105-0106 ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0107- ● ● ● ●

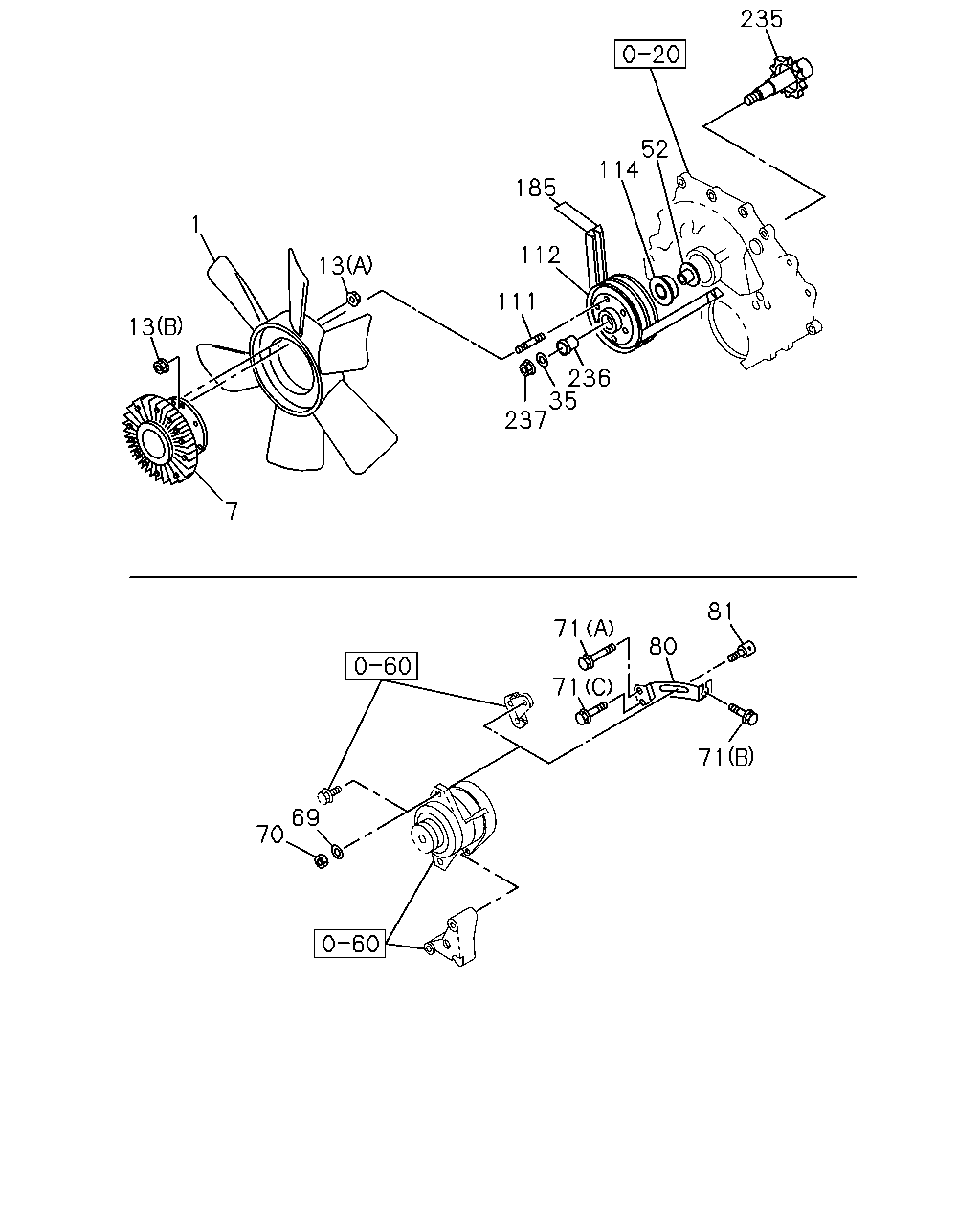

çizim 80943
235 52 114 185 1 112 13 111 13 236 35 237 7 81 71 71 80 71 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-224-0 01 1 0105- ●
1 FAN; COOLING 1-13660-286-1 01 1 0105-0106 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 0107- ● ● ●
7 COUPLING; FAN 1-21650-209-1 01 1 0107- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
RLD GOVERNOR(SD7) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN
ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-204-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-188-1 01 1 0105- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 0105-0602 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-208-0 06 1 0603- ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0105-0106 ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0107-0602 ● ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0105-0106 ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0107-0312 ● ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 0401- ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0105-0106 ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0107- ● ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 0105- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0105-0105 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0105- ● ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 0105-0602 ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 0105- ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28156-011-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105-0105 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105- ● ●
80 PLATE; ADJ 1-13674-241-0 01 1 0105- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0105- ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0105-0106 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0107-0604 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 0605- ● ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-2 01 1 0105- ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0105-0106 ● ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0107- ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0105-0106 ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0107- ● ● ● ●
185 BELT; GEN DRIVE
1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 0105- ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 0105- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0105-0106 ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0107- ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0105-0106 ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0107- ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0105-0106 ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0107- ● ● ● ●

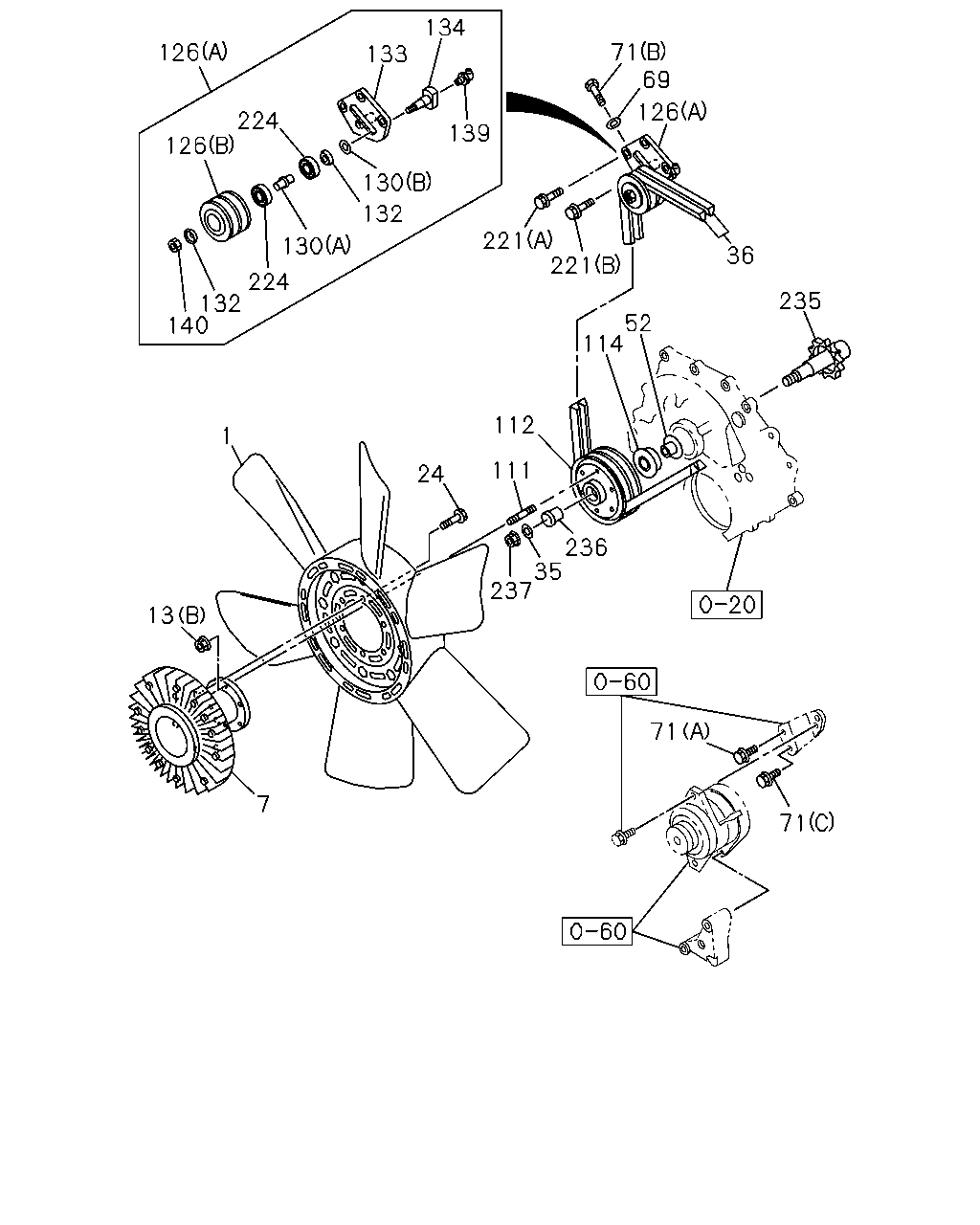

çizim 80944
134 126 71 69 126 133 224 126 139 130 132 130 221 221 36 224 132 140 235 52 114 112 1 111 236 35 237 24 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 1-13660-224-0 01 1 0105- ●
1 FAN; COOLING 1-13660-286-1 01 1 0105-0106 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 0107- ● ● ●
7 COUPLING; FAN 1-21650-209-1 01 1 0107- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
RLD GOVERNOR(SD7) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-178-1 01 1 0105- ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN
ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-204-1 01 1 0105- ●
7 COUPLING; FAN 1-21650-188-1 01 1 0105- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 0105-0602 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-208-0 06 1 0603- ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0105-0106 ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0107-0602 ● ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ● ●
24 BOLT; FAN
M10X35 		0-28191-035-0 06 1 0107-0512 ●
24 BOLT; FAN
M10X35 		0-28161-035-0 06 1 0601- ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 0105-0512 ● ●
24 BOLT; FAN
M10X40 FLANGE 		0-28761-040-0 06 1 0601- ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0105-0106 ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0107-0312 ● ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 0401- ● ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0105-0106 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0107- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0105-0106 ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0107- ● ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 0105- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0105-0105 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0105- ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 0105- ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0105-0106 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0107-0512 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28156-011-0 01 1 0601- ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105-0105 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0105- ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0105-0106 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0107-0604 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 0605- ● ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-2 01 1 0105- ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0105-0106 ● ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0107- ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0105-0106 ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0107- ● ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-364-3 01 1 0107- ●
126 PULLEY; IDLE
(A) 		1-13660-358-2 01 1 0105- ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-1 01 1 0105-0106 ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-2 01 1 0107- ● ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0105-0106 ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0107- ● ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0105-0106 ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0107- ● ● ●
132 COVER; DUST 1-13664-009-1 02 1 0105-0106 ● ●
132 COVER; DUST 1-13664-009-2 02 1 0107- ● ● ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 0105- ● ●
133 BRACKET; IDLE PULLEY 1-13669-198-4 01 1 0107- ●
134 SPINDLE; IDLE PULLEY 1-13665-064-0 01 1 0107- ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 0105- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0105-0106 ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0107-0512 ● ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0105-0106 ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0107-0512 ● ● ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0601- ● ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0105-0512 ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 0105-0512 ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28151-090-0 03 1 0601- ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0107-0512 ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 02 1 0107-0512 ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0105-0106 ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0107- ● ● ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 0105- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0105-0106 ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0107- ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0105-0106 ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0107- ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0105-0106 ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0107- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
