Sayfa 0-32A - Isuzu EPC

0-32A — WATER PIPING; ENGINE (#10996) — 375 parça

91 91 90 91 90 89 91 92 91 90 91 90 91 90 91 91 91 90 91 89 91 91 91 90 91 90 90 90 91 89 91 92 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

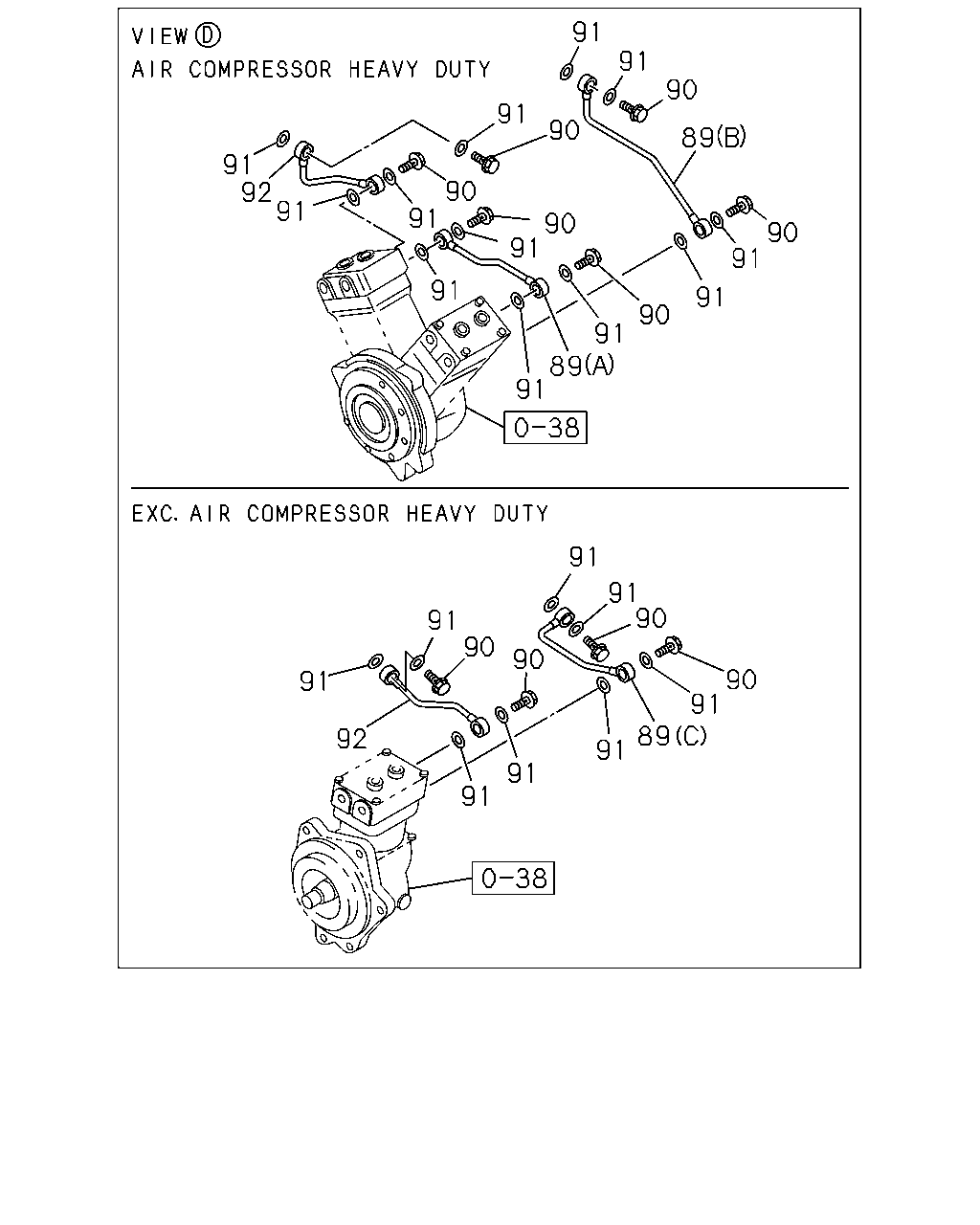

89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0105-0107	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0105-0107		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0108-	●		●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0108-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0105-0107	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0105-0107		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0108-	●		●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0108-		●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-594-1	01	1	0105-	●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0105-0106			●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0107-0107			●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	1-13721-794-0	01	1	0108-			●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0108-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-0106	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-0106		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0107-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0107-		●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0105-0107	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0105-0107	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0105-0106	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0105-0106		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0107-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0107-		●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0105-0107	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0105-0107	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0108-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-			●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0105-0107	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0105-0107		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0108-	●		●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0108-		●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-593-1	01	1	0105-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-946-0	01	1	0105-0105			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0106-0106			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0107-0107			●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13722-003-0	01	1	0108-			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0108-				●

127 112 107 107 112 127 127 109 147 104 147 109 147 170 147 146 112 58 113 112 58 112 112 127 147 147 147 59 127 147 147 56 35 170 35 115 35 115 147 127 35 56 207 35 30 153 153 206 35 115 56 115 153 115 153 206 95 110 31 94 94 95 31 94 94 94 94 31 24 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0107-				●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0107-				●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (C)	1-13729-024-0	01	1	0107-				●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-				●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28080-640-0	02	1	0107-0512				●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0107-0512				●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0107-				●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-763-0	01	1	0105-0108	●
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	0105-0108		●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-587-1	01	1	0109-	●
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-		●
56	PIPE; WATER OUTLET EXC. CAB UP +110MM<TGG> (B)	1-13721-650-0	01	1	0105-	●
56	PIPE; WATER OUTLET (A)	1-13721-935-1	01	1	0105-0106			●
56	PIPE; WATER OUTLET (A)	1-13722-006-0	01	1	0107-			●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0109-				●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0107-				●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (B)	1-13721-747-0	01	1	0107-				●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0107-				●
59	CLIP; HARNESS,WATER OUTLET PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 L=44	8-94225-185-0	02	1	0111-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0105-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0105-0106			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0107-0110			●	●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	9-09525-045-0	02	1	0111-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0111-				●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0107-				●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0107-				●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0107-				●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0107-				●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0107-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106			●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28050-635-0	01	1	0601-				●
104	PIPE; WATER CHARGE (A)	1-13721-617-0	01	1	0105-	●
104	PIPE; WATER CHARGE (B)	1-13721-934-0	01	1	0105-			●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0105-		●
104	PIPE; WATER CHARGE (C)	1-13721-847-2	01	1	0107-				●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0105-0106			●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0107-0512			●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-			●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-971-0	01	1	0105-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-933-0	01	1	0105-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0105-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	1-13721-833-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	1-13721-834-1	01	1	0107-				●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0105-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0105-0106			●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0107-			●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	0105-0106			●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0107-			●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-141-0	02	1	0107-	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0107-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03259-300-0	01	1	0107-0206				●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0207-				●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03266-300-0	01	1	0107-0206				●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0207-				●
115	HOSE; RUBBER (C)	1-09360-378-0	01	1	0107-0305				●
115	HOSE; RUBBER (C)	1-09361-081-1	01	1	0306-				●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0107-				●
115	HOSE; RUBBER (D) L=60	8-97079-996-0	02	1	0107-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-0106			●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0107-			●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-0106			●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-			●	●
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-				●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0107-				●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0107-				●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0107-				●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0107-				●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0107-				●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0107-				●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0107-				●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0108-			●	●

56 147 147 127 147 147 127 147 147 127 56 24 94 94 94 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0107-				●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0107-				●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (C)	1-13729-024-0	01	1	0107-				●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-763-0	01	1	0105-0108	●
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	0105-0108		●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-587-1	01	1	0109-	●
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-		●
56	PIPE; WATER OUTLET EXC. CAB UP +110MM<TGG> (B)	1-13721-650-0	01	1	0105-	●
56	PIPE; WATER OUTLET (A)	1-13721-935-1	01	1	0105-0106			●
56	PIPE; WATER OUTLET (A)	1-13722-006-0	01	1	0107-			●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0109-				●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0107-				●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (B)	1-13721-747-0	01	1	0107-				●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0107-				●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0107-				●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0107-				●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0107-				●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0107-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106			●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28050-635-0	01	1	0601-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-0106			●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0107-			●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-0106			●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-			●	●
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0107-				●

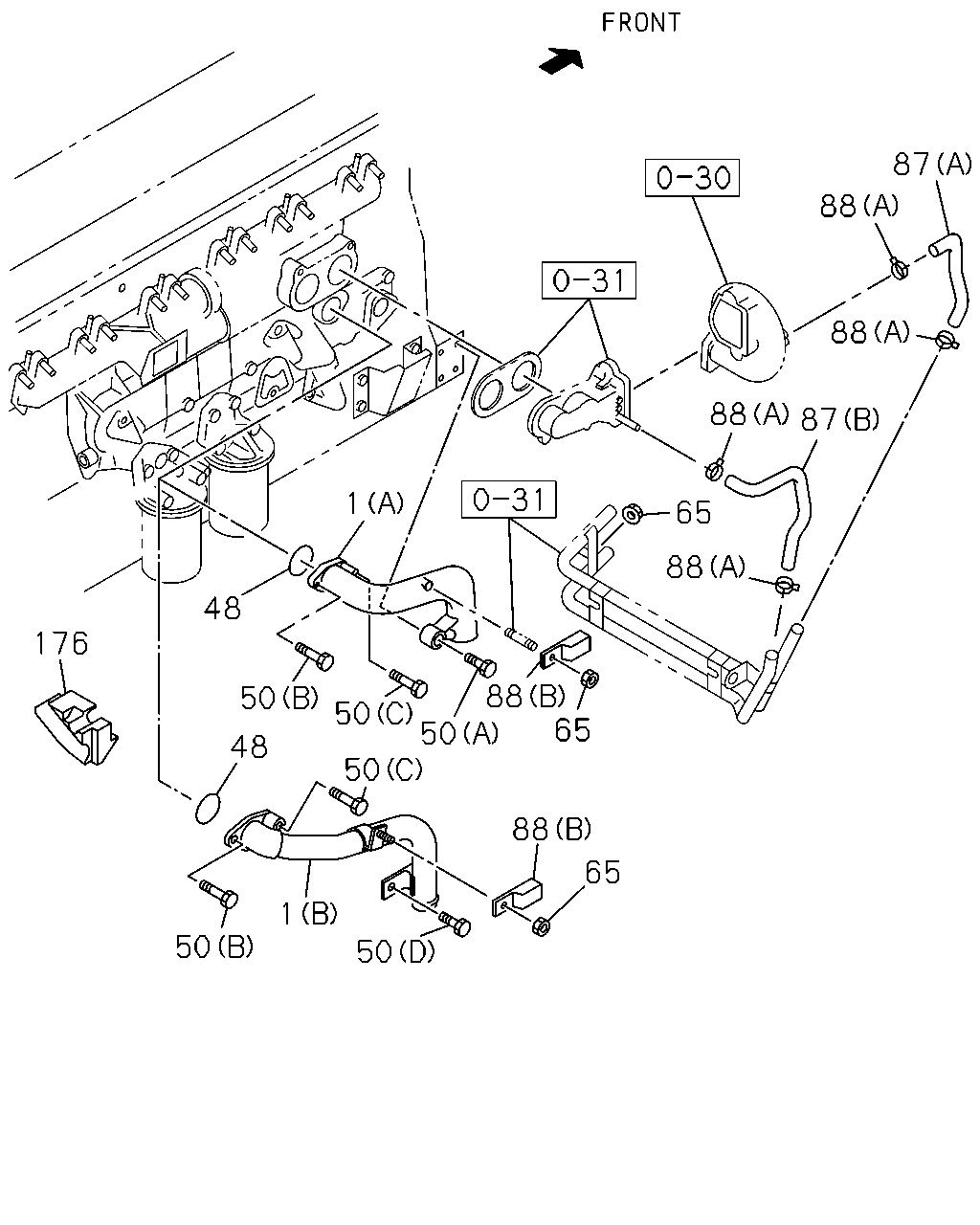

87 88 88 88 87 1 65 88 48 176 88 65 50 50 50 50 48 88 65 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; WATER PUMP,INL (A)	1-13711-718-0	01	1	0105-0106	●	●	●
1	PIPE; WATER PUMP,INL (A)	1-13711-718-0	01	1	0107-0107	●	●	●	●
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0107-0512	●	●	●	●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-1	01	1	0601-	●	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0105-0106	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0107-	●	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0105-0106	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0107-0512	●	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-	●	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0105-0106	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0107-0512	●	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-	●	●	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0105-0106	●	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0107-0512	●	●	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601	●	●	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-	●	●	●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	0105-0106	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0105-0106		●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	0107-0602	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0107-0602		●	●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91180-110-0	02	1	0603-	●
65	NUT M10 FLANGE	0-91180-110-0	02	1	0603-		●	●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	0105-0106	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0105-0106		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	0107-	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0107-		●	●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	0105-0106	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0105-0106		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	0107-	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0107-		●	●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	0105-0106	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0105-0106		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	0107-	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0107-		●	●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	0105-0106	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0105-0106		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	0107-	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0107-		●	●	●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	0105-		●

91 90 91 91 90 91 91 90 91 92 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0105-0107	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0105-0107		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0108-	●		●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0108-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0105-0107	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0105-0107		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0108-	●		●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0108-		●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-594-1	01	1	0105-	●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0105-0106			●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0107-0107			●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	1-13721-794-0	01	1	0108-			●
89	PIPE; WATER,AIR CMPR,IN (D)	1-13721-794-0	01	1	0108-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-0106	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-0106		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	04	1	0107-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0107-		●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0105-0107	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0105-0107	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0105-0106	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0105-0106		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0107-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0107-		●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0105-0107	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0105-0107	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0108-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-			●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0105-0107	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0105-0107		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0108-	●		●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0108-		●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-593-1	01	1	0105-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-946-0	01	1	0105-0105			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0106-0106			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0107-0107			●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13722-003-0	01	1	0108-			●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0108-				●

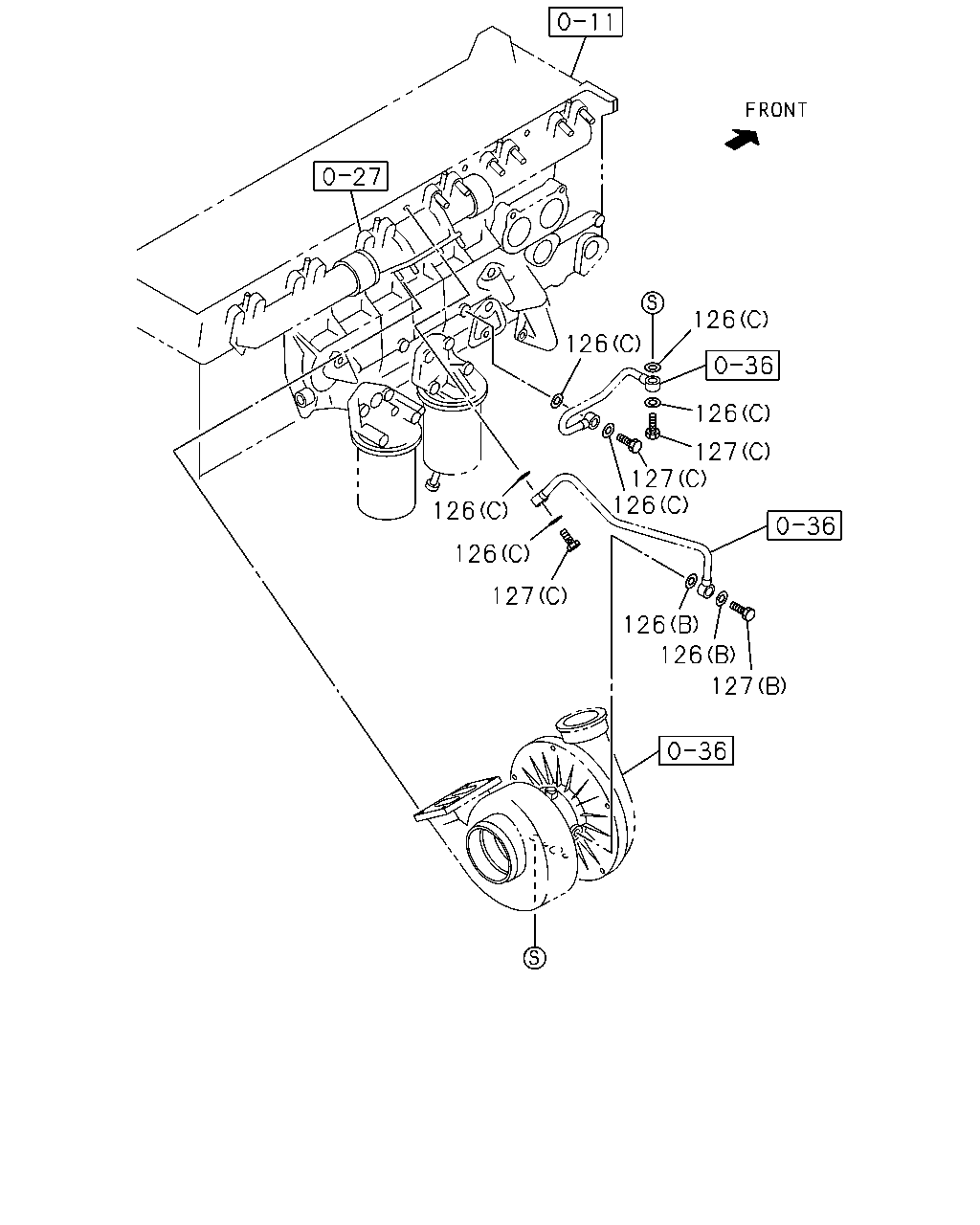

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0105-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0105-0106			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0107-			●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0105-0106			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0107-			●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-0106			●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0107-			●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-0106			●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-			●	●
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●

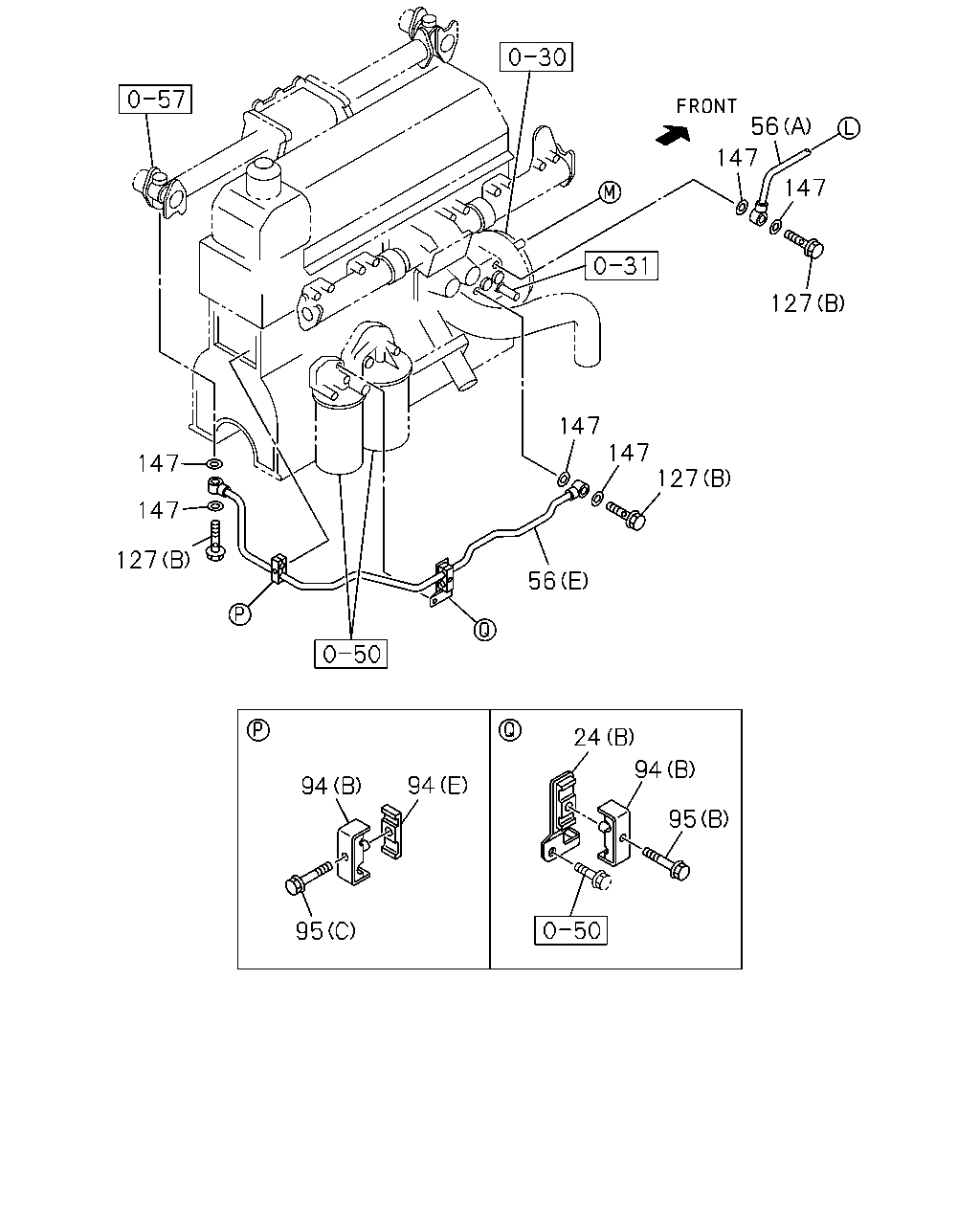

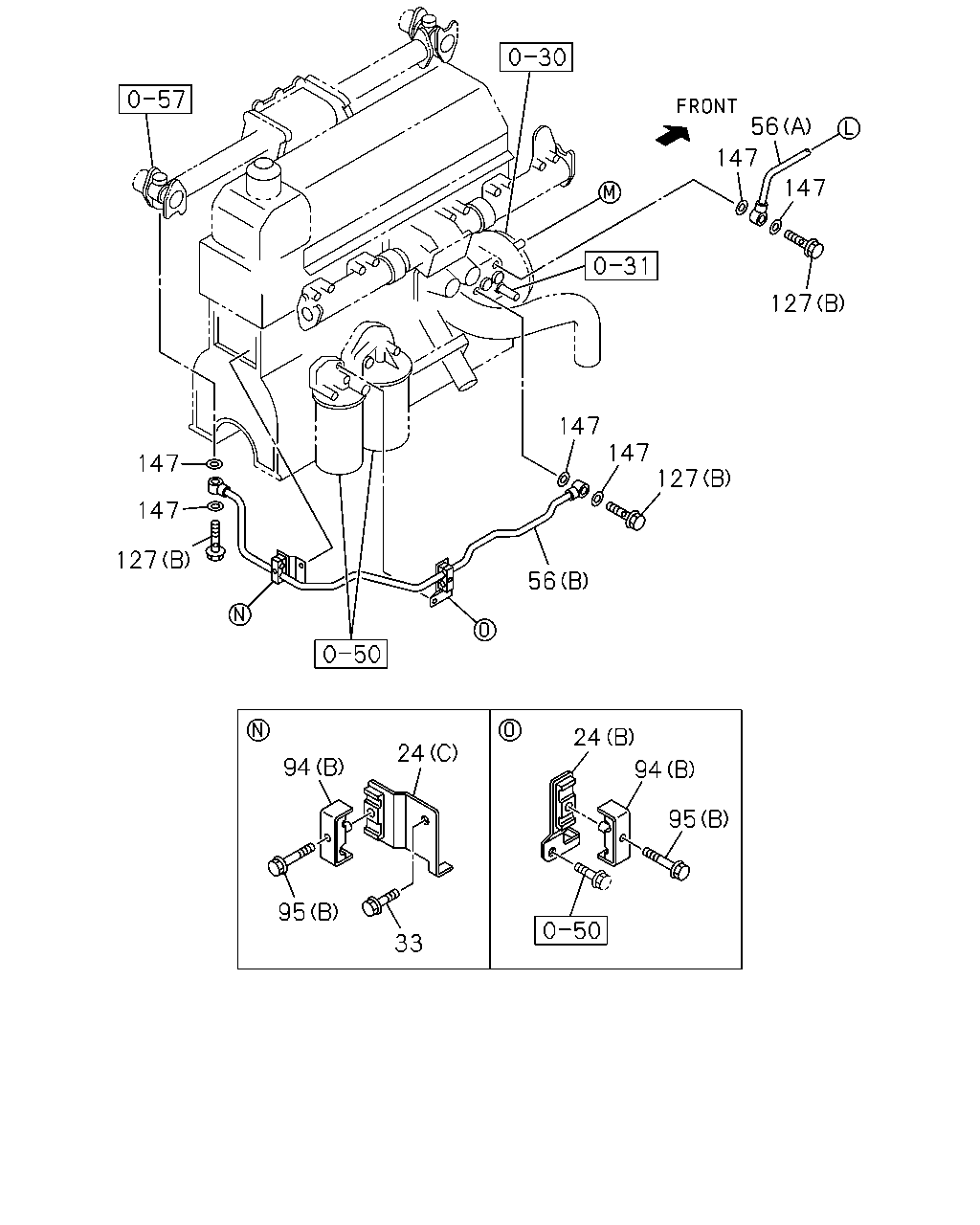

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0107-				●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0107-				●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (C)	1-13729-024-0	01	1	0107-				●
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28981-420-0	01	1	0107-0512				●
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0601-				●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-763-0	01	1	0105-0108	●
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	0105-0108		●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-587-1	01	1	0109-	●
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-		●
56	PIPE; WATER OUTLET EXC. CAB UP +110MM<TGG> (B)	1-13721-650-0	01	1	0105-	●
56	PIPE; WATER OUTLET (A)	1-13721-935-1	01	1	0105-0106			●
56	PIPE; WATER OUTLET (A)	1-13722-006-0	01	1	0107-			●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0109-				●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0107-				●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (B)	1-13721-747-0	01	1	0107-				●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0107-				●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0107-				●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0107-				●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0107-				●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0107-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106			●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28050-635-0	01	1	0601-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-0106			●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0107-			●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-0106			●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-			●	●
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0107-				●

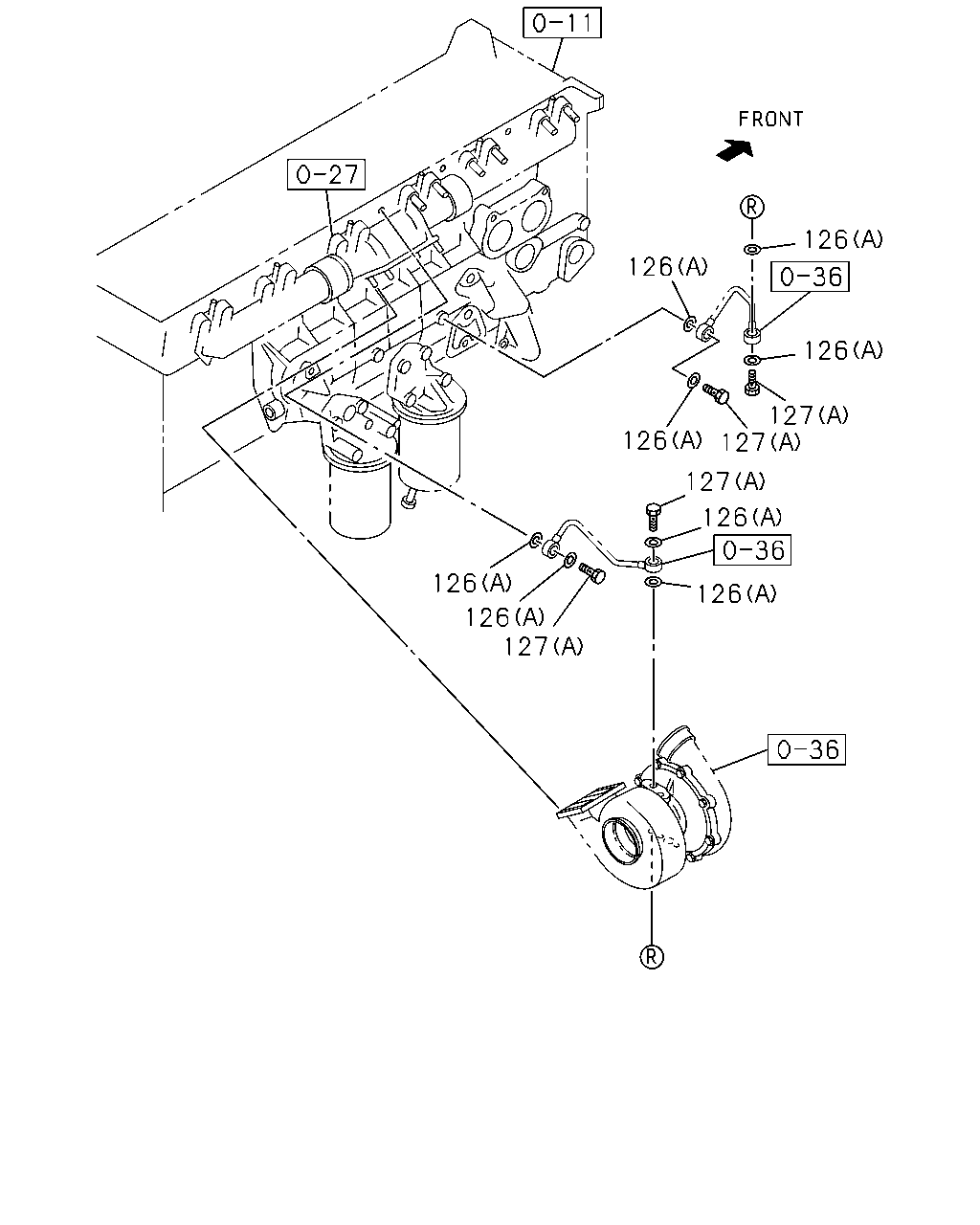

126 126 126 127 127 126 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0105-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0105-0106			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0107-			●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0105-0106			●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0107-			●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-0106			●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0107-			●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-0106			●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-			●	●
127	BOLT; EYE (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●

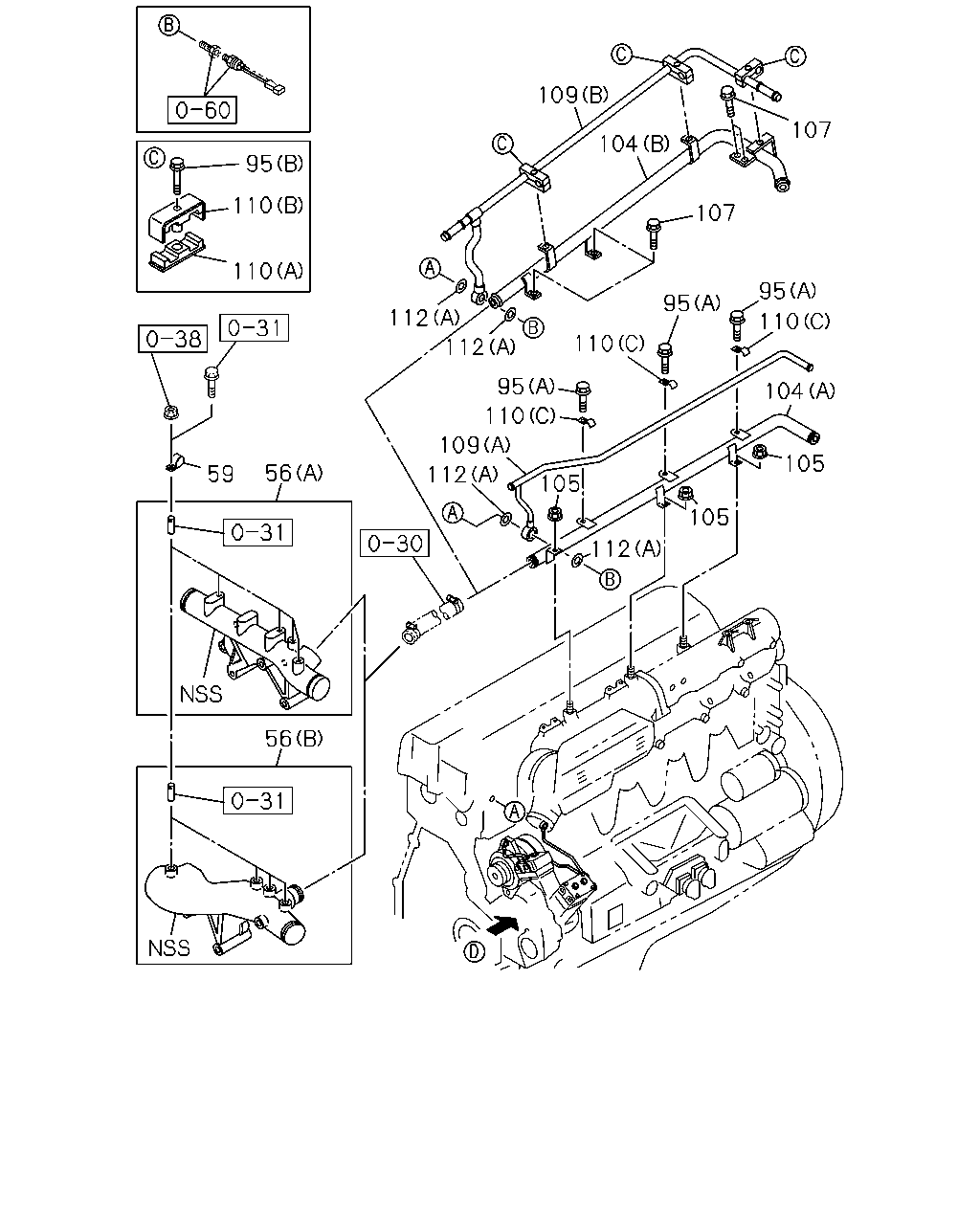

109 107 104 95 110 107 110 95 95 112 110 110 112 95 104 110 109 105 56 59 112 105 105 112 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-763-0	01	1	0105-0108	●
56	PIPE; WATER OUTLET (A)	1-13721-763-0	01	1	0105-0108		●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (A)	1-13721-587-1	01	1	0109-	●
56	PIPE; WATER OUTLET (A)	1-13721-587-1	01	1	0109-		●
56	PIPE; WATER OUTLET EXC. CAB UP +110MM<TGG> (B)	1-13721-650-0	01	1	0105-	●
56	PIPE; WATER OUTLET (A)	1-13721-935-1	01	1	0105-0106			●
56	PIPE; WATER OUTLET (A)	1-13722-006-0	01	1	0107-			●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET (C)	1-13721-831-3	01	1	0109-				●

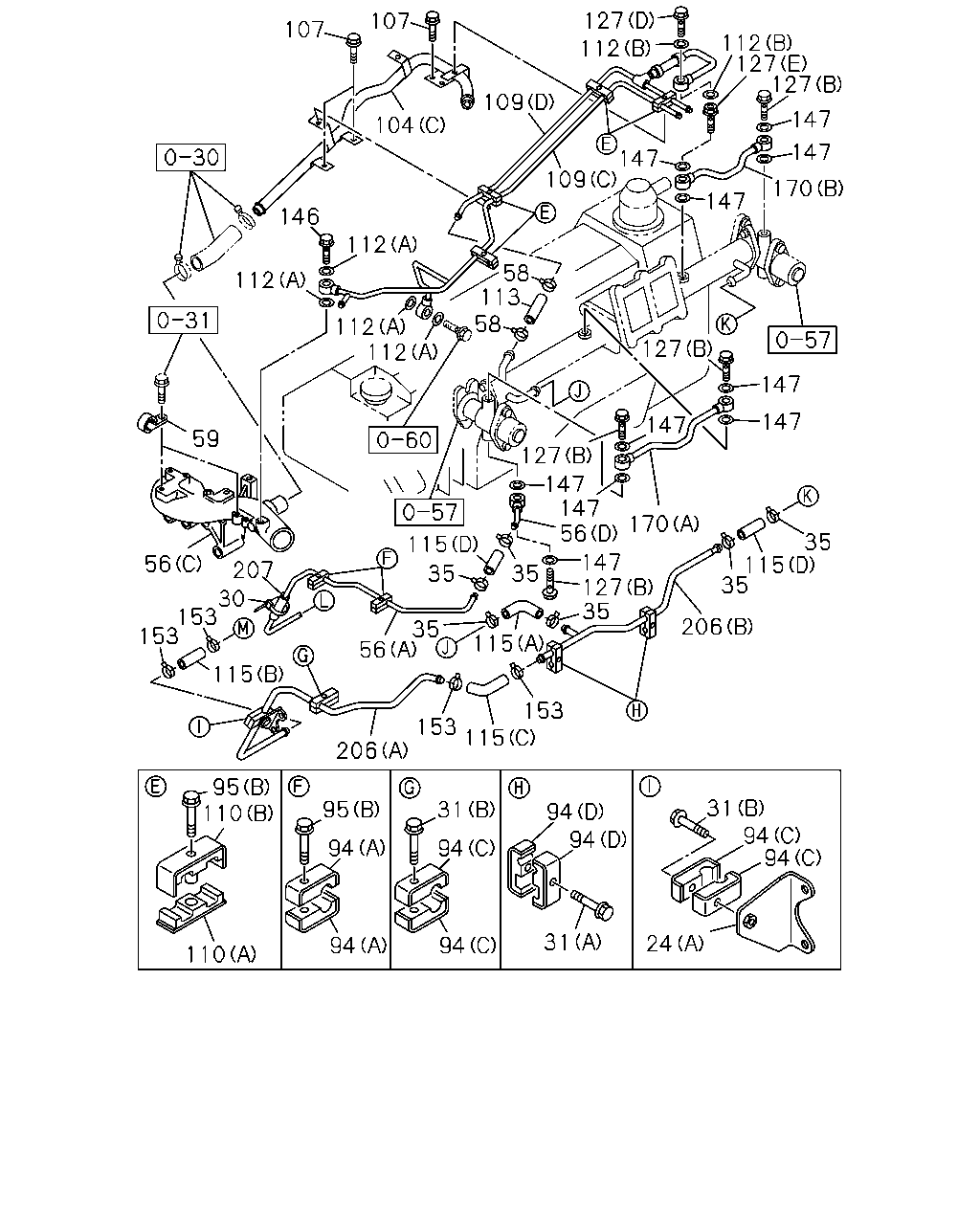

56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0107-				●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (B)	1-13721-747-0	01	1	0107-				●
59	CLIP; HARNESS,WATER OUTLET PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 L=44	8-94225-185-0	02	1	0111-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0105-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0105-0106			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0107-0110			●	●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	9-09525-045-0	02	1	0111-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0111-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106			●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	03	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0601-				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-			●	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512				●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (C) M6X35 FLANGE	0-28050-635-0	01	1	0601-				●
104	PIPE; WATER CHARGE (A)	1-13721-617-0	01	1	0105-	●
104	PIPE; WATER CHARGE (B)	1-13721-934-0	01	1	0105-			●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0105-		●
104	PIPE; WATER CHARGE (C)	1-13721-847-2	01	1	0107-				●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●
105	NUT; PIPE M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0105-0106			●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0107-0512			●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-			●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-971-0	01	1	0105-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-933-0	01	1	0105-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0105-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (C)	1-13721-833-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (D)	1-13721-834-1	01	1	0107-				●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0105-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0105-0106			●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0107-			●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	0105-0106			●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0107-			●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-141-0	02	1	0107-	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0107-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
