0-31A — THERMOSTAT AND HOUSING (#10994) — 77 parça

52 9 9 50 50 9 60 60 50 50 52 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	0105-0106	●	●	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	0107-0512	●	●	●	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	0105-0604		●	●
9	STUD; WATER PIPE (A) M8X20 L=32	0-41010-820-0	04	1	0605-		●	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	02	1	0108-0604	●
9	STUD; WATER PIPE (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	04	1	0105-		●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28181-050-0	02	1	0105-0512	●	●	●
50	BOLT; OUTLET PIPE (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-	●	●	●
50	BOLT; OUTLET PIPE (A) M10X55 FLANGE	8-94399-863-1	02	1	0105-0106	●
50	BOLT; OUTLET PIPE (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●			●
50	BOLT; OUTLET PIPE (A) M10X85 FLANGE	8-94397-359-1	01	1	0105-			●
50	BOLT; OUTLET PIPE (B) M10X85 FLANGE	8-94397-359-1	02	1	0107-				●
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0105-0106	●
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0107-0110	●			●
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0111-0512				●
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	0105-0106	●	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	0107-	●	●	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	0105-0106	●	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	0107-	●	●	●	●

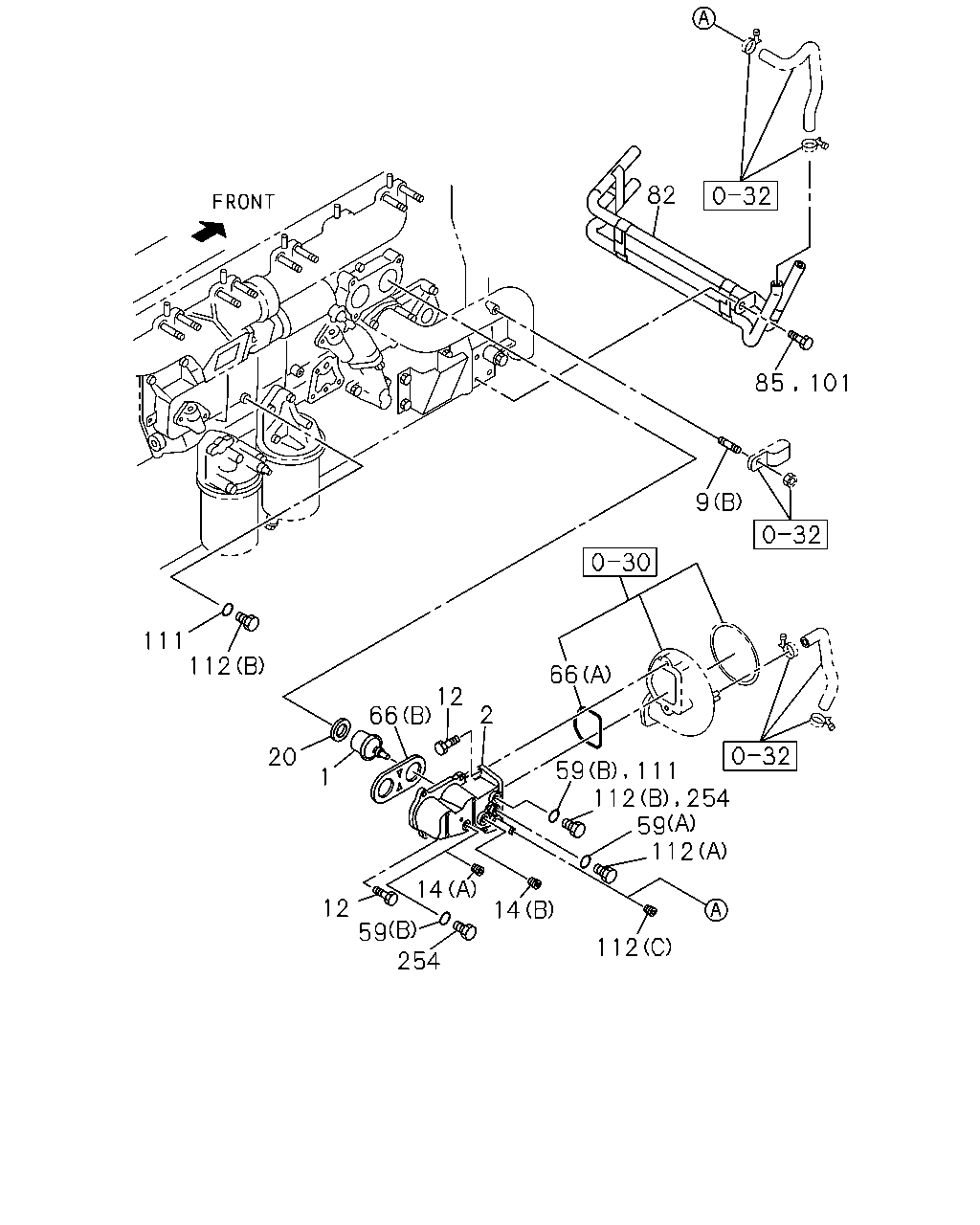

82 85 101 9 111 112 66 12 66 2 20 59 111 59 112 1 14 12 59 14 112 254 254 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT 79 CELSIUS	1-13770-041-2	02	1	0105-		●	●
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	0105-0106	●
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	0107-	●			●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-530-0	01	1	0105-0105		●
2	HOUSING; THERMOSTAT	1-13710-530-0	01	1	0105-0105			●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-531-0	01	1	0105-0105		●
2	HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13711-828-2	01	1	0106-		●
2	HOUSING; THERMOSTAT	1-13710-577-0	01	1	0105-0105	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-577-0	01	1	0106-0106		●
2	HOUSING; THERMOSTAT	1-13710-577-0	01	1	0106-0106	●		●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-577-0	01	1	0107-0303		●
2	HOUSING; THERMOSTAT	1-13710-577-0	01	1	0107-0303	●		●	●
2	HOUSING; THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13710-550-0	01	1	0304-		●
2	HOUSING; THERMOSTAT	1-13710-550-0	01	1	0304-	●		●	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	0105-0106	●	●	●
9	STUD; WATER PIPE (B) M10X20 L=35	9-04411-020-0	01	1	0107-0512	●	●	●	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	04	1	0105-0604		●	●
9	STUD; WATER PIPE (A) M8X20 L=32	0-41010-820-0	04	1	0605-		●	●
9	STUD; WATER PIPE (A) M8X20 L=32	9-04110-820-0	02	1	0108-0604	●
9	STUD; WATER PIPE (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	0105-0106	●	●	●
12	BOLT; HSG M10X25 FLANGE	0-28181-025-0	05	1	0107-0512	●	●	●	●
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	0601-	●	●	●	●
14	PLUG; SW (B) PT3/8	8-94475-259-0	01	1	0105-0106	●	●	●
14	PLUG; SW (B) PT3/8	8-94475-259-0	01	1	0107-	●	●	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	0105-0105		●	●
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	0105-0106	●	●	●
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	0107-	●	●	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0105-0106	●	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	0107-	●	●	●	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0105-0105	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0106-	●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	0105-0106	●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	0107-	●	●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	0105-0106	●	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	0107-	●	●	●	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13721-669-1	01	1	0105-0106		●
82	PIPE; WATER,HTR	1-13721-669-1	01	1	0105-0106	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-13721-669-1	01	1	0107-		●
82	PIPE; WATER,HTR	1-13721-669-1	01	1	0107-	●			●
82	PIPE; WATER,HTR	1-13721-670-0	01	1	0105-			●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE	0-28981-420-0	01	1	0105-0512		●
85	BOLT; CLIP M14X20 FLANGE	0-28981-420-0	01	1	0105-0512			●
85	BOLT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE	0-28951-420-0	01	1	0601-		●
85	BOLT; CLIP M14X20 FLANGE	0-28951-420-0	01	1	0601-			●
101	BOLT; PIPE M10X20 FLANGE	0-28081-020-0	01	1	0105-0106	●
101	BOLT; PIPE M10X20 FLANGE	0-28081-020-0	01	1	0107-0303	●			●
101	BOLT; PIPE M14X20 FLANGE	0-28981-420-0	01	1	0304-0512	●			●
101	BOLT; PIPE M14X20 FLANGE	0-28951-420-0	01	1	0601-	●			●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	02	1	0105-0105		●	●
112	PLUG (A) M12X9	1-09604-095-0	01	1	0105-0106	●	●	●
112	PLUG (A) M12X9	1-09604-095-0	01	1	0107-	●	●	●	●
112	PLUG (B) M14X9	9-99202-314-0	02	1	0105-0105		●	●
112	PLUG EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) PT3/8 T=8.0	1-09605-066-0	01	1	0106-		●
254	PLUG; HSG M16X12	9-99202-316-0	02	1	0105-0105	●
254	PLUG; HSG M16X12	9-99202-316-0	02	1	0106-	●	●	●
