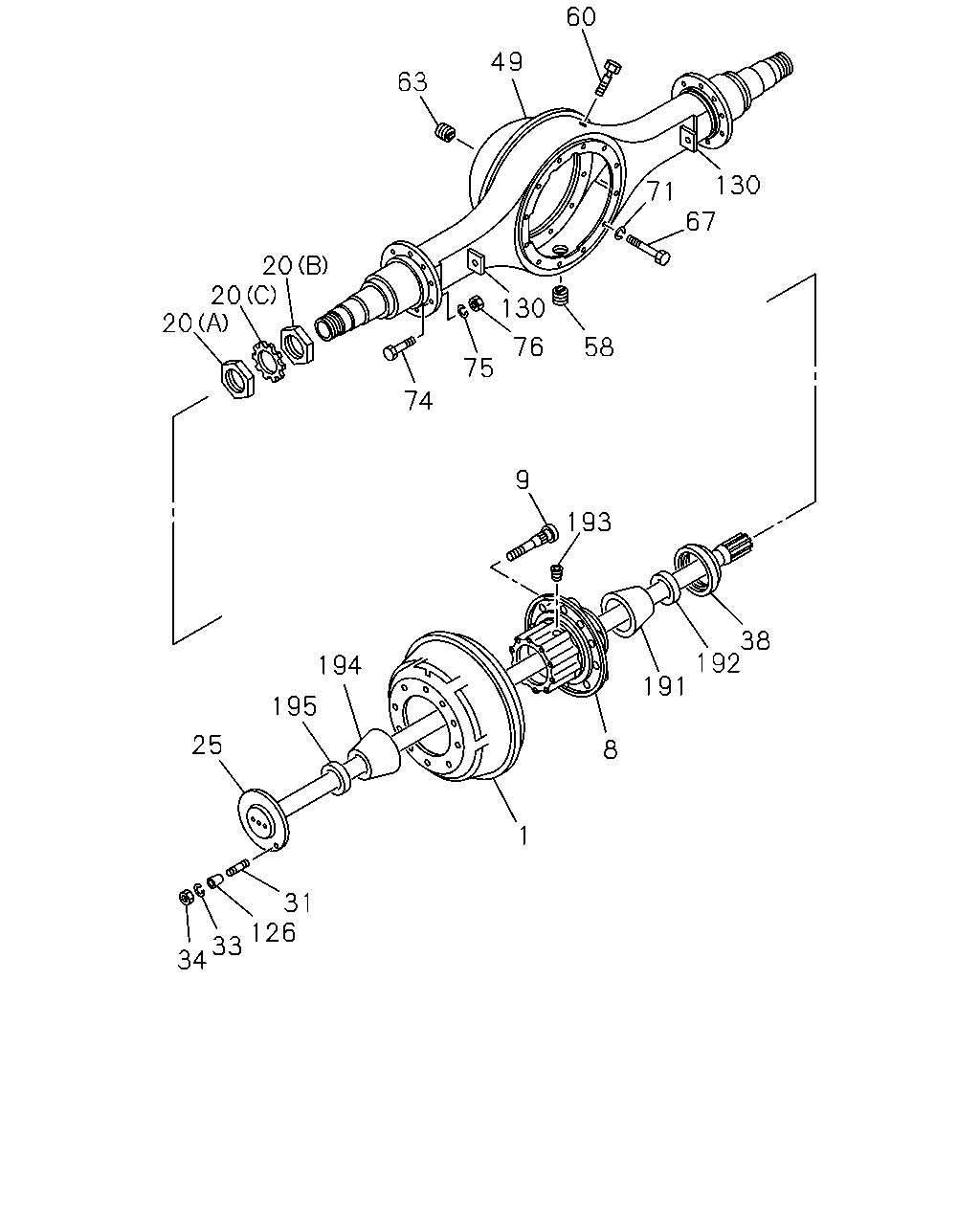

4-20 — REAR AXLE CASE AND SHAFT (#1099) — 45 parça

60 49 63 130 71 67 20 20 20 130 76 58 75 74 9 193 38 192 194 191 195 25 8 1 31 126 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-624-0	02	1	9202-9301	●	●
1	DRUM; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-341-0	02	1	9302-	●	●
1	DRUM; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-394-0	02	1	9202-	●	●
8	HUB; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-621-0	02	1	9202-	●	●
8	HUB; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-393-0	02	1	9202-	●	●
9	PIN; WHEEL,RR AXLE	1-87061-407-0	20	1	9202-9301	●	●
9	PIN; WHEEL,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-407-0	20	1	9302-	●	●
9	PIN; WHEEL,RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-42337-051-0	20	1	9302-	●	●
20	NUT; BRG,RR HUB HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-626-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-627-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-628-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-87061-326-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-87061-327-0	02	1	9202-	●	●
20	NUT; BRG,RR HUB EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-87061-328-0	02	1	9202-	●	●
25	SHAFT; AXLE,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-600-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-599-0	01	1	9202-	●	●
25	SHAFT; AXLE,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-318-0	02	1	9202-	●	●
31	STUD; AXLE SHAFT TO HUB	1-87061-395-0	16	1	9202-	●	●
33	WASHER; AXLE SHAFT	1-87061-369-0	16	1	9202-	●	●
34	NUT; AXLE SHAFT	1-87061-336-0	16	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-630-0	02	1	9202-	●	●
38	SEAL; OIL,RR HUB,INNER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-350-0	02	1	9202-	●	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-598-0	01	1	9202-	●	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-370-0	01	1	9202-	●	●
58	PLUG; DRAIN,AXLE CASE	1-87061-382-0	01	1	9202-	●	●
60	BREATHER; RR AXLE CASE	1-09893-017-0	01	1	9202-	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-87061-385-0	01	1	9202-	●	●
67	BOLT; FINAL DRIVE SETTING	1-87061-357-0	12	1	9202-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-87061-356-0	12	1	9202-	●	●
74	BOLT; RR BRK ASM SETTING	1-87061-401-0	16	1	9202-	●	●
75	WASHER; LK,RR BRK ASM SETTING	1-87061-369-0	16	1	9202-	●	●
76	NUT; RR BRK ASM SETTING	1-87061-383-0	16	1	9202-	●	●
126	COLLAR; AXLE SHAFT	1-87061-351-0	16	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE FINAL GEAR 37/8 17" EATON(W5A),FINAL GEAR 39/8 17"EATON(W5B),FINAL GEAR 37/7 17" EATON(W5C),FINAL G EAR 35/6 17" EATON(W5E),FINAL GEAR 39/9 17" EATON(W5K) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-399-0	02	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-399-0	02	1	9202-	●	●
130	BRACKET; CM/SHF,AXLE CASE FINAL GEAR 39/7 17" EATON(W5D) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-399-0	01	1	9202-	●	●
191	CUP; BRG,HUB INNER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-623-0	02	1	9202-	●	●
191	CUP; BRG,HUB INNER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-371-0	02	1	9202-	●	●
192	CONE; BRG,HUB INNER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-625-0	02	1	9202-	●	●
192	CONE; BRG,HUB INNER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-406-0	02	1	9202-	●	●
193	PLUG; HUB,RR AXLE	1-87061-348-0	02	1	9202-	●	●
194	CUP; BRG,HUB OUTER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-622-0	02	1	9202-	●	●
194	CUP; BRG,HUB OUTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-404-0	02	1	9202-	●	●
195	CONE; BRG,HUB OUTER HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-629-0	02	1	9202-	●	●
195	CONE; BRG,HUB OUTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87061-373-0	02	1	9202-	●	●
