◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22A - ENGINE MOUNTING ▶
0-22A — ENGINE MOUNTING (#10984) — 72 parça

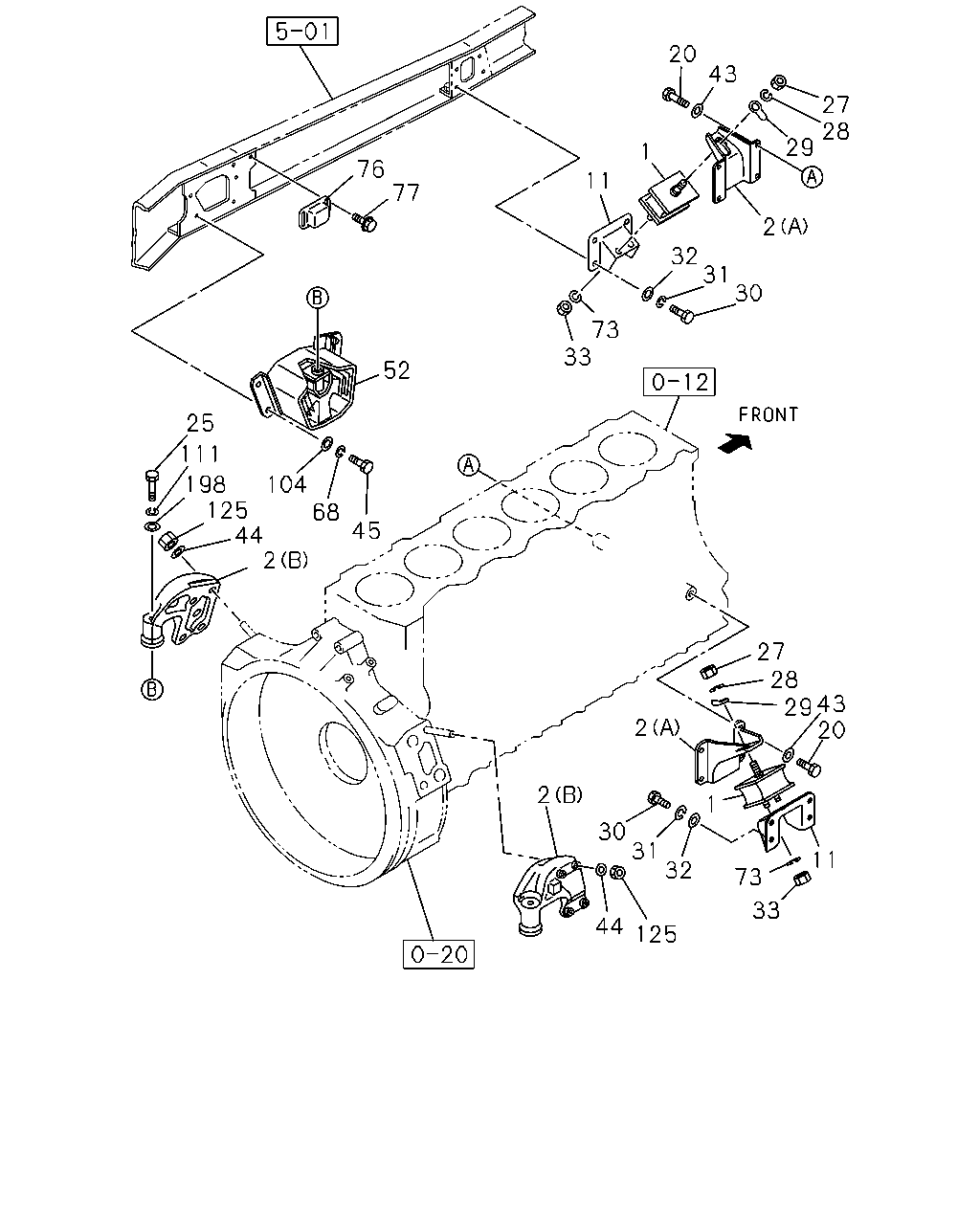

çizim 23128
20 43 27 28 29 1 76 77 11 2 32 31 30 73 33 52 25 111 198 125 44 2 104 68 45 27 28 29 43 20 2 2 1 30 31 32 11 73 33 44 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-147-1 02 1 0105- ● ● ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 0105-0106 ● ● ●
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 0107- ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 0105-0106 ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 0107- ● ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 0105-0106 ● ● ●
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 0107- ● ● ● ●
11 BRACKET; CUSHION RUBBER,FRT
CAB UP +110MM<TGG> 		1-53211-338-0 02 1 0105- ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-338-0 02 1 0105- ● ● ●
11 BRACKET; CUSHION RUBBER,FRT
EXC. CAB UP +110MM<TGG> 		1-53211-222-0 02 1 0105- ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 0105-0106 ● ● ●
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 0107- ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		9-09804-230-1 02 1 0105-0503 ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		1-09000-773-0 02 1 0504- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 0105-0512 ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0601- ● ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 0105-0603 ● ● ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0604- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 0105- ● ● ● ●
30 BOLT; BRKT TO FRAME
M14X35 		9-92061-435-0 08 1 0105-0512 ● ● ● ●
30 BOLT; BRKT TO FRAME
M14X35 		0-20951-435-0 08 1 0601- ● ● ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-814-0 08 1 0105-0603 ● ● ● ●
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ● ● ● ●
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 0105- ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 0105-0512 ● ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 0601- ● ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 0105-0106 ● ● ●
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 0107- ● ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 0105-0106 ● ● ●
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 0107- ● ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> M14X40 		9-92061-440-0 12 1 0105-0512 ●
45 BOLT; CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 12 1 0105-0512 ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		9-92061-440-0 12 1 0105-0512 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
MIXER TRUCK<RA2> M14X40 		0-20951-440-0 12 1 0601- ●
45 BOLT; CUSHION RUBBER TO FRAME
CAB UP +110MM<TGG> M14X40 		0-20951-440-0 12 1 0601- ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		0-20951-440-0 12 1 0601- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> M14X40 		9-92061-440-0 10 1 0105-0512 ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> M14X40 		0-20951-440-0 10 1 0601- ●
52 RUBBER; CUSHION,ENG MTG,RR
CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> 		1-53225-327-0 02 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-327-0 02 1 0105- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-395-1 01 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53225-394-1 01 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-333-0 01 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> 		1-53225-334-0 01 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-261-3 01 1 0105- ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> 		1-53225-262-3 01 1 0105- ●
68 WASHER; LK,CUSHION RUBBER
MIXER TRUCK<RA2> ID=14.2 		9-09150-814-0 12 1 0105-0603 ●
68 WASHER; LK,CUSHION RUBBER
CAB UP +110MM<TGG> ID=14.2 		9-09150-814-0 12 1 0105-0603 ●
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-814-0 12 1 0105-0603 ● ● ●
68 WASHER; LK,CUSHION RUBBER
MIXER TRUCK<RA2> ID=14.2 		0-91510-814-0 12 1 0604- ●
68 WASHER; LK,CUSHION RUBBER
CAB UP +110MM<TGG> ID=14.2 		0-91510-814-0 12 1 0604- ●
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-814-0 12 1 0604- ● ● ●
68 WASHER; LK,CUSHION RUBBER
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> ID=14.2 		9-09150-814-0 10 1 0105-0603 ●
68 WASHER; LK,CUSHION RUBBER
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> ID=14.2 		0-91510-814-0 10 1 0604- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-514-0 04 1 0105-0603 ● ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604- ● ● ● ●
76 STOPPER; ENG MTG RUBBER
EXC. CAB UP +110MM<TGG> 		1-53229-056-1 02 1 0105- ●
76 STOPPER; ENG MTG RUBBER
MIXER TRUCK<RA2> CAB UP +110MM<TGG> 		1-53229-056-1 02 1 0105- ●
77 BOLT; STOPPER
EXC. CAB UP +110MM<TGG> M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512 ●
77 BOLT; STOPPER
MIXER TRUCK<RA2> CAB UP +110MM<TGG> M8X16 FLANGE 		0-28080-816-0 04 1 0105-0512 ●
77 BOLT; STOPPER
EXC. CAB UP +110MM<TGG> M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
77 BOLT; STOPPER
MIXER TRUCK<RA2> CAB UP +110MM<TGG> M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
104 WASHER; PL,CUSHION RUBBER
MIXER TRUCK<RA2> ID=15 		9-09651-069-0 12 1 0105- ●
104 WASHER; PL,CUSHION RUBBER
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 12 1 0105- ●
104 WASHER; PL,CUSHION RUBBER
ID=15 		9-09651-069-0 12 1 0105- ● ● ●
104 WASHER; PL,CUSHION RUBBER
EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> ID=15 		9-09651-069-0 10 1 0105- ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		9-09150-622-0 02 1 0105-0603 ● ● ● ●
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		0-91510-622-0 02 1 0604- ● ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 0105-0106 ● ● ●
125 NUT; ENG FOOT
M18 		9-99110-518-0 08 1 0107-0512 ● ● ● ●
125 NUT; ENG FOOT
M18 		0-91110-518-0 08 1 0601- ● ● ● ●
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 0105- ● ● ● ●
