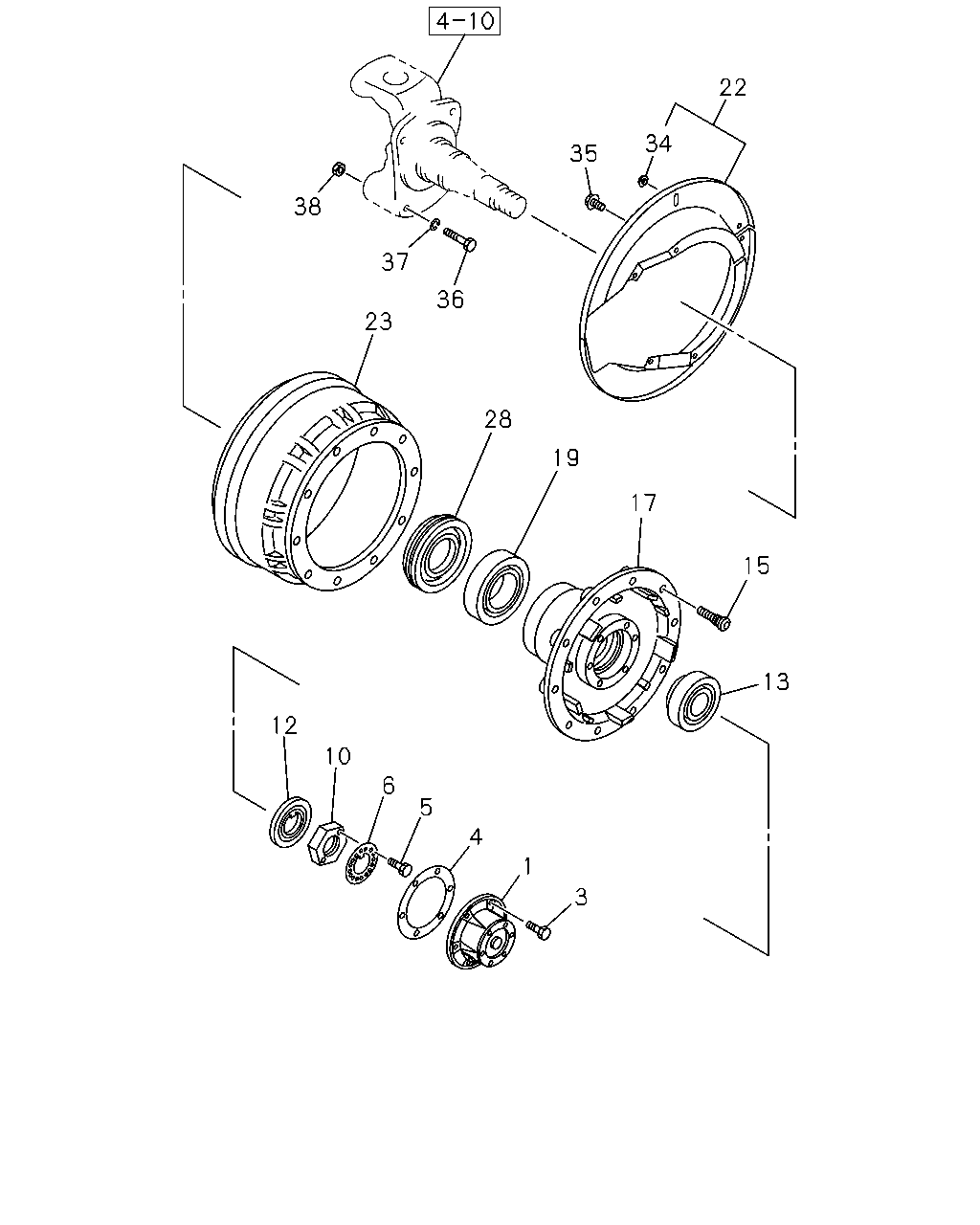

4-11 — FRONT HUB AND DRUM OR ROTOR (#1098) — 25 parça

22 34 35 38 37 36 23 28 19 17 15 13 12 10 6 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9202-	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	9-01900-818-0	12	1	9202-9204	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X18 W/LK WASHER	0-50040-818-0	12	1	9205-9509	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9510-	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9202-	●	●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9202-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-3	02	1	9202-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9202-	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-085-0	02	1	9202-	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-031-0	20	1	9202-	●	●
17	HUB; FRT AXLE	1-42312-089-1	02	1	9202-	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9202-	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-143-0	02	1	9202-	●	●
22	COVER SET; FRT BRK DRUM	1-87061-774-0	01	1	9202-	●	●
22	COVER SET; FRT BRK DRUM	1-87061-773-0	01	1	9202-	●	●
23	DRUM; BRK,FRT	1-42315-330-1	02	1	9202-	●	●
28	SEAL; OIL,FRT HUB TOKYO BUHIN	1-09625-449-1	02	1	9202-	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87061-402-0	04	1	9202-	●	●
35	BOLT; DRUM COVER	1-87061-389-0	08	1	9202-	●	●
36	BOLT; BACK PLATE M16X52	1-09044-001-1	04	1	9202-	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-516-0	04	1	9202-9401	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	04	1	9402-	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	04	1	9202-	●	●
