◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13B - OIL PAN AND LEVEL GAUGE ▶
0-13B — OIL PAN AND LEVEL GAUGE (#10977) — 90 parça

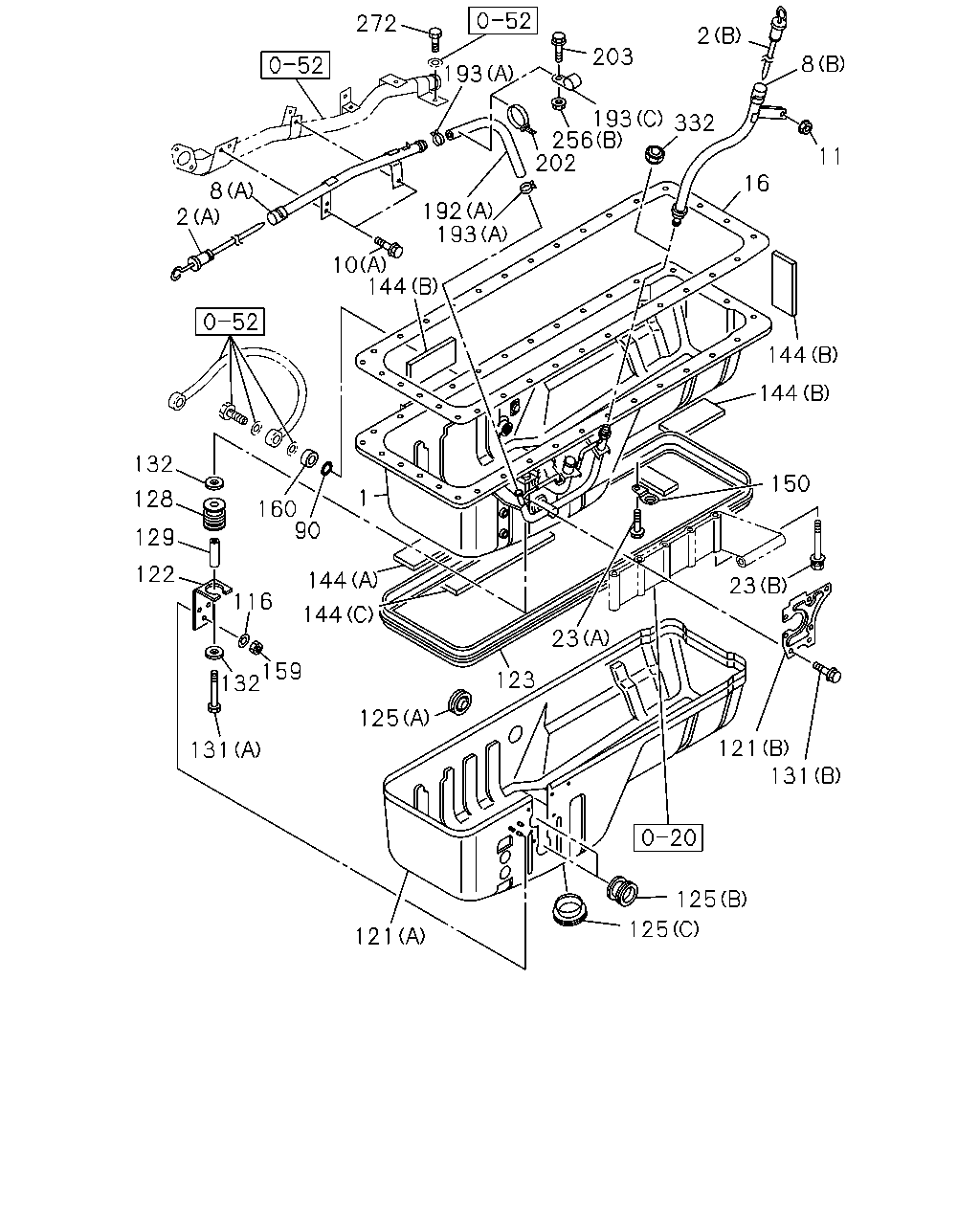

çizim 23081
272 2 203 8 193 193 256 202 332 11 16 8 192 193 2 10 144 144 144 132 150 1 128 160 90 129 122 144 23 116 144 23 159 132 123 125 121 131 131 125 125 121
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL 1-11360-848-1 01 1 0105- ● ●
1 PAN ASM; OIL
EXC. MIXER TRUCK<RA2> 		1-11360-848-1 01 1 0105- ●
1 PAN ASM; OIL
MIXER TRUCK<RA2> 		1-11360-826-3 01 1 0105- ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 0105-0304 ● ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 0105-0110 ● ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-439-1 01 1 0111- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 0105-0304 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 0105-0110 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-599-0 01 1 0111- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 0105-0304 ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 0105- ● ● ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 0105- ● ● ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 0105- ● ● ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=17.8 		1-09623-588-0 01 1 0105- ● ● ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 0105-0603 ● ●
116 WASHER; LK,COVER
EXC. MIXER TRUCK<RA2> ID=6.1 		9-09150-506-0 04 1 0105-0603 ●
116 WASHER; LK,COVER
ID=6.1 		0-91510-506-0 04 1 0604- ● ●
116 WASHER; LK,COVER
EXC. MIXER TRUCK<RA2> ID=6.1 		0-91510-506-0 04 1 0604- ●
121 COVER; OIL PAN
(B) 		1-19381-357-0 01 1 0105- ● ●
121 COVER; OIL PAN
EXC. MIXER TRUCK<RA2> (B) 		1-19381-357-0 01 1 0105- ●
121 COVER; OIL PAN
(A) 		1-19381-378-0 01 1 0105- ● ●
121 COVER; OIL PAN
EXC. MIXER TRUCK<RA2> (A) 		1-19381-378-0 01 1 0105- ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 0105- ● ●
122 BRACKET; OIL PAN COVER
EXC. MIXER TRUCK<RA2> 		1-19389-171-0 01 1 0105- ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 0105- ● ●
123 RUBBER; SEAL OIL
EXC. MIXER TRUCK<RA2> 		1-19387-042-1 01 1 0105- ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 0105- ● ●
125 GROMMET; OIL PAN
EXC. MIXER TRUCK<RA2> (A) ID=34 		1-09333-032-0 01 1 0105- ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 02 1 0105- ● ●
125 GROMMET; OIL PAN
EXC. MIXER TRUCK<RA2> (B) ID=18 		1-09333-056-0 02 1 0105- ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 0105- ● ●
125 GROMMET; OIL PAN
EXC. MIXER TRUCK<RA2> (C) ID=60 		1-09333-090-0 01 1 0105- ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 0105- ● ●
128 RUBBER; MTG,OIL PAN
EXC. MIXER TRUCK<RA2> 		1-09337-004-0 06 1 0105- ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 0105- ● ●
129 TUBE; DIST
EXC. MIXER TRUCK<RA2> M8X10 		1-11369-081-0 03 1 0105- ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 0105-0512 ● ●
131 BOLT; COVER NOISE SHIELD
EXC. MIXER TRUCK<RA2> (A) M8X50 		0-10805-850-0 03 1 0105-0512 ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10855-850-0 03 1 0601- ● ●
131 BOLT; COVER NOISE SHIELD
EXC. MIXER TRUCK<RA2> (A) M8X50 		0-10855-850-0 03 1 0601- ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 0105-0512 ● ●
131 BOLT; COVER NOISE SHIELD
EXC. MIXER TRUCK<RA2> (B) M6X10 FLANGE 		0-28080-610-0 06 1 0105-0512 ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28050-610-0 06 1 0601- ● ●
131 BOLT; COVER NOISE SHIELD
EXC. MIXER TRUCK<RA2> (B) M6X10 FLANGE 		0-28050-610-0 06 1 0601- ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 0105- ● ●
132 WASHER; PL,OIL PAN COVER
EXC. MIXER TRUCK<RA2> ID=8.4 OD=26 		9-09164-808-0 06 1 0105- ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 07 1 0105- ● ●
144 INSULATOR; OIL PAN
EXC. MIXER TRUCK<RA2> (B) 80X200 		1-19389-192-0 07 1 0105- ●
144 INSULATOR; OIL PAN
(C) 80X300 		1-19389-193-0 01 1 0105- ● ●
144 INSULATOR; OIL PAN
EXC. MIXER TRUCK<RA2> (C) 80X300 		1-19389-193-0 01 1 0105- ●
144 INSULATOR; OIL PAN
(A) 80X400 		1-19389-194-0 02 1 0105- ● ●
144 INSULATOR; OIL PAN
EXC. MIXER TRUCK<RA2> (A) 80X400 		1-19389-194-0 02 1 0105- ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 0105- ● ● ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 0105-0512 ● ●
159 NUT; PLATE
EXC. MIXER TRUCK<RA2> M6 		9-09110-406-0 04 1 0105-0512 ●
159 NUT; PLATE
M6 		0-91110-506-0 04 1 0601- ● ●
159 NUT; PLATE
EXC. MIXER TRUCK<RA2> M6 		0-91110-506-0 04 1 0601- ●
160 ADAPTER 1-11369-126-0 01 1 0105- ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 0105- ● ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 0105-0310 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=26 L=26 		1-09701-236-0 01 1 0311- ● ● ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 0105- ● ● ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0310 ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0311-0512 ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
256 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		0-91150-108-0 01 1 0105-0107 ● ● ●
256 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		0-91150-108-0 01 1 0108-0310 ● ● ●
256 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0311-0602 ● ● ●
256 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ●
256 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0605- ● ● ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 0105-0208 ● ● ●
272 BOLT; STAY
M8X26 		1-09009-175-0 01 1 0209- ● ● ●
332 CAP; OIL LEVEL GAUGE GUIDE 1-11769-185-1 01 1 0305- ● ● ●
çizim 80972
1 193 192 193 192 193 193 5 6 193 192 193 192 193 193 1 5 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAN ASM; OIL 1-11360-848-1 01 1 0105- ● ●
1 PAN ASM; OIL
EXC. MIXER TRUCK<RA2> 		1-11360-848-1 01 1 0105- ●
1 PAN ASM; OIL
MIXER TRUCK<RA2> 		1-11360-826-3 01 1 0105- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 0105- ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 0105-0111 ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-022-0 01 1 0112- ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 0105- ● ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 0105- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 0105-0310 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=26 L=26 		1-09701-236-0 01 1 0311- ● ● ●
