0-12A — CYLINDER BLOCK (#10974) — 127 parça

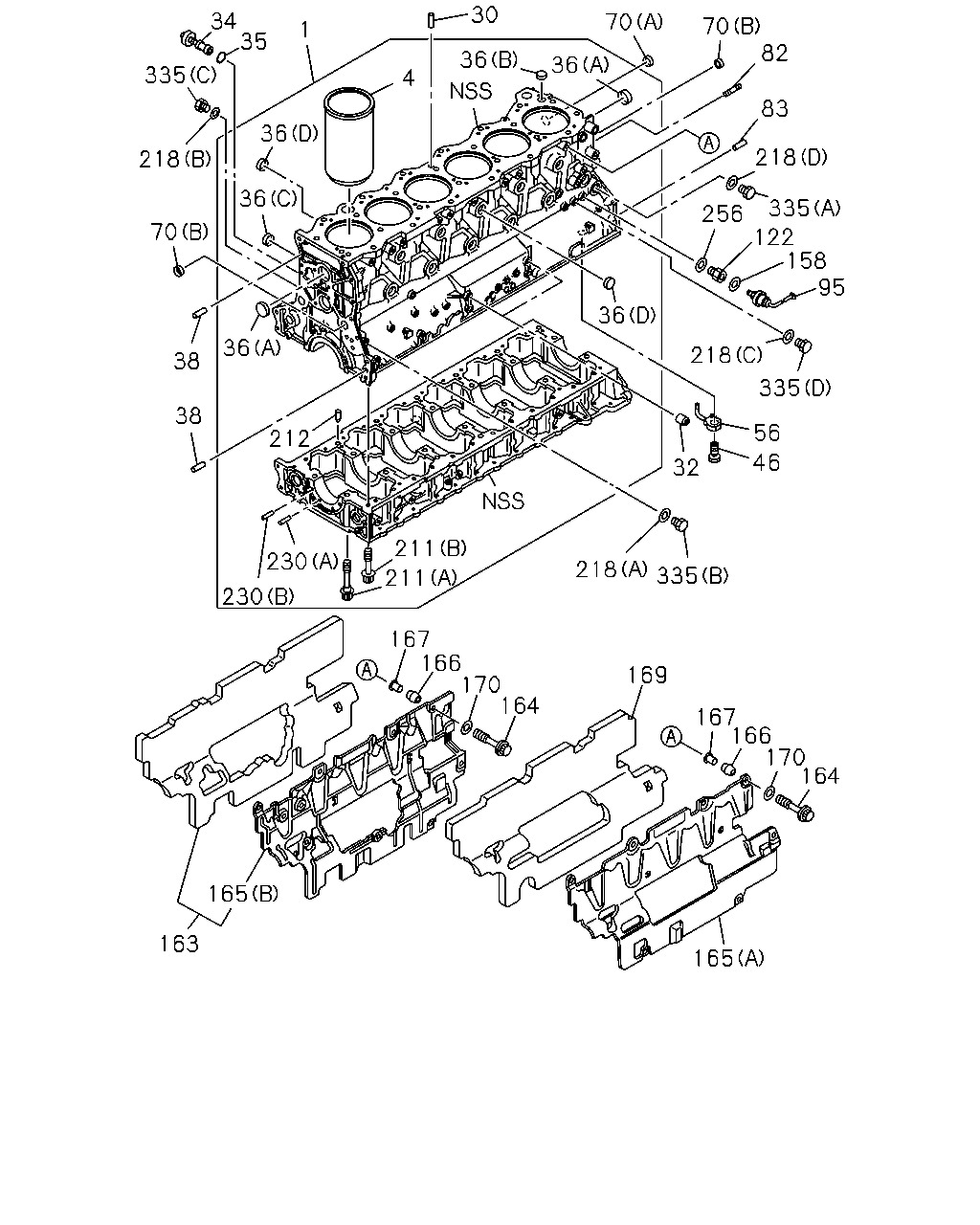

çizim 24404
30 34 35 70 70 82 1 36 36 335 4 83 36 218 218 36 335 256 70 122 158 95 36 212 36 218 38 335 38 56 46 32 211 230 218 335 211 230 167 166 170 164 169 167 166 170 164 165 163 165
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOCK ASM; CYL 1-11210-664-4 01 1 0105- ●
1 BLOCK ASM; CYL 1-11210-656-2 01 1 0105-0106 ●
1 BLOCK ASM; CYL 1-11210-656-7 01 1 0107- ● ●
1 BLOCK ASM; CYL 1-11210-632-9 01 1 0105-0505 ●
1 BLOCK ASM; CYL 8-98003-655-0 01 1 0506- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-1 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-1 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-0 06 1 0105-0106 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0107- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-0 06 1 0105-0106 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0107- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-333-2 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-334-2 06 1 0105- ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0105-0106 ● ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0107- ● ● ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0105-0106 ● ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0107- ● ● ● ●
34 VALVE; OIL RELIEF 1-13160-030-2 01 1 0105-0106 ● ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0107- ● ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0105-0106 ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0107-0508 ● ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 04 1 0105-0106 ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0107- ● ● ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0105-0106 ● ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0107- ● ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-065-0 02 1 0105-0106 ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		1-09600-065-1 02 1 0107- ● ● ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 13 1 0105-0106 ● ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-94241-637-0 13 1 0107- ● ● ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0105-0106 ● ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0107- ● ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0105-0106 ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0107- ● ● ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-3 06 1 0105-0106 ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-4 06 1 0107- ● ● ●
56 JET; OIL,PISTON COOLING 1-13342-139-1 06 1 0105- ●
70 CUP; SEALING,FRT & RR
ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 03 1 0105-0106 ●
70 CUP; SEALING,FRT & RR
ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 03 1 0107- ● ●
70 CUP; SEALING,FRT & RR
EXC. ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 04 1 0105-0106 ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0105-0106 ● ●
70 CUP; SEALING,FRT & RR
EXC. ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 04 1 0107- ● ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0107- ● ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-1 01 1 0105-0106 ● ● ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0107- ● ● ● ●
82 STUD; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) M14X35 L=56 		9-04411-435-0 01 1 0105-0106 ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 0105-0106 ● ●
82 STUD; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) M14X35 L=56 		9-04411-435-0 01 1 0107-0604 ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 0107-0604 ● ●
82 STUD; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) M14X35 L=56 		0-44011-435-0 01 1 0605- ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 0605- ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0105-0106 ● ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0107- ● ● ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0105-0106 ● ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0107- ● ● ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 0105-0106 ● ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 0107- ● ● ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-0106 ● ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107- ● ● ● ●
163 COVER ASM; C/BL SKIRT 1-19380-209-2 01 1 0307-0308 ●
163 COVER ASM; C/BL SKIRT 1-19380-212-0 01 1 0309-0310 ●
163 COVER ASM; C/BL SKIRT 1-19380-209-3 01 1 0311- ●
164 BOLT; COVER BLOCK SKIRT
M10X35 FLANGE 		0-28181-035-0 08 1 0105-0512 ●
164 BOLT; COVER BLOCK SKIRT
M10X35 FLANGE 		0-28151-035-0 08 1 0601- ●
165 COVER; C/BL SKIRT
(A) 		1-19381-376-0 01 1 0105-0306 ●
165 COVER; C/BL SKIRT
(B) 		1-19381-455-2 01 1 0307-0308 ●
165 COVER; C/BL SKIRT
(B) 		1-19381-459-0 01 1 0309-0310 ●
165 COVER; C/BL SKIRT
(B) 		1-19381-455-3 01 1 0311- ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 08 1 0105- ●
167 TUBE; DIST,SIDE COVER 1-19389-134-1 08 1 0105-0207 ●
167 TUBE; DIST,SIDE COVER 1-19389-329-0 08 1 0208- ●
169 INSULATOR; SIDE COVER 1-19389-191-1 01 1 0105-0306 ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 08 1 0105- ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 0105-0106 ● ● ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 0107- ● ● ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0105-0106 ● ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0107- ● ● ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0105-0106 ● ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0107- ● ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). (C) LH SIDE ID=14.2 OD=19.2 		1-09630-085-0 01 1 0105- ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=19.2 		1-09630-085-0 01 1 0105- ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-0106 ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107- ● ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2 		1-09630-084-0 01 1 0105-0106 ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2 		1-09630-084-0 01 1 0107- ● ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22 		1-09630-089-0 01 1 0105-0106 ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22 		1-09630-089-0 01 1 0107- ● ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=25 		1-09630-141-0 01 1 0105-0106 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09630-141-0 01 1 0107- ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (C) LH SIDE ID=14.2 OD=25 		1-09630-141-0 01 1 0107- ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0105-0106 ● ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0107- ● ● ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0105-0106 ● ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0107- ● ● ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0105-0106 ● ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0107- ● ● ● ●
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (D) LH SIDE M14X9 		9-99202-314-0 01 1 0105-0106 ●
335 PLUG; C/BL,SIDE
(D) LH SIDE M14X9 		9-99202-314-0 01 1 0105-0106 ● ●
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (D) LH SIDE M14X9 		9-99202-314-0 01 1 0107- ● ●
335 PLUG; C/BL,SIDE
(D) LH SIDE M14X9 		9-99202-314-0 01 1 0107- ● ●
335 PLUG; C/BL,SIDE
(A) LH SIDE M22X12 		1-09604-035-0 01 1 0105-0106 ● ● ●
335 PLUG; C/BL,SIDE
(A) LH SIDE M22X12 		1-09604-035-0 01 1 0107- ● ● ● ●
335 PLUG; C/BL,SIDE
(B) LH SIDE M10X7 		1-09604-094-0 01 1 0105-0106 ● ● ●
335 PLUG; C/BL,SIDE
(B) LH SIDE M10X7 		1-09604-094-0 01 1 0107- ● ● ● ●
335 PLUG; C/BL,SIDE
(C) RH SIDE M12X9 		1-09604-095-0 01 1 0105-0106 ● ● ●
335 PLUG; C/BL,SIDE
(C) RH SIDE M12X9 		1-09604-095-0 01 1 0107- ● ● ● ●
çizim 79037
2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-837-3 06 1 0105- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-838-3 06 1 0105- ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-998-0 06 1 0105-0106 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-998-3 06 1 0107-0303 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-451-0 06 1 0304-0311 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-863-0 06 1 0312- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-999-0 06 1 0105-0106 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-999-3 06 1 0107-0303 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-452-0 06 1 0304-0311 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-864-0 06 1 0312- ● ●
2 LINER SET; ENG CYL
ENG LOW TORQUE<Q3R> GRADE=1X 		1-87811-667-6 06 1 0105- ●
2 LINER SET; ENG CYL
ENG LOW TORQUE<Q3R> GRADE=3X 		1-87811-668-7 06 1 0105- ●
2 LINER SET; ENG CYL
EXC. ENG LOW TORQUE<Q3R> GRADE=1X 		1-87811-669-4 06 1 0105- ●
2 LINER SET; ENG CYL
EXC. ENG LOW TORQUE<Q3R> GRADE=3X 		1-87811-670-4 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-362-1 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-363-1 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-0 06 1 0105-0106 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0107- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-0 06 1 0105-0106 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0107- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-333-2 06 1 0105- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-334-2 06 1 0105- ●
