◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#10961) — 30 parça

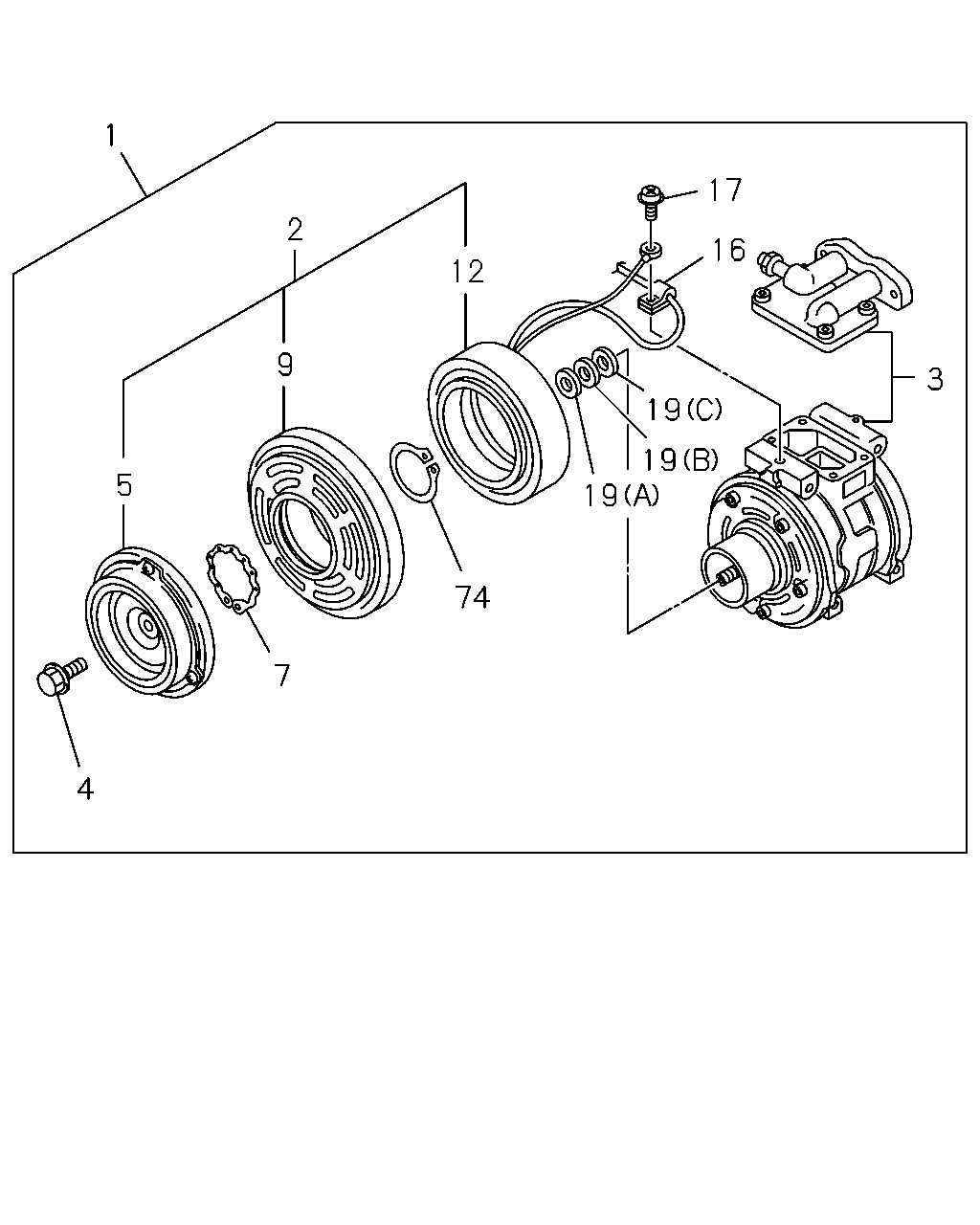

çizim 76662
1 17 2 16 19 12 9 3 19 19 5 74 7 4
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-270-2 01 1 0105-0105
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83532-270-2 01 1 0106-
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-043-0 01 1 0105-0105
2 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83533-043-0 01 1 0106-
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-274-0 01 1 0105-0105
3 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83532-274-0 01 1 0106-
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-323-0 01 1 0105-0105
4 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83539-323-0 01 1 0106-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) PRESS 		1-83579-886-0 01 1 0105-0105
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> PRESS 		1-83579-886-0 01 1 0106-
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) FORGING 		1-83579-887-0 01 1 0105-0105
5 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> FORGING 		1-83579-887-0 01 1 0106-
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-888-0 01 1 0105-0105
7 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83579-888-0 01 1 0106-
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-885-0 01 1 0105-0105
9 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83579-885-0 01 1 0106-
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-322-0 01 1 0105-0105
12 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83539-322-0 01 1 0106-
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 0105-0105
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83579-893-0 01 1 0106-
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 0105-0105
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		5-81129-130-0 01 1 0106-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (A) T=0.1 		1-83579-890-0 01 1 0105-0105
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (A) T=0.1 		1-83579-890-0 01 1 0106-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (B) T=0.3 		1-83579-891-0 01 1 0105-0105
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (B) T=0.3 		1-83579-891-0 01 1 0106-
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) (C) T=0.5 		1-83579-892-0 01 1 0105-0105
19 WASHER; LK,PULLEY,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (C) T=0.5 		1-83579-892-0 01 1 0106-
74 RING; SNAP,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-889-0 01 1 0105-0105
74 RING; SNAP,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-83579-889-0 01 1 0106-
