Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#10959) — 60 parça

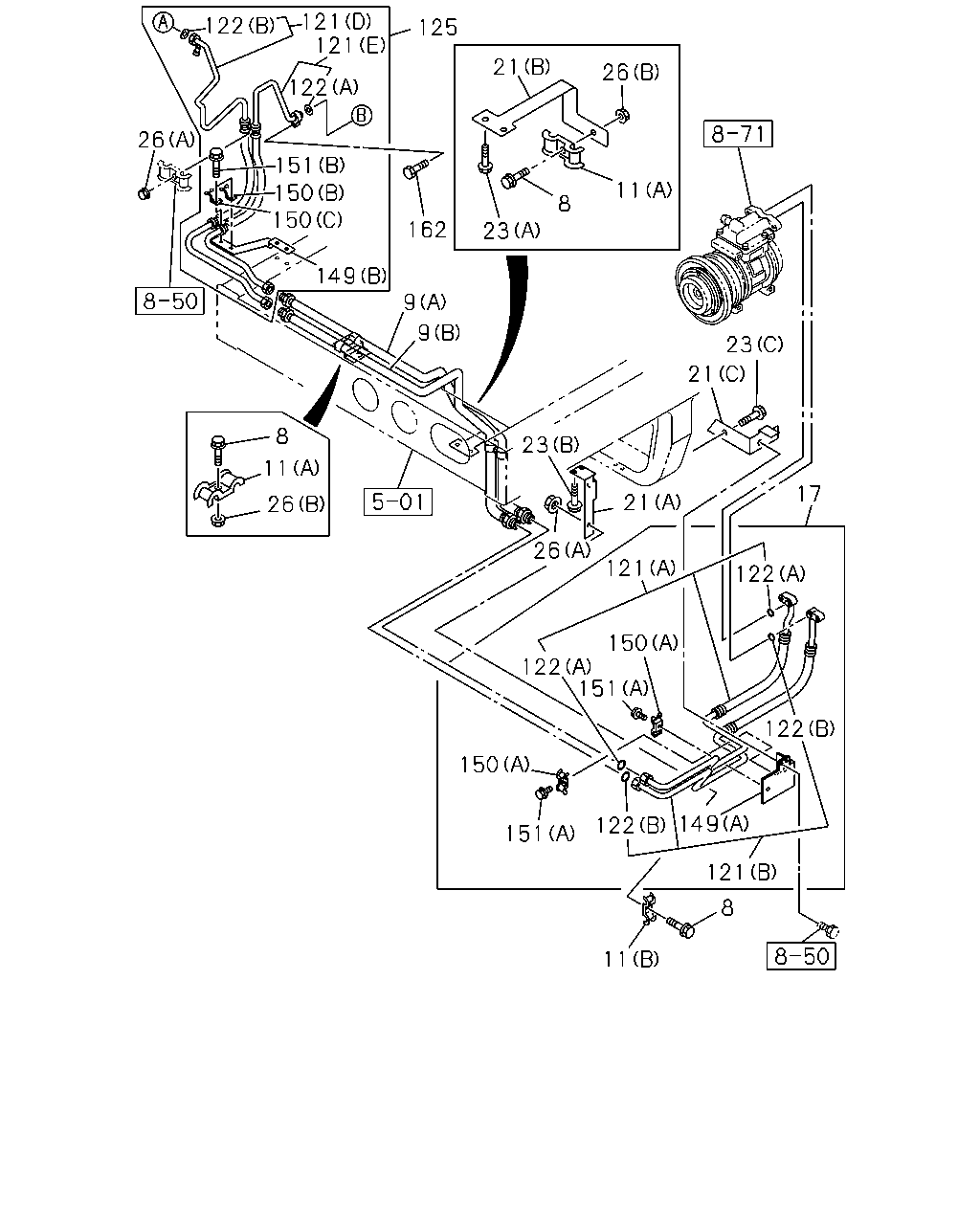

121 121 122 125 21 26 122 26 151 150 150 11 8 162 23 149 9 9 23 21 8 23 11 17 21 26 26 121 122 150 122 151 122 150 149 122 151 121 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-785-0	01	1	0105-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-786-0	01	1	0105-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2	1-83574-190-0	01	1	0105-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	0105-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	0105-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-850-0	01	1	0105-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-777-1	01	1	0105-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-998-0	01	1	0105-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-018-0	01	1	0105-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE	0-28080-820-0	01	1	0105-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	0-91150-108-0	02	1	0105-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8 FLANGE	0-91150-108-0	01	1	0105-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8 FLANGE	0-91150-108-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-687-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-801-1	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-802-1	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-859-0	01	1	0105-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0105-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0105-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-704-1	01	1	0105-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-025-0	01	1	0105-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-0	01	1	0105-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0105-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-254-0	01	1	0105-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-255-0	01	1	0105-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0105-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0105-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0105-0409
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-

189 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0105-

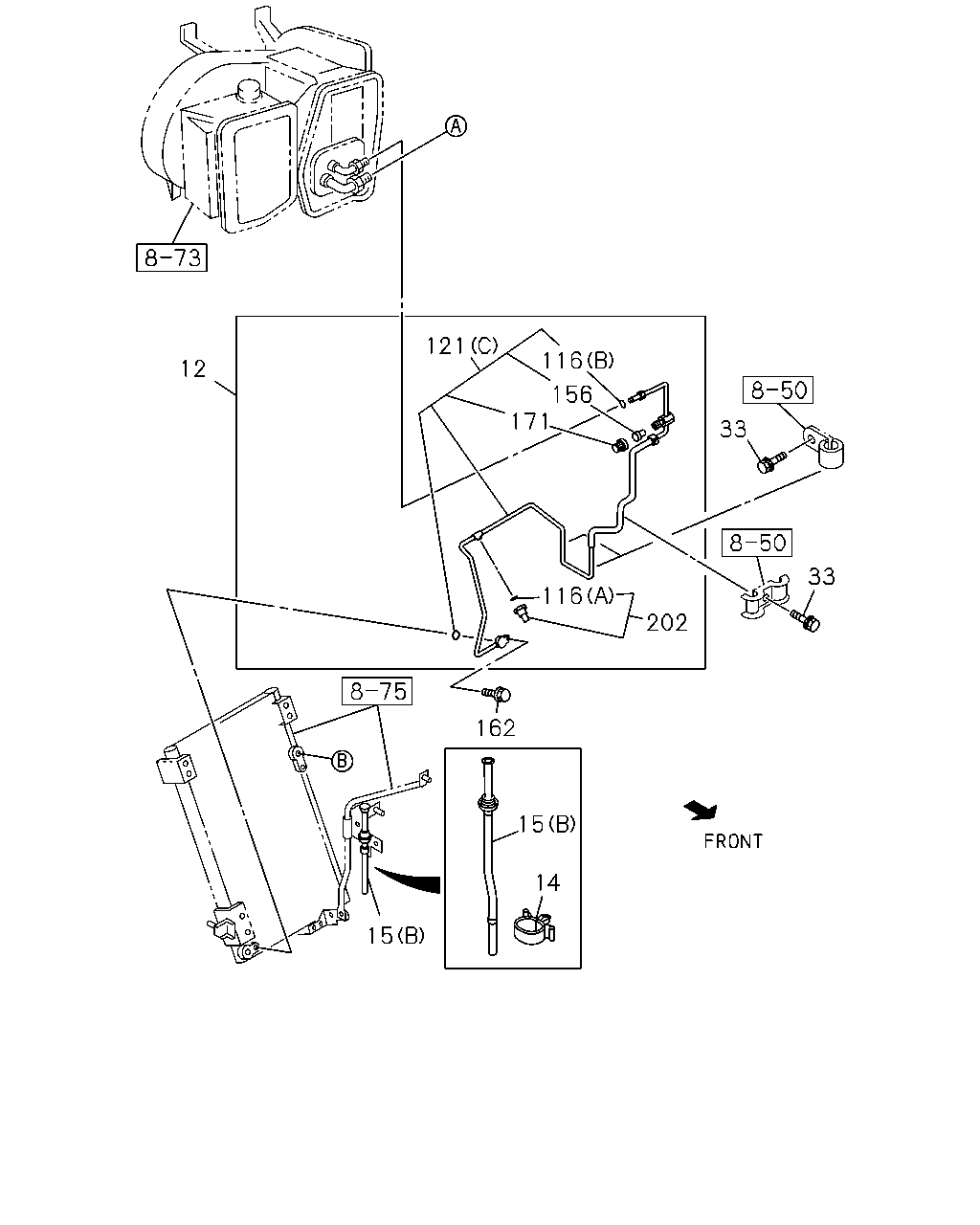

121 116 12 156 171 33 33 116 202 162 15 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0105-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4	8-97095-906-0	02	1	0105-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97178-772-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-687-0	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-801-1	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83572-802-1	01	1	0105-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-859-0	01	1	0105-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0105-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0105-0409
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0105-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	0105-
