8-50 — AIR CONDITIONING SYSTEM; FRONT (#10958) — 32 parça

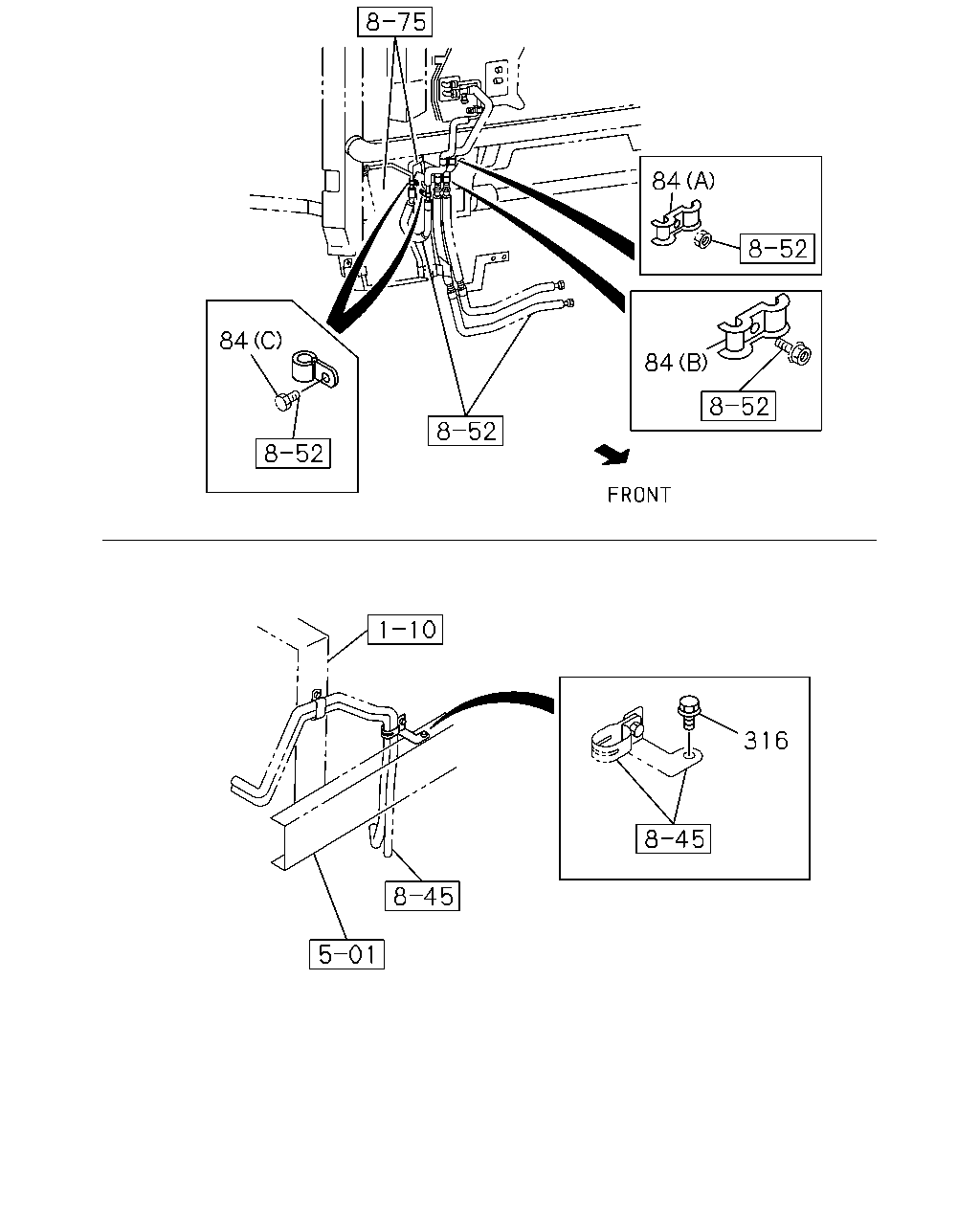

çizim 21061
84 84 84 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0105-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 0105-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 0105-
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 01 1 0105-

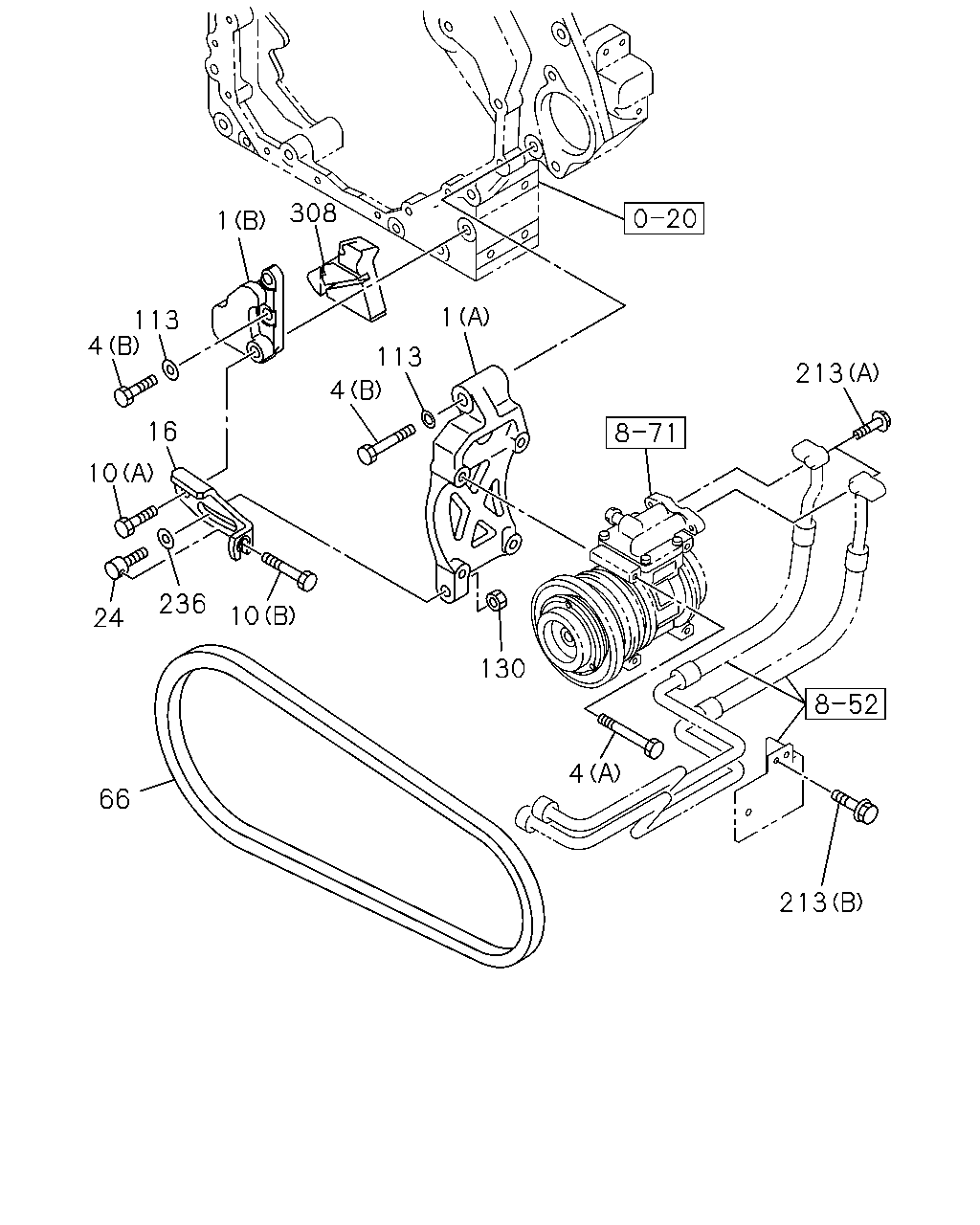

çizim 76634
308 1 1 113 4 113 213 4 16 10 236 10 24 130 4 66 213
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-987-0 01 1 0105-0105
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (B) 		1-83571-987-0 01 1 0106-
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-001-0 01 1 0105-0105
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (A) 		1-83573-001-0 01 1 0106-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X80 FLANGE 		0-28080-880-0 04 1 0105-0105
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (A) M8X80 FLANGE 		0-28080-880-0 04 1 0106-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X130 		9-09804-194-1 02 1 0105-0105
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (B) M14X130 		9-09804-194-1 02 1 0106-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 0105-0105
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (A) M12X25 FLANGE 		0-28181-225-0 01 1 0106-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 0105-0105
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> (B) M10X90 		1-09009-151-0 01 1 0106-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-253-1 01 1 0105-0105
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-13674-253-1 01 1 0106-
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 0105-0105
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> M12X45 		1-13674-160-0 01 1 0106-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 0105-0105
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> L=1131 		1-13671-436-0 01 1 0106-
113 WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 02 1 0105-0105
113 WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> ID=15 OD=26 		9-09164-514-0 02 1 0106-
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 0105-0105
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> M12 FLANGE 		0-91150-112-0 01 1 0106-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE 		0-28080-630-0 02 1 0312-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0105-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 0105-0105
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> ID=12.5 OD=32 		9-09160-712-0 01 1 0106-
308 INSULATOR; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-19389-213-0 01 1 0105-0105
308 INSULATOR; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-19389-213-0 01 1 0106-
