Sayfa 8-28 - Isuzu EPC

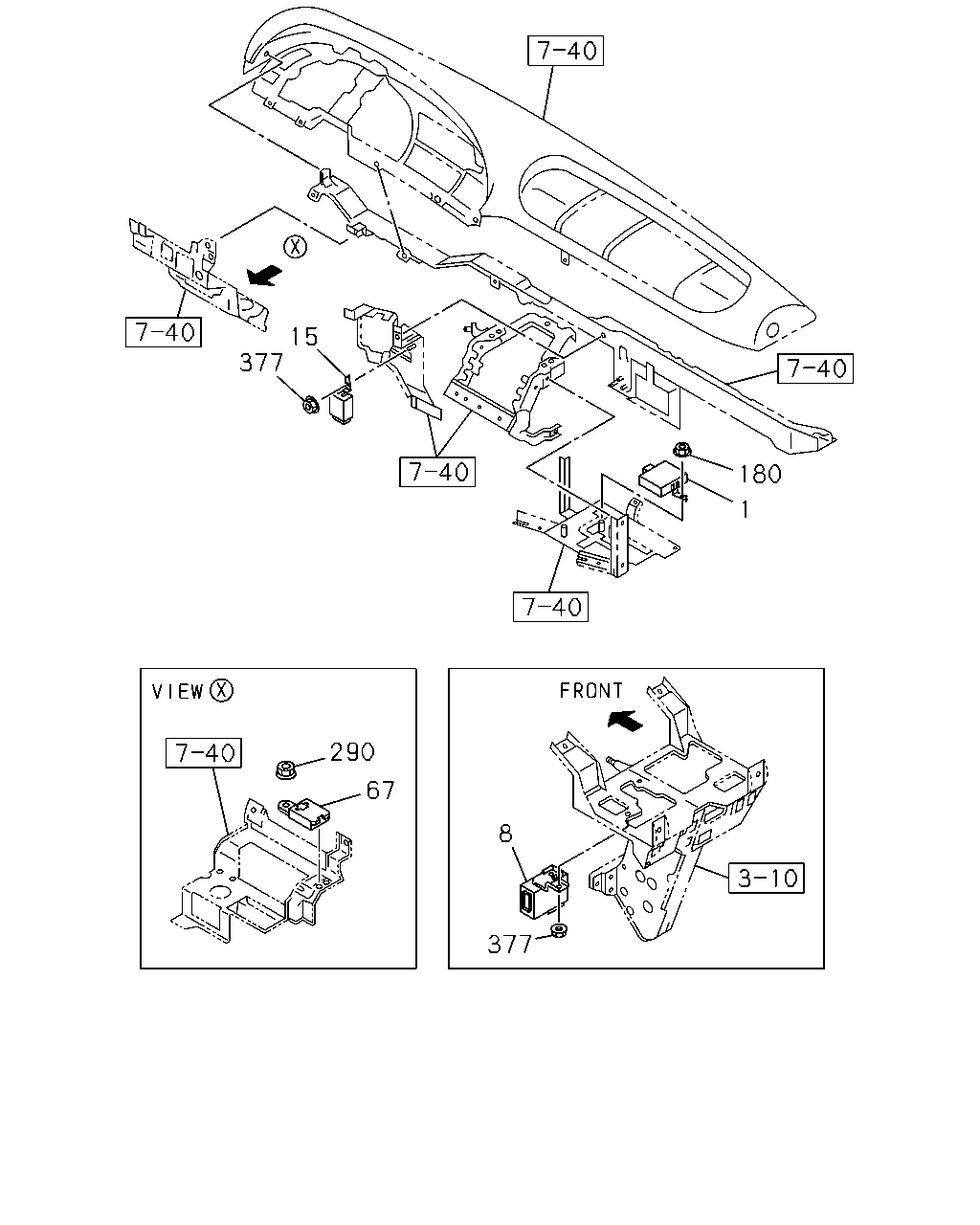

15 377 180 1 290 67 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-1	01	1	0105-
8	RELAY; WIPER DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)	1-83316-002-4	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0105-
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0105-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-

312 52 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO	1-83460-088-1	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0105-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-

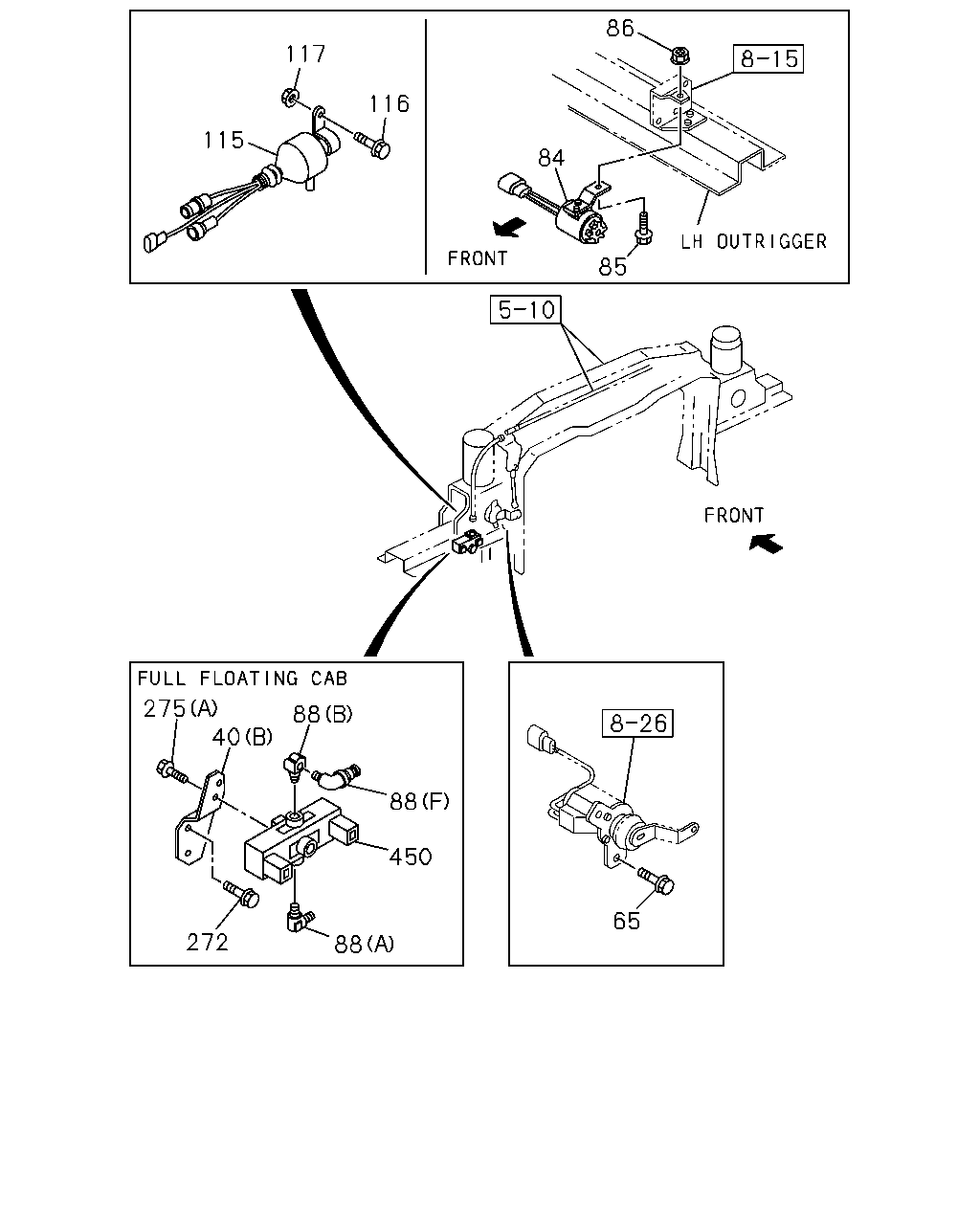

86 117 116 115 84 85 275 40 88 88 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-0105
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0105
40	BRACKET; MAG VLV (A)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0105-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	0105-0105
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0105-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-0105
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0105-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0105
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-0105
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-0105

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-0105
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-1	01	1	0105-0105
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0105-0105
283	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0106-0503
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0504-0506
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M10 FLANGE	0-91150-210-0	01	1	0507-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-

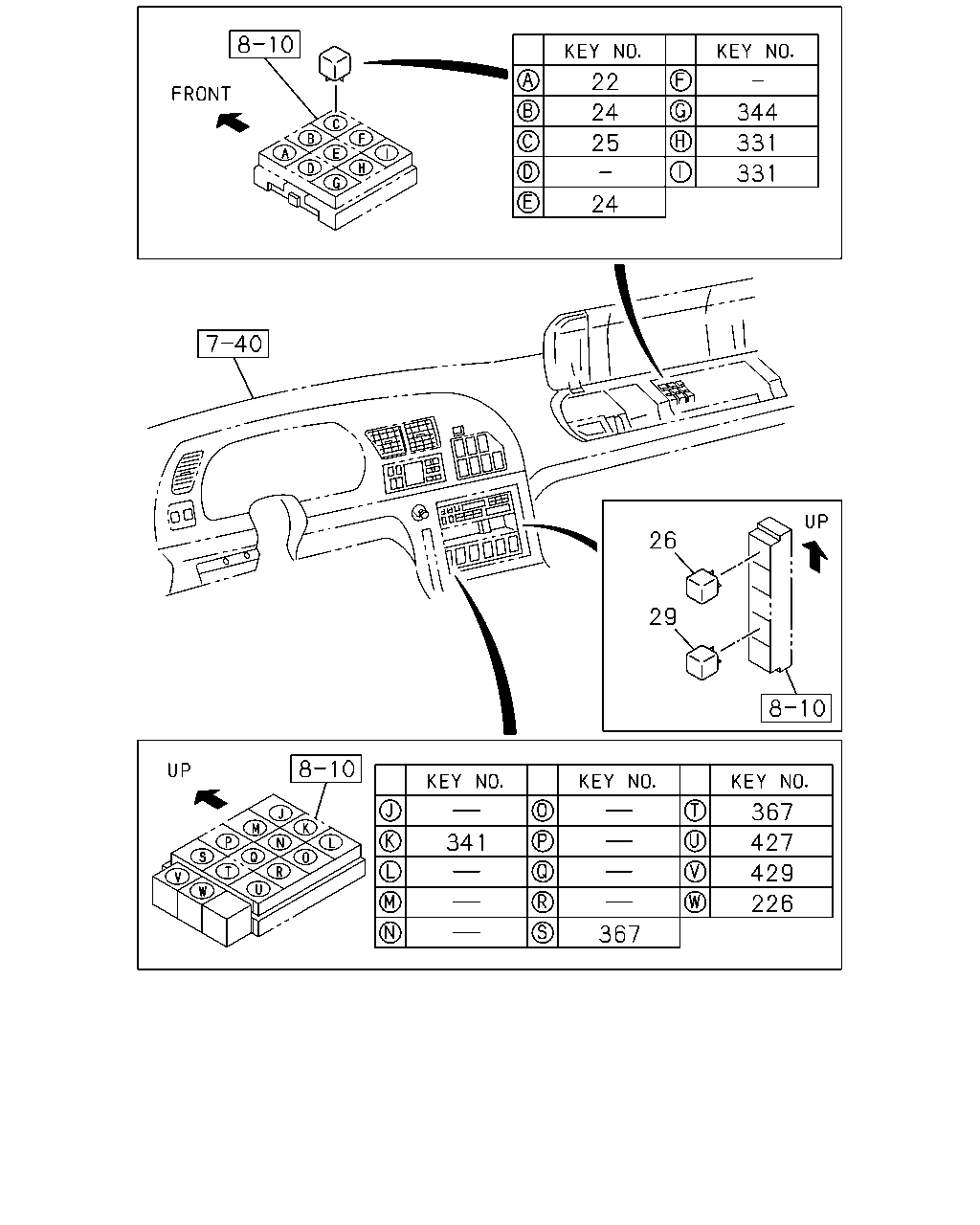

22 24 344 25 331 331 24 26 29 367 341 427 429 226 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A JIDECO	8-97062-815-1	01	1	0109-0111
29	RELAY; HORN 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-0105
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A MATSUSHITA	8-97173-035-1	02	1	0105-
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

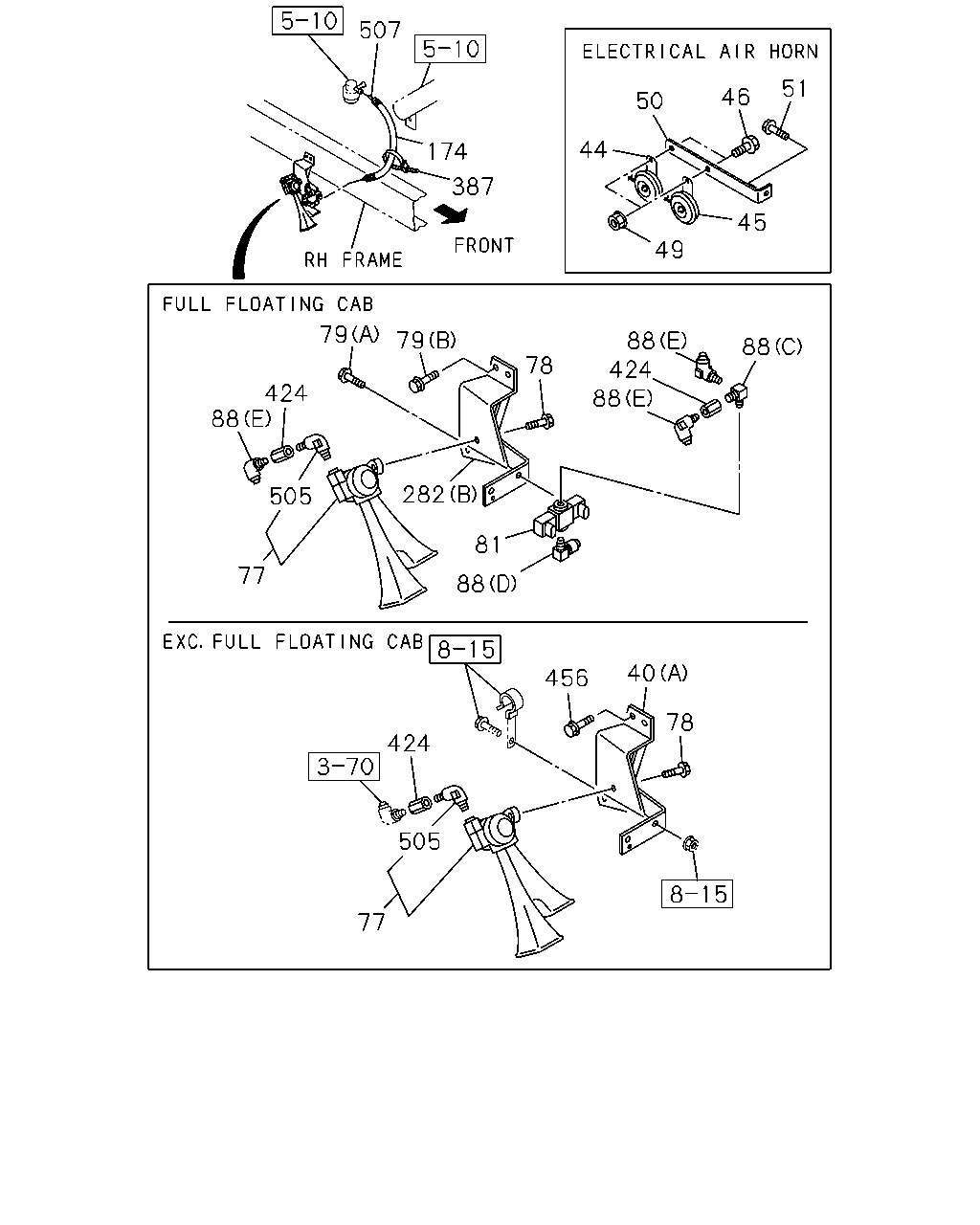

507 51 46 50 44 174 387 45 49 79 79 88 424 88 88 78 424 88 282 505 81 77 88 40 456 78 424 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-0105
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0105
40	BRACKET; MAG VLV (A)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0105-
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0109-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0109-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0109-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0109-
50	BRACKET; HORN	1-53458-901-0	01	1	0107-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-
77	HORN ASM	1-83430-041-1	01	1	0105-0108
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0108
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0105
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0105
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) TRI LC6X4-R1/8	1-09660-760-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-0105
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-0105
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0105
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-1	01	1	0105-0105
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0105-0105
424	ADAPTER FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-0105
424	ADAPTER EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0105
424	ADAPTER M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0106-0110
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0105-0105
456	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0106-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0105

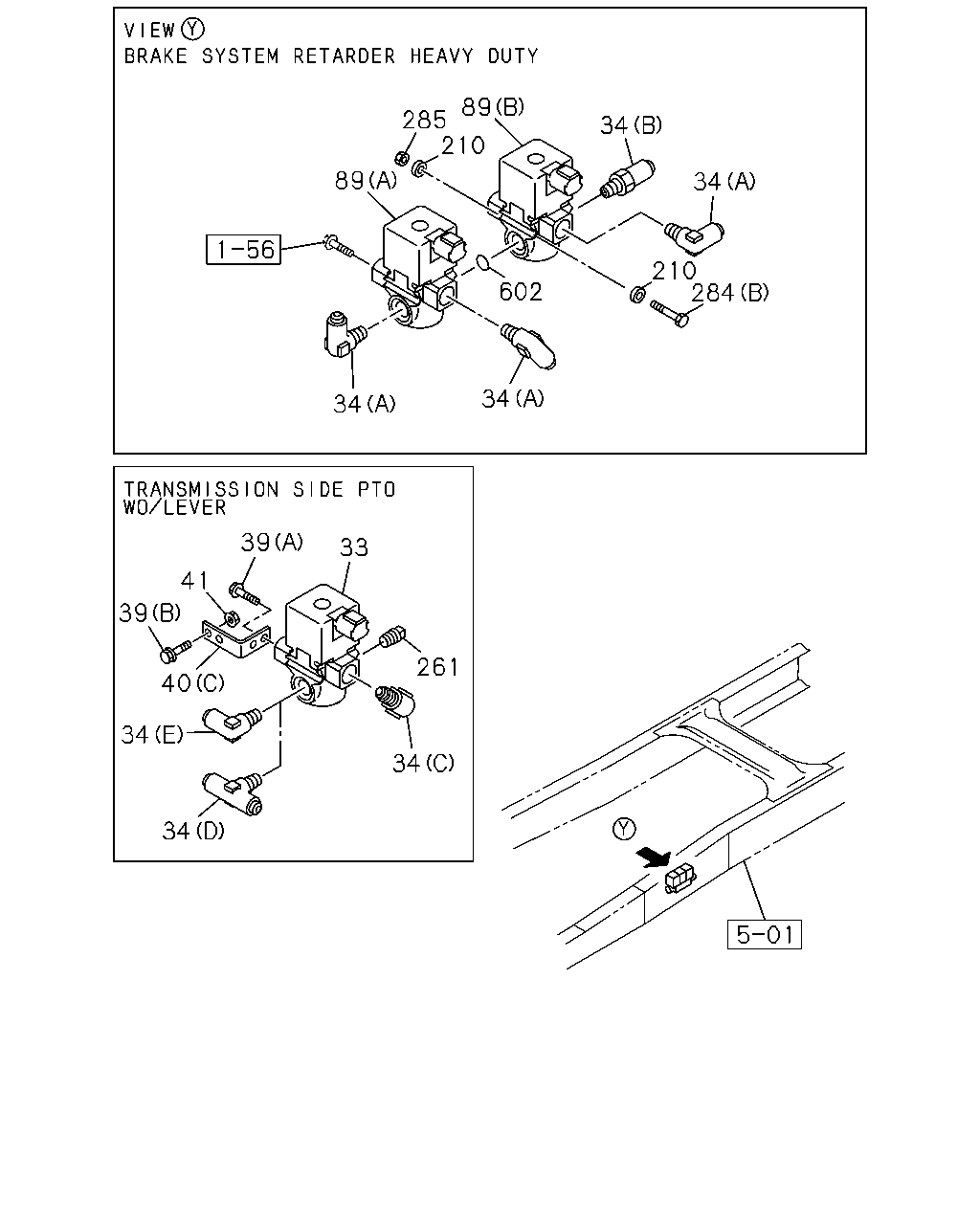

89 285 210 34 89 34 210 284 602 34 34 39 33 41 39 261 40 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0105-0105
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0105-0105
40	BRACKET; MAG VLV (A)	1-53458-742-1	01	1	0106-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0105-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/4	9-99204-513-0	01	1	0105-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
