8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#10953) — 26 parça

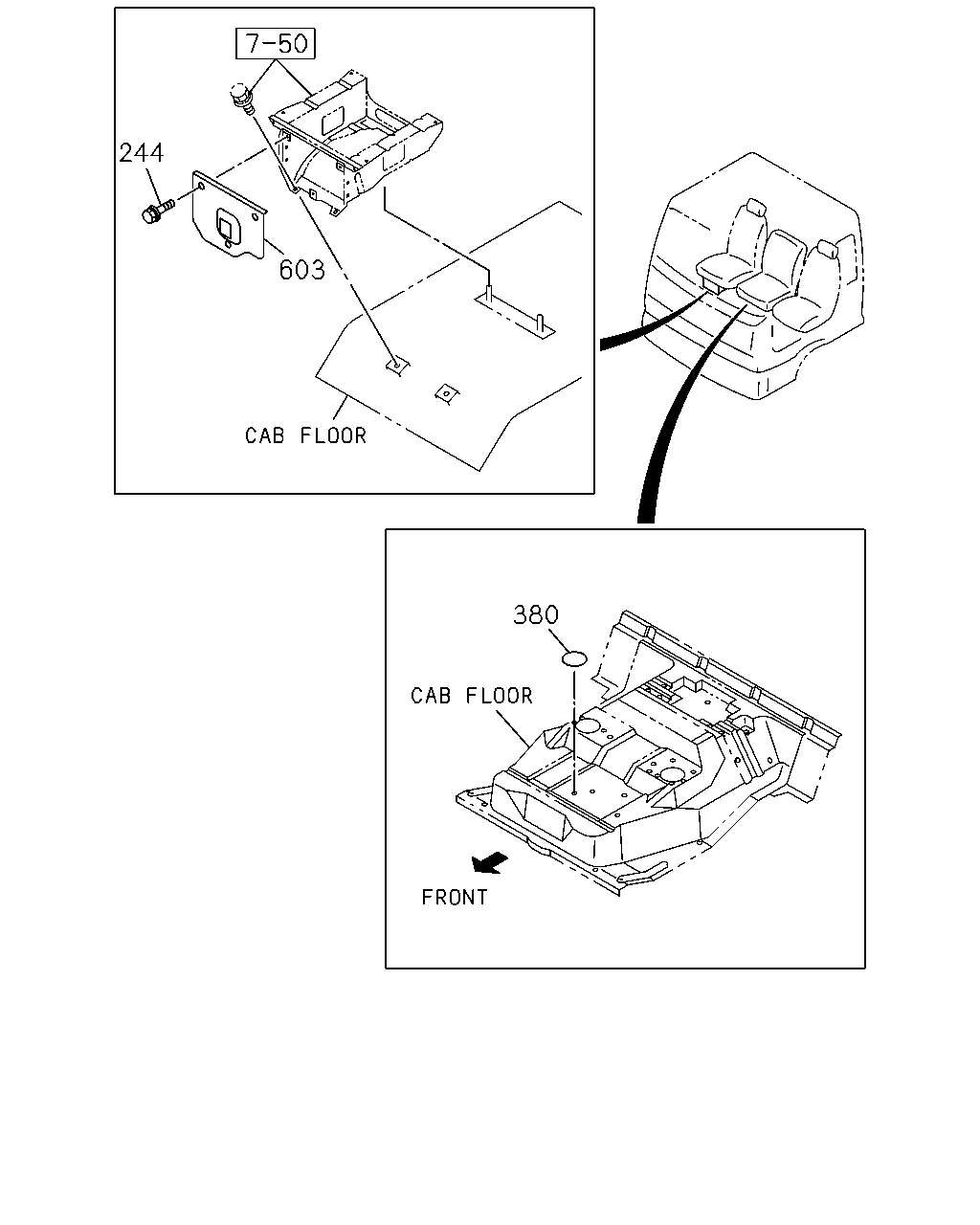

çizim 21045
244 603 380
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0401-
603 COVER; CONT UNIT,SEAT STAND 1-75557-497-1 01 1 0105-

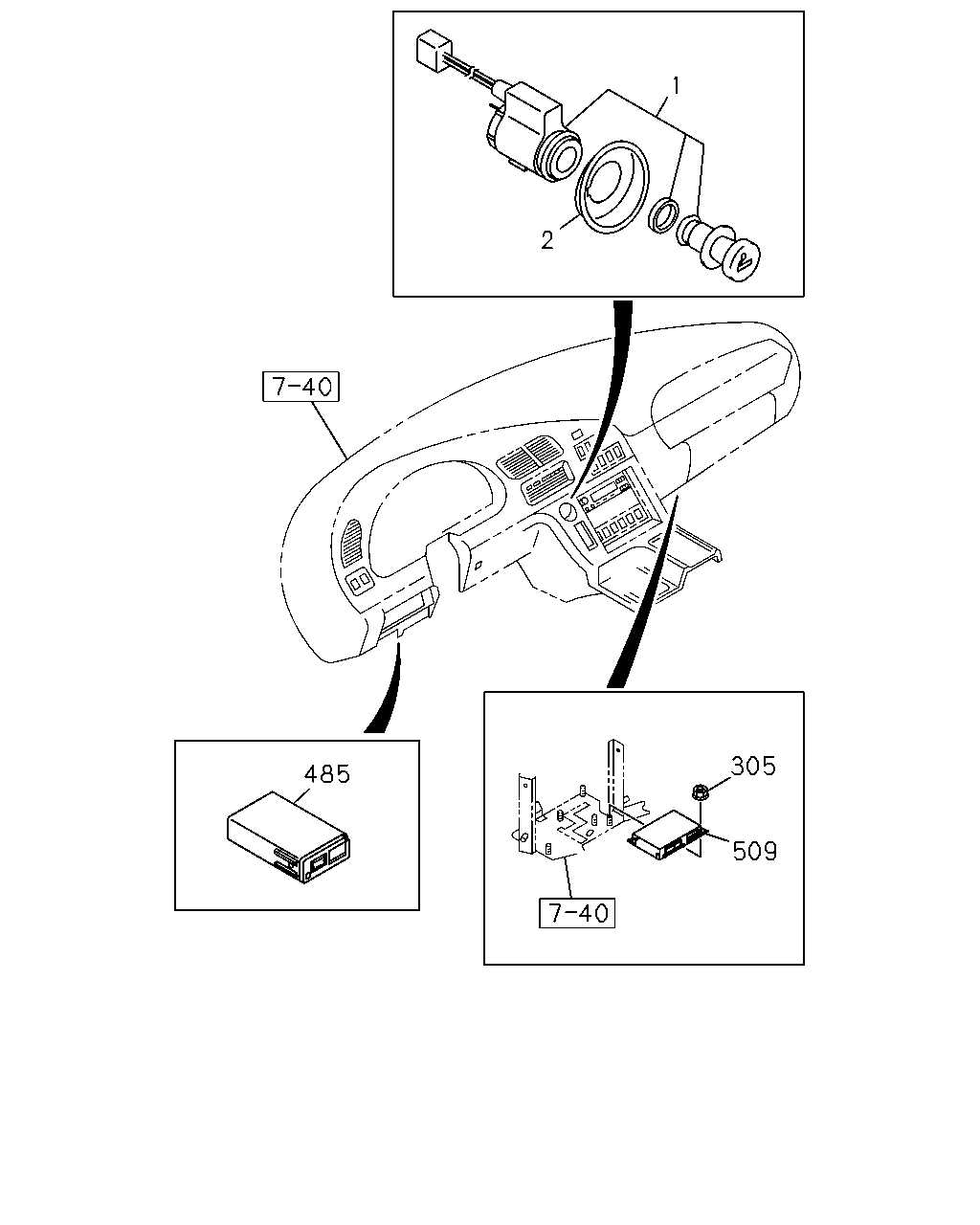

çizim 76040
1 2 305 485 509
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0105-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0105-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0105-0105
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0105-0402
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-0 01 1 0105-0105

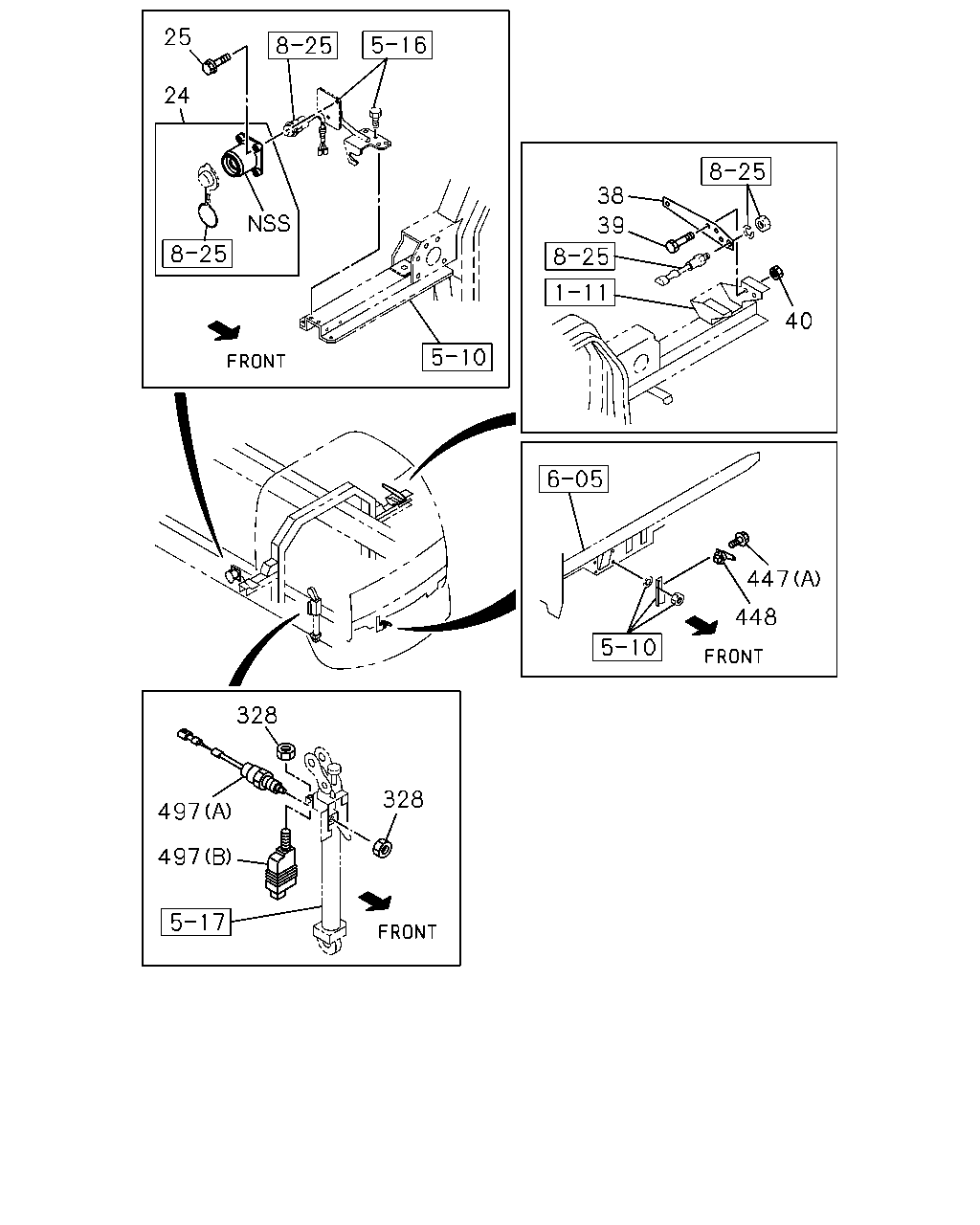

çizim 76041
25 24 38 39 40 447 448 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0105-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0105-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0105-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0105-
328 NUT
M16 		9-99111-416-0 02 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-0 01 1 0105-0105
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-0 01 1 0105-0105
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0105
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0105-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0105-

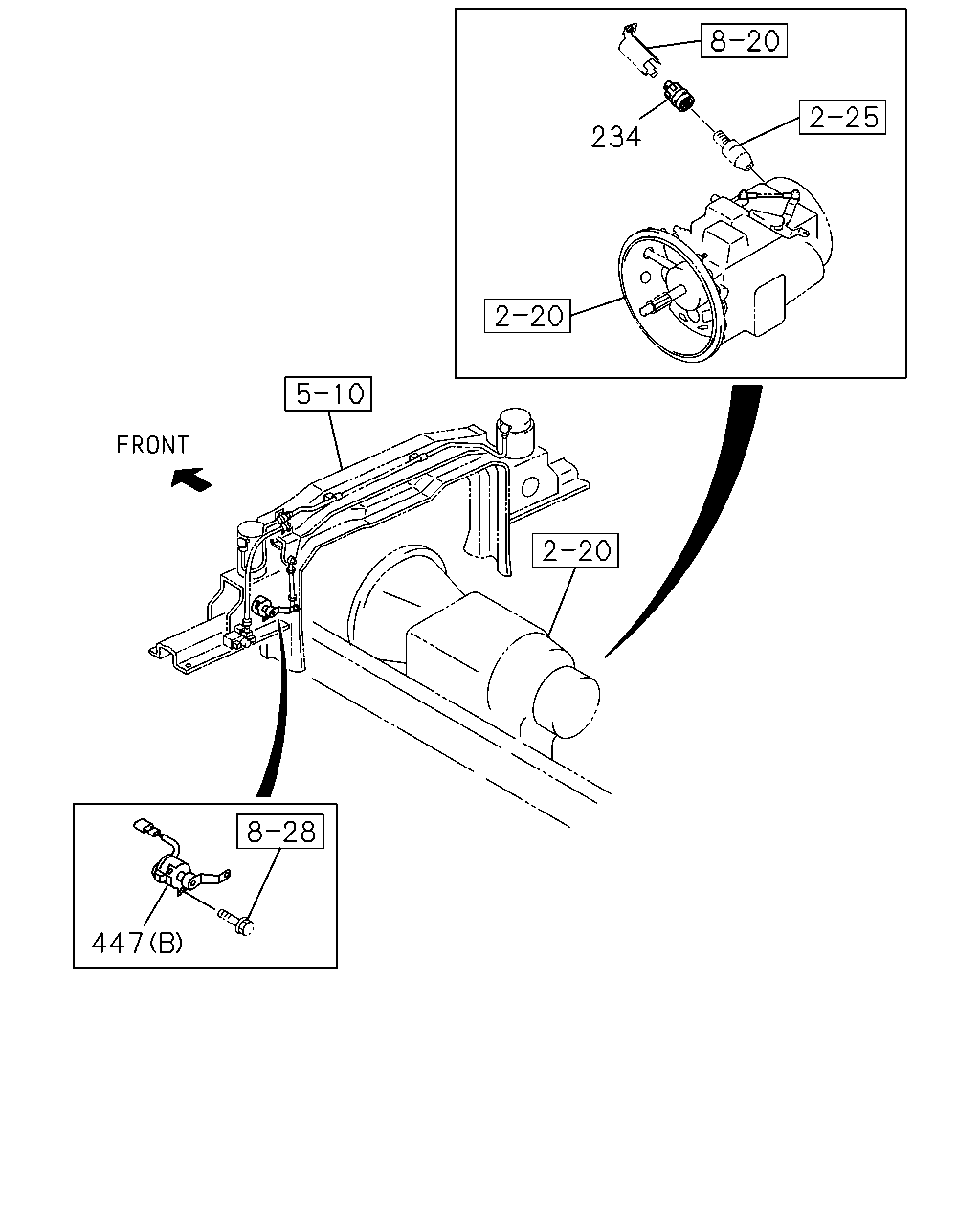

çizim 77221
234 447
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0105-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-0 01 1 0105-0105
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-0 01 1 0105-0105
