Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#1095) — 542 parça

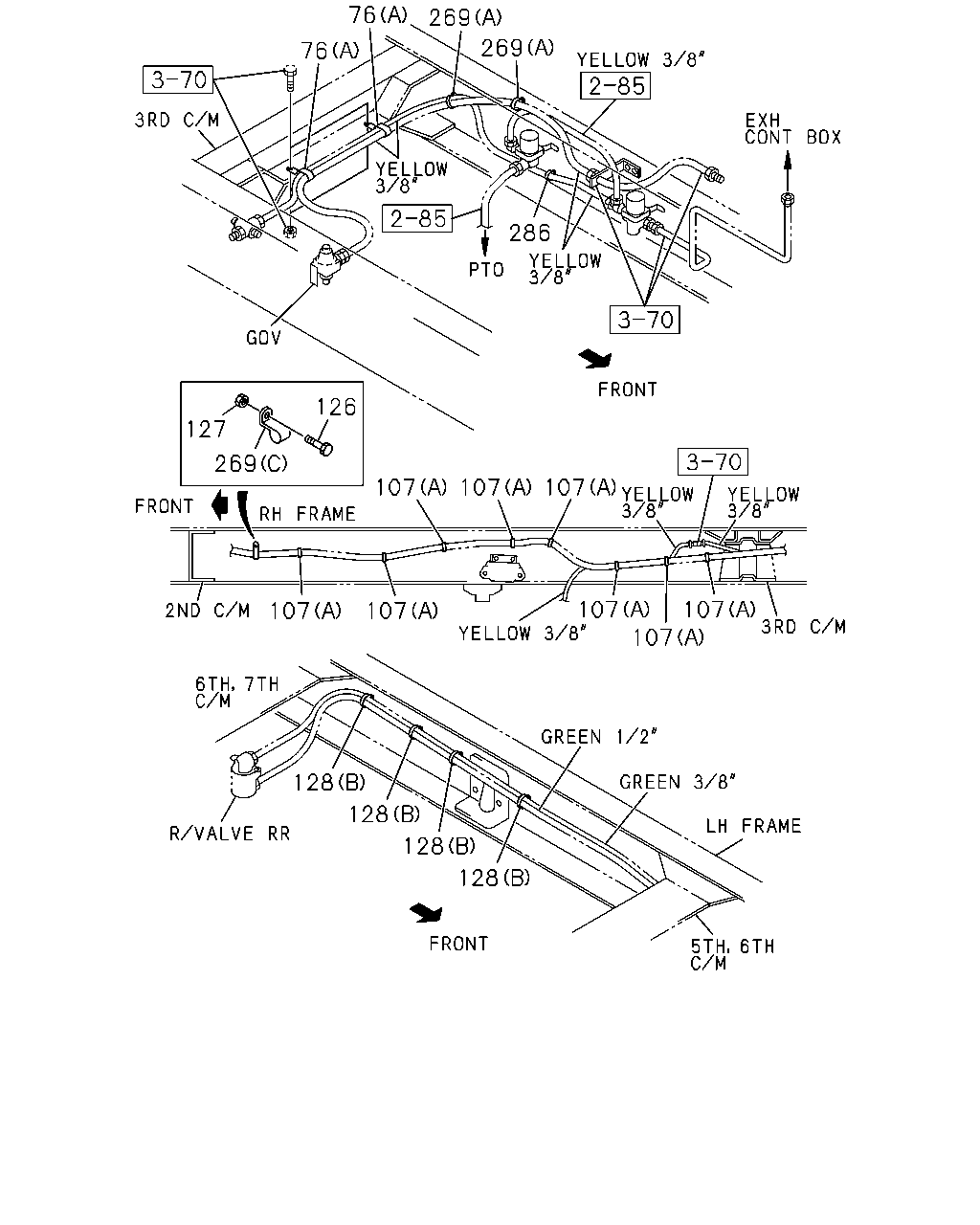

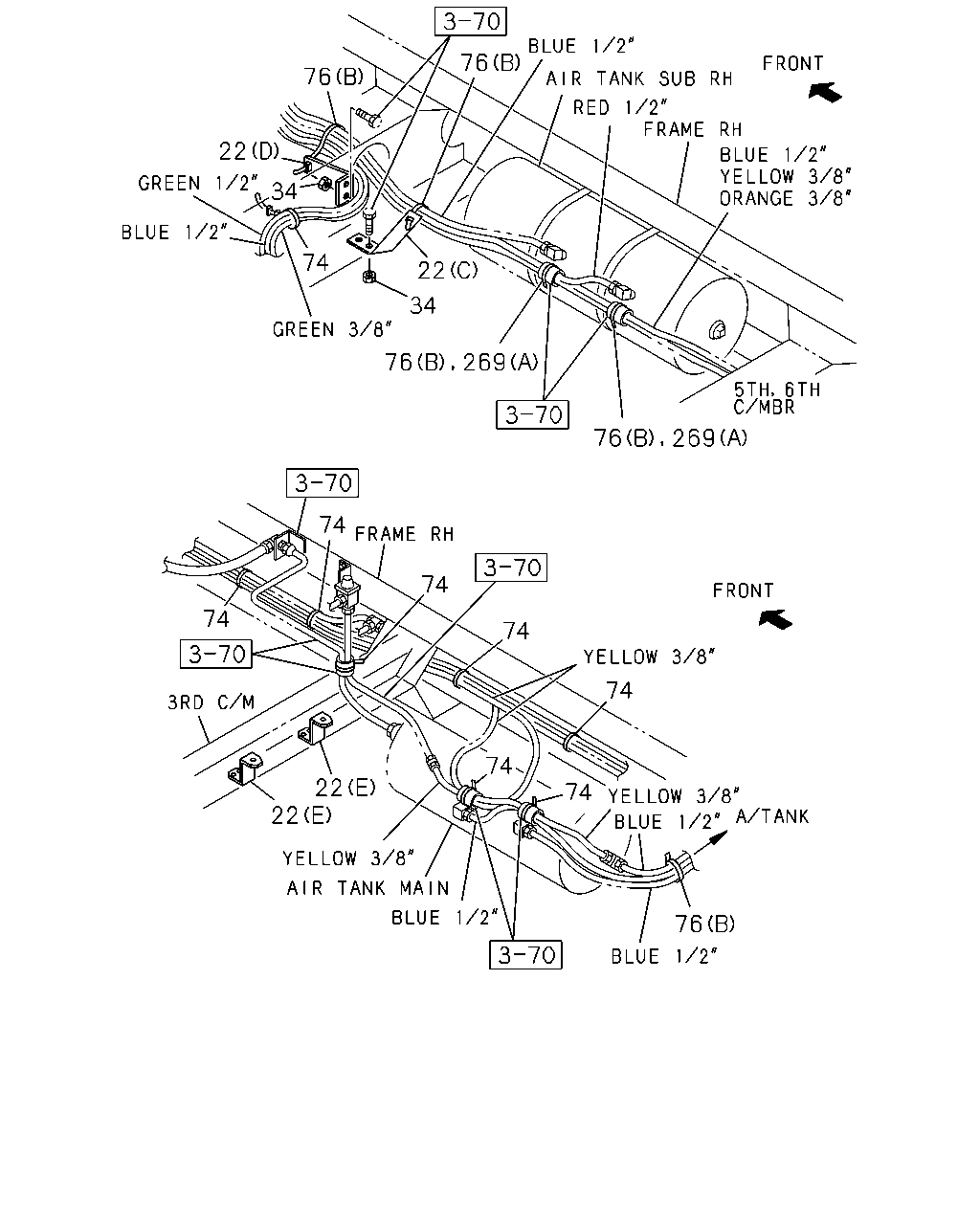

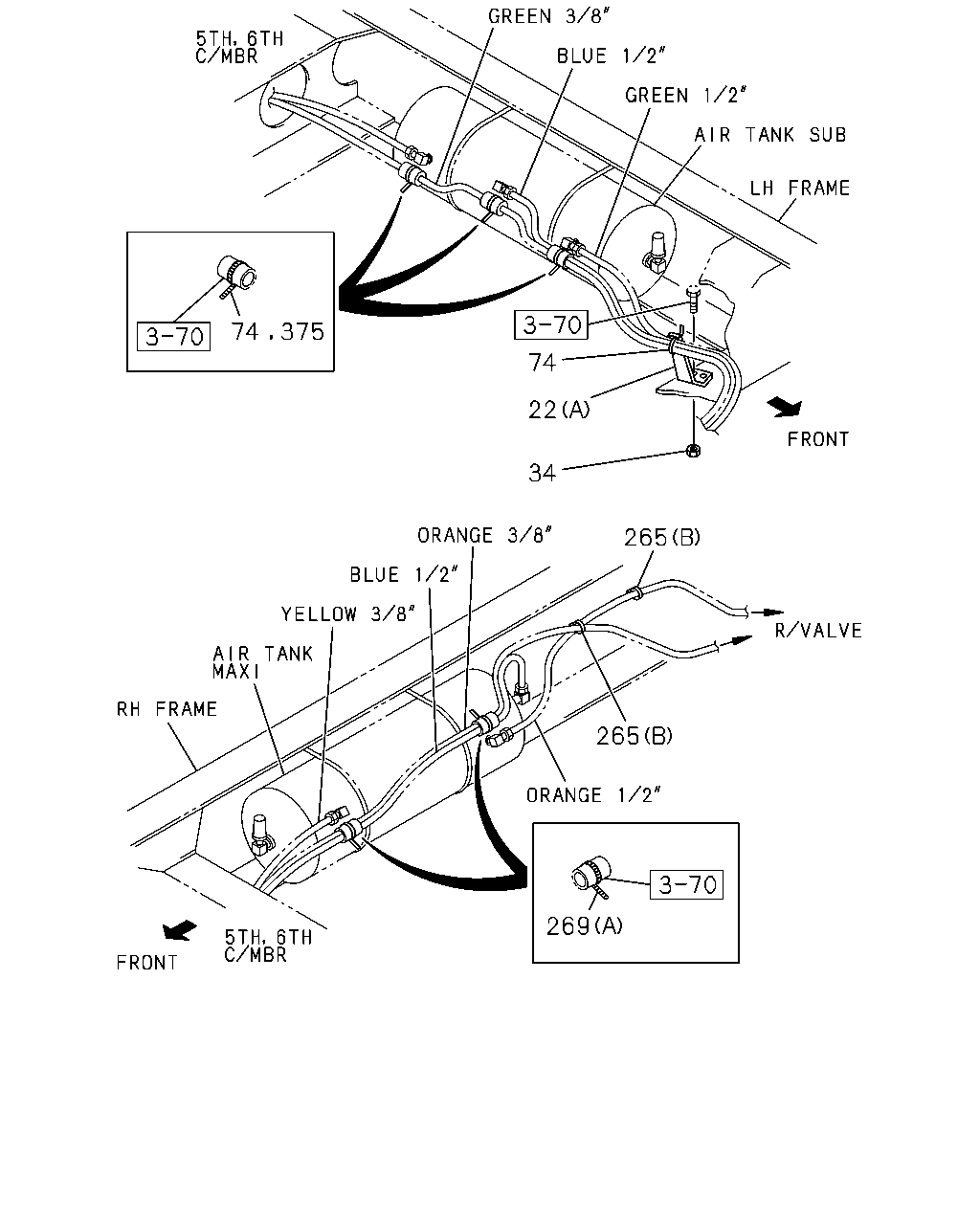

75 34 22 107 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP (C)	1-47476-550-1	01	1	9202-	●
22	BRACKET; CLIP (A)	1-47476-698-1	01	1	9202-9202	●
22	BRACKET; CLIP (A)	1-47476-697-1	01	1	9202-9202	●
22	BRACKET; CLIP (E)	1-47476-901-0	02	1	9203-	●
22	BRACKET; CLIP (D)	1-47476-699-2	01	1	9202-	●
22	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (B)	1-47476-896-0	01	1	9202-	●
34	NUT; BRKT M8	9-09110-408-0	01	1	9202-		●
34	NUT; BRKT M8	9-09110-408-0	06	1	9202-	●
34	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M8	9-09110-408-0	02	1	9202-	●
75	BOLT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
108	BOLT; TUBE CLIP WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●
108	BOLT; TUBE CLIP WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●
108	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
108	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●

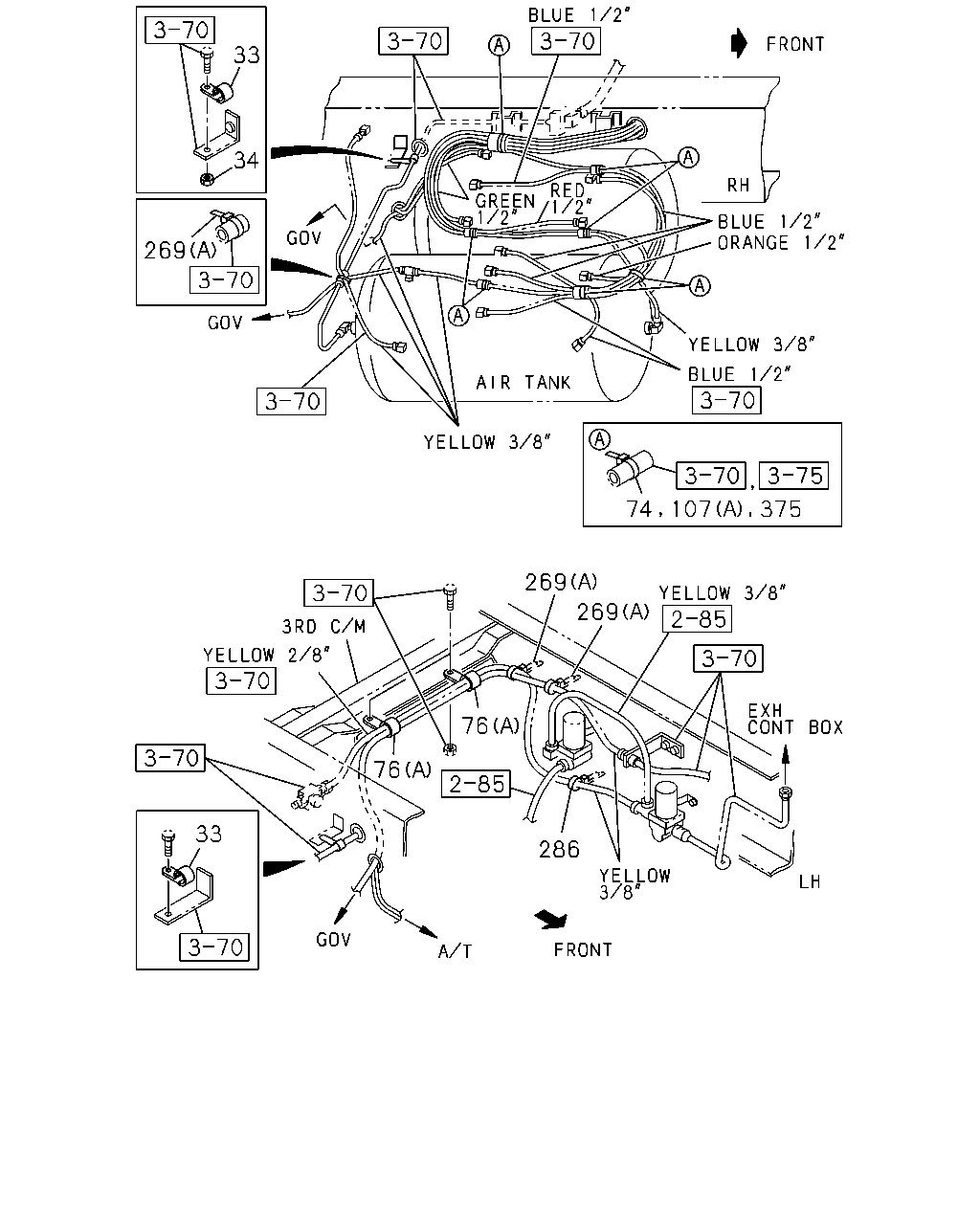

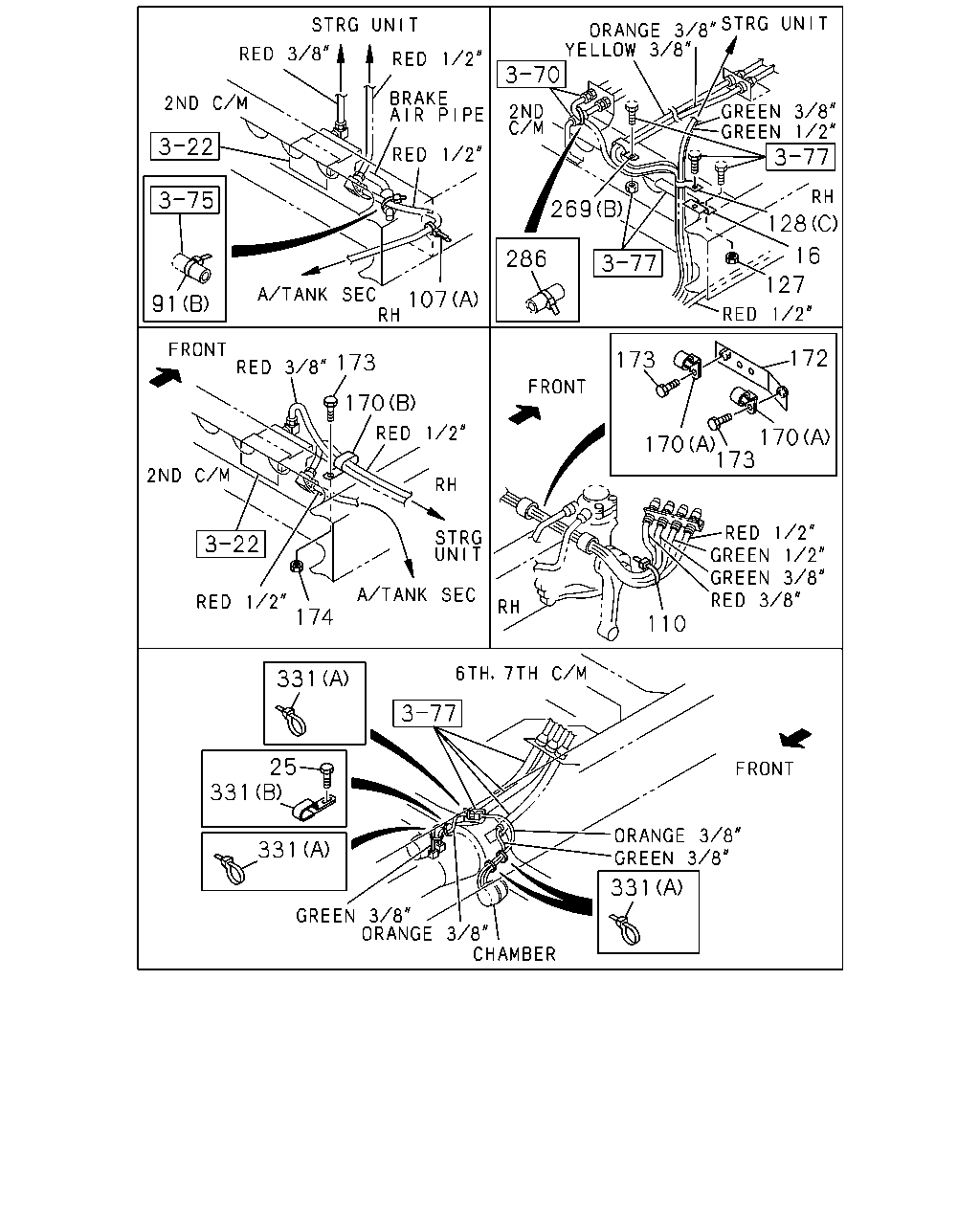

20 91 107 110 146 266 285 35 78 91 13 91 266 93 103 333 288 13 107 265 109 290 298 20 308 35 353 265 369 84 370 84 294 309 55 79 36 92 80 92 108 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE (A) ID=5 & 8	5-09700-165-0	01	1	9202-	●	●
13	CLIP; AIR PIPE FULLER M/T<X9B> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9202-	●	●
13	CLIP; AIR PIPE FULLER M/T<X9B> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
13	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> (B) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●
13	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> (C) ID=7 L=40	9-09524-675-0	01	1	9202-	●
20	BOLT; CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
20	BOLT; CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X45	0-28010-845-0	01	1	9202-9204	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X45 FLANGE	0-28080-845-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X30 FLANGE	0-28080-830-0	02	1	9202-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9202-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9202-	●
35	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9202-9206		●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9211	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	9202-9305	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9306-	●
36	NUT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-9206		●
36	NUT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-9206	●
36	NUT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9207-	●
36	NUT; CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-	●
55	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
55	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
55	BOLT; PIPE CLIP M8X45	0-28010-845-0	01	1	9202-9204	●	●
55	BOLT; PIPE CLIP M8X45 FLANGE	0-28080-845-0	01	1	9205-	●	●
78	CLIP; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●	●
78	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9211	●
78	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●
79	BOLT; PIPE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
79	BOLT; PIPE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
79	BOLT; PIPE CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
79	BOLT; PIPE CLIP 6HE1 STD ENG(46L) M8X35 FLANGE	0-28080-835-0	01	1	9205-	●
80	NUT; CLIP,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-	●
80	NUT; CLIP,AIR PIPE 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-	●
84	BRACKET; PIPE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9202-9206		●
84	BRACKET; PIPE CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9202-9206	●
84	BRACKET; PIPE CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=50	1-47475-299-2	01	1	9207-	●
84	BRACKET; PIPE CLIP 6HE1 STD ENG(46L) (B) L=60	1-47475-455-0	01	1	9202-	●
91	CLIP; AIR PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
91	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	9202-	●	●
91	CLIP; AIR PIPE (C) ID=11 H=20 L=20	5-09700-351-0	03	1	9202-	●	●
92	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9202-	●	●
93	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9202-	●	●
103	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9202-	●	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
108	BOLT; TUBE CLIP WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●
108	BOLT; TUBE CLIP WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●
108	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
108	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
109	NUT; TUBE CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-	●
110	CLIP; BAND,NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> L=250	1-09707-126-0	02	1	9202-		●
110	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	9202-	●	●
146	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	9202-	●
203	BOLT; CLIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9202-	●	●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=30 L=30	1-09701-080-0	02	1	9202-9202		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	9203-		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9202-9207		●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9202-9208		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9209-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9203-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (E) ID=28 L=60	1-09700-585-1	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (D) ID=19 L=28	9-09525-856-0	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	01	1	9202-	●
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9202-9208		●
266	CLIP; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9209-		●
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9202-9210	●	●
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9211-		●
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9211-	●
266	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-	●	●
266	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	02	1	9202-	●
266	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	04	1	9202-	●
285	CLIP; BAND 6SA1 STD ENG(06L),6SA1TC ENG(28L) HONG KONG EQUIPMENT(PQ1) L=250	1-09707-126-0	01	1	9211-	●
288	BOLT; CLIP,AIR PIPE FULLER M/T<X9B> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE FULLER M/T<X9B> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
288	BOLT; CLIP,AIR PIPE FULLER M/T<X9B> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE FULLER M/T<X9B> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
288	BOLT; CLIP,AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●
294	NUT; CLIP,AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-	●
298	BOLT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
298	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
308	BOLT; CLIP,AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
308	BOLT; CLIP,AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
309	NUT; BRKT FIX 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-	●	●
333	BRACKET; BRK AIR PIPE	1-79738-179-1	01	1	9202-9308	●	●
333	BRACKET; BRK AIR PIPE	1-79738-179-1	01	1	9309-		●
333	BRACKET; BRK AIR PIPE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79738-179-1	01	1	9309-	●
333	BRACKET; BRK AIR PIPE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79738-157-2	01	1	9309-	●
353	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9202-	●	●
369	CLIP; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-	●
370	BRACKET; PIPE CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9202-	●

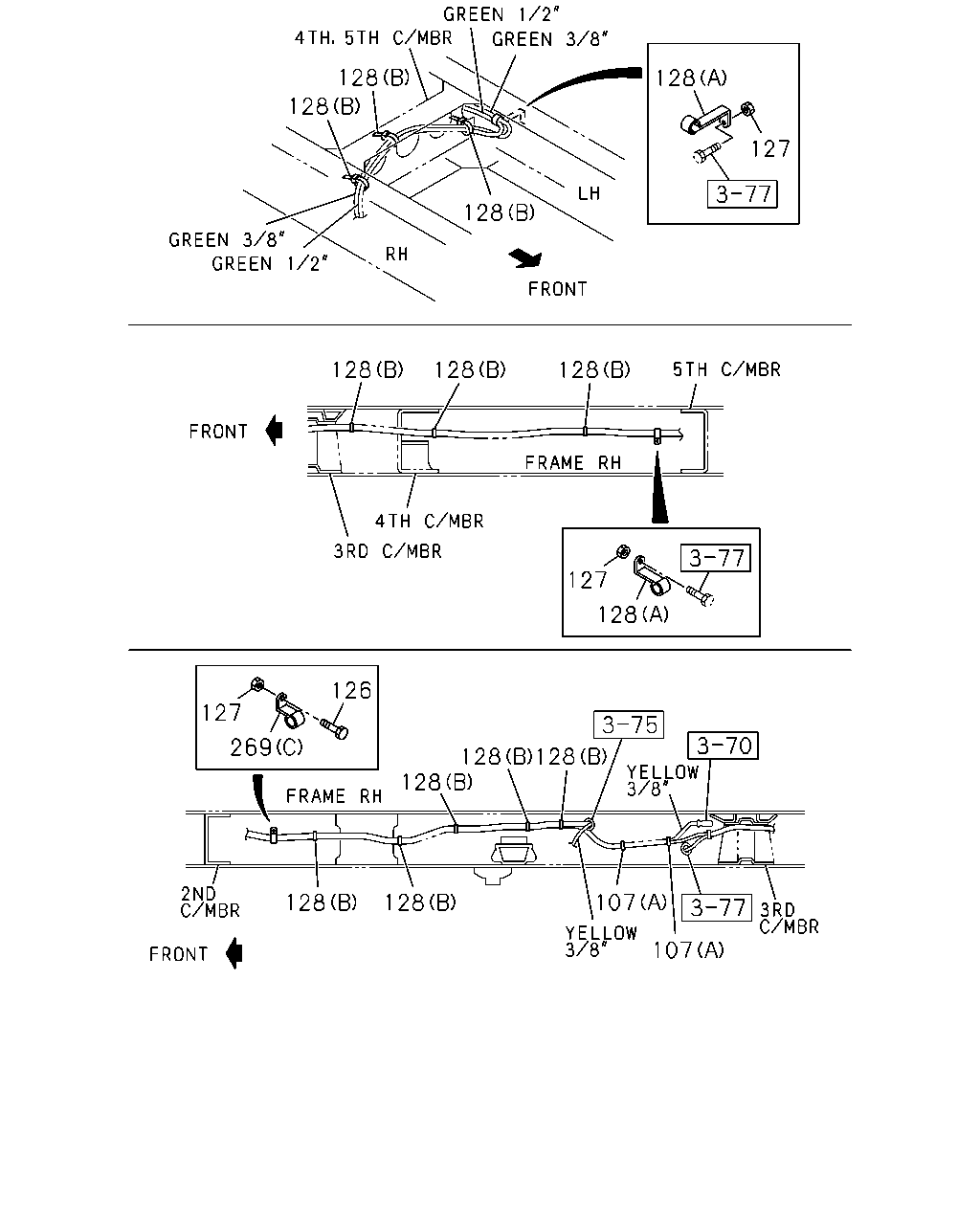

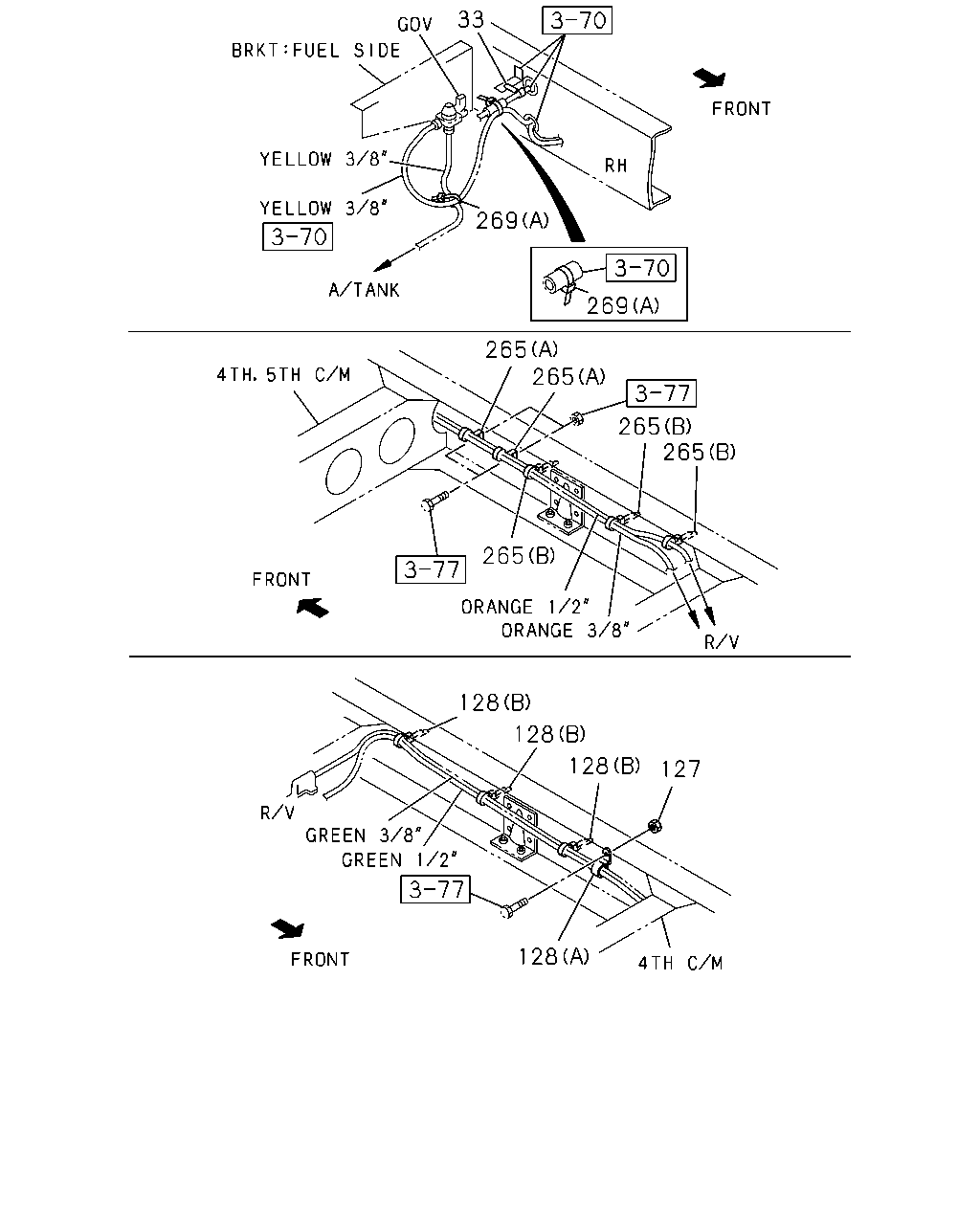

33 269 269 265 265 265 265 265 128 128 128 127 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CLIP; BOLT ID=16.5	5-09700-364-0	01	1	9202-		●
127	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-9205		●
127	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9206-		●
127	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9202-	●	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9202-		●
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9202-		●
128	CLIP; NYLON TUBE WHEEL BASE 3300MM(33W) (B) L=250	1-09707-126-0	06	1	9202-9208		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W) (B) L=250	1-09707-126-0	07	1	9202-9210		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9211-		●
128	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9202-9210		●
128	CLIP; NYLON TUBE (C) ID=28 L=60	1-09700-585-1	01	1	9202-	●	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	9202-	●
128	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=30 L=30	1-09701-080-0	02	1	9202-9202		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	9203-		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9202-9207		●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9202-9208		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9209-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9203-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (E) ID=28 L=60	1-09700-585-1	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (D) ID=19 L=28	9-09525-856-0	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	01	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●

269 128 127 16 286 107 91 172 173 173 170 170 173 170 174 110 331 25 331 331 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9202-	●	●
25	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	01	1	9202-9202	●	●
25	BOLT; CLIP M8X16 FLANGE	0-28010-816-0	01	1	9203-9204	●	●
25	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
25	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
91	CLIP; AIR PIPE (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
91	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	9202-	●	●
91	CLIP; AIR PIPE (C) ID=11 H=20 L=20	5-09700-351-0	03	1	9202-	●	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
110	CLIP; BAND,NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> L=250	1-09707-126-0	02	1	9202-		●
110	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	9202-	●	●
127	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-9205		●
127	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9206-		●
127	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9202-	●	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9202-		●
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9202-		●
128	CLIP; NYLON TUBE WHEEL BASE 3300MM(33W) (B) L=250	1-09707-126-0	06	1	9202-9208		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W) (B) L=250	1-09707-126-0	07	1	9202-9210		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9211-		●
128	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9202-9210		●
128	CLIP; NYLON TUBE (C) ID=28 L=60	1-09700-585-1	01	1	9202-	●	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	9202-	●
128	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
170	CLIP; NYLON TUBE (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9202-	●	●
170	CLIP; NYLON TUBE (B) ID=25 L=60	1-09701-041-1	01	1	9202-	●	●
172	BRACKET; TUBE CLIP	1-47476-053-1	01	1	9202-	●	●
173	BOLT; CLIP BRKT M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
173	BOLT; CLIP BRKT M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
173	BOLT; CLIP BRKT M10X20 W/LK WASHER	9-01921-020-0	02	1	9202-9204	●	●
173	BOLT; CLIP BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9205-	●	●
174	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9204-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9202-9205	●	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> L=250	1-09707-126-0	01	1	9206-		●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9206-	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> L=250	1-09707-126-0	02	1	9304-	●
331	CLIP; NYLON TUBE (B) ID=11X2 L=32	9-09535-066-0	01	1	9202-	●	●
331	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (A) L=250	1-09707-126-0	04	1	9202-	●	●

74 22 34 265 265 269 74 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP (C)	1-47476-550-1	01	1	9202-	●
22	BRACKET; CLIP (A)	1-47476-698-1	01	1	9202-9202	●
22	BRACKET; CLIP (A)	1-47476-697-1	01	1	9202-9202	●
22	BRACKET; CLIP (E)	1-47476-901-0	02	1	9203-	●
22	BRACKET; CLIP (D)	1-47476-699-2	01	1	9202-	●
22	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (B)	1-47476-896-0	01	1	9202-	●
34	NUT; BRKT M8	9-09110-408-0	01	1	9202-		●
34	NUT; BRKT M8	9-09110-408-0	06	1	9202-	●
34	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M8	9-09110-408-0	02	1	9202-	●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	04	1	9202-		●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	04	1	9202-	●
74	CLIP; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	01	1	9202-		●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	08	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) L=250	1-09707-126-0	05	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	06	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	07	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	09	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	10	1	9202-	●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=30 L=30	1-09701-080-0	02	1	9202-9202		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	9203-		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9202-9207		●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9202-9208		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9209-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9203-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (E) ID=28 L=60	1-09700-585-1	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (D) ID=19 L=28	9-09525-856-0	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	01	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●
375	CLIP; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	02	1	9202-9208		●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	02	1	9202-9208	●
375	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	02	1	9209-		●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	02	1	9209-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) EXC. PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●

76 76 22 34 74 22 34 74 74 74 74 74 74 22 22 74 76 76 269 76 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP (C)	1-47476-550-1	01	1	9202-	●
22	BRACKET; CLIP (A)	1-47476-698-1	01	1	9202-9202	●
22	BRACKET; CLIP (A)	1-47476-697-1	01	1	9202-9202	●
22	BRACKET; CLIP (E)	1-47476-901-0	02	1	9203-	●
22	BRACKET; CLIP (D)	1-47476-699-2	01	1	9202-	●
22	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (B)	1-47476-896-0	01	1	9202-	●
34	NUT; BRKT M8	9-09110-408-0	01	1	9202-		●
34	NUT; BRKT M8	9-09110-408-0	06	1	9202-	●
34	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M8	9-09110-408-0	02	1	9202-	●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	04	1	9202-		●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	04	1	9202-	●
74	CLIP; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	01	1	9202-		●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	08	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) L=250	1-09707-126-0	05	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	06	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	07	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	09	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	10	1	9202-	●
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=25 L=50	1-09701-019-0	02	1	9202-	●	●
76	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=250	1-09707-126-0	04	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●

29 27 28 31 176 42 20 13 356 16 109 38 354 376 27 78 353 367 372 77 265 267 184 254 35 292 36 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE (A) ID=5 & 8	5-09700-165-0	01	1	9202-	●	●
13	CLIP; AIR PIPE FULLER M/T<X9B> (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9202-	●	●
13	CLIP; AIR PIPE FULLER M/T<X9B> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
13	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> (B) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●
13	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> (C) ID=7 L=40	9-09524-675-0	01	1	9202-	●
16	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9202-	●	●
20	BOLT; CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
20	BOLT; CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X45	0-28010-845-0	01	1	9202-9204	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X45 FLANGE	0-28080-845-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) M8X30 FLANGE	0-28080-830-0	02	1	9202-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9202-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
20	BOLT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9202-	●
27	CLIP; FLEX HOSE 6SA1 STD ENG(06L) (B) ID=23 H=30 L=35	1-09700-743-0	02	1	9202-	●	●
27	CLIP; FLEX HOSE 6SA1 STD ENG(06L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
27	CLIP; FLEX HOSE 6SA1TC ENG(28L) (B) ID=23 H=30 L=35	1-09700-743-0	03	1	9202-	●	●
27	CLIP; FLEX HOSE 6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9203-	●	●
28	BOLT; CLIP,FLEX HOSE 6SA1 STD ENG(06L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
28	BOLT; CLIP,FLEX HOSE 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
28	BOLT; CLIP,FLEX HOSE 6SA1TC ENG(28L) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
28	BOLT; CLIP,FLEX HOSE 6SA1TC ENG(28L) M8X20 FLANGE	0-28080-820-0	03	1	9205-	●	●
29	BRACKET; CLIP,AIR PIPE 6SA1TC ENG(28L)	1-47475-868-0	01	1	9202-9405	●	●
31	NUT; CLIP BRKT 6SA1TC ENG(28L) M10 FLANGE	5-09440-006-0	01	1	9202-9405	●	●
35	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9202-9206		●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9211	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	9202-9305	●
35	CLIP; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9306-	●
36	NUT; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-9206		●
36	NUT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-9206	●
36	NUT; CLIP 6HE1 STD ENG(46L) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9207-	●
36	NUT; CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-	●
38	NUT; BRKT M6 FLANGE	1-09984-141-0	01	1	9202-	●	●
42	BOLT; CLIP,AIR PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●
77	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9202-	●
78	CLIP; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●	●
78	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9211	●
78	CLIP; AIR PIPE 6HE1 STD ENG(46L) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●
109	NUT; TUBE CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-	●
176	PROTECTOR EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> L=350	1-83129-017-0	01	1	9202-		●
184	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9202-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=16 H=30 L=30	1-09701-080-0	02	1	9202-9202		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	9203-		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) ID=6 H=20 L=20	1-09700-603-0	01	1	9308-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9202-9207		●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9202-9208		●
265	CLIP; NYLON TUBE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	04	1	9209-		●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B) L=250	1-09707-126-0	03	1	9203-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (E) ID=28 L=60	1-09700-585-1	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (D) ID=19 L=28	9-09525-856-0	01	1	9202-	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9202-9202	●
265	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	02	1	9203-	●
265	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) L=250	1-09707-126-0	01	1	9202-	●
267	BOLT; CLIP BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
292	CLIP; AIR PIPE 6HE1 STD ENG(46L) ID=6 H=20 L=20	1-09700-603-0	02	1	9202-	●
292	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●
293	NUT; CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-	●
293	NUT; CLIP 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9202-	●
353	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9202-	●	●
354	BOLT; PIPE CLIP M6X12 W/LK WASHER	0-50040-612-0	02	1	9202-	●	●
356	CLIP; AIR PIPE ID=6 H=20 L=20	9-09527-005-0	01	1	9202-	●	●
367	BRACKET ASM L=55	1-47475-304-0	01	1	9202-		●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●
376	BOLT; BRKT M8X16 FLANGE	0-28010-816-0	01	1	9202-9204		●
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9205-		●

33 34 269 375 74 107 269 269 76 76 33 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CLIP; BOLT ID=16.5	5-09700-364-0	01	1	9202-		●
34	NUT; BRKT M8	9-09110-408-0	01	1	9202-		●
34	NUT; BRKT M8	9-09110-408-0	06	1	9202-	●
34	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M8	9-09110-408-0	02	1	9202-	●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	04	1	9202-		●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	04	1	9202-	●
74	CLIP; NYLON TUBE AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	01	1	9202-		●
74	CLIP; NYLON TUBE L=250	1-09707-126-0	08	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) L=250	1-09707-126-0	05	1	9202-	●
74	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	06	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	07	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) L=250	1-09707-126-0	09	1	9202-	●
74	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) L=250	1-09707-126-0	10	1	9202-	●
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=25 L=50	1-09701-019-0	02	1	9202-	●	●
76	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=250	1-09707-126-0	04	1	9202-	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9202-9205	●	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> L=250	1-09707-126-0	01	1	9206-		●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9206-	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> L=250	1-09707-126-0	02	1	9304-	●
375	CLIP; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	02	1	9202-9208		●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	02	1	9202-9208	●
375	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	02	1	9209-		●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	02	1	9209-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5),PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) EXC. PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●
375	CLIP; AIR PIPE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	9202-	●

128 128 128 127 128 128 128 128 127 128 126 127 269 128 128 128 107 107 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9202-	●	●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
127	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-9205		●
127	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9206-		●
127	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9202-	●	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9202-		●
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9202-		●
128	CLIP; NYLON TUBE WHEEL BASE 3300MM(33W) (B) L=250	1-09707-126-0	06	1	9202-9208		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W) (B) L=250	1-09707-126-0	07	1	9202-9210		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9211-		●
128	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9202-9210		●
128	CLIP; NYLON TUBE (C) ID=28 L=60	1-09700-585-1	01	1	9202-	●	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	9202-	●
128	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●

76 269 269 76 286 126 127 269 107 107 107 107 107 107 107 107 128 128 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=25 L=50	1-09701-019-0	02	1	9202-	●	●
76	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
76	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=250	1-09707-126-0	04	1	9202-	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9202-9202		●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9203-9209		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	09	1	9203-9209	●
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9210-		●
107	CLIP; NYLON TUBE EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	9202-		●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	08	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	08	1	9203-9209	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	07	1	9210-	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	11	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	14	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	14	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9202-9202	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	13	1	9203-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	15	1	9202-	●
107	CLIP; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 6000MM(60W) (A) L=250	1-09707-126-0	16	1	9202-	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9202-	●	●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
127	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-9205		●
127	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9206-		●
127	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9202-	●	●
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9202-		●
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	9202-		●
128	CLIP; NYLON TUBE WHEEL BASE 3300MM(33W) (B) L=250	1-09707-126-0	06	1	9202-9208		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W) (B) L=250	1-09707-126-0	07	1	9202-9210		●
128	CLIP; NYLON TUBE WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9211-		●
128	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	08	1	9202-9210		●
128	CLIP; NYLON TUBE (C) ID=28 L=60	1-09700-585-1	01	1	9202-	●	●
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	04	1	9202-	●
128	CLIP; NYLON TUBE 6HE1 STD ENG(46L) (B) L=250	1-09707-126-0	02	1	9202-	●
269	CLIP; BAND,NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	02	1	9202-9205		●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	02	1	9206-		●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=19 L=28	9-09525-856-0	01	1	9202-	●	●
269	CLIP; BAND,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=250	1-09707-126-0	01	1	9206-	●	●
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9202-	●
269	CLIP; BAND,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	07	1	9202-	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9202-9205	●	●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> L=250	1-09707-126-0	01	1	9206-		●
286	CLIP; NYLON TUBE AIR ASSIST CLUTCH<PK1> FULLER M/T<X9B> L=250	1-09707-126-0	01	1	9206-	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> L=250	1-09707-126-0	02	1	9304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
