◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#10949) — 316 parça

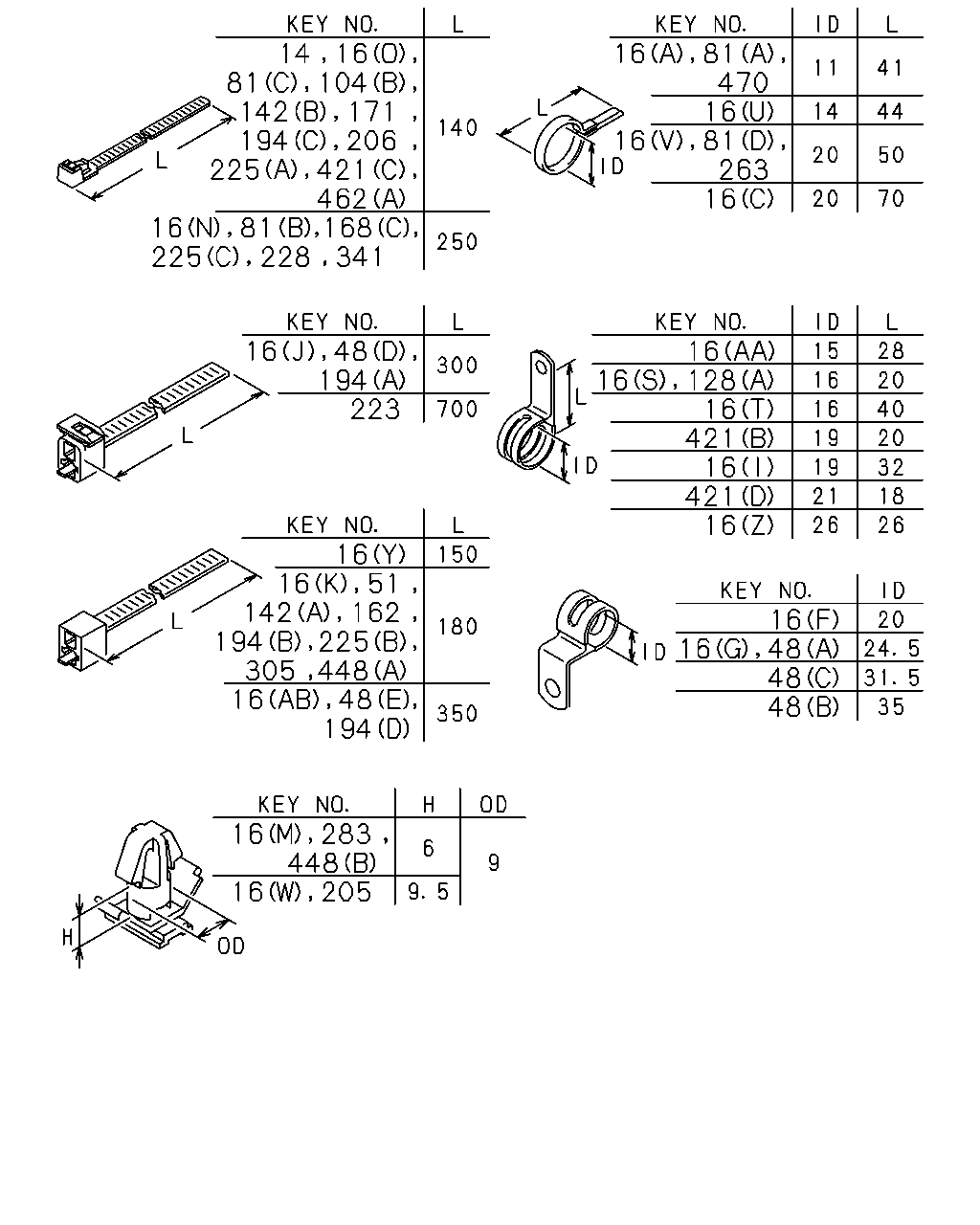

çizim 20016
81 104 142 171 462 470 16 263 16 194 223 16 16 128 16 421 16 421 16 16 142 162 194 16 48 48 48 16 448 16 81 16 81 16 283 16 205 48 16 305 448 225 194 16 51 16 48 16 81 168 225 228 341 225 421 194 206 14 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) L=140 		5-09707-031-1 01 1 0105-0105
14 CLIP; BAND,HARNESS
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) L=140 		5-09707-031-1 01 1 0106-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0203
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0203
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(C) ID=20 L=70 		1-09700-485-0 05 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0112-
16 CLIP; HARNESS
(D) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(E) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(E) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(H) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
16 CLIP; HARNESS
(I) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
(Z) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AB) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(K) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(L) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-0205
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-0205
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(Q) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(R) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
(AA) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(S) ID=16 L=20 		9-09525-535-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0108-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0108-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 02 1 0105-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0105-0107
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0112-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0112-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (H) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (W) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (X) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (U) ID=14 L=44 		9-09917-427-0 12 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (J) L=300 		1-09707-001-1 02 1 0105-0111
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6600MM(66W) (U) ID=14 L=44 		9-09917-427-0 16 1 0105-0111
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (U) ID=14 L=44 		9-09917-427-0 16 1 0112-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 02 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-0504
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 06 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) ID=7-10 		8-94472-578-0 02 1 0105-0105
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E) ID=7-10 		8-94472-578-0 06 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-0105
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0105-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0105-0106
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0105-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
OD=9 H=9.5 		1-09709-179-0 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
223 CLIP; AIR TANK HARNESS
L=700 		1-09707-190-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0109-0109
225 CLIP; AIR TANK HARNESS
(C) L=250 		5-09707-030-1 02 1 0110-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0105-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-0305
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-0105
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0105
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-
çizim 75419
5 178 178 178 1 185 503 530 178 510 312 312 324 312 334 324 375 342
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0205
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0205
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 02 1 0206-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-425-0 01 1 0107-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82698-258-0 01 1 0105-0106
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82699-996-1 01 1 0107-
334 BRACKET 1-53458-709-1 01 1 0105-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 04 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-

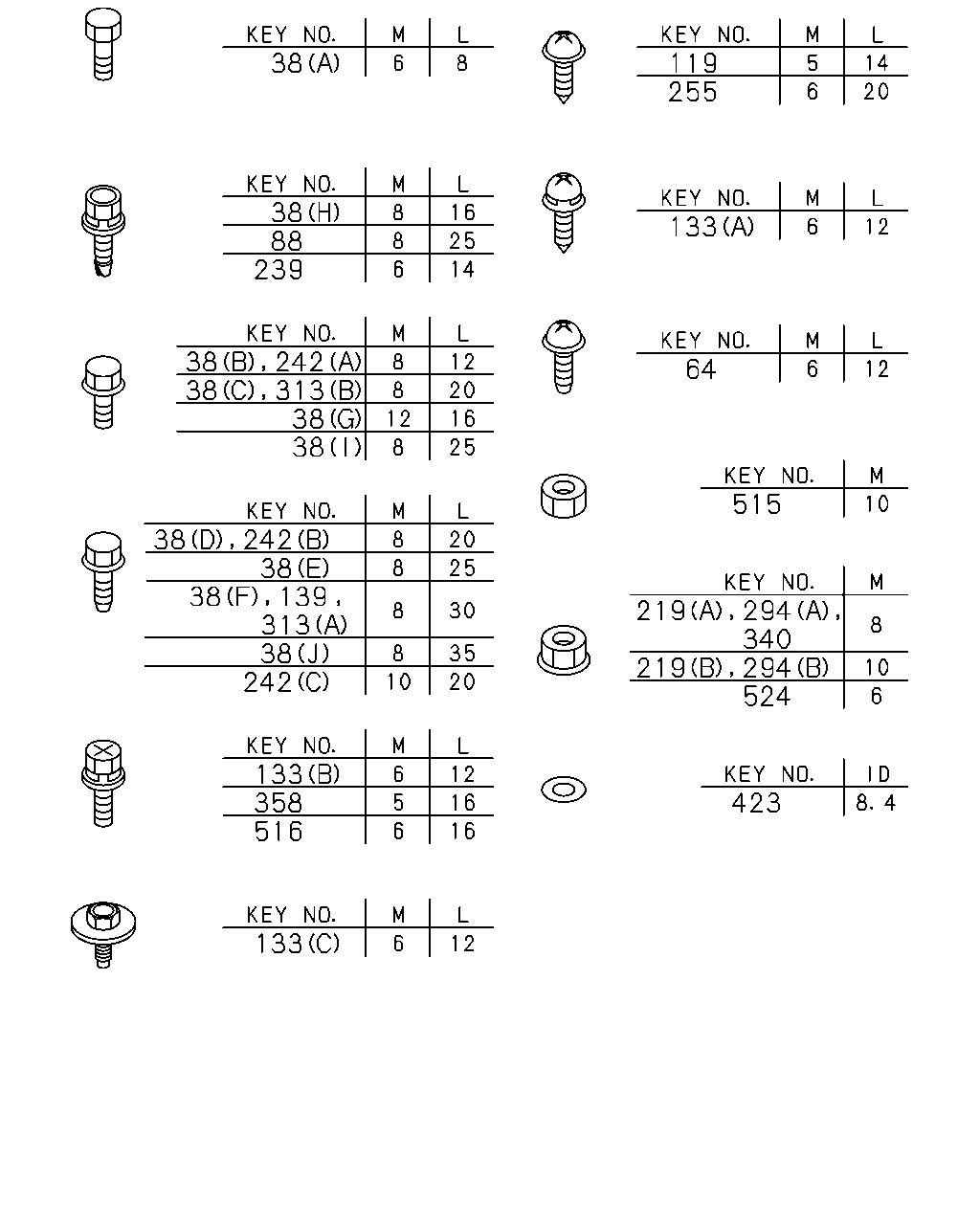

çizim 76019
38 119 255 38 88 239 133 38 38 64 515 38 38 139 313 38 242 294 340 524 219 133 358 516 423 133 38 242 38 242 38 313 219
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0201-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0403
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0403
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0108
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0403
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28680-830-0 09 1 0105-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
38 BOLT; CLIP,HARNESS
(I) M8X25 FLANGE 		0-28080-825-0 01 1 0109-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 01 1 0105-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0108-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0108-
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0105-0106
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0105-0106
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0107-0305
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0306-
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0306-
219 NUT
(B) M10X1.5 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0107-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0205
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0205
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0205
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0206-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0212-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0206-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-

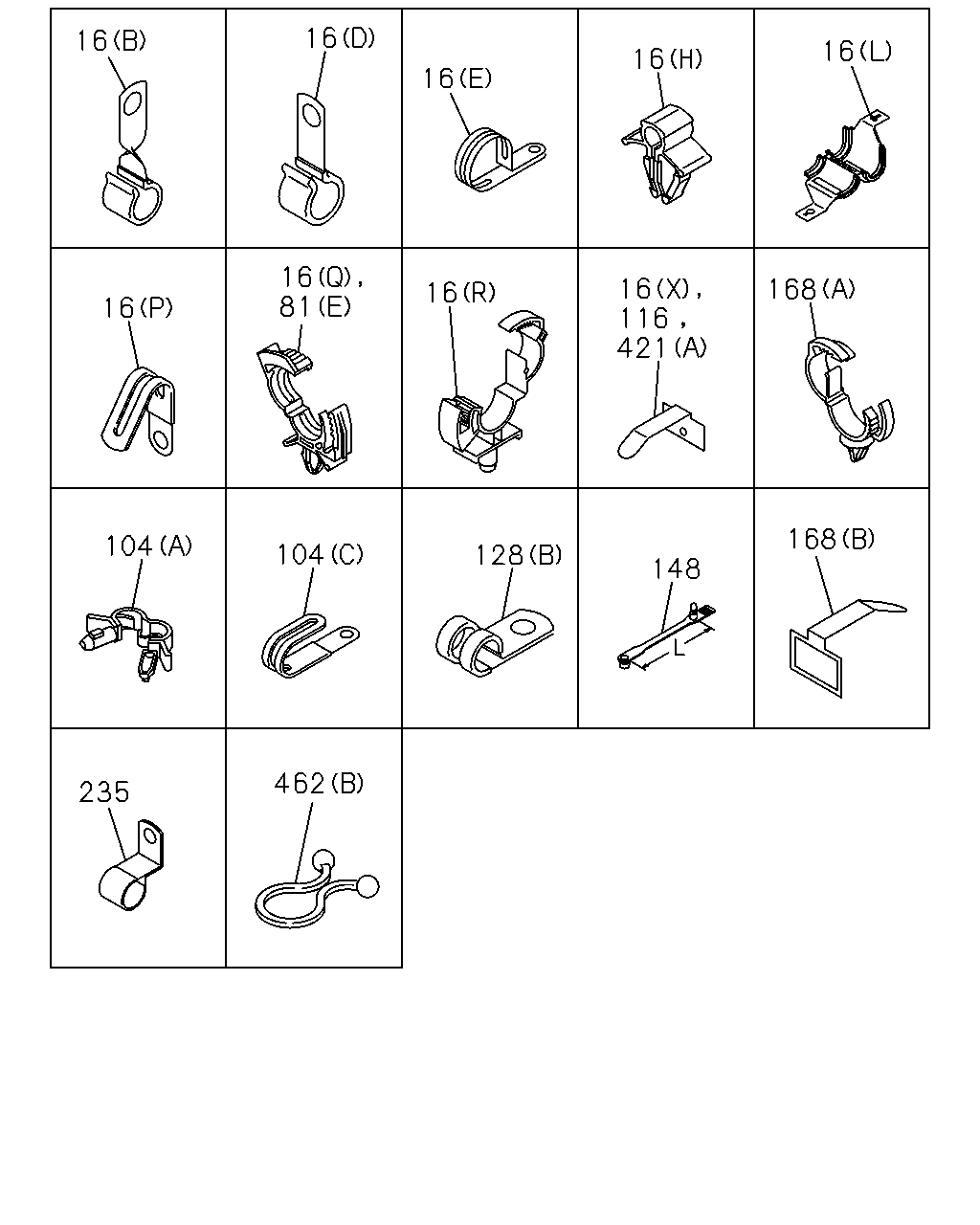

çizim 76073
16 16 16 16 16 16 81 16 116 421 168 16 16 168 104 104 128 148 462 235
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0203
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0203
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0204-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(C) ID=20 L=70 		1-09700-485-0 05 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0112-
16 CLIP; HARNESS
(D) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(E) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(E) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(H) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-
16 CLIP; HARNESS
(I) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
(Z) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AB) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(K) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(L) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(M) OD=9 H=6 		1-09709-178-0 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-0205
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-0205
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(P) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(Q) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(R) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
(AA) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(S) ID=16 L=20 		9-09525-535-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0108-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0108-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 02 1 0105-0109
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0110-
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 03 1 0105-0107
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0105-0111
16 CLIP; HARNESS
(V) ID=20 L=50 		9-09917-430-0 04 1 0105-0111
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0112-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0112-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (H) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (W) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (X) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5700MM(57W) (U) ID=14 L=44 		9-09917-427-0 12 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (J) L=300 		1-09707-001-1 02 1 0105-0111
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6600MM(66W) (U) ID=14 L=44 		9-09917-427-0 16 1 0105-0111
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (U) ID=14 L=44 		9-09917-427-0 16 1 0112-
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) ID=7-10 		8-94472-578-0 02 1 0105-0105
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (E) ID=7-10 		8-94472-578-0 06 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0105-0105
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-0105
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(D) ID=21 L=28 		1-09700-673-1 02 1 0106-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
