◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#10948) — 148 parça

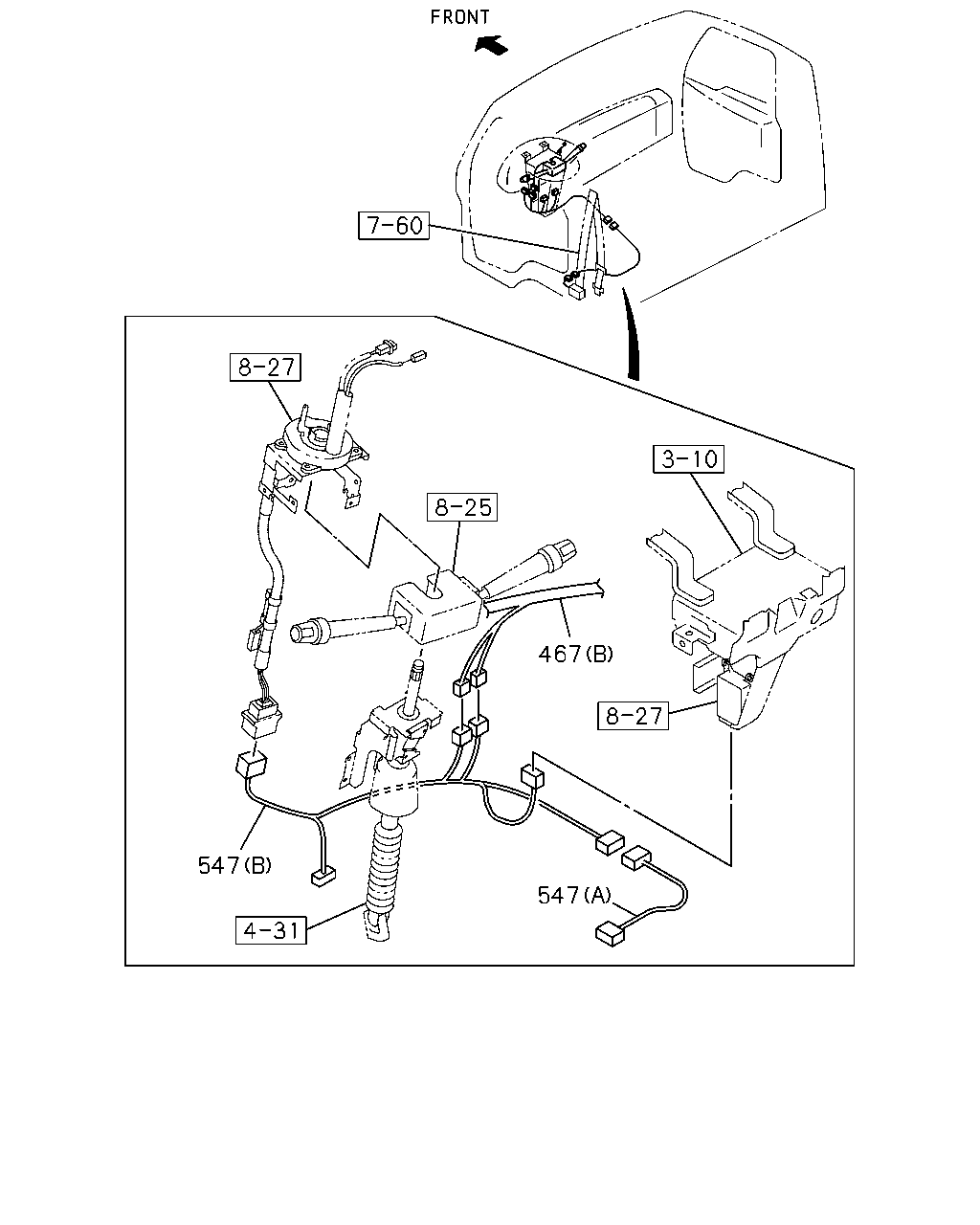

çizim 21346
467 547 547
BalonParca AdiParca NoAdetTipApplied Date
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82660-436-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0106-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-527-3 01 1 0109-
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) 		1-82660-438-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82660-437-0 01 1 0105-0105
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0105-0105
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0106-0108
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-529-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0106-0108
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-528-3 01 1 0109-
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) 		1-82626-429-5 01 1 0105-0111
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) 		1-82661-062-2 01 1 0112-
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B) 		1-82628-251-0 01 1 0105-

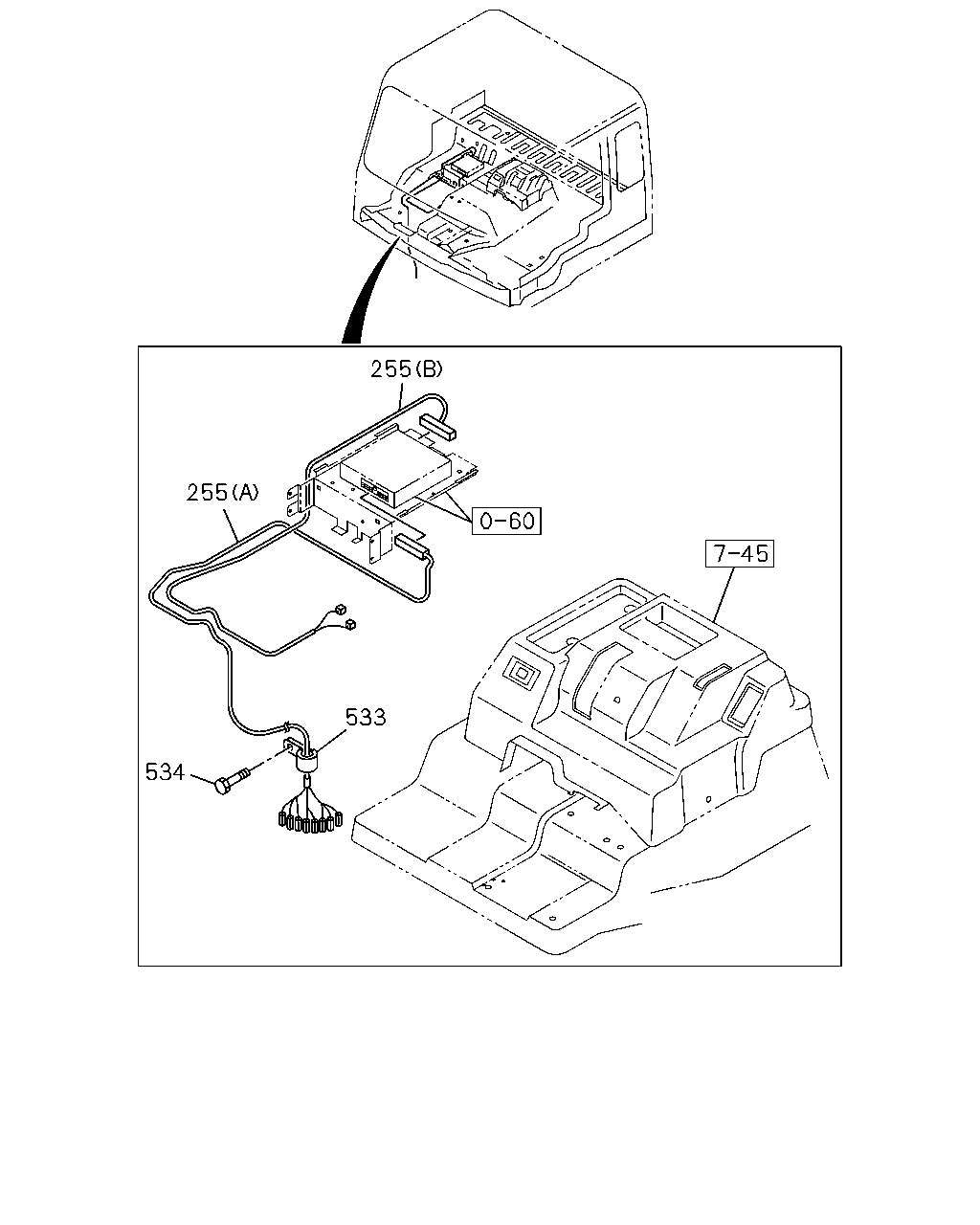

çizim 21446
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		1-82660-375-2 01 1 0105-
255 HARNESS; ELEC GOV
(B) 		1-82660-381-2 01 1 0105-
533 CLIP
ID=19 L=32 		1-09701-235-0 02 1 0105-0109
533 CLIP
ID=21 L=24 		8-94176-807-1 02 1 0110-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-

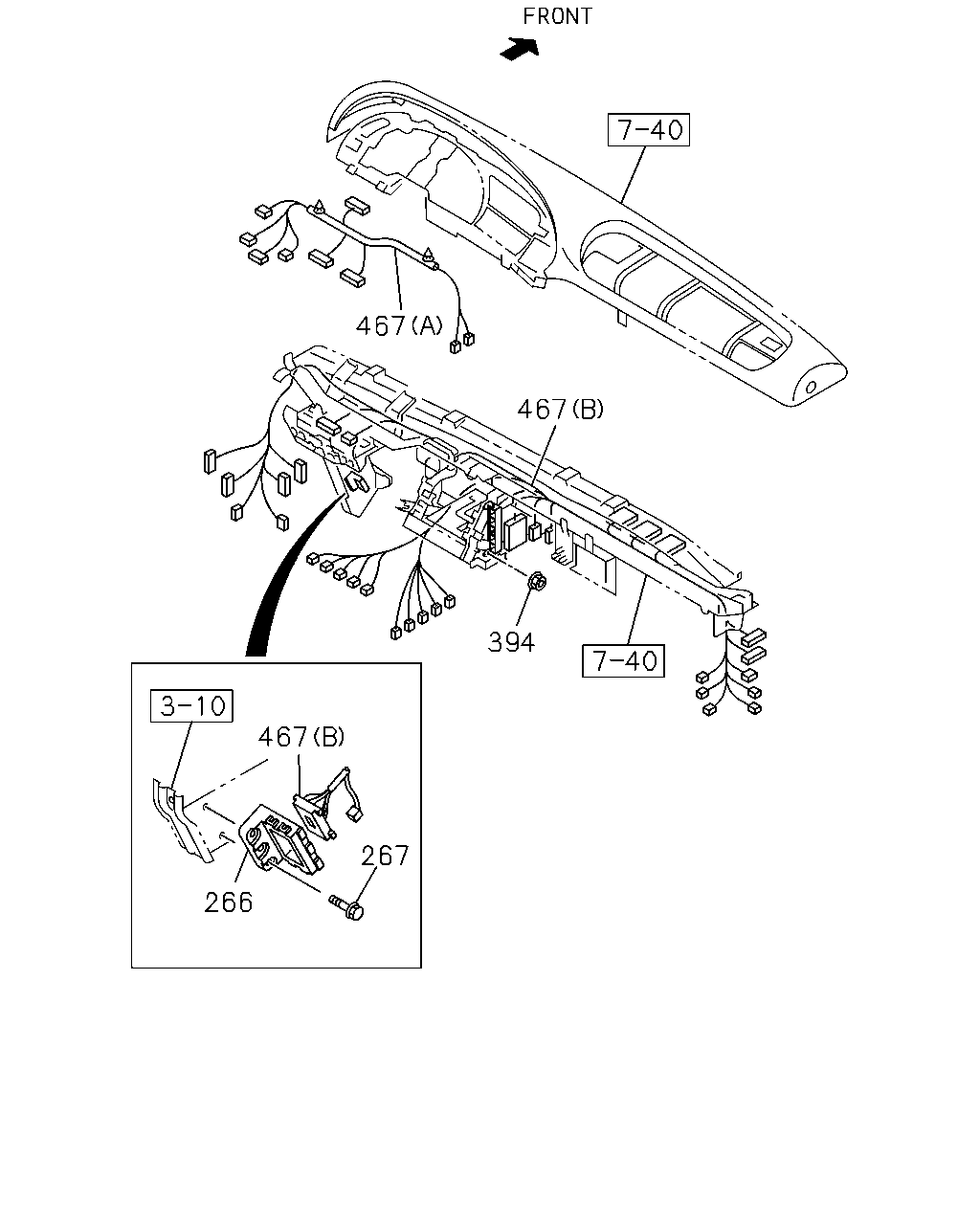

çizim 22952
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82660-436-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0106-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-527-3 01 1 0109-
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) 		1-82660-438-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82660-437-0 01 1 0105-0105
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0105-0105
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0106-0108
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-529-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0106-0108
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-528-3 01 1 0109-
çizim 23372
201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 1-82639-361-2 01 1 0105-

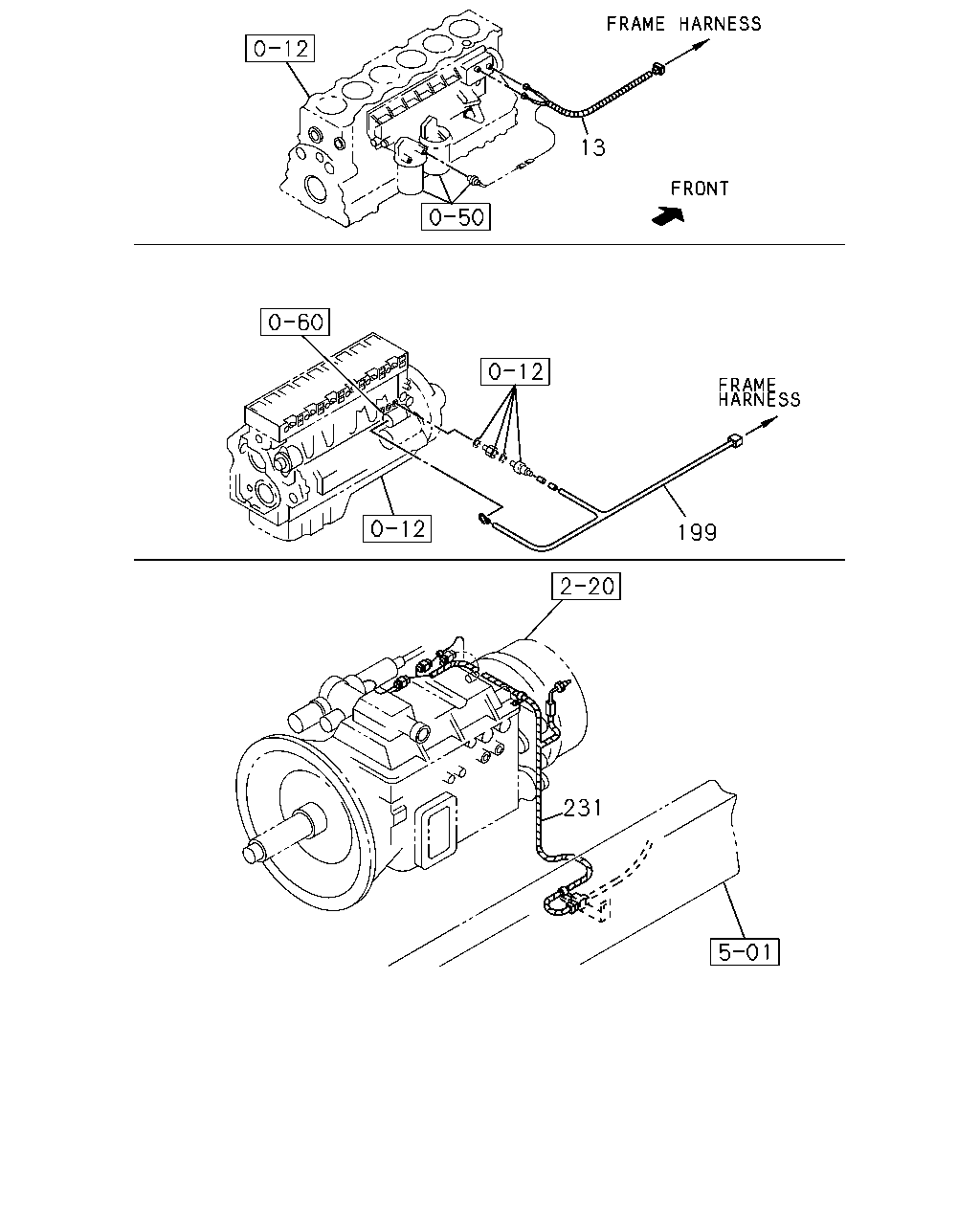

çizim 75423
13 199 231
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG 1-82640-553-4 01 1 0105-
199 HARNESS; STARTER 1-82640-734-1 01 1 0105-
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-850-1 01 1 0105-
231 HARNESS; TRANS
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0105-

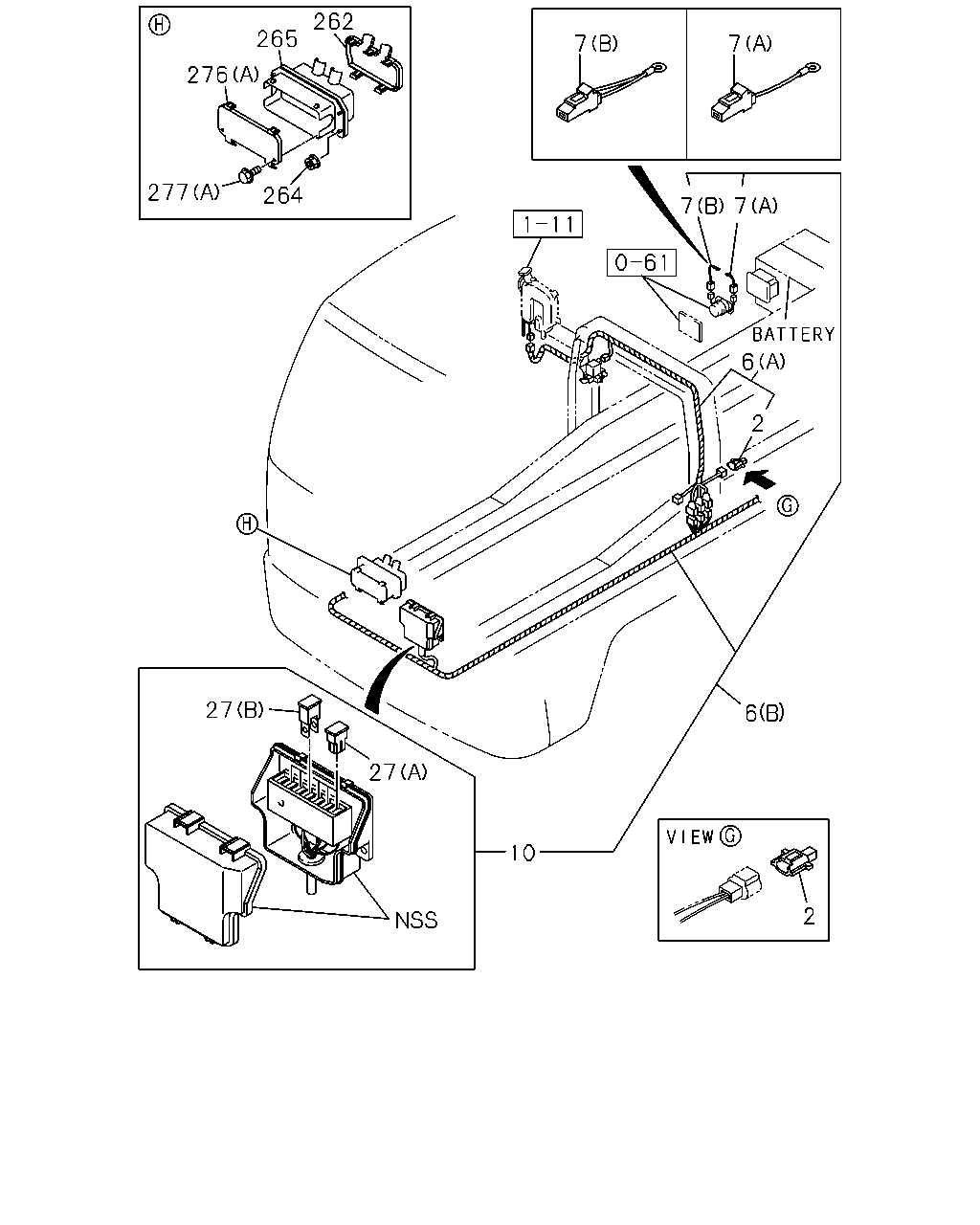

çizim 75447
262 265 7 7 276 277 264 7 7 6 2 27 6 27 10 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-0105
2 DIODE; CABLE HARNESS
EXC. FULL FLOATING CAB(W16) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-0105
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0106-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) 		1-82674-836-0 01 1 0105-0105
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) 		1-82674-835-2 01 1 0105-0105
6 HARNESS; FRAME
AUTO CAB TILT<WV2> (A) 		1-82674-835-2 01 1 0106-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) 		1-82674-834-2 01 1 0105-0105
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2> (A) 		1-82674-834-2 01 1 0106-
6 HARNESS; FRAME
EXC. FULL FLOATING CAB(W16) (B) 		1-82674-973-0 01 1 0105-0105
6 HARNESS; FRAME
(B) 		1-82674-973-0 01 1 0106-0108
6 HARNESS; FRAME
(B) 		1-82675-036-4 01 1 0109-
7 LINK ASM; FUSIBLE
EXC. FULL FLOATING CAB(W16) (B) 		1-82659-085-0 01 1 0105-0105
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 0106-
7 LINK ASM; FUSIBLE
EXC. FULL FLOATING CAB(W16) (A) 60A BLUE 		1-82659-119-0 01 1 0105-0105
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 0106-
10 BOX; FUSE,HARNESS
EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0105-0105
10 BOX; FUSE,HARNESS 1-82510-466-0 01 1 0106-0210
10 BOX; FUSE,HARNESS 1-82510-467-0 01 1 0211-
27 FUSE UNIT
EXC. FULL FLOATING CAB(W16) (A) 40A GREEN 		8-94468-662-0 05 1 0105-0105
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 0106-
27 FUSE UNIT
EXC. FULL FLOATING CAB(W16) (B) 80A BLACK 		8-94468-671-0 01 1 0105-0105
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 0106-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0105-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-

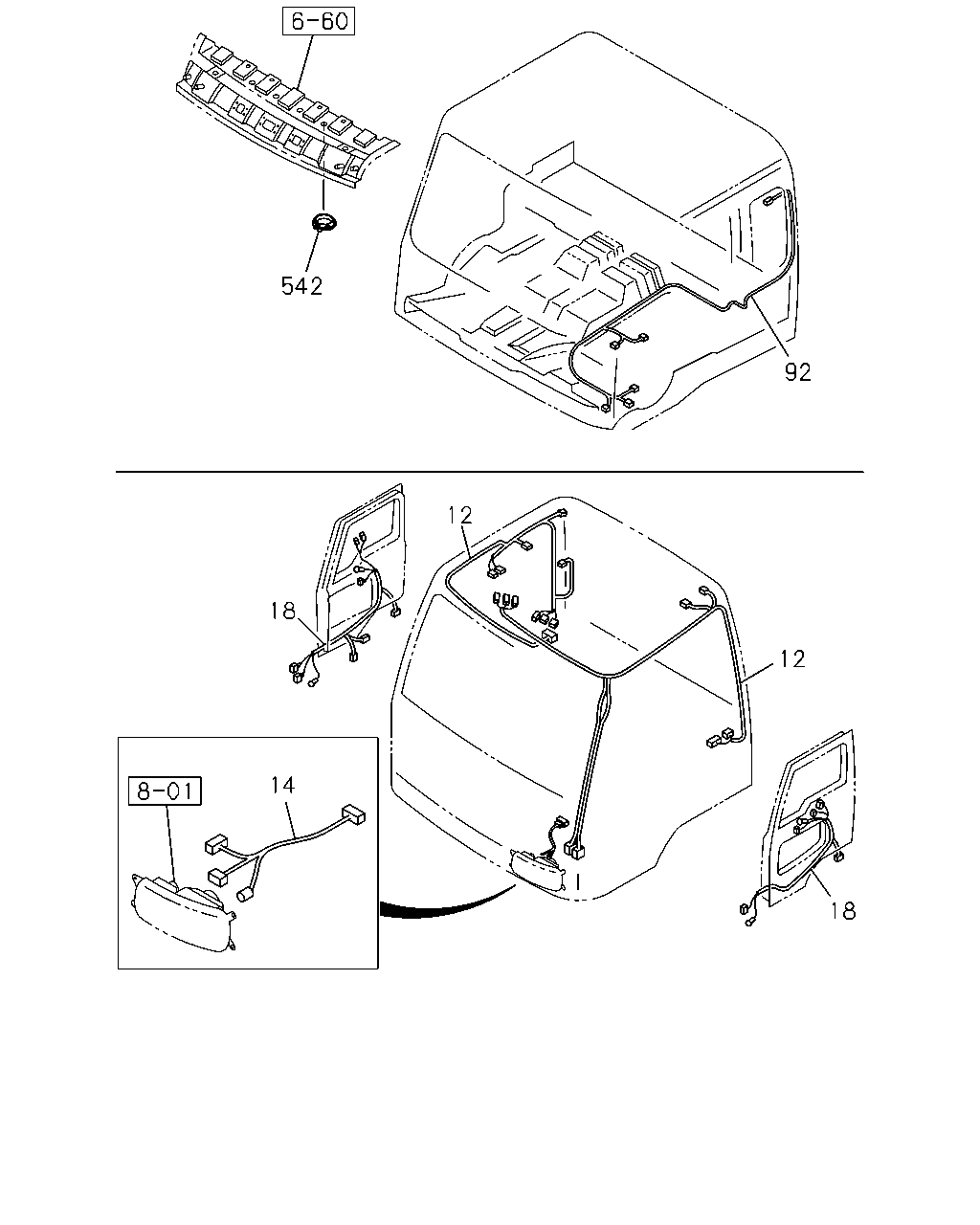

çizim 77261
542 92 12 18 12 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
HIGH ROOF<S2F> 		1-82629-924-2 01 1 0105-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> 		1-82629-920-2 01 1 0105-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> DRIVER SIDE 		1-82628-107-0 01 1 0105-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-1 02 1 0105-0105
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 0105-0105
14 HARNESS; HEADLAMP 1-82625-150-2 02 1 0106-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
92 HARNESS; FLOOR 1-82660-394-2 01 1 0105-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0105-

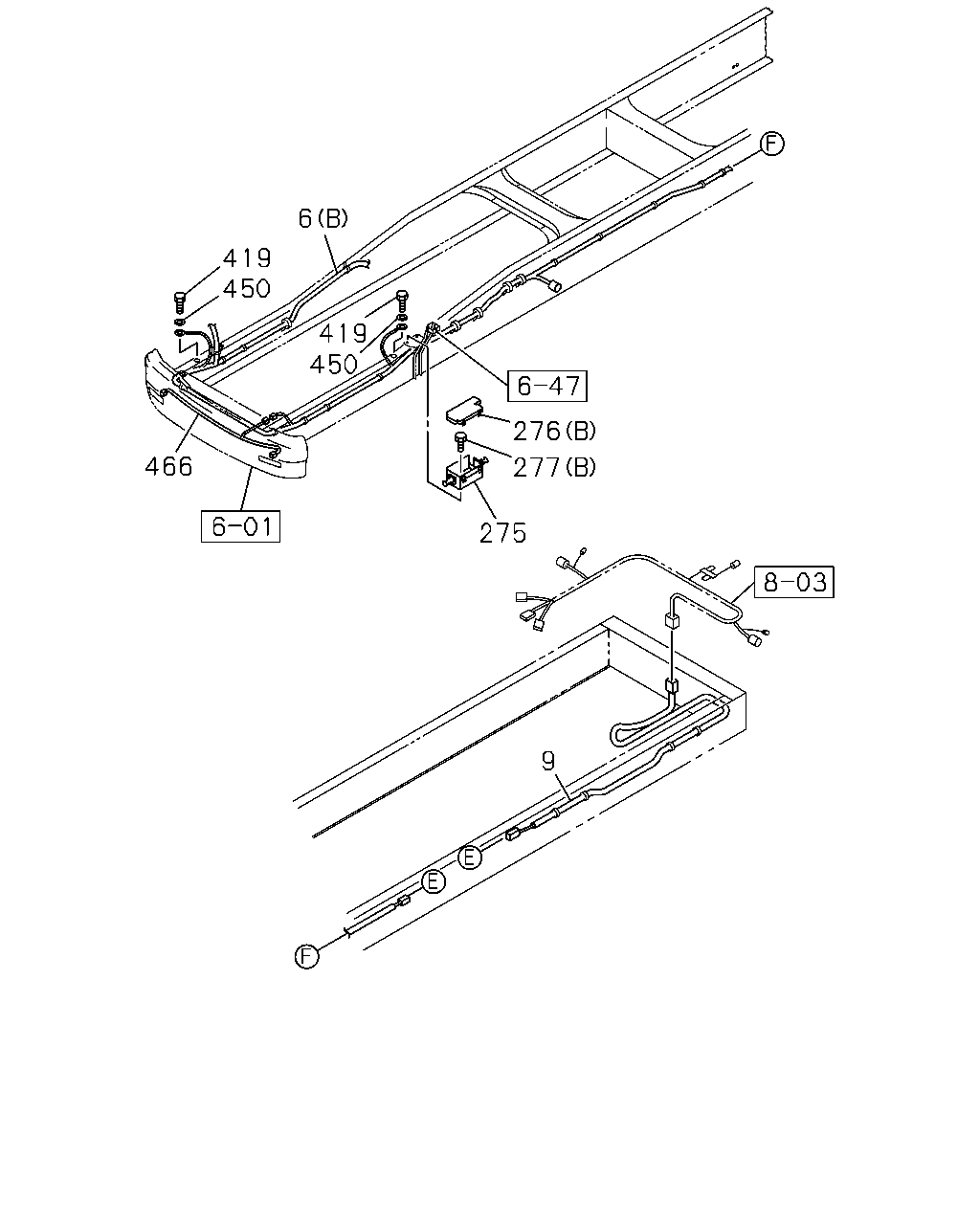

çizim 81225
6 419 450 419 450 276 466 277 275 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) 		1-82674-836-0 01 1 0105-0105
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) 		1-82674-835-2 01 1 0105-0105
6 HARNESS; FRAME
AUTO CAB TILT<WV2> (A) 		1-82674-835-2 01 1 0106-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) 		1-82674-834-2 01 1 0105-0105
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2> (A) 		1-82674-834-2 01 1 0106-
6 HARNESS; FRAME
EXC. FULL FLOATING CAB(W16) (B) 		1-82674-973-0 01 1 0105-0105
6 HARNESS; FRAME
(B) 		1-82674-973-0 01 1 0106-0108
6 HARNESS; FRAME
(B) 		1-82675-036-4 01 1 0109-
9 HARNESS; FRAME,RR
WHEEL BASE 5700MM(57W) 		1-82639-284-1 01 1 0105-
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) 		1-82674-460-0 01 1 0105-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) 		1-82638-458-1 01 1 0105-
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
466 HARNESS; BUMPER 1-82639-281-0 01 1 0105-

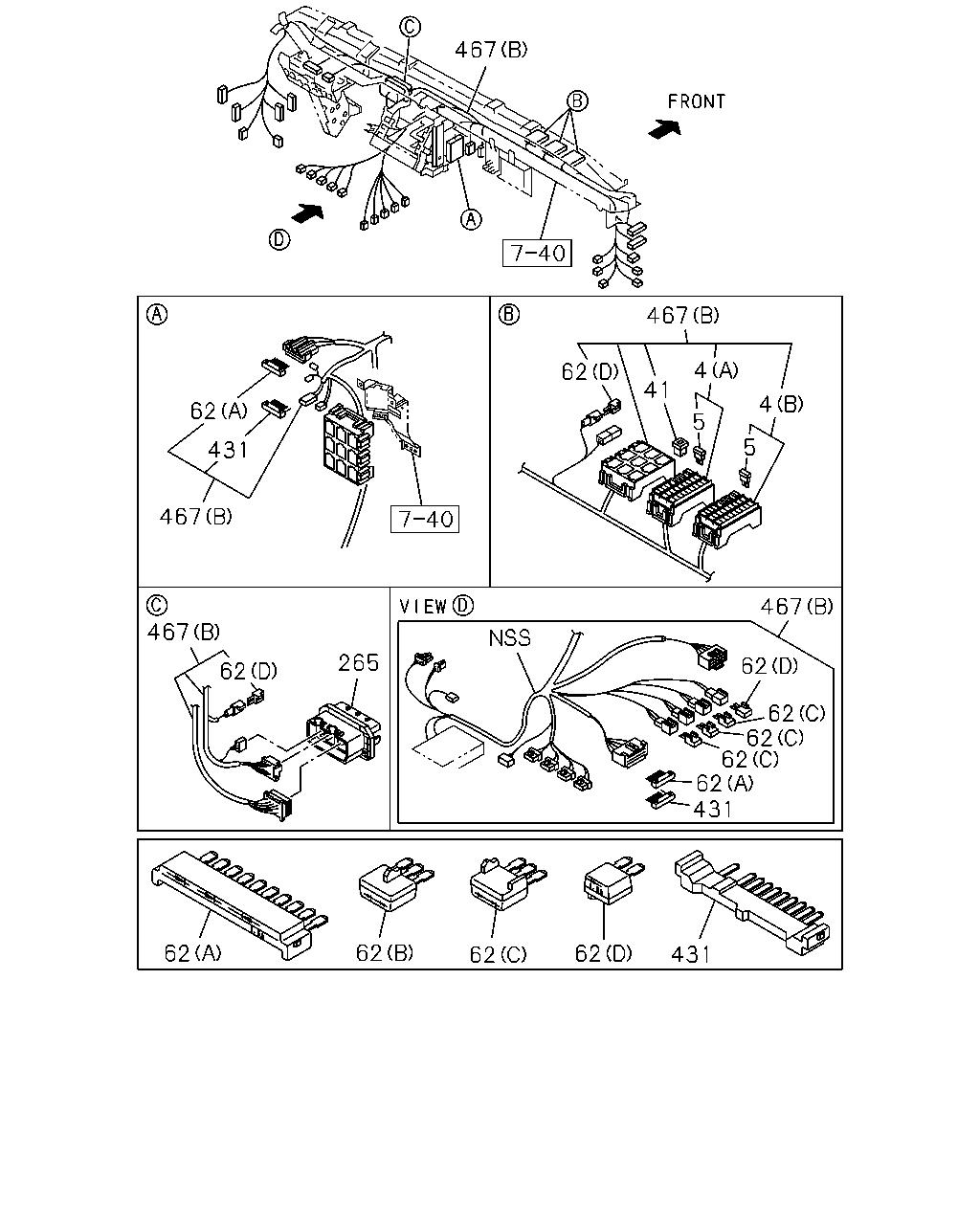

çizim 81280
467 467 4 62 41 4 62 5 5 431 467 467 467 265 62 62 62 62 62 62 431 62 62 62 431 62
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (B) 15AX20 25AX2 		1-82510-520-0 01 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 10A RED 		5-82516-002-0 02 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 10A RED 		5-82516-002-0 02 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 20 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 20 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 25A CLEAR 		5-82516-005-0 02 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 25A CLEAR 		5-82516-005-0 02 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 24 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 24 1 0105-
41 PULLER; FUSE
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
41 PULLER; FUSE
DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0409-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 03 1 0409-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) BLACK 10P 		1-82699-703-0 AR 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) (A) BLACK 10P 		1-82699-703-0 AR 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) (C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0105-0402
62 DIODE; HARNESS
DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0105-0402
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0403-0408
62 DIODE; HARNESS
DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0403-0408
62 DIODE; HARNESS
DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0409-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0105-0408
62 DIODE; HARNESS
DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0105-0408
62 DIODE; HARNESS
DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0409-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
431 CONNECTOR; JOINT
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 10P BROWN 		1-82699-601-0 02 1 0105-
431 CONNECTOR; JOINT
DELUXE CAB(W14) 10P BROWN 		1-82699-601-0 02 1 0105-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82660-436-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0105-0105
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-439-0 01 1 0106-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-527-3 01 1 0109-
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5), DELUXE CAB(W14) (B) 		1-82660-438-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS>,TAIWAN EQUIPMENT(WW5) (B) 		1-82660-437-0 01 1 0105-0105
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0105-0105
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-441-0 01 1 0106-0108
467 HARNESS; FACIA
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-529-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0105-0105
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-440-0 01 1 0106-0108
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-528-3 01 1 0109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
