Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#10945) — 188 parça

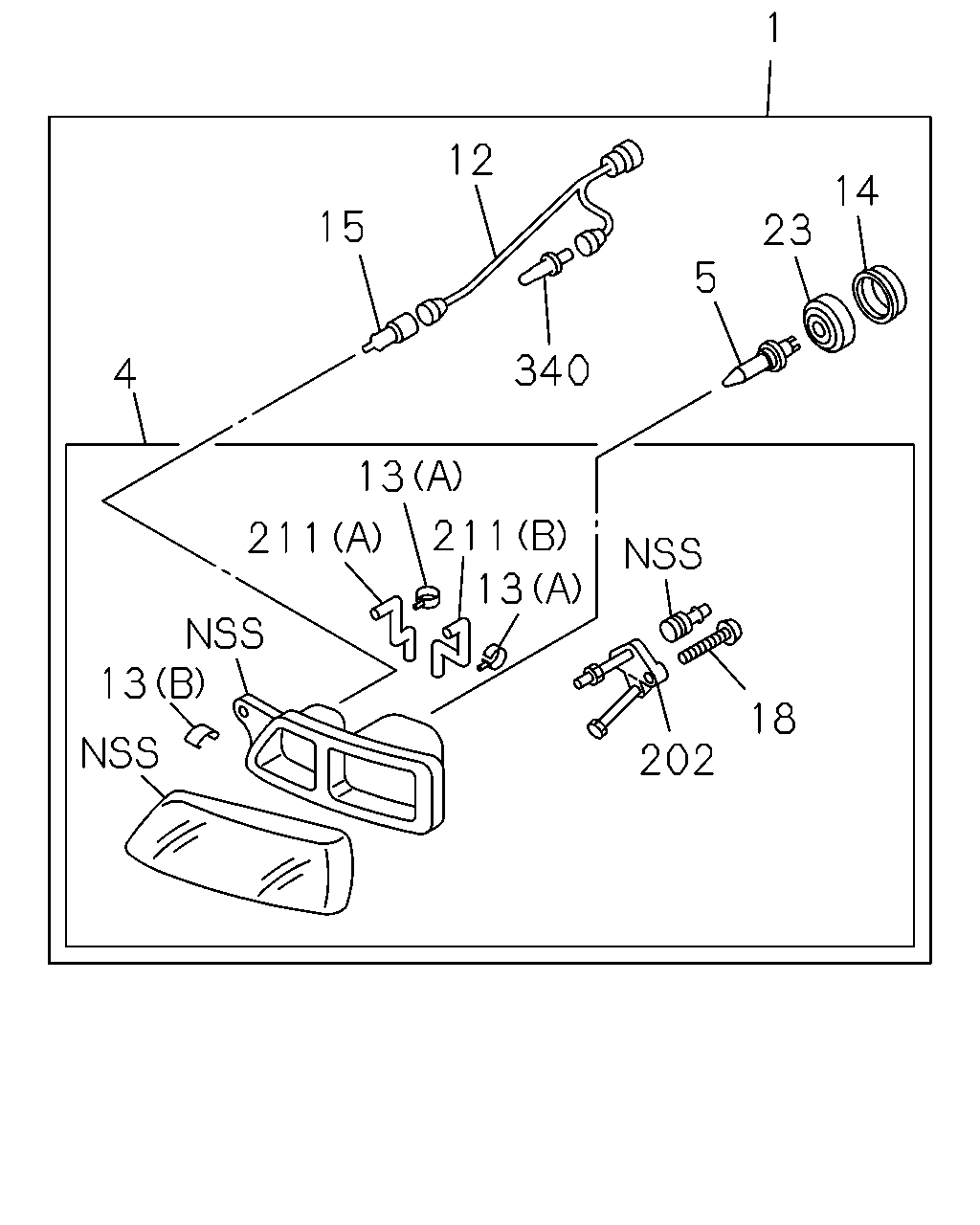

1 12 14 15 23 5 340 4 13 211 211 13 13 18 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-418-0	01	1	0510-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-417-0	01	1	0510-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82119-133-0	01	1	0105-0105
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB>	1-82119-133-0	01	1	0105-0105
4	HEADLAMP UNIT EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82119-133-0	01	1	0106-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82119-132-0	01	1	0105-0105
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB>	1-82119-132-0	01	1	0105-0105
4	HEADLAMP UNIT EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82119-132-0	01	1	0106-
5	BULB; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	1-82194-063-0	02	1	0105-0105
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> 24V 75/70W	1-82194-063-0	02	1	0105-0105
5	BULB; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	1-82194-063-0	02	1	0106-
12	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82118-012-0	02	1	0105-0105
12	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82118-012-0	02	1	0105-0105
12	HARNESS; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82118-012-0	02	1	0106-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A)	1-82119-084-0	04	1	0105-0105
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0105-0105
13	CLIP; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (A)	1-82119-084-0	04	1	0106-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B)	8-94381-588-0	14	1	0105-0105
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	8-94381-588-0	14	1	0105-0105
13	CLIP; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B)	8-94381-588-0	14	1	0106-
14	CAP; BULB,LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-86830-148-0	02	1	0105-0105
14	CAP; BULB,LAMP BUMPER W/HEADLAMPS<SLB>	1-86830-148-0	02	1	0105-0105
14	CAP; BULB,LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-86830-148-0	02	1	0106-
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 55W	1-82194-079-0	02	1	0105-0105
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> 24V 55W	1-82194-079-0	02	1	0105-0105
15	BULB; FOG LAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 55W	1-82194-079-0	02	1	0106-
18	SCREW; GEAR CASE EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING	1-82119-067-0	08	1	0105-0105
18	SCREW; GEAR CASE BUMPER W/HEADLAMPS<SLB> M4X16 TAPPING	1-82119-067-0	08	1	0105-0105
18	SCREW; GEAR CASE EXC. HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING	1-82119-067-0	08	1	0106-
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-86830-147-0	02	1	0105-0105
23	COVER; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-147-0	02	1	0105-0105
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-86830-147-0	02	1	0106-
202	GEAR UNIT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-86830-139-0	04	1	0105-0105
202	GEAR UNIT; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-86830-139-0	04	1	0105-0105
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-86830-139-0	04	1	0106-
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-331-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-331-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-331-0	01	1	0106-
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-330-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-86830-330-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS VARIANT SQUARE<TEA> (B)	1-86830-330-0	01	1	0106-
340	BULB; POSITION EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA> 24V 5W	1-82194-042-0	02	1	0105-0105
340	BULB; POSITION BUMPER W/HEADLAMPS<SLB> 24V 5W	1-82194-042-0	02	1	0105-0105
340	BULB; POSITION EXC. HEADLAMPS VARIANT SQUARE<TEA> 24V 5W	1-82194-042-0	02	1	0106-

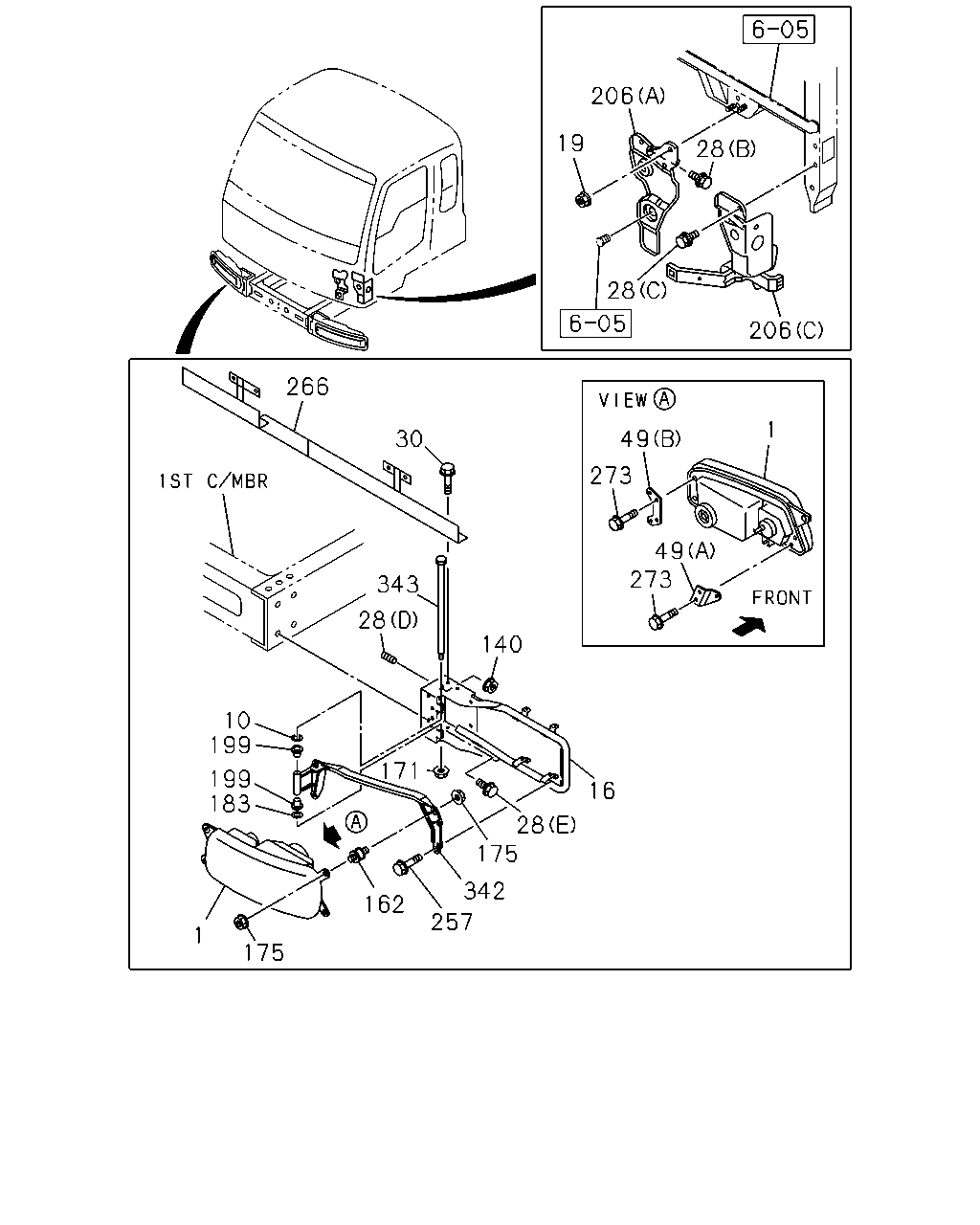

206 19 28 28 206 266 1 30 49 273 49 273 343 28 140 10 199 171 199 183 16 28 175 342 162 257 1 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-418-0	01	1	0510-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-417-0	01	1	0510-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	0105-0105
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-120-2	01	1	0105-0105
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-119-2	01	1	0105-0105
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-0106
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0105-0105
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-0105
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0106-
30	BOLT; STAY FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	0105-0105
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	0106-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	0105-0105
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	0105-0105
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	0105-0105
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	02	1	0105-0105
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-086-0	08	1	0105-0105
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	0105-0105
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0105-0105
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	0105-0105
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	0105-0105
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-0105
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-0105
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-0105
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-0105
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	0106-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	0105-0105
266	STAY; BRKT,HEADLAMP FRONT SPOILER<VP1>	1-82117-128-1	01	1	0105-0105
266	STAY; BRKT,HEADLAMP	1-82117-128-1	01	1	0106-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	0105-0105
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	0105-0105
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	0105-0105
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	0105-0105

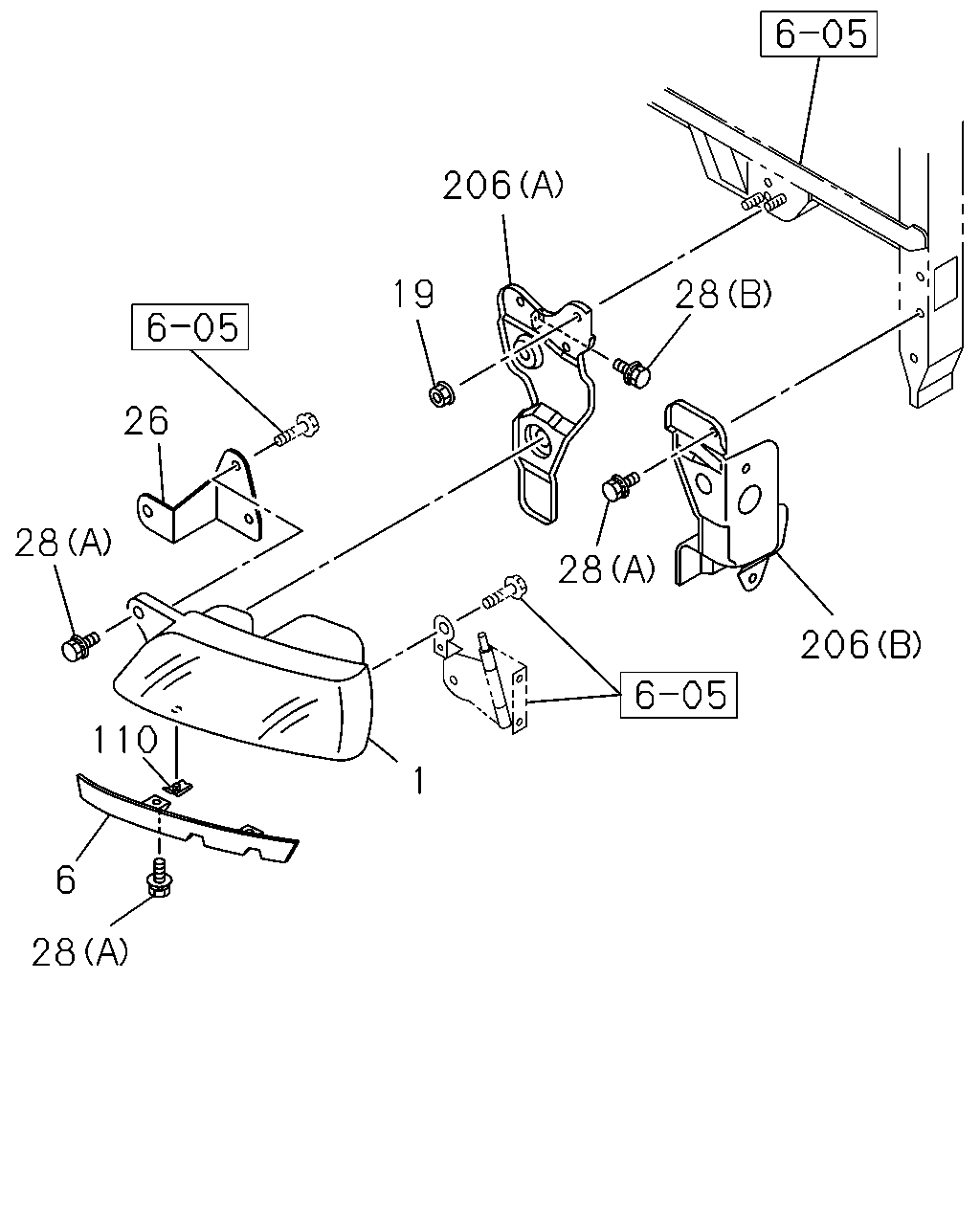

206 19 28 26 28 28 206 110 1 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-400-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-400-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-418-0	01	1	0510-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB>	1-82110-399-2	01	1	0105-0105
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	1-82110-399-2	01	1	0106-0509
1	LAMP ASM; HEAD EXC. HEADLAMPS VARIANT SQUARE<TEA>	8-97609-417-0	01	1	0510-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	0105-0105
6	RIM; HEADLAMP	1-71107-024-0	01	1	0106-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	0105-0105
6	RIM; HEADLAMP	1-71107-023-0	01	1	0106-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0105-0105
26	BRACKET ASM; HEADLAMP	1-86830-085-0	01	1	0106-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0105-0105
26	BRACKET ASM; HEADLAMP	1-86830-084-0	01	1	0106-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-0106
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0105-0105
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-0105
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0106-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	0105-0105
110	CLIP; RIM,HEADLAMP	1-86830-213-0	04	1	0106-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-0105
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-0105
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-0105
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	0106-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-0105
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	0106-

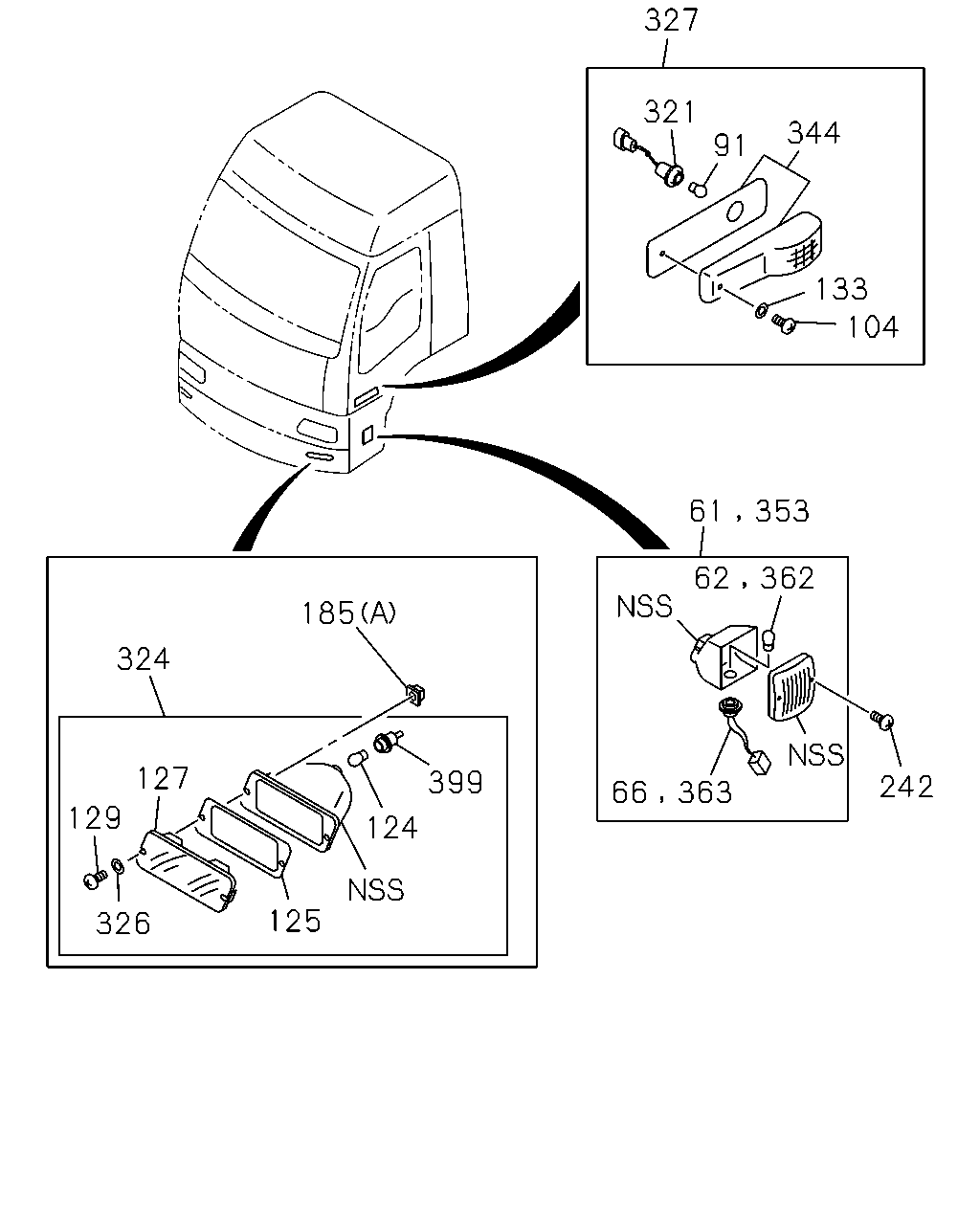

327 321 344 91 133 104 61 353 185 324 127 399 242 129 124 125 326 62 362 66 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	LAMP ASM; CORNERING CORNERING LAMP<TDS>	1-86830-247-2	01	1	0105-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-297-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0105-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0105-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0105-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0105-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0105-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0105-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0105-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0105-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0105-0206
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-0105
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0105-0207
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0208-
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	0105-0207
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	02	1	0208-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0105-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0105-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0105-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0105-
353	LAMP ASM; STEP EXC. CORNERING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	0105-
362	BULB; STEP LAMP EXC. CORNERING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	0105-
363	HARNESS; STEP LAMP EXC. CORNERING LAMP<TDS>	1-86830-296-0	01	1	0105-
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0105-

256 328 84 83 80 185 325 325 325 185 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP MARKER LAMP THREE AMBER<WD9> 24V 12W	9-82691-302-0	03	1	0105-0105
80	BULB; MARKER LAMP 24V 12W	9-82691-302-0	03	1	0106-
83	LENS; MARKER LAMP HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9>	1-86830-320-0	03	1	0105-0105
83	LENS; MARKER LAMP HIGH ROOF<S2F>	1-86830-320-0	03	1	0106-
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9>	1-86830-321-0	03	1	0105-0105
83	LENS; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F>	1-82215-068-0	03	1	0105-0105
83	LENS; MARKER LAMP EXC. HIGH ROOF<S2F>	1-82215-068-0	03	1	0106-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9>	1-86830-153-0	03	1	0105-0105
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9>	1-86830-153-0	03	1	0105-0105
84	GASKET; MARKER LAMP	1-86830-153-0	03	1	0106-
174	BOLT M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-0305
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-0105
256	LAMP; MARKER HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9>	1-82210-229-0	03	1	0105-0105
256	LAMP; MARKER HIGH ROOF<S2F>	1-82210-229-0	03	1	0106-
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9>	1-82210-230-0	03	1	0105-0105
256	LAMP; MARKER MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F>	1-86830-170-0	03	1	0105-0105
256	LAMP; MARKER EXC. HIGH ROOF<S2F>	1-86830-170-0	03	1	0106-
325	SCREW; SPD INDICATOR LAMP (A) M5X14 TAPPING	9-07066-514-0	12	1	0105-
325	SCREW; SPD INDICATOR LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0105-0105
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0105-0105
325	SCREW; SPD INDICATOR LAMP (B) M5X20 TAPPING	0-71090-520-0	18	1	0106-
328	COVER; LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9>	1-76217-122-0	03	1	0105-0105

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
