3-77 — BRAKE PIPING; AIR,REAR (#1094) — 130 parça

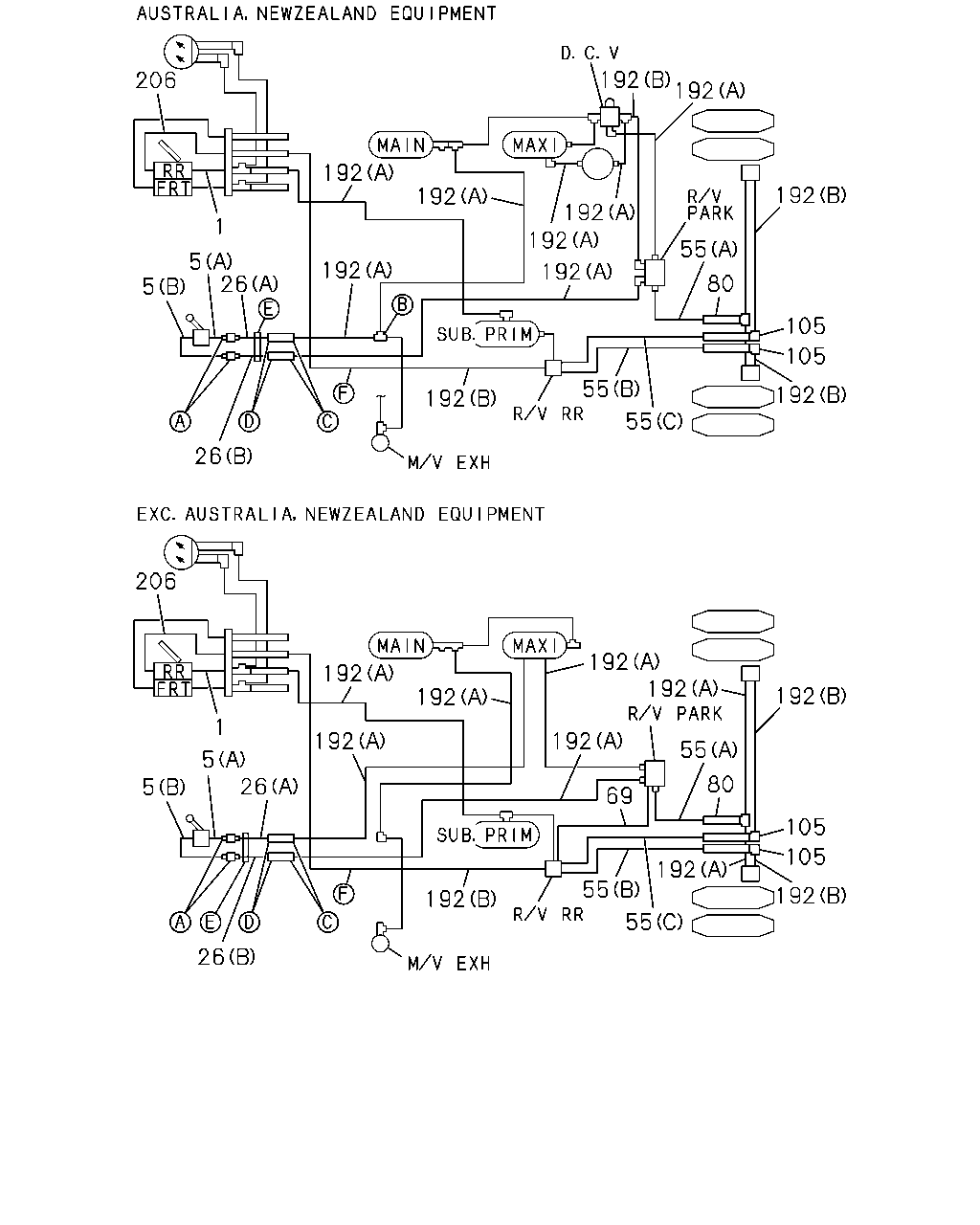

206 192 192 192 192 192 192 192 1 55 5 5 26 192 192 80 105 105 55 192 192 55 26 206 192 192 192 192 192 1 192 192 55 5 26 80 5 69 105 105 192 55 192 192 55 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47492-706-0	01	1	9202-9212	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47499-741-0	01	1	9301-9307	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47499-741-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-47499-741-0	01	1	9308-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-49112-324-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=657	1-47482-412-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=524	1-47497-873-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=524	1-47482-413-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=657	1-47497-874-0	01	1	9301-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1551	1-47487-289-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1551	1-47497-875-0	01	1	9301-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1506	1-47492-715-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1506	1-47499-744-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=364	1-47493-213-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9203-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (C) L=645	1-47493-214-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9203-9307	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9308-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=254 SERVICED BY L=300	1-49111-433-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=254 SERVICED BY L=300	1-49111-433-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=389	1-47493-215-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9203-	●	●
69	PIPE; AIR,RELAY VLV TO RELAY VLV EXC. AUSTRALIA EQUIPMENT(RR3) L=857 SERVICED BY L=900	1-47426-349-0	01	1	9308-	●
69	PIPE; AIR,RELAY VLV TO RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) L=857 SERVICED BY L=900	1-47426-349-0	01	1	9308-		●
80	HOSE; FLEX,POWER CHAMBER L=610	0-07807-610-1	01	1	9202-	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9202-	●	●
192	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9202-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47492-705-0	01	1	9202-9212	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47499-742-0	01	1	9301-9307	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47499-742-0	01	1	9308-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-47499-742-0	01	1	9308-		●
206	PIPE; AIR,BRK VLV TO FLEX HOSE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-49112-325-0	01	1	9308-		●

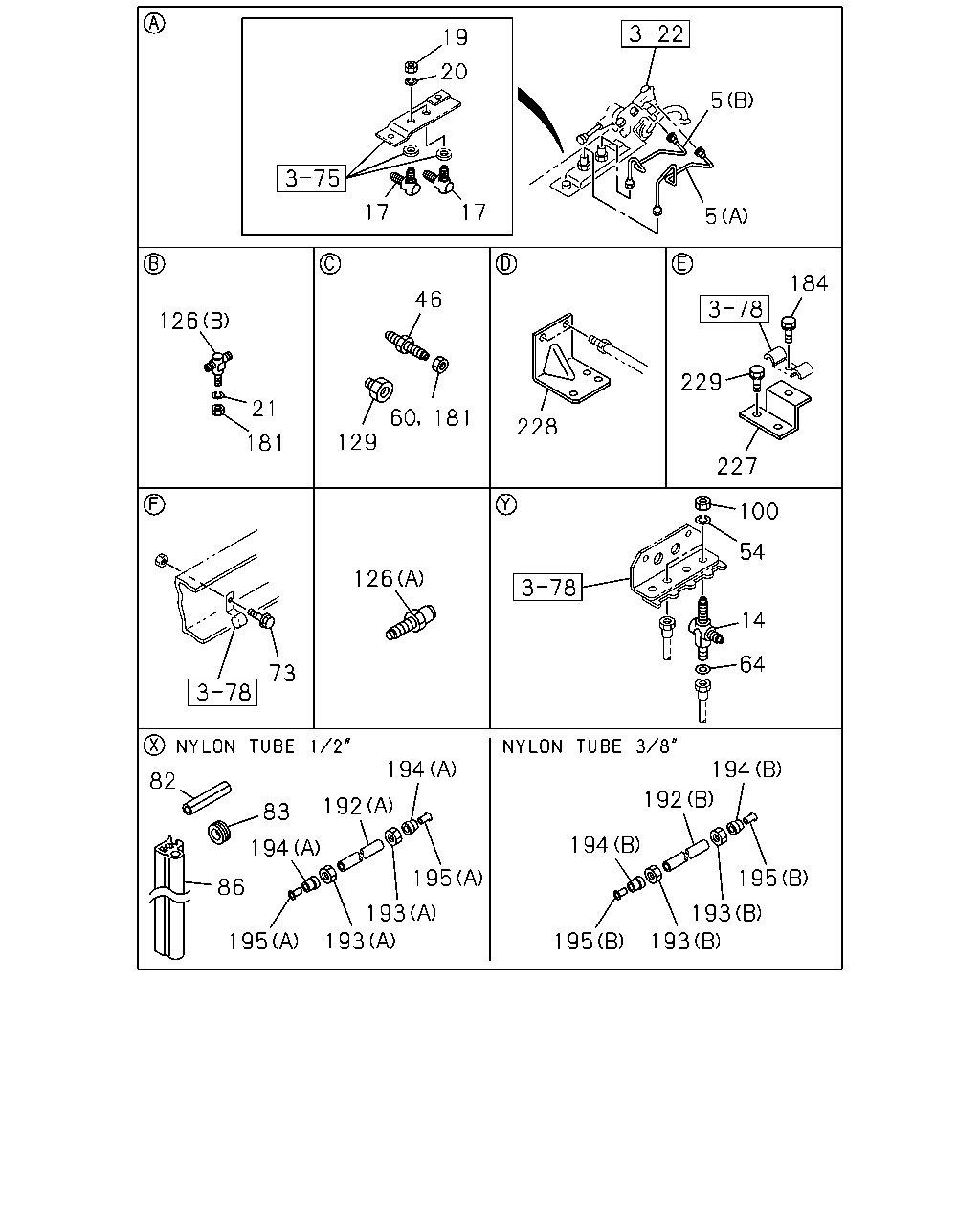

19 20 5 17 17 5 184 46 126 229 60 21 181 228 129 181 227 100 54 126 14 64 73 194 194 82 192 192 83 194 194 195 195 86 193 193 193 193 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV (A) L=657	1-47482-412-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=524	1-47497-873-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV (B) L=524	1-47482-413-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV (A) L=657	1-47497-874-0	01	1	9301-	●	●
14	UNION; AIR PIPE	1-09656-451-1	01	1	9202-	●	●
17	UNION; AIR PIPE M14	9-09225-208-1	02	1	9202-	●	●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9202-	●	●
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) ID=12.2	9-09150-512-0	01	1	9202-9312		●
46	NIPPLE; AIR PIPE M16 L=59	1-09654-281-0	02	1	9202-	●	●
54	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9202-	●	●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-314-0	02	1	9202-	●	●
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
73	BOLT; CLIP M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
73	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	04	1	9205-	●
82	SLEEVE; RUBBER,NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
82	SLEEVE; RUBBER,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
82	SLEEVE; RUBBER,NYLON TUBE 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
83	GROMMET; NYLON TUBE ID=39 OD=45 T=19	1-09332-077-0	01	1	9202-	●
86	PROTECTOR; NYLON TUBE L=100	8-94272-502-0	01	1	9202-	●	●
100	NUT; UNION M16	9-99111-416-0	01	1	9202-	●	●
126	UNION; NYLON TUBE (A)	1-09654-282-0	01	1	9202-	●	●
126	UNION; NYLON TUBE 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-09660-545-0	01	1	9202-		●
129	CONNECTOR; NYLON TUBE	1-09660-564-0	01	1	9202-	●	●
181	NUT; TUBE UNION M16	9-99111-316-0	01	1	9202-	●	●
181	NUT; TUBE UNION 6HE1 STD ENG(46L) NEW ZEALAND EQUIPMENT(PK5) M12	9-99110-312-0	01	1	9202-		●
184	BOLT; TUBE CLIP 6SA1 STD ENG(06L) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-9208	●
184	BOLT; TUBE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9209-	●
184	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
184	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-9307		●
184	BOLT; TUBE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	01	1	9308-	●
184	BOLT; TUBE CLIP 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9308-		●
184	BOLT; TUBE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	01	1	9308-		●
192	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9202-	●	●
193	NUT; SLEEVE (B) 17/32-24 UNS OD=3/8"	1-09660-557-0	AR	1	9202-	●	●
193	NUT; SLEEVE (A) 11/16-20 UNS OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
194	SLEEVE; TUBE (B) FOR 3/8" ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●	●
194	SLEEVE; TUBE (A) FOR 1/2" ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
195	RING; INSERT (A) OD=1/2"	1-09669-107-0	AR	1	9202-	●	●
195	RING; INSERT (B) OD=3/8"	1-09669-108-0	AR	1	9202-	●	●
227	BRACKET ASM; AIR PIPE	1-71998-421-0	02	1	9202-	●	●
228	BRACKET; FLEX HOSE JOINT	1-79738-183-1	01	1	9202-9507	●	●
228	BRACKET; FLEX HOSE JOINT	1-79738-824-0	01	1	9508-	●	●
229	BOLT; HOSE UNION BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●

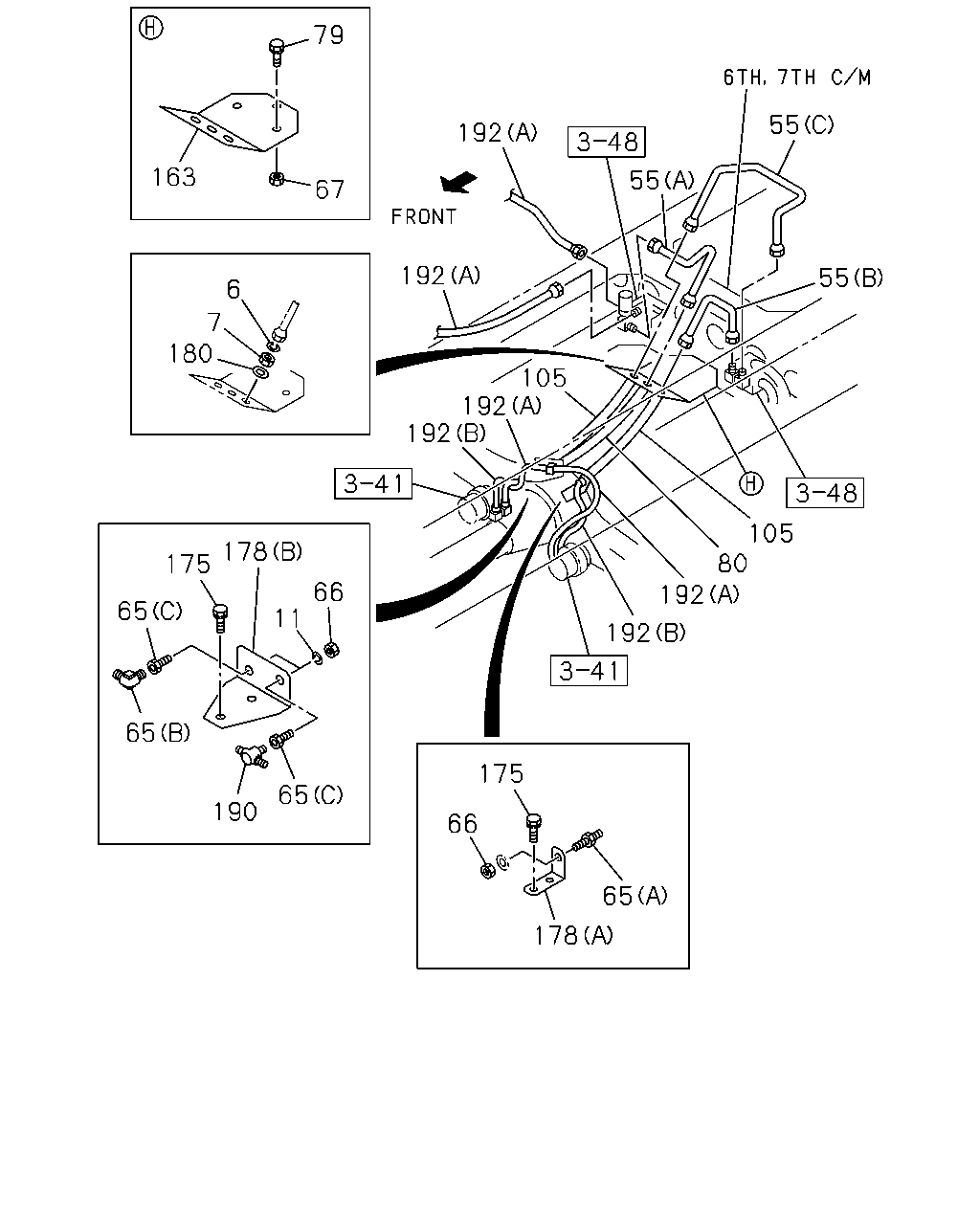

79 55 192 163 55 67 192 55 6 7 180 105 192 192 105 80 192 178 175 66 65 11 192 65 175 65 190 66 65 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	03	1	9202-	●	●
7	NUT; FLEX HOSE M20	9-99111-420-0	03	1	9202-	●	●
11	WASHER; LK,CONNECTOR ID=20.2	9-09150-520-0	03	1	9502-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) L=420 SERVICED BY L=500	1-49111-435-0	01	1	9308-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=364	1-47493-213-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=637 SERVICED BY L=660	1-49111-438-0	01	1	9203-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (C) L=645	1-47493-214-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9203-9307	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9308-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) L=403 SERVICED BY L=500	1-49111-435-0	01	1	9308-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=254 SERVICED BY L=300	1-49111-433-0	01	1	9202-9212	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=254 SERVICED BY L=300	1-49111-433-0	01	1	9301-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=389	1-47493-215-0	01	1	9202-9202	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=450 SERVICED BY L=500	1-49111-435-0	01	1	9203-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (A)	1-09660-530-0	01	1	9202-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (B)	1-09660-533-0	01	1	9202-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (C)	1-09664-173-0	01	1	9202-9205	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (C)	1-09664-173-0	02	1	9206-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-09664-173-0	02	1	9203-9205	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-09664-173-0	01	1	9206-	●	●
66	NUT; HOSE CONNECTOR	9-99111-320-0	03	1	9202-9202	●	●
66	NUT; HOSE CONNECTOR HONG KONG EQUIPMENT(PQ1)	9-99111-320-0	02	1	9203-	●	●
66	NUT; HOSE CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1)	9-99111-320-0	03	1	9203-	●	●
67	NUT; HOSE BRKT M8	9-09110-408-0	03	1	9202-	●	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	03	1	9205-	●	●
80	HOSE; FLEX,POWER CHAMBER L=610	0-07807-610-1	01	1	9202-	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9202-	●	●
163	BRACKET; FLEX HOSE	1-47476-787-0	01	1	9202-	●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
178	BRACKET; UNION (A)	1-47476-517-0	01	1	9202-	●	●
178	BRACKET; UNION (B)	1-47476-786-0	01	1	9202-9202	●	●
178	BRACKET; UNION EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-47476-786-0	01	1	9203-	●	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	03	1	9202-	●	●
190	UNION; 3 WAY	1-09660-553-0	01	1	9202-9202	●	●
190	UNION; 3 WAY EXC. HONG KONG EQUIPMENT(PQ1)	1-09660-553-0	01	1	9203-	●	●
192	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) GREEN SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9202-	●	●
192	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9202-	●	●
192	TUBE; NYLON (B) ORANGE SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9202-	●	●
