Sayfa 7-10 - Isuzu EPC

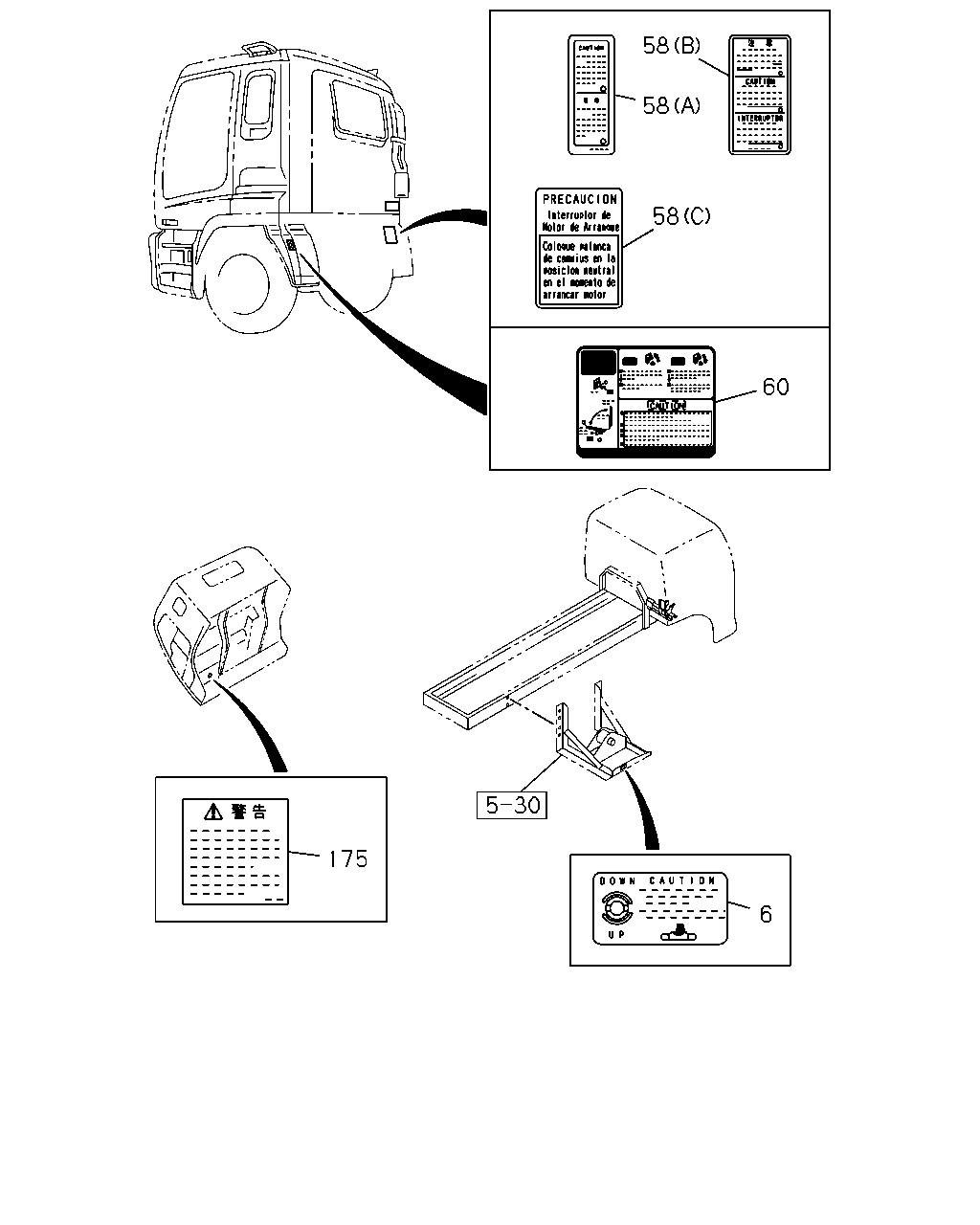

7-10 — CAUTION PLATE AND LABEL (#10936) — 73 parça

181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0105-0112
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85886-884-0	01	1	0205-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0105-0112
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0105-0112
181	PLATE; CAUTION,AIR CLEANER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0201-0204
181	PLATE; CAUTION,AIR CLEANER CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0205-
181	PLATE; CAUTION,AIR CLEANER EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A)	1-85886-796-1	01	1	0205-

228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
228	PLATE; CAUTION,AIR DRYER CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0105-
228	PLATE; CAUTION,AIR DRYER CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	0105-0204
228	PLATE; CAUTION,AIR DRYER EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	0105-0112
228	PLATE; CAUTION,AIR DRYER EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0201-0204
228	PLATE; CAUTION,AIR DRYER EXC. CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0205-
228	PLATE; CAUTION,AIR DRYER CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0105-0112

58 58 58 60 175 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-85883-114-0	01	1	0105-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-85883-113-0	01	1	0105-0204
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-85883-108-0	01	1	0105-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT)	1-53639-005-0	01	1	0105-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0105-0112
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0201-0204
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0205-
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-53639-004-0	02	1	0105-0112
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-53639-004-0	02	1	0201-0204
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	02	1	0205-
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	1-53639-005-0	02	1	0105-
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	02	1	0105-0112
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	02	1	0105-0204
6	PLATE; CAUTION,SPARE TIRE TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	02	1	0105-
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	0105-
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (A)	1-85887-536-0	01	1	0105-0204
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0105-0112
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0201-0204
58	PLATE; CAUTION,ENG START EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0205-
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	0105-0112
58	PLATE; CAUTION,ENG START CAUTIONS SPANISH<YN1> (C)	9-83999-419-0	01	1	0105-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0105-
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0105-0204
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0105-0112
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0201-0204
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0205-
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0105-0112
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0105-
175	LABEL; STRG,AIR BAG AIR BAG(TFQ) TAIWAN EQUIPMENT(WW5)	1-85878-107-0	02	1	0105-0105
175	LABEL; STRG,AIR BAG AIR BAG(TFQ)	1-85878-107-0	02	1	0106-

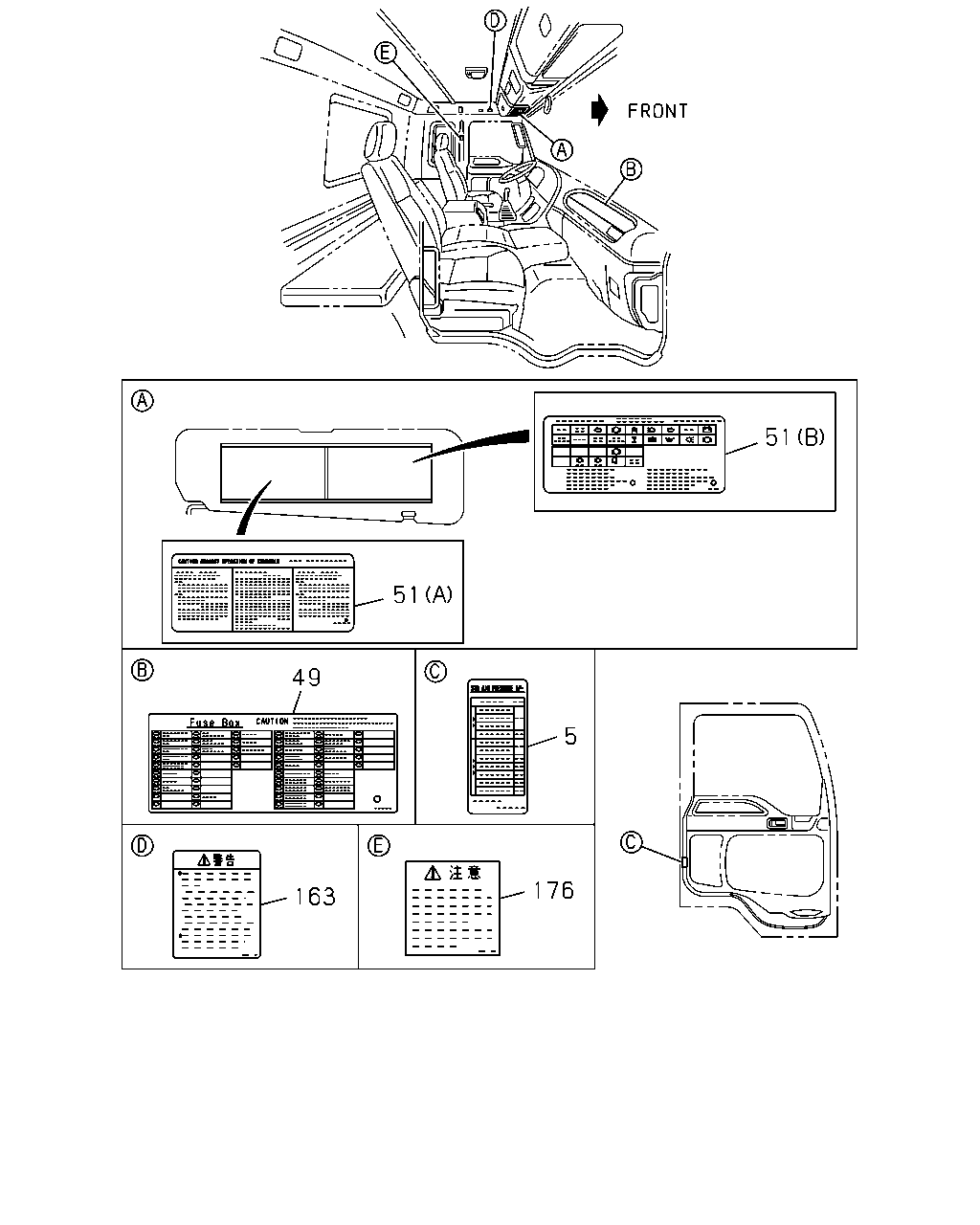

51 51 49 5 176 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE	1-85880-763-0	01	1	0105-0105
5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0106-0405
5	LABEL; TIRE AIR PRESSURE	1-85880-780-0	01	1	0406-0410
5	LABEL; TIRE AIR PRESSURE	1-85880-778-0	01	1	0411-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0105-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-329-0	01	1	0105-0105
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-359-0	01	1	0106-0204
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0105-0112
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0201-0204
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0205-
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-330-0	01	1	0105-0112
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-328-0	01	1	0105-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85878-335-1	01	1	0105-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-758-0	01	1	0105-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-727-0	01	1	0105-0204
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B)	1-85878-333-1	01	1	0105-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0201-0204
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0205-
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	0105-0112
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0201-0204
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0205-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-334-1	01	1	0105-0112
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (B)	1-85878-334-1	01	1	0201-0204
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-726-0	01	1	0105-0112
163	PLATE; NAME,AIR BAG AIR BAG(TFQ) TAIWAN EQUIPMENT(WW5)	1-85878-109-0	01	1	0105-0105
163	PLATE; NAME,AIR BAG AIR BAG(TFQ)	1-85878-109-0	01	1	0106-
176	LABEL; SEAT BELT DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) TAIWAN EQUIPMENT(WW5)	1-85878-108-0	01	1	0105-0105
176	LABEL; SEAT BELT DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN)	1-85878-108-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
