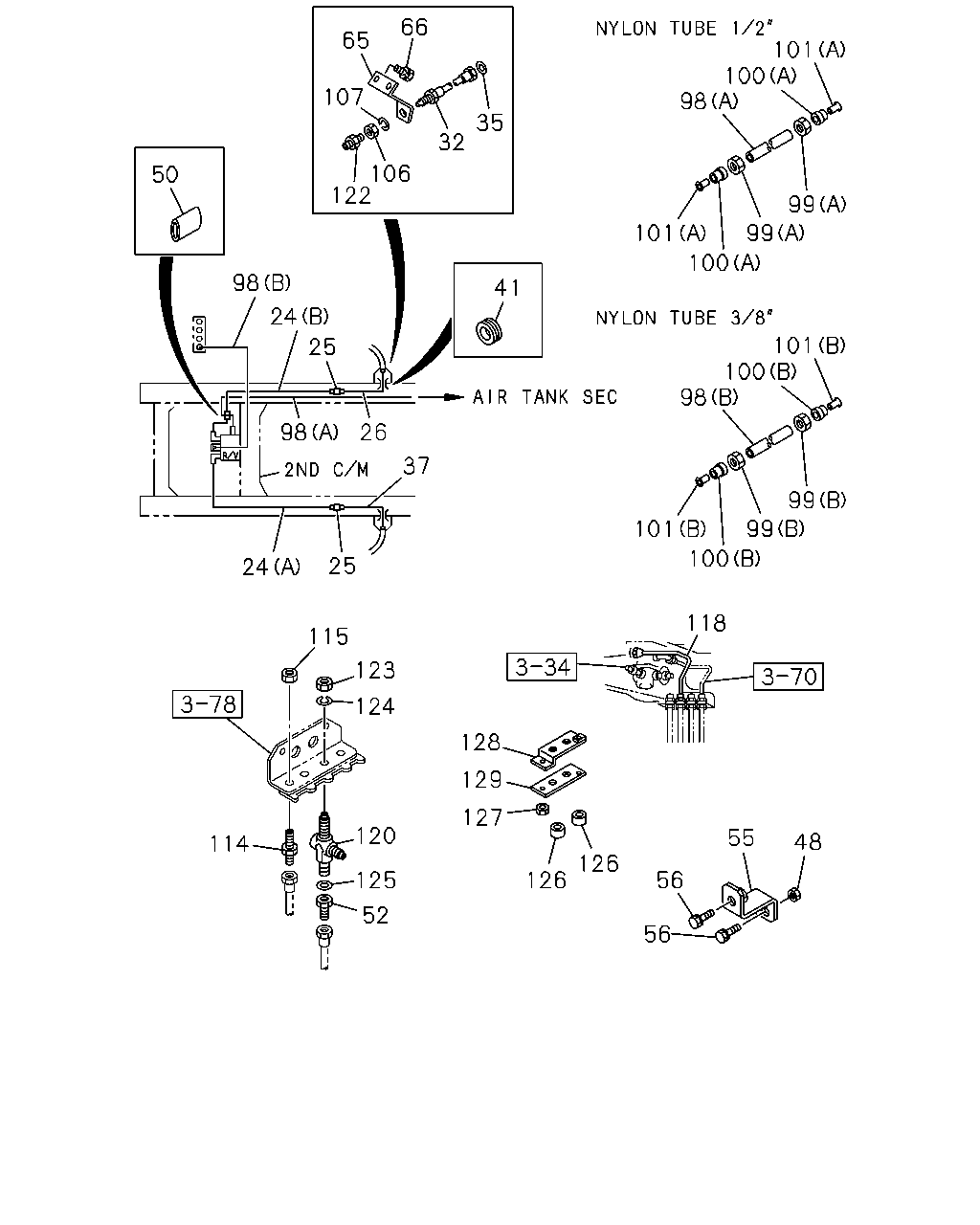

3-75 — BRAKE PIPING; AIR,FRONT (#1093) — 55 parça
çizim 27461
66 65 101 100 98 107 35 32 106 122 50 99 99 101 100 98 41 24 101 100 98 25 98 26 37 99 99 101 100 25 24 118 115 123 124 128 129 127 120 55 48 114 126 125 126 56 52 56
BalonParca AdiParca NoAdetTipApplied Date A B
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=957 SERVICED BY L=1000 		1-47434-476-0 01 1 9202-9202 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=879 SERVICED BY L=900 		1-47437-966-0 01 1 9203-9212 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=879 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=951 SERVICED BY L=1000 		1-47434-476-0 01 1 9202-9202 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=884 SERVICED BY L=900 		1-47437-966-0 01 1 9203-9212 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=884 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ● ●
25 UNION; AIR PIPE
M16 L=42 		9-09233-010-1 02 1 9202- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=329 SERVICED BY L=350 		1-47426-403-0 01 1 9202-9302 ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=331 SERVICED BY L=400 		1-49111-434-0 01 1 9303- ● ●
32 HOSE; FLEX,FRT
L=630 		0-07475-630-1 02 1 9202- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=329 SERVICED BY L=350 		1-47426-403-0 01 1 9202-9302 ● ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=331 SERVICED BY L=350 		1-47426-403-0 01 1 9303- ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 9202- ● ●
48 NUT; UNION BRKT
WHEEL BASE 5000MM(50W) 		9-09110-408-0 02 1 9202- ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9202- ● ●
50 SLEEVE; RUBBER,NYLON TUBE
6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9202- ● ●
52 CONNECTOR; NYLON TUBE 1-09660-564-0 01 1 9202- ● ●
55 BRACKET; TUBE UNION
WHEEL BASE 5000MM(50W) 		1-47476-200-0 02 1 9202- ●
56 BOLT; UNION BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ●
56 BOLT; UNION BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 9202- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 9202- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28010-825-0 04 1 9202-9204 ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9205- ● ●
98 TUBE; NYLON
(B) ORENGE SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 AR 1 9202- ● ●
98 TUBE; NYLON
(B) GREEN SERVICED BY L=30000 OD=3/8" 		1-09368-248-0 AR 1 9202- ● ●
98 TUBE; NYLON
(B) RED SERVICED BY L=30000 OD=3/8" 		1-09368-249-0 AR 1 9202- ● ●
98 TUBE; NYLON
(B) YELLOW SERVICED BY L=30000 OD=3/8" 		1-09368-250-0 AR 1 9202- ● ●
98 TUBE; NYLON
(A) GREEN SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 AR 1 9202- ● ●
98 TUBE; NYLON
(A) RED SERVICED BY L=30000 OD=1/2" 		1-09368-252-0 AR 1 9202- ● ●
99 NUT; SLEEVE
(B) 17/32-24 UNS OD=3/8" 		1-09660-557-0 AR 1 9202- ● ●
99 NUT; SLEEVE
(A) 11/16-20 UNS OD=1/2" 		1-09660-558-0 AR 1 9202- ● ●
100 SLEEVE; TUBE
(B) FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 AR 1 9202- ● ●
100 SLEEVE; TUBE
(A) FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 AR 1 9202- ● ●
101 RING; INSERT
(A) OD=1/2" 		1-09669-107-0 AR 1 9202- ● ●
101 RING; INSERT
(B) OD=3/8" 		1-09669-108-0 AR 1 9202- ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9202- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9202-9312 ● ●
114 UNION; NYLON TUBE
L=59 		1-09654-282-0 01 1 9202- ● ●
115 NUT; TUBE UNION
M16 		9-99111-316-0 01 1 9202- ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47482-334-0 01 1 9202-9212 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9301-9307 ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=361 		1-47497-112-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=361 		1-47497-112-0 01 1 9308- ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=403 		1-47497-151-0 01 1 9308- ●
120 UNION; AIR PIPE 1-09656-451-1 01 1 9202- ● ●
122 CONNECTOR; FLEX HOSE
L=35 		1-09660-039-0 02 1 9202- ● ●
123 NUT; HOSE CONNECTOR
M16 		9-99111-416-0 01 1 9202- ● ●
124 WASHER; LK,CONNECTOR
ID=16.2 		9-09150-516-0 01 1 9202- ● ●
125 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9202- ● ●
126 SPACER; PIPE UNION 1-09503-191-0 02 1 9202- ● ●
127 NUT; UNION PLATE,ENG HOOD
M6 FLANGE 		1-09984-141-0 01 1 9202- ● ●
128 PLATE; 2 WAY UNION 1-71998-372-0 01 1 9202- ● ●
129 SEAL; UNION PLATE 1-79998-224-0 01 1 9202- ● ●
