Isuzu WW
▶
TRUCKS
▶
CXM
▶
10873 - CXM LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

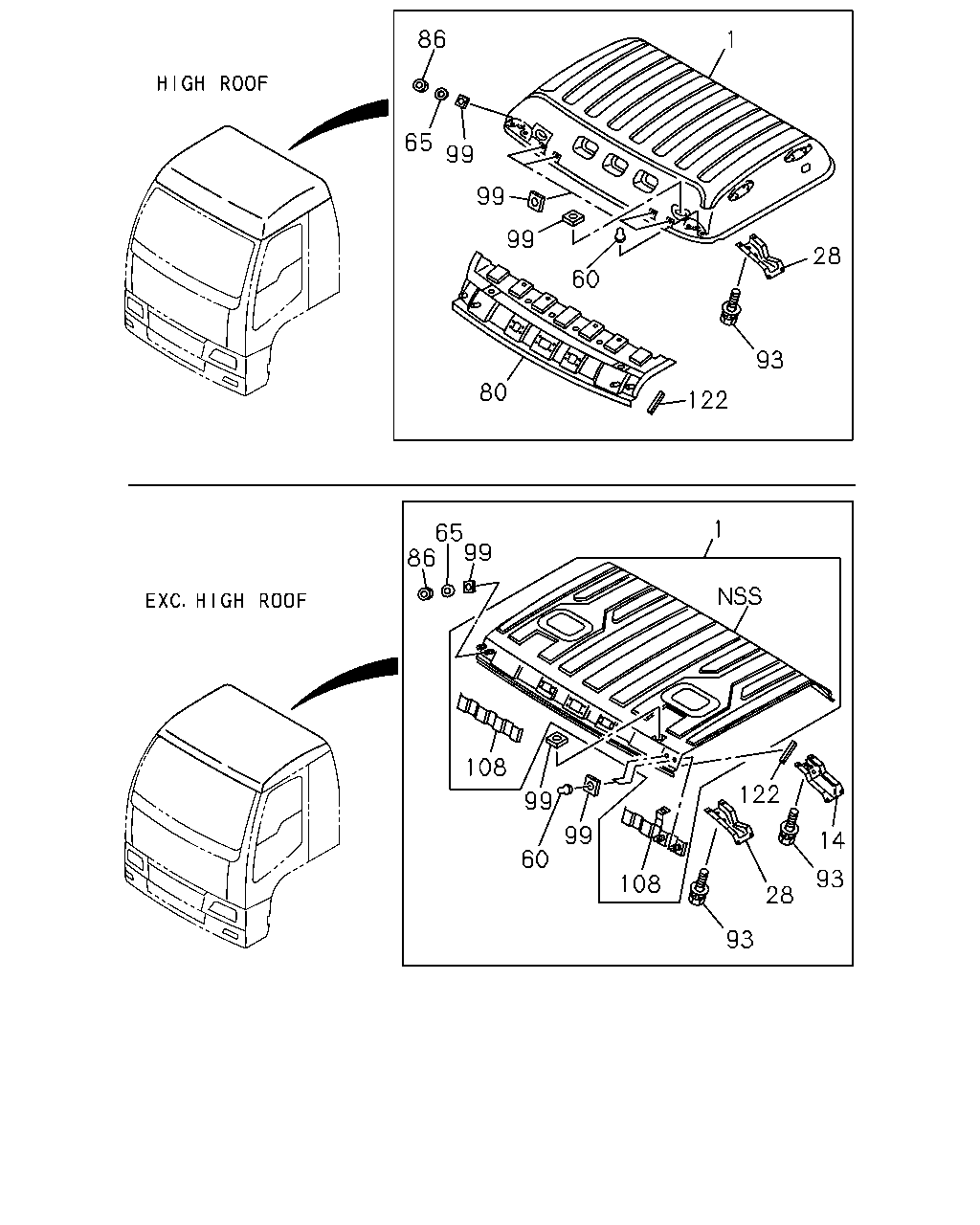

6-60 — ROOF PANEL
(#10924) — 26 parça
86
1
65
99
99
99
28
60
93
80
122
1
65
86
99
108
122
99
99
60
14
93
108
28
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
HIGH ROOF<S2F>
1-61170-836-1
01
1
0105-
1
PANEL; ROOF
EXC. HIGH ROOF<S2F>
1-61170-848-0
01
1
0105-
14
SUPPORT; ROOF
EXC. HIGH ROOF<S2F>
1-73318-595-3
02
1
0105-
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0105-
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0105-
60
COVER; ROOF
1-79998-922-3
03
1
0105-
65
WASHER; PL
EXC. HIGH ROOF<S2F> ID=8 T=2.3
8-94368-403-1
01
1
0105-
80
PANEL; HEADER,ROOF
HIGH ROOF<S2F>
1-61170-845-0
01
1
0105-
86
NUT; ROOF
EXC. HIGH ROOF<S2F> M8 LOCK NUT
9-09131-508-0
01
1
0105-
93
BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0105-
93
BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0105-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
04
1
0105-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-1
10
1
0105-
99
SEAL; BODY,METAL
30X30 ID=9 T=0.7
1-61281-444-0
01
1
0105-
99
SEAL; BODY,METAL
55X55 ID=42 T=0.7
1-61281-445-0
02
1
0105-
99
SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7
1-61281-427-0
04
1
0105-0403
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
0105-0403
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
0105-0403
99
SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7
1-61281-427-0
02
1
0404-
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
02
1
0404-
99
SEAL; BODY,METAL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7
1-61281-427-0
02
1
0105-0403
99
SEAL; BODY,METAL
14X14 ID=10 T=0.7
1-61281-427-0
04
1
0404-
99
SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=1.0
1-61270-920-0
09
1
0105-
108
PATCH; MIRROR
EXC. HIGH ROOF<S2F>
1-61170-438-6
01
1
0105-
108
PATCH; MIRROR
EXC. HIGH ROOF<S2F>
1-61170-857-2
01
1
0105-
122
SEAL; FRT UPR
1-61270-919-0
02
1
0105-
