◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10873 - CXM LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#10923) — 167 parça

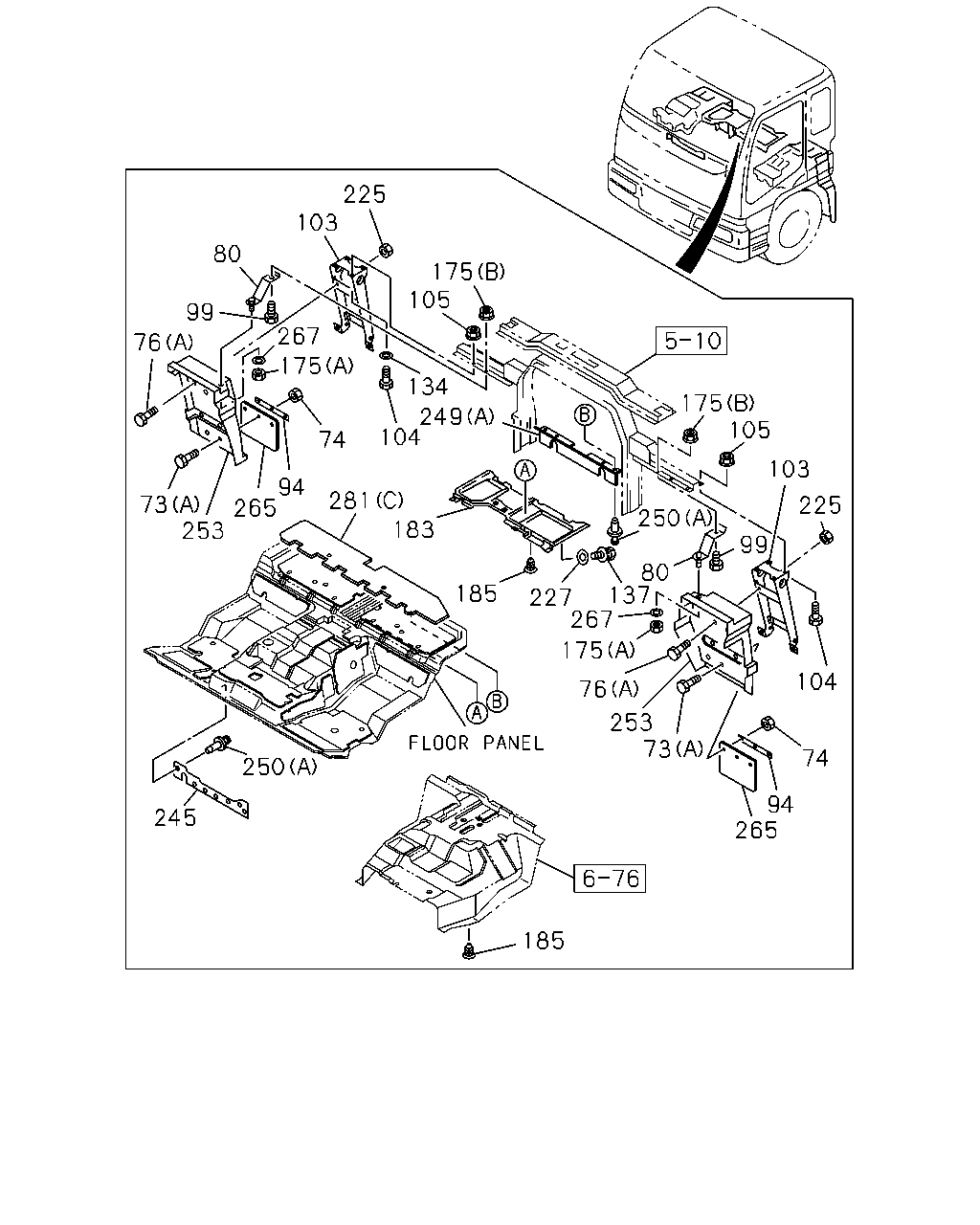

çizim 20486
225 103 80 175 105 99 267 76 175 134 175 105 249 104 74 103 94 73 265 253 281 183 225 250 99 80 227 137 267 185 175 104 76 253 73 74 250 94 265 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91150-108-0 02 1 0504-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0503
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0503
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0504-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0504-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0105
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0105-
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 08 1 0305-0305
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 03 1 0306-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0105-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0304-0304
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79947-023-0 01 1 0105-0301
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0302-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0105-0303
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0304-0304
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0304-0304
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0305-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
253 GUARD; MUD 1-79931-067-7 01 1 0105-
253 GUARD; MUD 1-79931-065-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-957-1 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

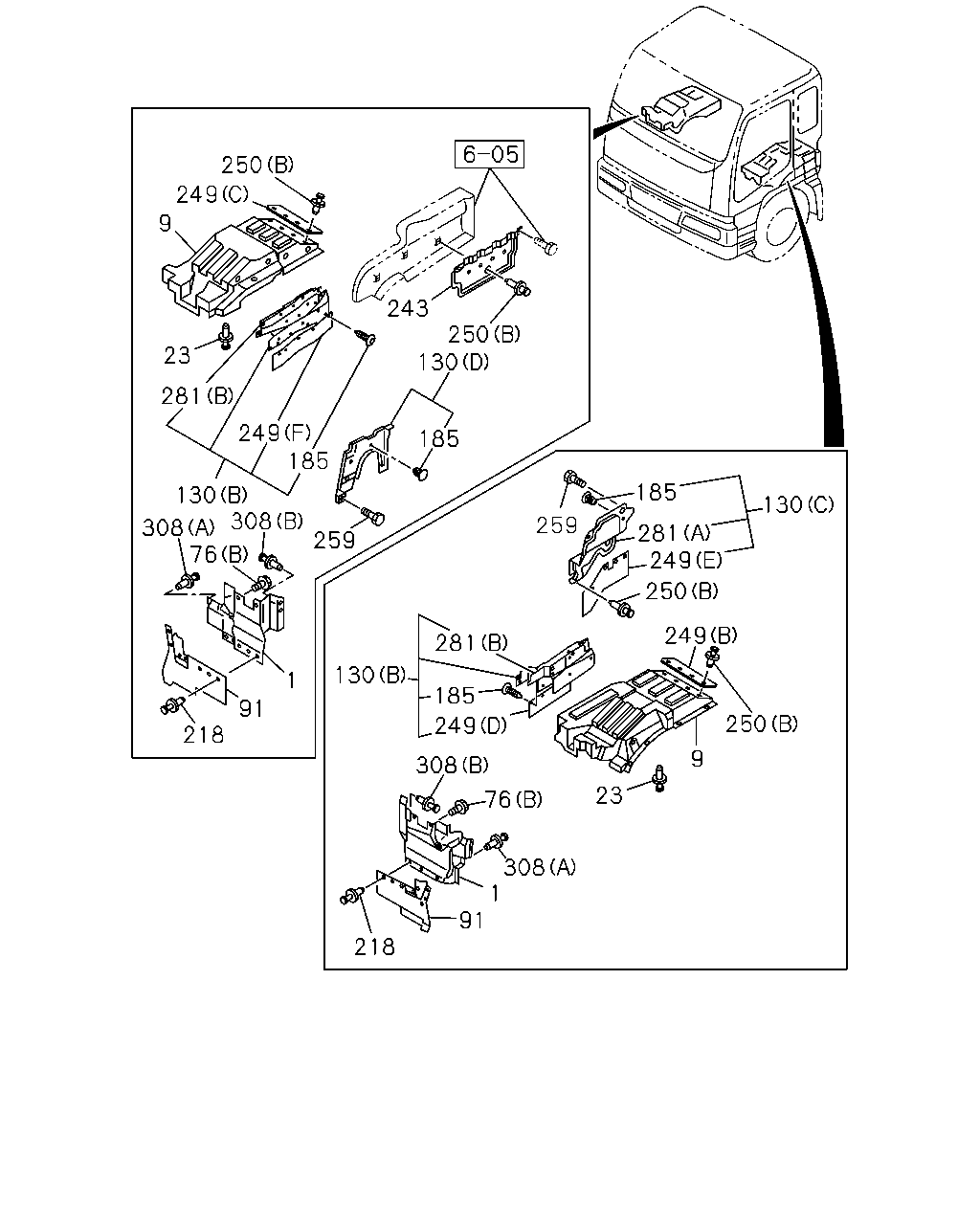

çizim 22778
250 249 9 243 250 130 23 281 249 185 185 185 130 308 130 259 308 76 281 249 259 250 249 281 130 1 185 91 250 249 218 9 308 23 76 308 1 91 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-328-1 01 1 0504-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-329-1 01 1 0504-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-993-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-011-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-3 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-0105
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0106-0503
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-790-5 01 1 0504-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0105
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0106-0503
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-782-7 01 1 0504-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-0105
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0105-0105
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0304-0304
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0105-0303
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0304-0304
249 RUBBER; SHUTTER
(D) 		1-79937-966-0 01 1 0304-0304
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0305-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-957-1 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

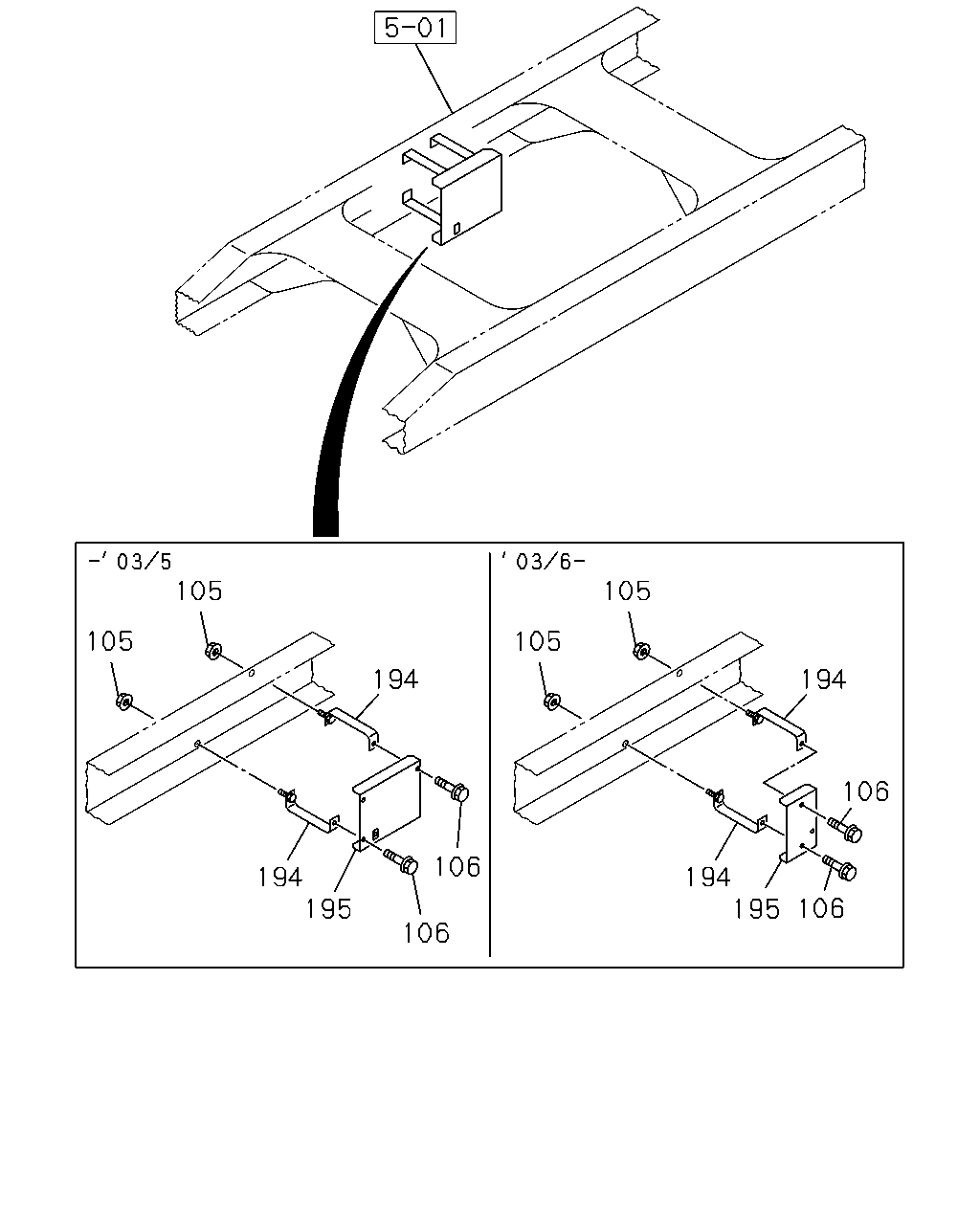

çizim 77256
105 105 105 105 194 194 106 106 194 195 194 195 106 106
BalonParca AdiParca NoAdetTipApplied Date
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 08 1 0305-0305
105 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 03 1 0306-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0105-
106 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 04 1 0305-0305
106 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 03 1 0306-
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22159-354-0 04 1 0305-0305
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22159-354-0 03 1 0306-
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-483-1 01 1 0305-0305
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-549-0 01 1 0306-

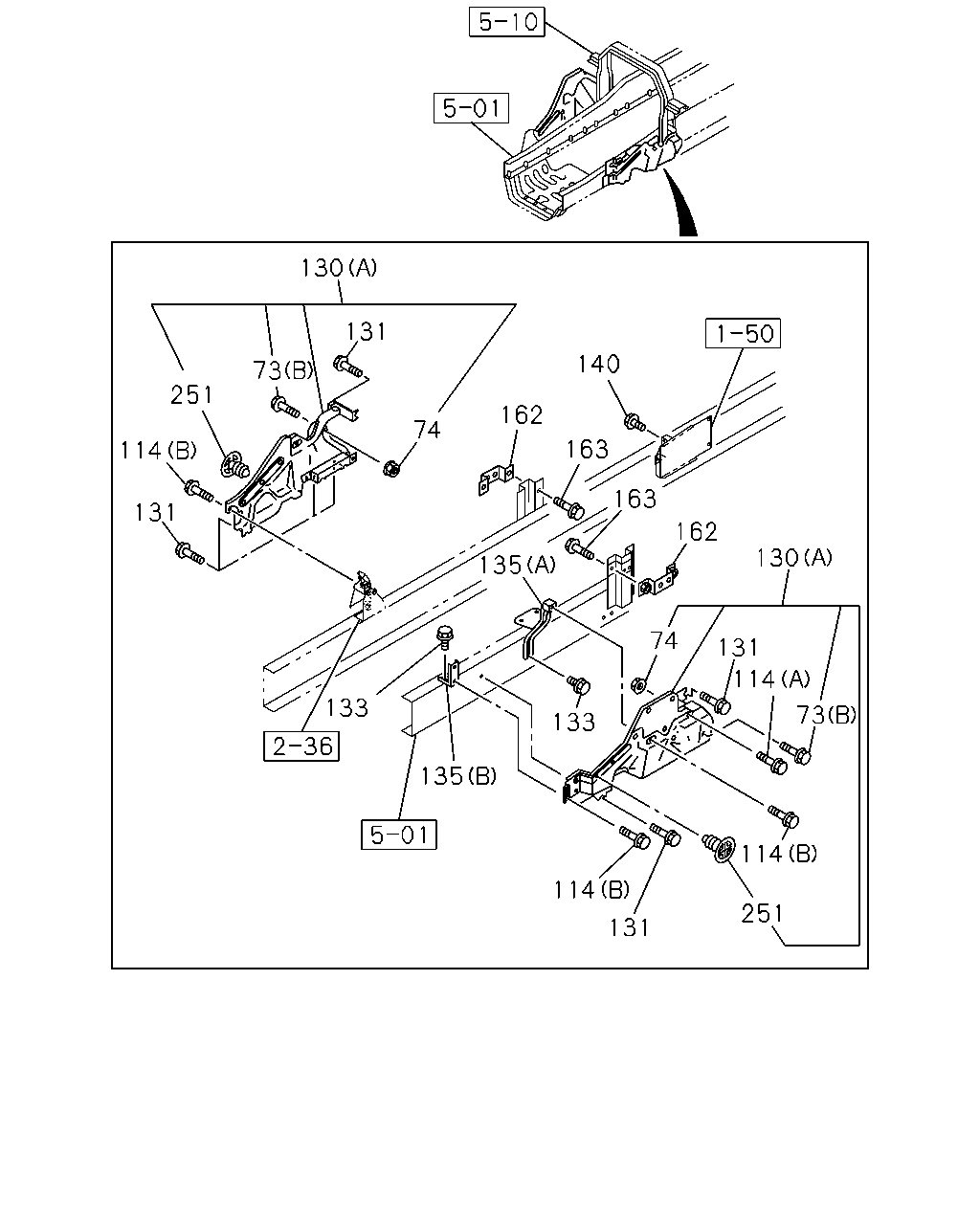

çizim 78220
130 131 140 251 162 74 163 114 163 131 162 135 130 74 131 114 133 73 133 135 114 114 251 131 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> M8 FLANGE 		0-91150-108-0 02 1 0504-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0503
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0503
74 NUT
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 01 1 0504-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0504-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0105-0105
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0105-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0105-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-328-1 01 1 0504-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENTVAR2<TAK> (A) 		1-53193-329-1 01 1 0504-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-993-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-011-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-990-3 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 0105-0105
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0106-0503
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-790-5 01 1 0504-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0105
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0106-0503
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		1-53192-782-7 01 1 0504-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 0105-0105
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 0105-0105
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0105-
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0105-
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
162 BRACKET 1-53441-520-0 02 1 0105-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 04 1 0105-0105
251 CLIP; NOISE INSULATOR 8-94279-048-0 04 1 0106-0503
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94279-048-0 04 1 0504-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 0105-0105
251 CLIP; NOISE INSULATOR 8-94279-048-0 10 1 0106-0503
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9>,ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94279-048-0 10 1 0504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
