6-35 — FRONT DOOR TRIM (#10920) — 108 parça

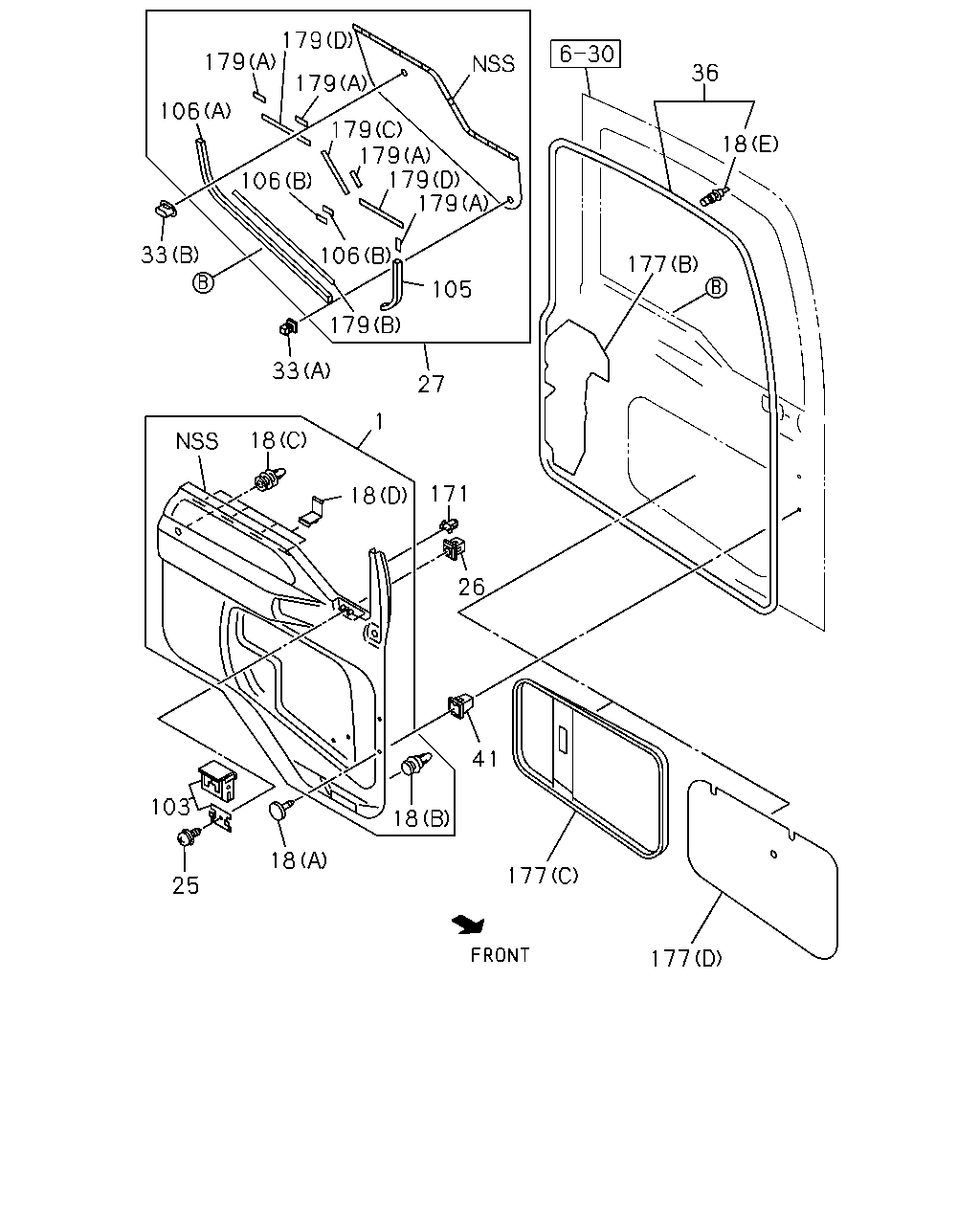

179 179 179 179 106 27 179 179 33 179 179 105 1 18 33 18 171 26 36 18 177 103 18 18 25 41 177 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-539-0	01	1	0105-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-542-0	01	1	0105-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-509-0	01	1	0105-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-538-0	01	1	0105-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-510-0	01	1	0105-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0105-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0105-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0105-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	01	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	01	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	10	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (C) OD=7.9 BLACK	8-94279-974-1	02	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-97893-482-0	10	1	0105-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0105-
27	PANEL; ORNAMENT,DOOR	1-76218-096-7	01	1	0105-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-125-7	01	1	0105-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0105-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0105-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0105-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0105-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0105-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0105-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0105-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0105-
103	TRAY ASM; ASH,DOOR	1-76457-054-0	01	1	0105-0111
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0112-
103	TRAY ASM; ASH,DOOR	1-76457-053-0	01	1	0105-0111
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0112-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	0105-
105	SEAL; DOOR ORNAMENT,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-082-2	01	1	0105-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	0105-
106	SEAL; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76218-083-2	01	1	0105-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	02	1	0105-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	0105-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	0105-
171	RETAINER; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-09987-264-0	02	1	0105-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0105-
177	SEAL; WATER,DOOR POWER WINDOW<A30> (C)	1-76778-052-2	01	1	0105-
177	SEAL; WATER,DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-035-6	01	1	0105-
177	SEAL; WATER,DOOR EXC. POWER WINDOW<A30> (D)	1-76778-047-3	02	1	0105-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	04	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=45	1-76218-063-2	04	1	0105-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	01	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=770	1-76218-091-2	01	1	0105-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	01	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=160	1-76218-094-1	01	1	0105-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	02	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=235	1-76218-127-1	02	1	0105-

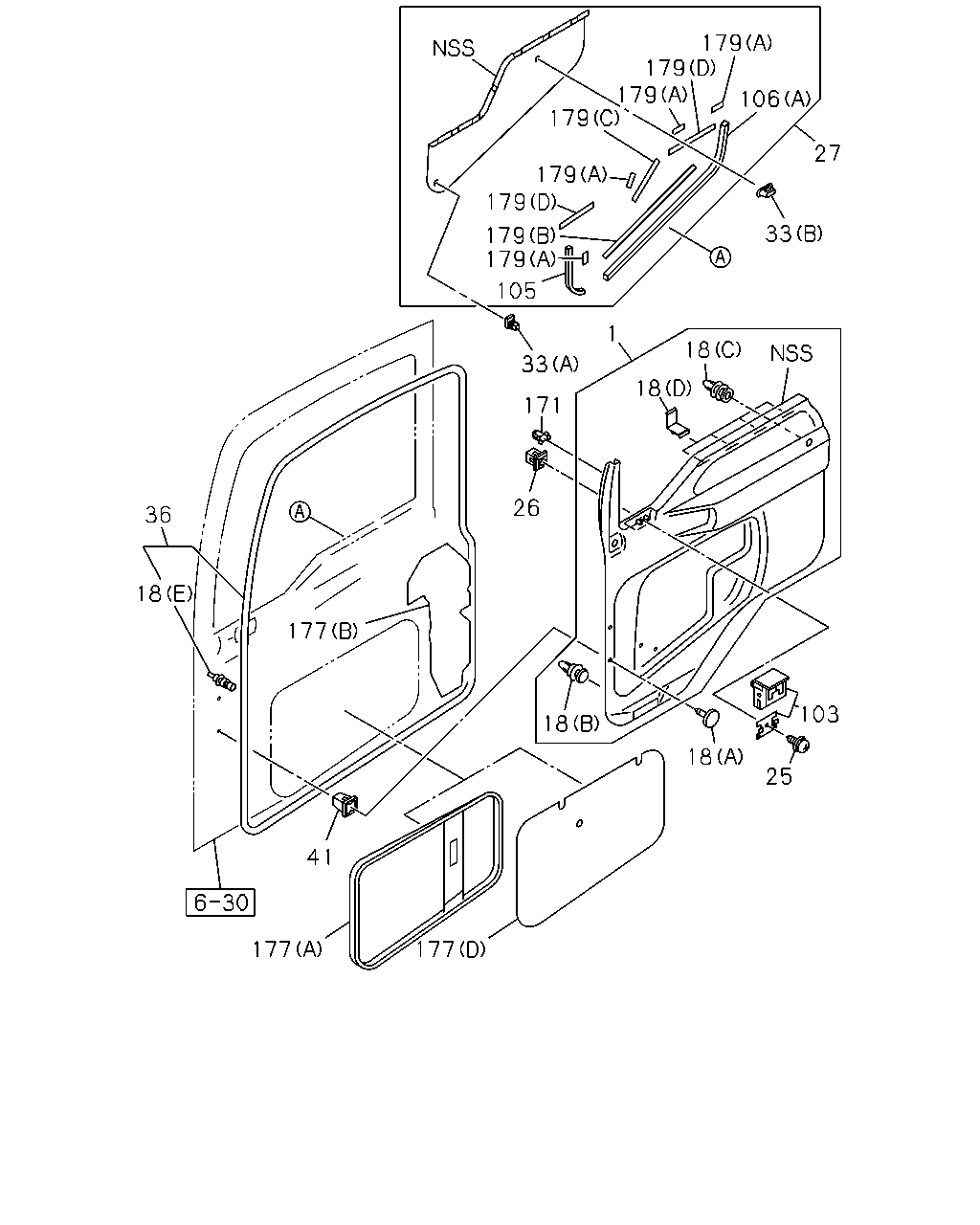

179 179 36 179 106 179 179 179 179 18 106 33 106 177 105 179 33 27 1 18 171 18 26 41 103 18 18 177 25 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30>	1-73338-539-0	01	1	0105-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-542-0	01	1	0105-
1	PAD; TRIM,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-509-0	01	1	0105-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-538-0	01	1	0105-
1	PAD; TRIM,FRT DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-510-0	01	1	0105-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0105-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0105-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	02	1	0105-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (D)	1-09987-262-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	01	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (C) OD=7.9 BLACK	8-94279-974-1	01	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0105-
18	CLIP; DOOR PAD POWER WINDOW<A30> (B) OD=8.5 GRAY	8-97893-482-0	05	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (D)	1-09987-262-0	10	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (C) OD=7.9 BLACK	8-94279-974-1	02	1	0105-
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B) OD=8.5 GRAY	8-97893-482-0	10	1	0105-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0105-
27	PANEL; ORNAMENT,DOOR	1-76218-096-7	01	1	0105-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-125-7	01	1	0105-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	01	1	0105-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	01	1	0105-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09983-149-1	02	1	0105-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-111-0	02	1	0105-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0105-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0105-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0105-
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0105-
103	TRAY ASM; ASH,DOOR	1-76457-054-0	01	1	0105-0111
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0112-
103	TRAY ASM; ASH,DOOR	1-76457-053-0	01	1	0105-0111
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0112-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	01	1	0105-
105	SEAL; DOOR ORNAMENT,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76218-082-2	01	1	0105-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	01	1	0105-
106	SEAL; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76218-083-2	01	1	0105-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	02	1	0105-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	0105-
171	RETAINER; DOOR PAD POWER WINDOW<A30>	1-09987-264-0	01	1	0105-
171	RETAINER; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-09987-264-0	02	1	0105-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0105-
177	SEAL; WATER,DOOR POWER WINDOW<A30> (C)	1-76778-052-2	01	1	0105-
177	SEAL; WATER,DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76778-035-6	01	1	0105-
177	SEAL; WATER,DOOR EXC. POWER WINDOW<A30> (D)	1-76778-047-3	02	1	0105-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	04	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=45	1-76218-063-2	04	1	0105-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	01	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=770	1-76218-091-2	01	1	0105-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	01	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=160	1-76218-094-1	01	1	0105-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	02	1	0105-
179	TAPE; ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=235	1-76218-127-1	02	1	0105-
