Sayfa 3-70 - Isuzu EPC

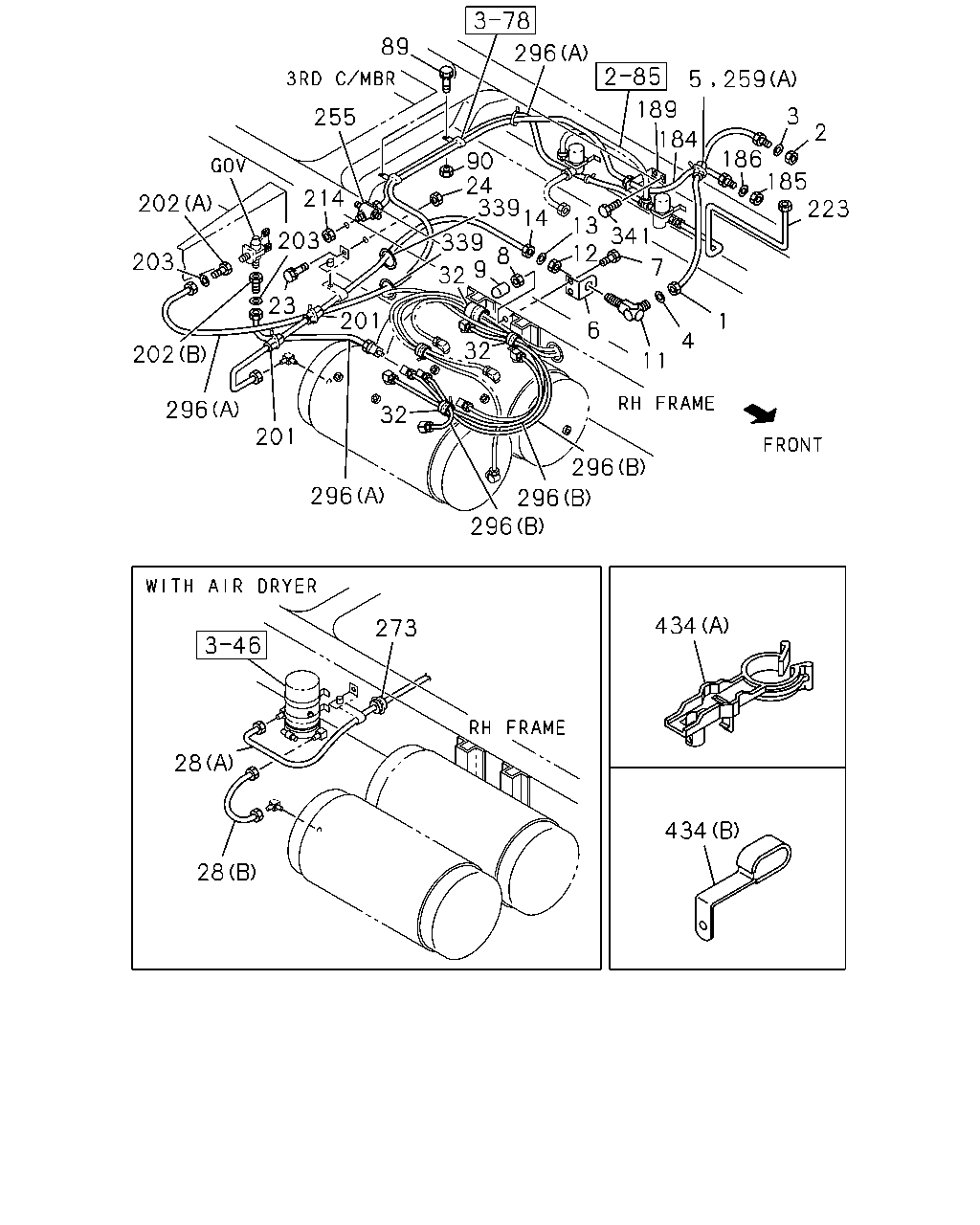

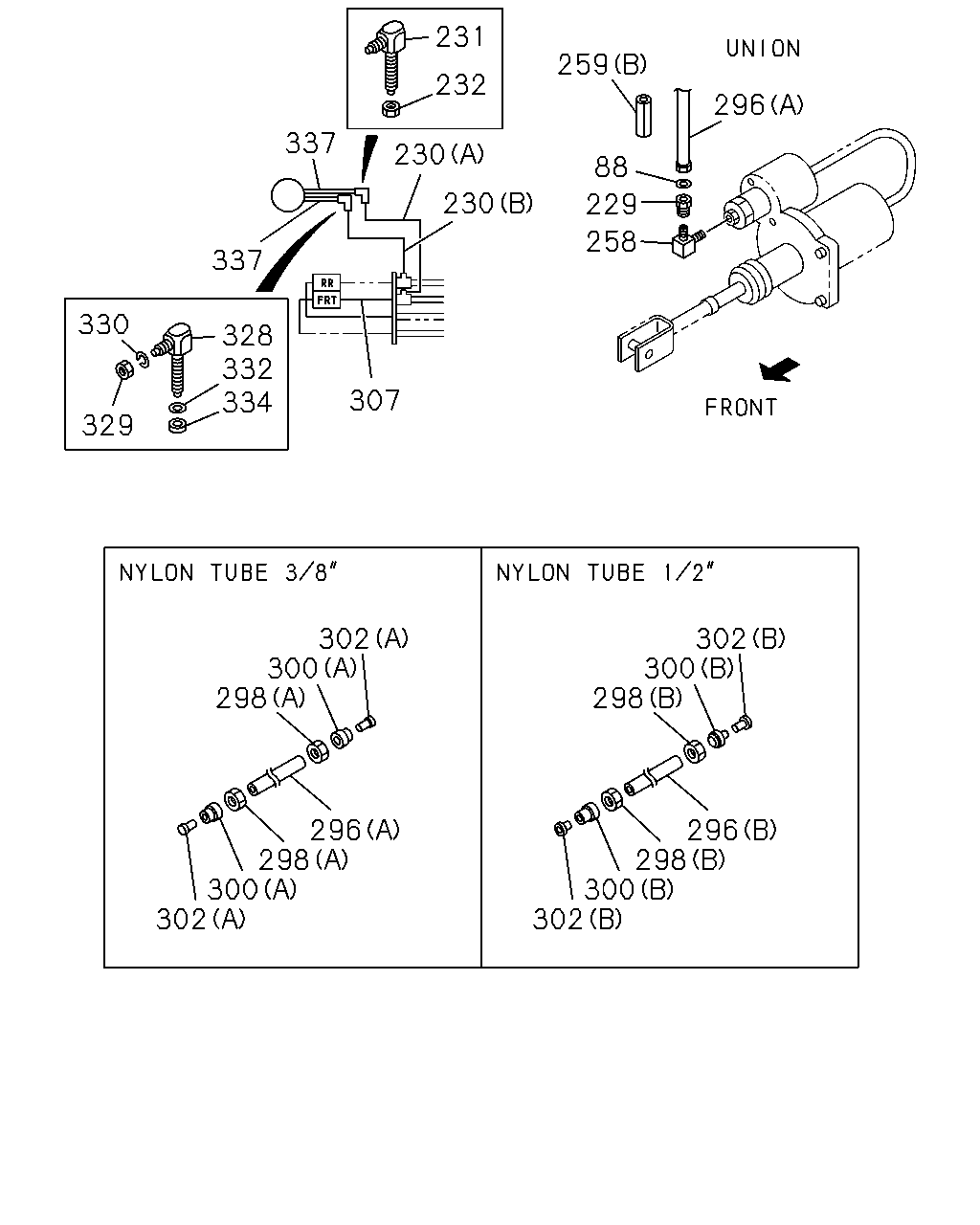

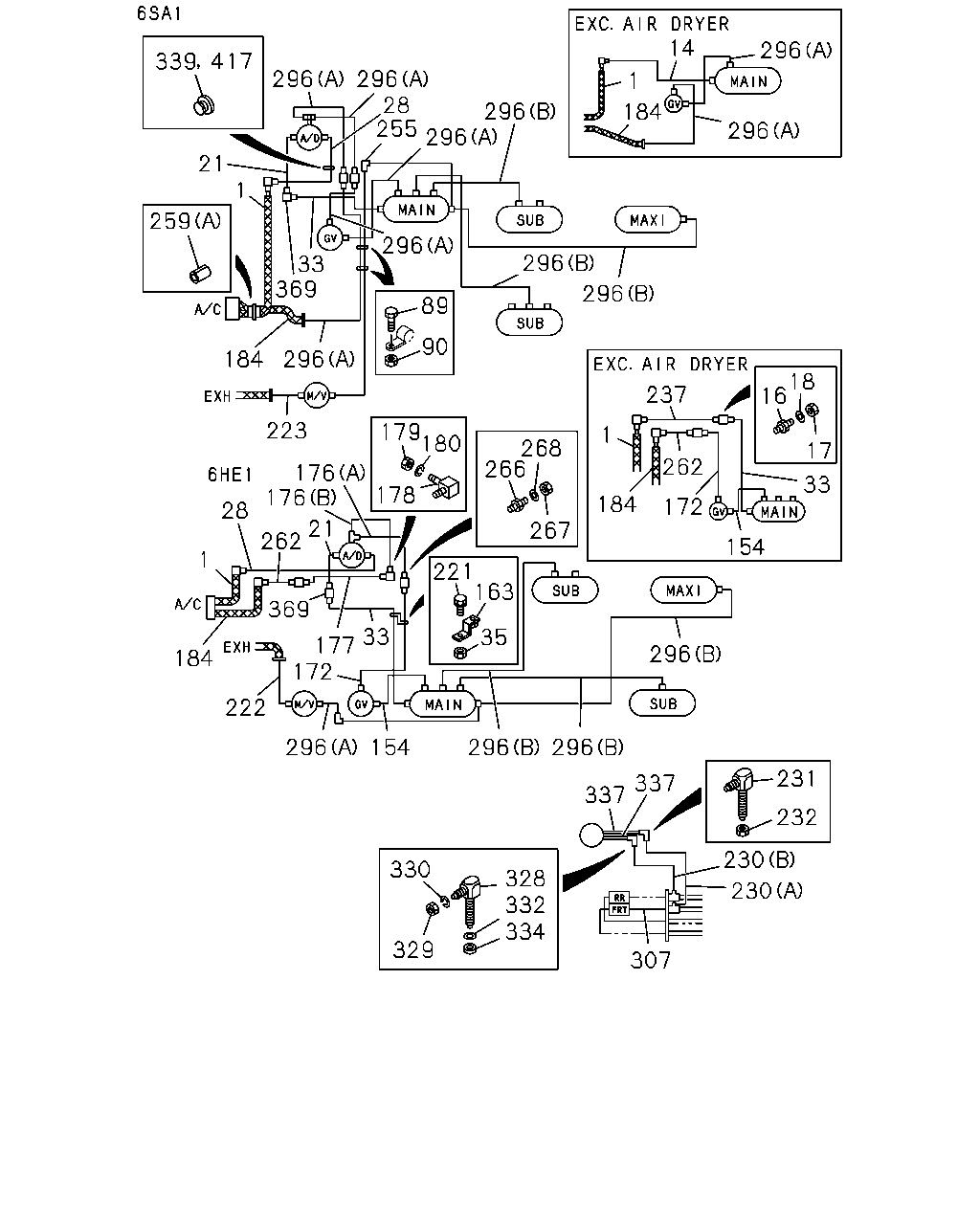

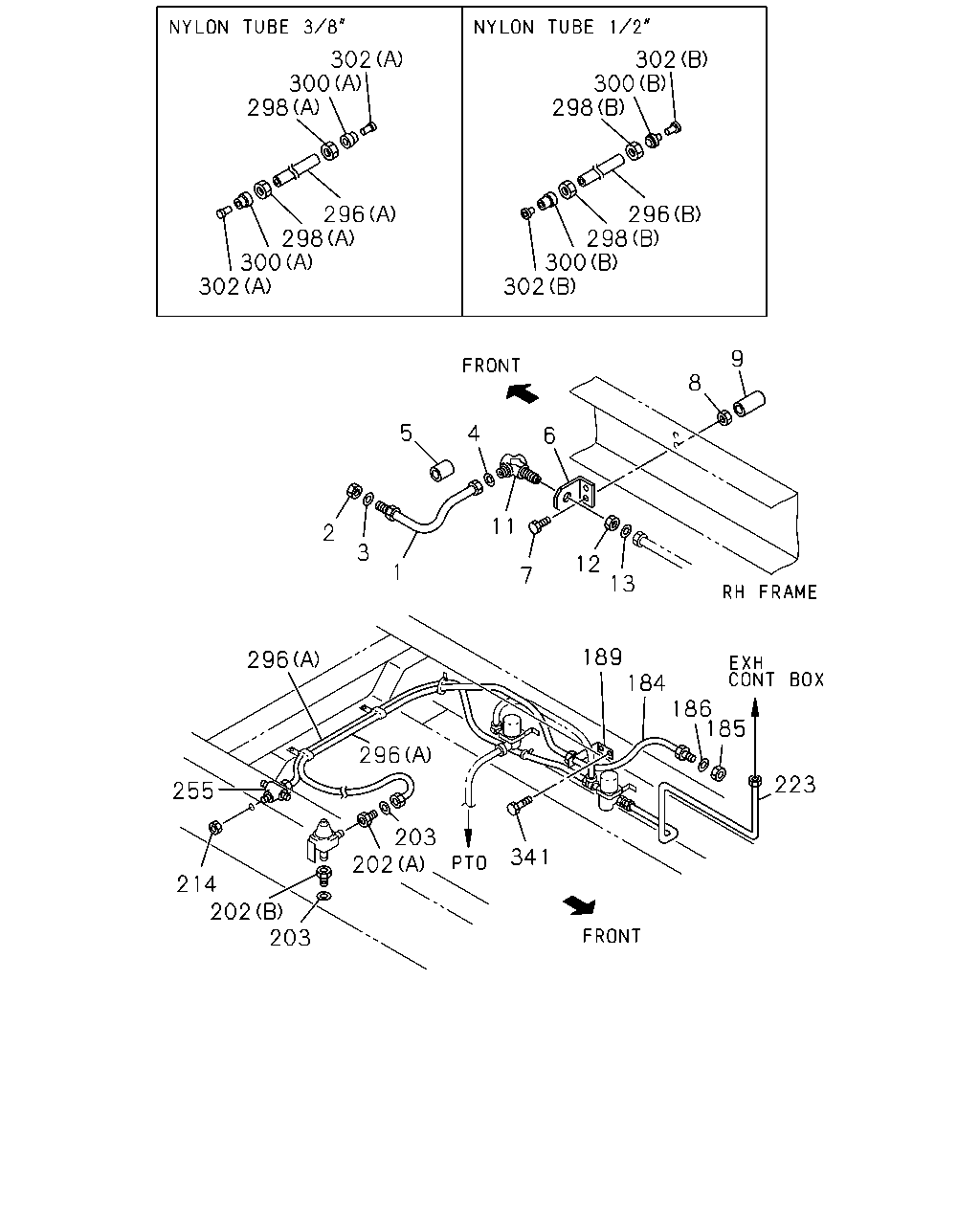

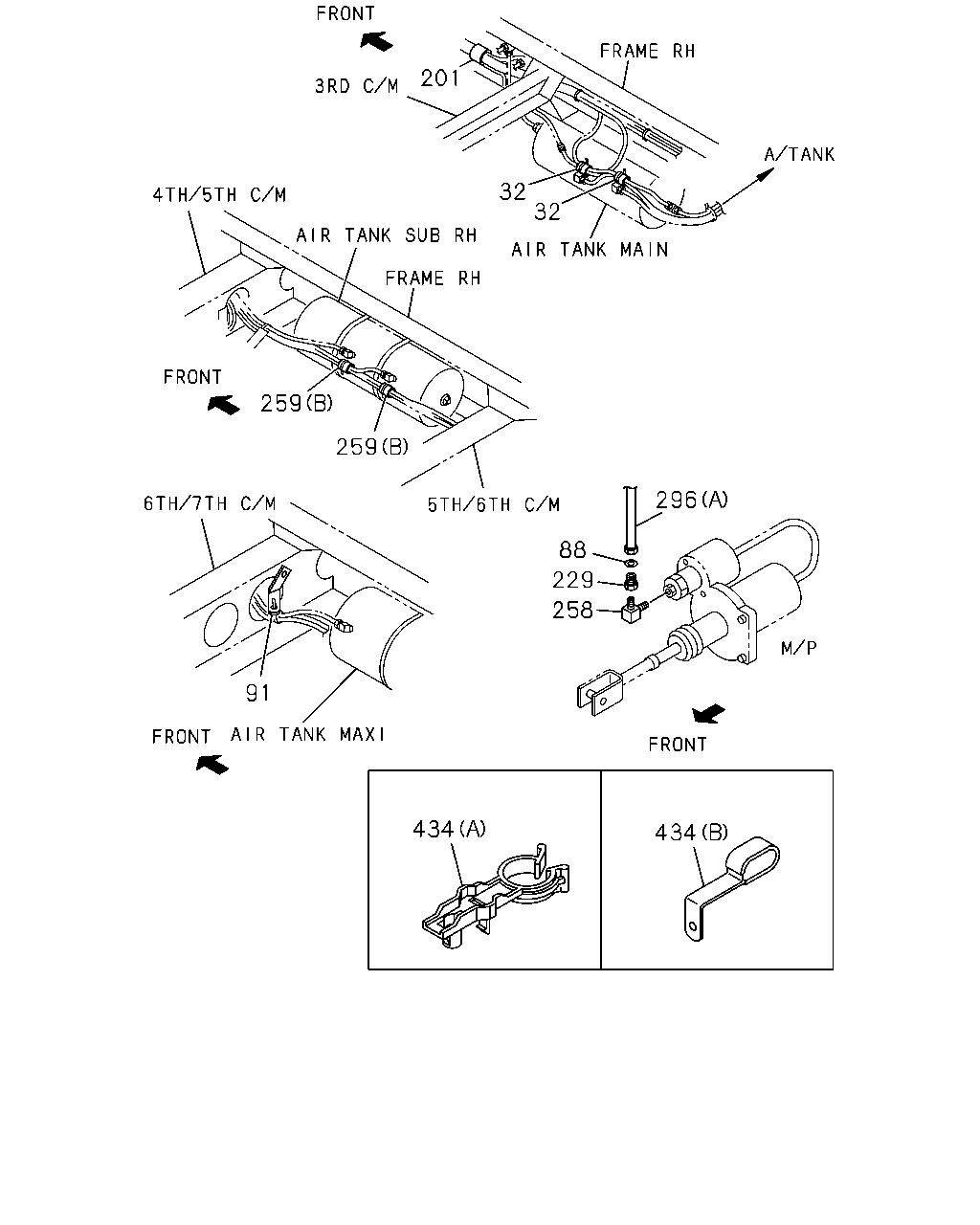

3-70 — BRAKE PIPING; AIR,AIR MASTER (#1092) — 280 parça

14 296 339 417 296 296 28 296 255 296 1 184 296 21 1 259 296 296 33 369 296 89 90 184 296 18 16 237 223 179 180 1 268 266 17 262 176 176 33 178 184 172 28 21 262 267 154 1 221 163 369 35 33 177 172 296 184 222 296 154 296 296 231 337 337 232 230 330 328 332 334 230 329 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L)	0-17806-103-1	01	1	9202-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7> L=659	1-47491-984-1	01	1	9202-		●
16	UNION; AIR PIPE 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	9202-		●
17	NUT; UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9202-		●
18	WASHER; LK,UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9202-9312		●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-47491-982-0	01	1	9202-		●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9306-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47494-376-0	01	1	9202-9204		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47495-229-0	01	1	9205-		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-377-0	01	1	9202-9204		●
33	PIPE; AIR,UNION TO AIR TANK 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47495-230-0	01	1	9205-		●
33	PIPE; AIR,UNION TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7>	1-47493-216-0	01	1	9202-		●
35	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-9204		●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
89	BOLT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
90	NUT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 STD ENG(46L) L=384	1-47493-247-0	01	1	9202-		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L)	1-47475-601-0	01	1	9202-9204		●
163	BRACKET; AIR PIPE 6HE1 STD ENG(46L)	1-47475-427-1	01	1	9205-		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47494-378-0	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7>	1-47495-231-0	01	1	9205-		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-379-1	01	1	9202-9204		●
172	PIPE; AIR,GOV TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47495-232-0	01	1	9205-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) L=520	1-47493-249-0	01	1	9202-		●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> (B) L=634	1-47493-250-0	01	1	9202-		●
177	PIPE; AIR,UNION TO UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1232 SERVICED BY L=1370	1-47434-390-0	01	1	9202-		●
178	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 ELBOW	9-09225-206-1	01	1	9202-		●
179	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
180	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9312		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-	●	●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L)	1-09363-518-0	01	1	9202-		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
221	BOLT; BRKT 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1116 SERVICED BY L=1250	1-47434-389-0	01	1	9202-		●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL FULLER M/T<X9B> L=1021 SERVICED BY L=1100	1-47434-387-0	01	1	9202-	●	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) ISUZU M/T<X9A> L=550	1-47484-125-0	01	1	9202-	●	●
230	PIPE; AIR,UNION TO UNION (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9202-9307	●	●
230	PIPE; AIR,UNION TO UNION (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9308-	●
230	PIPE; AIR,UNION TO UNION EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9202-9307	●	●
230	PIPE; AIR,UNION TO UNION (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9308-	●
230	PIPE; AIR,UNION TO UNION EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=1031	1-49112-326-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=753	1-49112-327-0	01	1	9308-		●
231	UNION; AIR PIPE	1-09654-180-3	01	1	9202-	●	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9202-	●	●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-47494-375-0	01	1	9202-9305		●
237	PIPE; AIR,FLEX HOSE TO UNION 6HE1 STD ENG(46L) EXC. AIR DRYER<PS7>	1-49111-280-0	01	1	9306-		●
255	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3)	1-09664-181-0	01	1	9202-	●
255	UNION; NYLON TUBE	1-09660-545-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE AIR ASSIST CLUTCH<PK1> (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> (B) ID=29 OD=39 L=40	1-09337-013-0	02	1	9304-		●
262	PIPE; AIR,UNION TO FLEX 6HE1 STD ENG(46L) L=330 SERVICED BY L=350	1-47426-341-0	01	1	9202-		●
266	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9202-		●
267	NUT; UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> M12	9-09840-280-0	01	1	9202-		●
268	WASHER; LK,UNION 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9202-9312		●
296	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
296	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
296	TUBE; NYLON (B) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47446-700-0	01	1	9202-9212	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9301-9307	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9308-	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320	1-47497-108-0	01	1	9308-		●
307	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374	1-47497-149-0	01	1	9308-		●
328	UNION; AIR PIPE M10 ELBOW	1-09654-186-2	01	1	9202-	●	●
329	NUT; UNION,AIR PIPE M10	9-09110-410-0	01	1	9202-	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9202-	●	●
332	SEAL; PIPE UNION 25X25	8-94272-533-0	01	1	9202-	●	●
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9202-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9202-	●	●
339	GROMMET; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
369	UNION; AIR PIPE 6HE1 STD ENG(46L) AIR DRYER<PS7> M22	9-09233-315-1	01	1	9202-		●
369	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M22	9-09235-215-1	01	1	9202-		●
417	GROMMET; NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> ID=19 OD=23 T=24	1-09332-103-0	02	1	9202-		●

8 296 5 259 189 3 255 2 90 24 339 14 184 186 185 223 214 202 13 12 341 203 339 9 32 8 203 7 23 201 1 6 4 32 202 11 32 296 201 296 296 296 296 434 273 28 434 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L)	0-17806-103-1	01	1	9202-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
2	NUT; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	01	1	9202-	●	●
2	NUT; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M22	9-09111-422-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	01	1	9202-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) ID=22.5	9-09150-522-0	01	1	9202-9312		●
4	GASKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
5	SLEEVE; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●	●
5	SLEEVE; FLEX HOSE 6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9203-	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9202-	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L)	1-53497-333-2	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9204		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9202-	●	●
9	CAP; BOLT,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21489-059-0	01	1	9202-	●	●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9202-	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9202-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-	●	●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9312	●	●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-		●
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9202-	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7> L=659	1-47491-984-1	01	1	9202-		●
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
24	NUT; BRKT,AIR PIPE	9-09110-408-0	01	1	9202-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9202-9206	●
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9207-	●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1850	1-47494-374-0	01	1	9202-9305		●
28	PIPE; AIR,AIR DRYER 6HE1 STD ENG(46L) AIR DRYER<PS7> L=1860	1-49111-281-0	01	1	9306-		●
28	PIPE; AIR,AIR DRYER 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> L=567	1-47491-981-0	01	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-	●	●
32	SLEEVE; RUBBER,AIR PIPE 6HE1 STD ENG(46L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
90	NUT; TUBE CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-	●	●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-	●	●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L)	1-09363-518-0	01	1	9202-		●
185	NUT; FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-09840-280-0	02	1	9202-	●	●
185	NUT; FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.2	9-09150-512-0	02	1	9202-9312	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9312		●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47465-193-0	01	1	9202-	●	●
201	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-	●
201	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=30	1-09650-373-0	01	1	9202-	●	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=36	1-09660-550-0	02	1	9202-	●	●
203	GASKET; ADAPTER,GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	02	1	9202-	●	●
214	NUT; UNION,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09487-024-0	01	1	9202-9202	●
214	NUT; UNION,AIR PIPE	1-09487-024-0	01	1	9203-	●
214	NUT; UNION,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-99110-312-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL FULLER M/T<X9B> L=1021 SERVICED BY L=1100	1-47434-387-0	01	1	9202-	●	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) ISUZU M/T<X9A> L=550	1-47484-125-0	01	1	9202-	●	●
255	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3)	1-09664-181-0	01	1	9202-	●
255	UNION; NYLON TUBE	1-09660-545-0	01	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE AIR ASSIST CLUTCH<PK1> (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> (B) ID=29 OD=39 L=40	1-09337-013-0	02	1	9304-		●
273	GROMMET AIR ASSIST CLUTCH<PK1> ID=19 OD=23 T=18	9-09956-130-1	01	1	9203-	●
296	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
296	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
296	TUBE; NYLON (B) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
339	GROMMET; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
434	CLIP (B) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9202-	●	●
434	CLIP (A) ID=17	1-09987-105-1	01	1	9202-	●	●

302 300 298 302 300 298 296 298 300 302 296 298 300 302 9 8 5 4 6 11 2 3 12 1 7 13 189 184 186 185 296 296 223 255 203 202 341 214 202 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	0-17806-113-1	01	1	9202-9205	●	●
1	HOSE; FLEX,AIR TANK 6SA1 STD ENG(06L)	1-09364-834-0	01	1	9206-	●	●
1	HOSE; FLEX,AIR TANK 6SA1TC ENG(28L)	0-17806-103-1	01	1	9202-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 STD ENG(46L)	1-09363-505-0	01	1	9202-		●
2	NUT; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M20	9-99111-420-0	01	1	9202-	●	●
2	NUT; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M22	9-09111-422-0	01	1	9202-		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20.2	9-09150-520-0	01	1	9202-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) ID=22.5	9-09150-522-0	01	1	9202-9312		●
4	GASKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
5	SLEEVE; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●	●
5	SLEEVE; FLEX HOSE 6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9203-	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9202-	●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-47476-057-1	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 STD ENG(46L)	1-53497-333-2	01	1	9202-		●
6	BRACKET; FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7>	1-48495-062-0	01	1	9202-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9212-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9204		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9202-	●	●
9	CAP; BOLT,FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21489-059-0	01	1	9202-	●	●
11	UNION; AIR PIPE	1-09654-202-1	01	1	9202-	●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. AIR DRYER<PS7>	1-09654-202-1	01	1	9202-		●
11	UNION; AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9202-		●
12	NUT; UNION M22	9-09111-422-0	01	1	9202-	●	●
12	NUT; UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> M20	9-99111-420-0	01	1	9202-		●
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9202-9312	●	●
13	WASHER; LK,UNION 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9202-		●
184	HOSE; FLEX,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=410	0-07030-410-0	01	1	9202-	●	●
184	HOSE; FLEX,AIR GOV 6HE1 STD ENG(46L)	1-09363-518-0	01	1	9202-		●
185	NUT; FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-09840-280-0	02	1	9202-	●	●
185	NUT; FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) M12	9-09840-280-0	01	1	9202-		●
186	WASHER; LK,FLEX HOSE,AIR GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=12.2	9-09150-512-0	02	1	9202-9312	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 STD ENG(46L) ID=12.2	9-09150-512-0	01	1	9202-9312		●
189	BRACKET; FLEX HOSE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-47465-193-0	01	1	9202-	●	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=30	1-09650-373-0	01	1	9202-	●	●
202	ADAPTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=36	1-09660-550-0	02	1	9202-	●	●
203	GASKET; ADAPTER,GOV 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 OD=18	9-09572-510-0	02	1	9202-	●	●
214	NUT; UNION,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-09487-024-0	01	1	9202-9202	●
214	NUT; UNION,AIR PIPE	1-09487-024-0	01	1	9203-	●
214	NUT; UNION,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) M12	9-99110-312-0	01	1	9202-		●
223	PIPE; AIR,MAG VLV TO CONT CYL FULLER M/T<X9B> L=1021 SERVICED BY L=1100	1-47434-387-0	01	1	9202-	●	●
223	PIPE; AIR,MAG VLV TO CONT CYL 6SA1 STD ENG(06L),6SA1TC ENG(28L) ISUZU M/T<X9A> L=550	1-47484-125-0	01	1	9202-	●	●
255	UNION; NYLON TUBE AUSTRALIA EQUIPMENT(RR3)	1-09664-181-0	01	1	9202-	●
255	UNION; NYLON TUBE	1-09660-545-0	01	1	9202-		●
296	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
296	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
296	TUBE; NYLON (B) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
298	NUT; SLEEVE (A) OD=3/8"	1-09660-557-0	AR	1	9202-	●	●
298	NUT; SLEEVE (B) 11/16-20 UNS OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
300	SLEEVE; TUBE (A) FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●	●
300	SLEEVE; TUBE (B) FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
302	RING; INSERT (B) OD=1/2"	1-09669-107-0	AR	1	9202-	●	●
302	RING; INSERT (A) OD=3/8"	1-09669-108-0	AR	1	9202-	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
341	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●

201 32 32 259 259 296 88 229 258 91 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	03	1	9202-	●	●
32	SLEEVE; RUBBER,AIR PIPE 6HE1 STD ENG(46L) ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-		●
32	SLEEVE; RUBBER,AIR PIPE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
88	GASKET; NYLON TUBE AIR ASSIST CLUTCH<PK1> ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●	●
91	BRACKET; TUBE CLIP	1-47476-550-1	01	1	9202-		●
201	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	02	1	9202-	●
201	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=29 OD=39 L=40	1-09337-013-0	01	1	9202-		●
229	ADAPTER; NYLON TUBE AIR ASSIST CLUTCH<PK1> M14 & PT1/4	9-48319-149-0	01	1	9202-	●	●
258	CONNECTOR; NYLON TUBE AIR ASSIST CLUTCH<PK1> 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE AIR ASSIST CLUTCH<PK1> (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> (B) ID=29 OD=39 L=40	1-09337-013-0	02	1	9304-		●
296	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
296	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
296	TUBE; NYLON (B) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
434	CLIP (B) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9202-	●	●
434	CLIP (A) ID=17	1-09987-105-1	01	1	9202-	●	●

231 259 232 296 337 230 88 230 229 258 337 330 328 332 334 307 329 302 300 298 302 300 298 296 298 300 302 296 298 300 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	GASKET; NYLON TUBE AIR ASSIST CLUTCH<PK1> ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●	●
229	ADAPTER; NYLON TUBE AIR ASSIST CLUTCH<PK1> M14 & PT1/4	9-48319-149-0	01	1	9202-	●	●
230	PIPE; AIR,UNION TO UNION (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9202-9307	●	●
230	PIPE; AIR,UNION TO UNION (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9308-	●
230	PIPE; AIR,UNION TO UNION EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9202-9307	●	●
230	PIPE; AIR,UNION TO UNION (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9308-	●
230	PIPE; AIR,UNION TO UNION EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=1031	1-49112-326-0	01	1	9308-		●
230	PIPE; AIR,UNION TO UNION HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=753	1-49112-327-0	01	1	9308-		●
231	UNION; AIR PIPE	1-09654-180-3	01	1	9202-	●	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9202-	●	●
258	CONNECTOR; NYLON TUBE AIR ASSIST CLUTCH<PK1> 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-	●
259	SLEEVE; RUBBER,NYLON TUBE AIR ASSIST CLUTCH<PK1> (B) ID=29 OD=39 L=40	1-09337-013-0	01	1	9206-	●
259	SLEEVE; RUBBER,NYLON TUBE 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-	●	●
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=29 OD=39 L=40	1-09337-013-0	04	1	9202-		●
259	SLEEVE; RUBBER,NYLON TUBE FULLER M/T<X9B> (B) ID=29 OD=39 L=40	1-09337-013-0	02	1	9304-		●
296	TUBE; NYLON (A) ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9202-	●	●
296	TUBE; NYLON (A) YELLOW SERVICED BY L=30000 OD=3/8"	1-09368-250-0	AR	1	9202-	●	●
296	TUBE; NYLON (B) BLUE SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9202-	●	●
298	NUT; SLEEVE (A) OD=3/8"	1-09660-557-0	AR	1	9202-	●	●
298	NUT; SLEEVE (B) 11/16-20 UNS OD=1/2"	1-09660-558-0	AR	1	9202-	●	●
300	SLEEVE; TUBE (A) FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9202-	●	●
300	SLEEVE; TUBE (B) FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●	●
302	RING; INSERT (B) OD=1/2"	1-09669-107-0	AR	1	9202-	●	●
302	RING; INSERT (A) OD=3/8"	1-09669-108-0	AR	1	9202-	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47446-700-0	01	1	9202-9212	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9301-9307	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9308-	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320	1-47497-108-0	01	1	9308-		●
307	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374	1-47497-149-0	01	1	9308-		●
328	UNION; AIR PIPE M10 ELBOW	1-09654-186-2	01	1	9202-	●	●
329	NUT; UNION,AIR PIPE M10	9-09110-410-0	01	1	9202-	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9202-	●	●
332	SEAL; PIPE UNION 25X25	8-94272-533-0	01	1	9202-	●	●
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9202-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
