◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#109177) — 22 parça

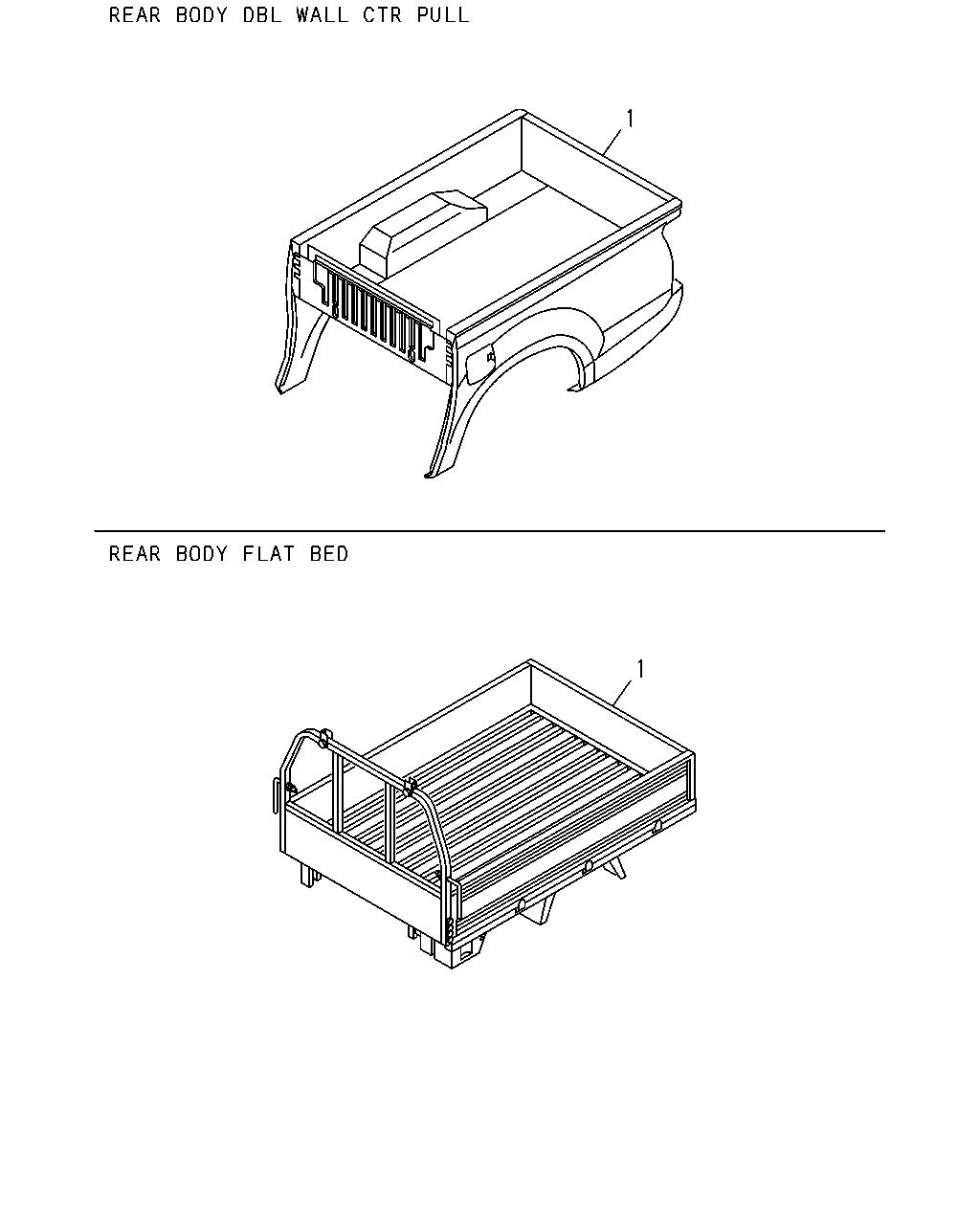

çizim 319385
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-783-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
BODY COLOR SPLASH WHITE(527) REAR BODY FLAT BED(E39) WHITE 		8-97423-013-6 01 1 1210- ●
1 17.090 BODY ASM; REAR
BODY COLOR TITANIUM SILVER MET(529) REAR BODY FLAT BED(E39) SILVER 		8-97423-014-6 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) HIGH MOUNT STOP LAMP<TS6> RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-790-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> EXC. HIGH MOUNT STOP LAMP<TS6>,HIGH RIDE SUSPENSION(7YC) 		8-98193-789-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98193-794-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-794-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) HIGH RIDE SUSPENSION(7YC) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ> 		8-98193-793-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98193-793-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89>,OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPE NSION(7YC) 		8-98193-791-0 01 1 1210- ●
1 17.090 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) OUTER ROPE HOOKS<7MZ> 		8-98193-784-0 01 1 1210- ●

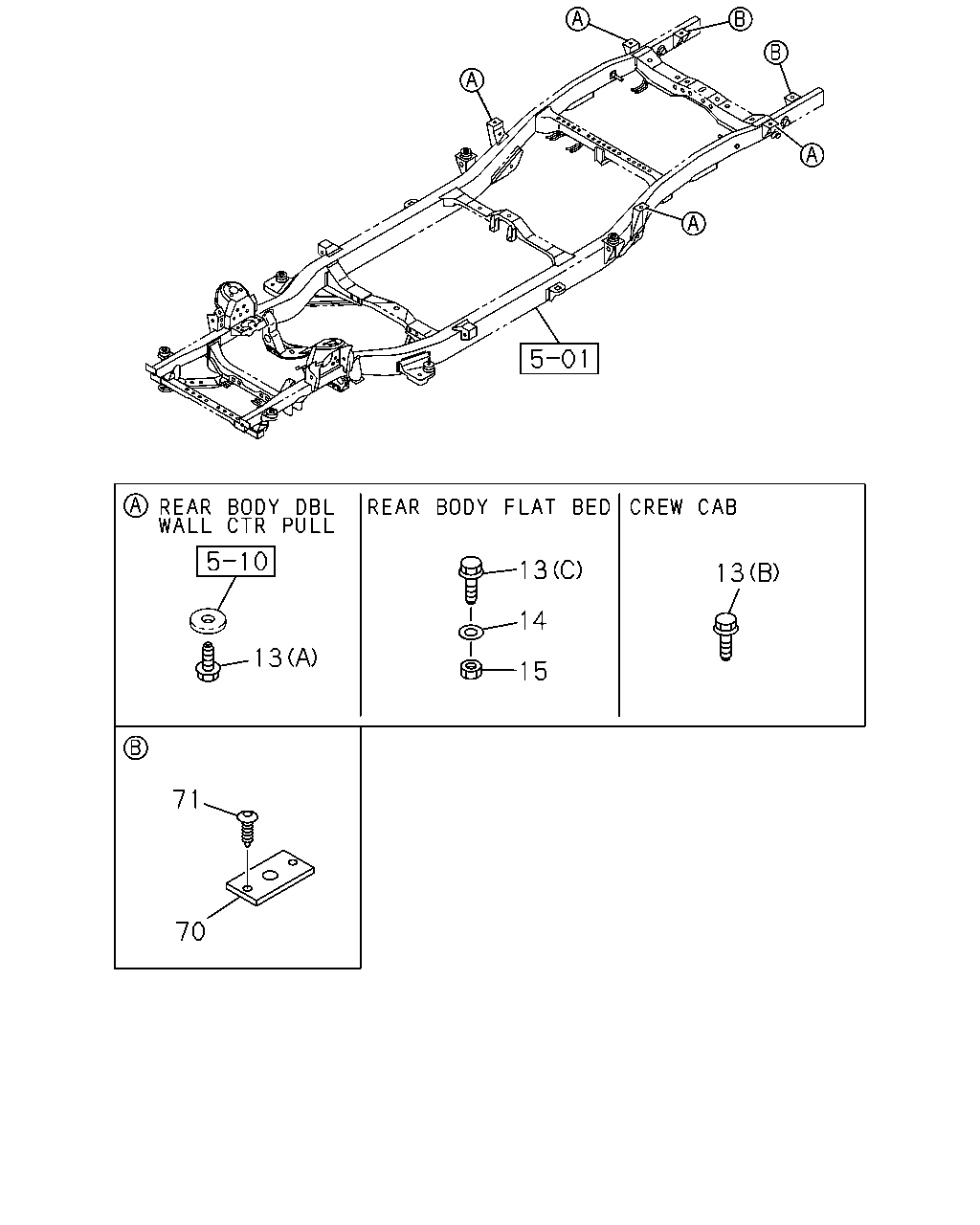

çizim 319389
13 13 14 15 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 09.008 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER 		8-98056-124-0 06 1 1210- ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 08 1 1210- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 09.003 (A) M12X35 FLANGE 		0-28651-235-0 04 1 1210- ● ●
13 09.008 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (B) M12X35 FLANGE 		8-98176-522-0 02 1 1210- ● ●
14 09.011 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) 03.023 ID=13 OD=40 T=6 		8-98098-458-0 08 1 1210- ●
15 09.011 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) 05.610 M12 LOCK NUT 		8-98029-927-0 08 1 1210- ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 04 1 1210- ● ●
70 08.214 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) 		8-98090-512-0 02 1 1210- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 08 1 1210- ● ●
71 08.214 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=6 OD=16 L=18 		8-94178-705-0 04 1 1210- ● ●
