◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#109176) — 16 parça

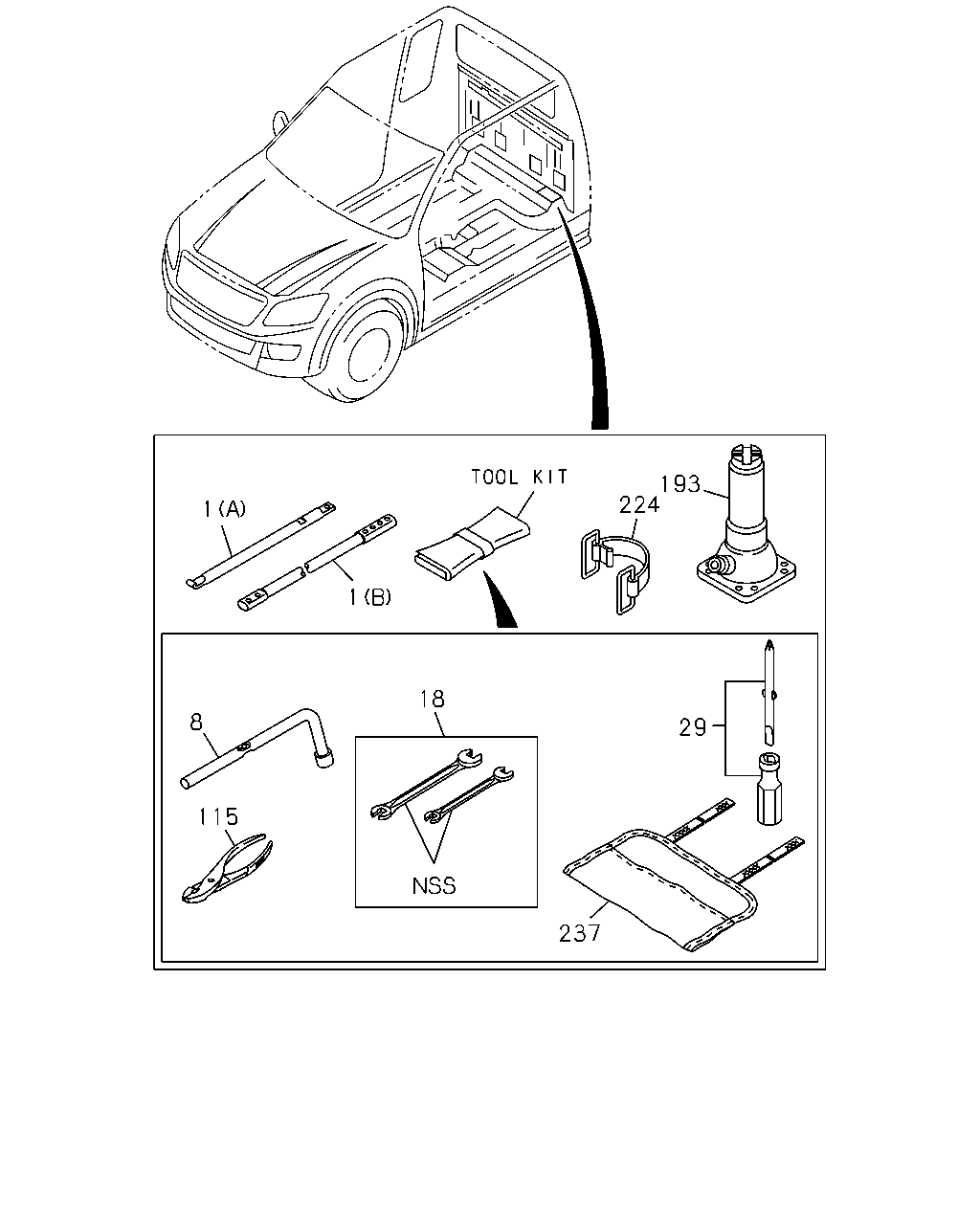

çizim 319320
1 1 224 193 29 237 18 8 115
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-98153-978-0 01 1 1210- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) 		8-98153-999-0 03 1 1210- ● ● ● ●
8 08.821 WRENCH; WHEEL
L=19 		8-98027-834-0 01 1 1210- ● ● ● ●
18 08.821 WRENCH KIT
8X10,12X14 		8-97945-273-0 01 1 1210- ● ● ● ●
29 08.821 DRIVER; SCREW 8-98027-833-0 01 1 1210- ● ● ● ●
115 08.821 PLIER 8-98099-659-0 01 1 1210- ● ● ● ●
193 08.820 JACK ASM 8-98154-177-1 01 1 1210-1402 ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98154-177-1 01 1 1210-1402 ●
193 08.820 JACK ASM 8-98269-208-0 01 1 1403- ●
193 08.820 JACK ASM
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98269-208-0 01 1 1403- ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-98162-092-1 01 1 1210-1402 ●
193 08.820 JACK ASM 8-98162-092-1 01 1 1210-1402 ● ●
193 08.820 JACK ASM
HIGH RIDE SUSPENSION(7YC) 		8-98269-209-0 01 1 1403- ●
193 08.820 JACK ASM 8-98269-209-0 01 1 1403- ● ●
224 08.821 BAND; RUBBER,JACK 8-98178-626-0 01 1 1210- ● ● ● ●
237 08.821 BAG; TOOL 8-97945-395-0 01 1 1210- ● ● ● ●
