Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#109175) — 31 parça
Tümü
A - TFB6SF
B - TFS6SF
C - TFB6WF
D - TFS6WF
◀

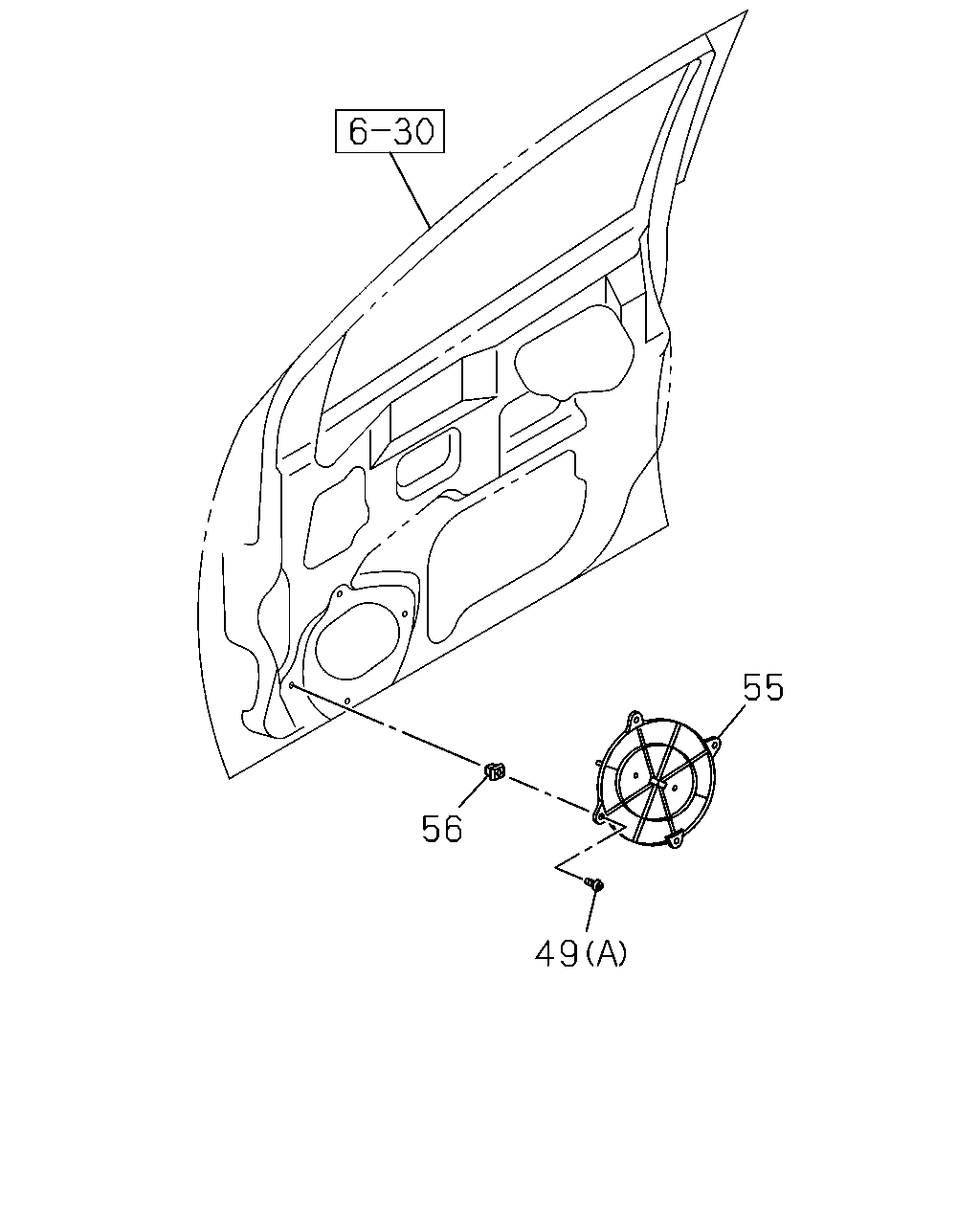

[890A04] (8 parça)
[890A] ANTENNA (9 parça)
[890A] RADIO (1 parça)

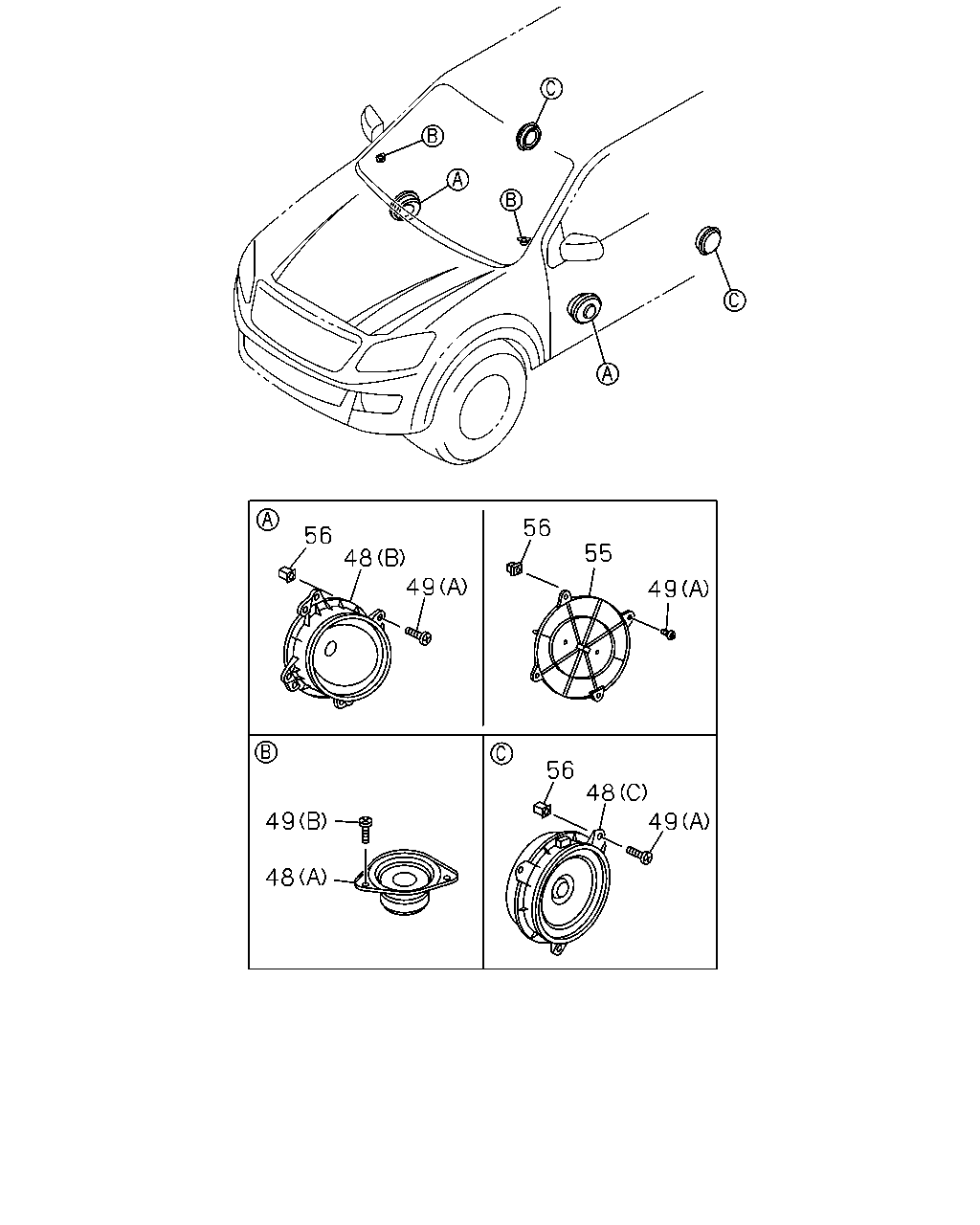

[890A] SPEAKER (13 parça)
▶
55
56
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> 08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1210-
●
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1210-
●
●
49
09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING
8-98184-363-0
08
1
1210-
●
●
●
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING
8-98184-363-0
06
1
1210-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1210-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>, 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1210-
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1210-
●
●
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1210-
●
●
296
81
244
80
244
91
80
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
80
09.645 ANTENNA
(B)
8-98064-703-2
01
1
1210-
●
●
80
09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B)
8-98064-703-2
01
1
1210-
●
●
80
09.645 ANTENNA
ROOF RADIO ANTENNA<U71> (A)
8-98053-048-0
01
1
1210-
●
●
81
09.647 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71>
8-98165-971-0
01
1
1210-
●
●
91
09.663 BOLT; ANTENNA
M5X16
8-97375-569-0
02
1
1210-
●
●
91
09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16
8-97375-569-0
02
1
1210-
●
●
244
09.647 CABLE; FEEDER
(B)
8-98053-051-1
01
1
1210-
●
●
●
●
244
09.647 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A)
8-98063-228-0
01
1
1210-
●
●
296
09.665 ROD; ANTENNA
ROOF RADIO ANTENNA<U71>
8-98165-969-0
01
1
1210-
●
●
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5)
8-98102-188-2
02
1
1210-
●
●
●
●
56
48
49
56
55
49
49
48
56
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4> (A)
8-98052-940-0
02
1
1210-
●
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (A)
8-98052-940-0
02
1
1210-
●
●
48
09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1210-
●
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,2-SPEAKER SYSTEM BASE<U95> (B)
8-98052-937-0
02
1
1210-
●
●
48
09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C)
8-98052-941-0
02
1
1210-
●
●
49
09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4> 08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1210-
●
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 08.083 (B) M5X16 TAPPING
8-98167-449-0
04
1
1210-
●
●
49
09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING
8-98184-363-0
08
1
1210-
●
●
●
●
49
09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING
8-98184-363-0
06
1
1210-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1210-
●
●
55
09.650 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM BASE<UW5>, 2-SPEAKER SYSTEM BASE<U95>
8-98102-183-0
02
1
1210-
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
8-98163-895-0
08
1
1210-
●
●
●
●
56
09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>
8-98163-895-0
06
1
1210-
●
●
