Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#109172) — 47 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6SF
D - TFS6WF
◀

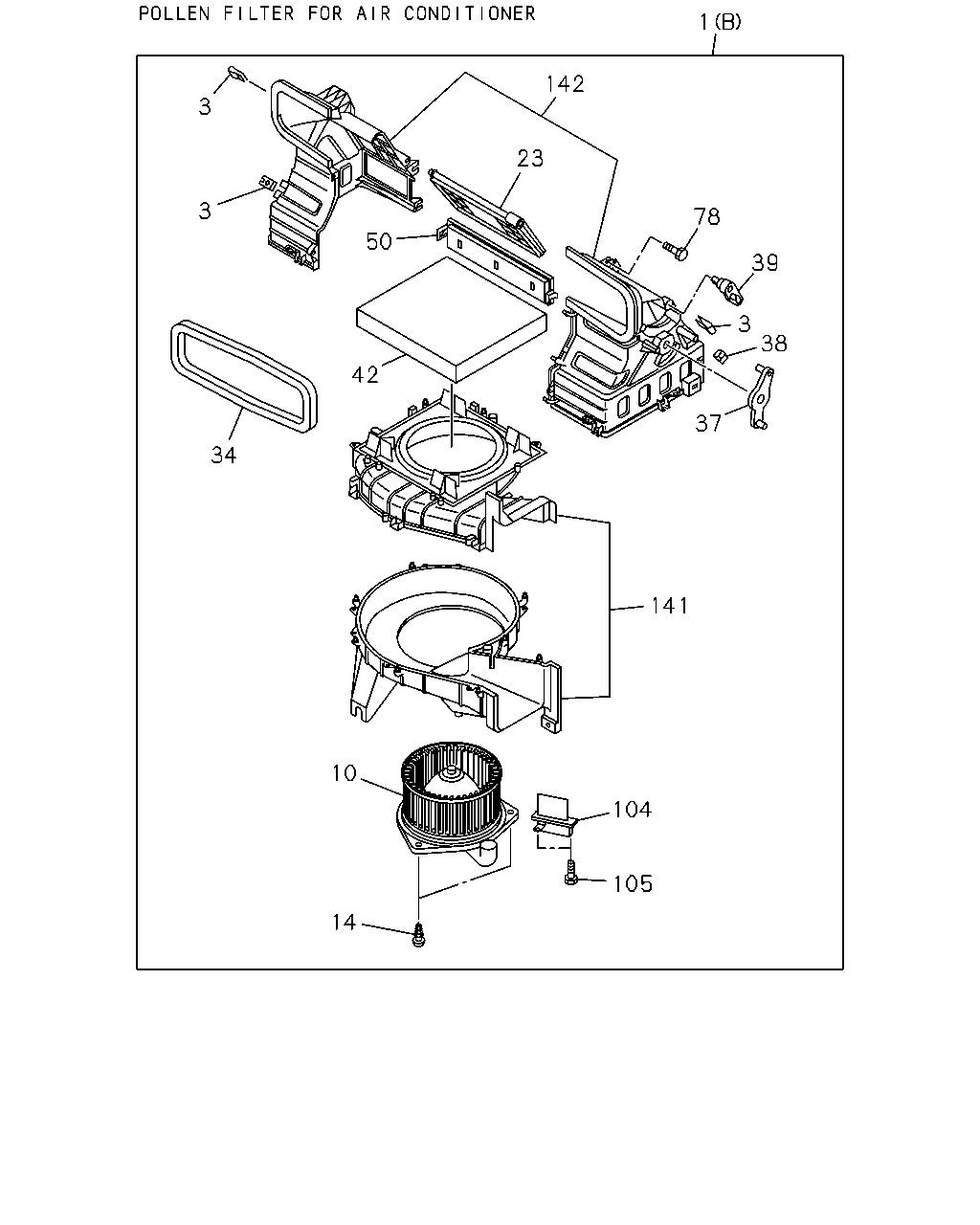

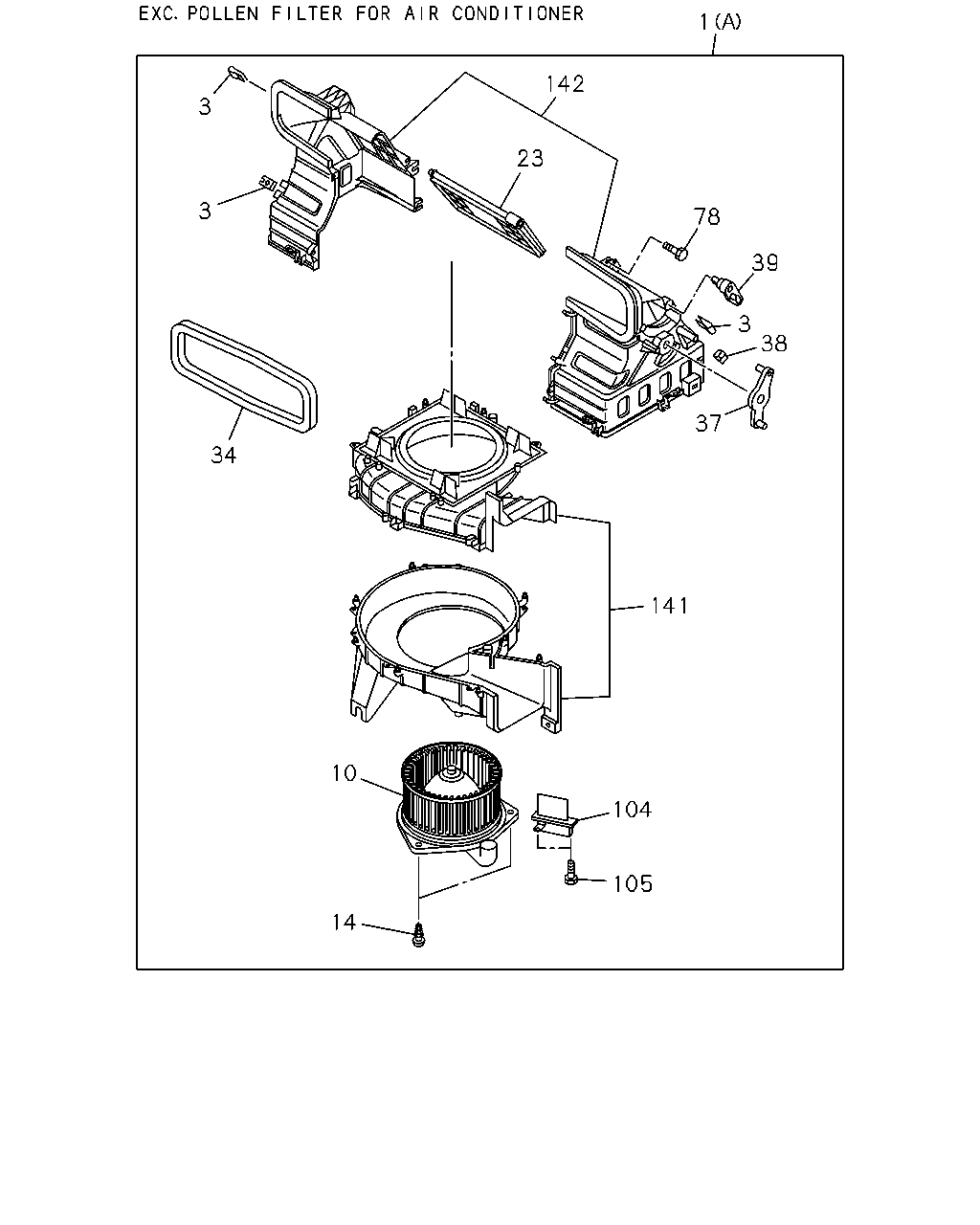

[873A] NO.1 (22 parça)
[873A] NO.2 (25 parça)
▶
105
14
10
104
141
37
38
3
39
78
1
142
23
3
3
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)
8-98108-176-2
01
1
1210-1212
●
●
●
●
1
08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)
8-98233-047-1
01
1
1301-
●
●
●
●
1
08.855 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)
8-98052-632-2
01
1
1210-1212
●
●
●
●
1
08.855 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)
8-98233-042-1
01
1
1301-
●
●
●
●
3
08.855 NUT; CASE
08.845
8-98139-394-1
03
1
1210-
●
●
●
●
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-98165-412-0
01
1
1210-
●
●
●
●
14
08.857 SCREW; COVER TO CASE
08.852
8-98139-395-1
03
1
1210-
●
●
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98139-413-0
01
1
1210-1410
●
●
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98295-682-0
01
1
1411-
●
●
●
●
34
08.856 LINING; BLOWER UNIT
8-98139-426-1
01
1
1210-
●
●
●
●
37
09.786 LEVER; MODE LEVER
8-98165-410-0
01
1
1210-
●
●
●
●
38
09.787 CLIP; BLOWER UNIT
8-98139-422-1
01
1
1210-
●
●
●
●
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-98165-409-0
01
1
1210-
●
●
●
●
78
08.857 SCREW; CASE TO CASE
08.852
8-98139-395-1
01
1
1210-
●
●
●
●
104
08.855 RESISTOR; BLOWER UNIT
8-98183-234-0
01
1
1210-
●
●
●
●
105
08.855 SCREW; RESISTOR
08.852
8-98139-395-1
02
1
1210-
●
●
●
●
141
08.857 CASE ASM; BLOWER UNIT
8-98193-560-0
01
1
1210-1212
●
●
●
●
141
08.857 CASE ASM; BLOWER UNIT
8-98233-651-0
01
1
1301-
●
●
●
●
142
08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98193-572-0
01
1
1210-1212
●
●
●
●
142
08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98233-655-0
01
1
1301-
●
●
●
●
142
08.857 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98193-570-0
01
1
1210-1212
●
●
●
●
142
08.857 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98233-653-0
01
1
1301-
●
●
●
●
105
104
14
10
34
42
50
3
3
142
23
1
78
39
38
3
37
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)
8-98108-176-2
01
1
1210-1212
●
●
●
●
1
08.855 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)
8-98233-047-1
01
1
1301-
●
●
●
●
1
08.855 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)
8-98052-632-2
01
1
1210-1212
●
●
●
●
1
08.855 BLOWER ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)
8-98233-042-1
01
1
1301-
●
●
●
●
3
08.855 NUT; CASE
08.845
8-98139-394-1
03
1
1210-
●
●
●
●
10
08.855 MOTOR ASM; FAN,BLOWER UNIT
8-98165-412-0
01
1
1210-
●
●
●
●
14
08.857 SCREW; COVER TO CASE
08.852
8-98139-395-1
03
1
1210-
●
●
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98139-413-0
01
1
1210-1410
●
●
●
●
23
08.857 SHUTTER; BLOWER UNIT
8-98295-682-0
01
1
1411-
●
●
●
●
34
08.856 LINING; BLOWER UNIT
8-98139-426-1
01
1
1210-
●
●
●
●
37
09.786 LEVER; MODE LEVER
8-98165-410-0
01
1
1210-
●
●
●
●
38
09.787 CLIP; BLOWER UNIT
8-98139-422-1
01
1
1210-
●
●
●
●
39
09.786 LEVER; SHUTTER,BLOWER UNIT
8-98165-409-0
01
1
1210-
●
●
●
●
42
08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98139-428-0
01
1
1210-
●
●
●
●
50
08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98139-429-0
01
1
1210-1212
●
●
●
●
50
08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98233-650-0
01
1
1301-
●
●
●
●
78
08.857 SCREW; CASE TO CASE
08.852
8-98139-395-1
01
1
1210-
●
●
●
●
104
08.855 RESISTOR; BLOWER UNIT
8-98183-234-0
01
1
1210-
●
●
●
●
105
08.855 SCREW; RESISTOR
08.852
8-98139-395-1
02
1
1210-
●
●
●
●
141
08.857 CASE ASM; BLOWER UNIT
8-98193-560-0
01
1
1210-1212
●
●
●
●
141
08.857 CASE ASM; BLOWER UNIT
8-98233-651-0
01
1
1301-
●
●
●
●
142
08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98193-572-0
01
1
1210-1212
●
●
●
●
142
08.857 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98233-655-0
01
1
1301-
●
●
●
●
142
08.857 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98193-570-0
01
1
1210-1212
●
●
●
●
142
08.857 CASE ASM
EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>
8-98233-653-0
01
1
1301-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
