◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#109171) — 8 parça

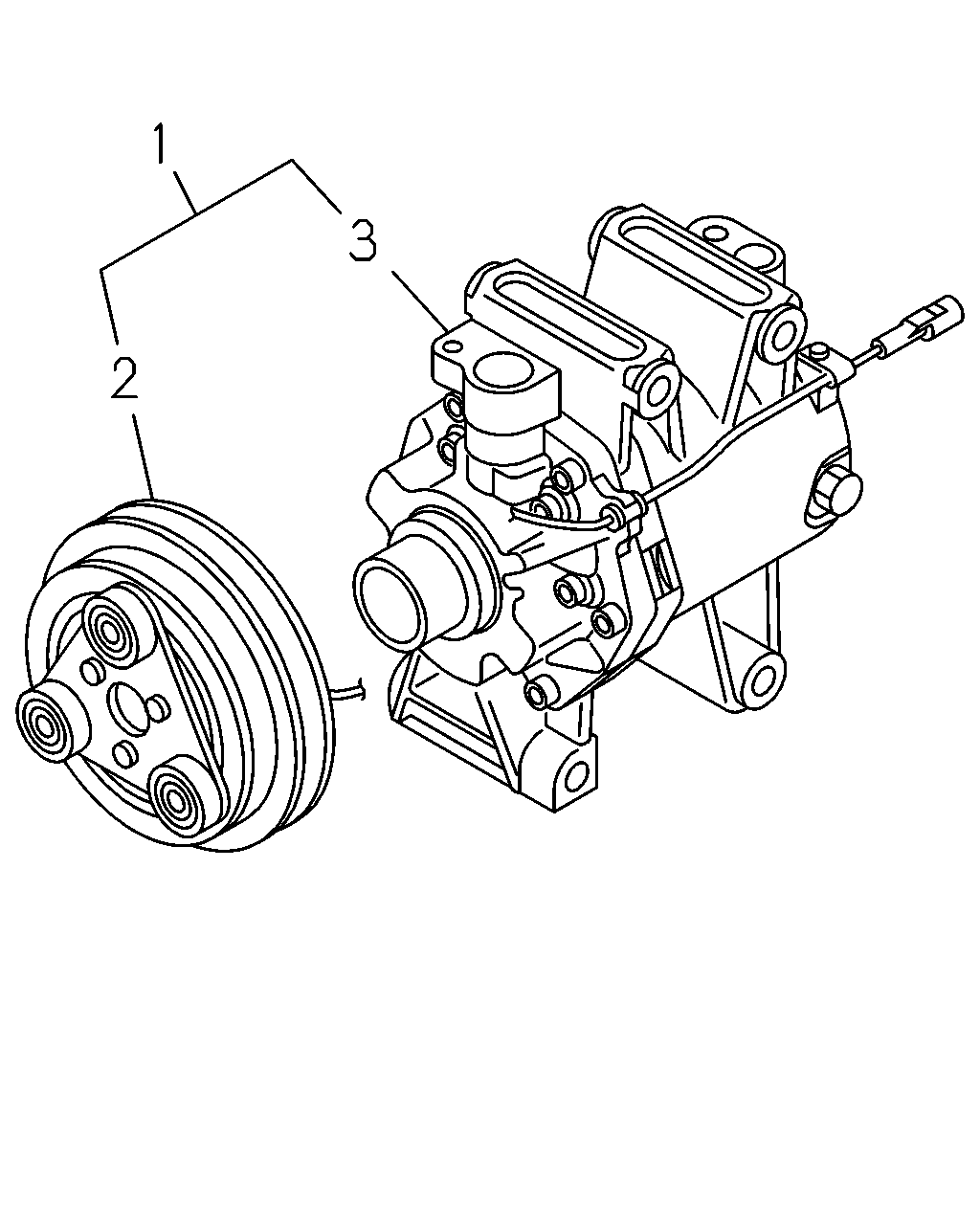

çizim 319397
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98102-824-1 01 1 1210- ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98200-246-1 01 1 1210- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-936-1 01 1 1210- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-97371-580-0 01 1 1210-1402 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98258-537-0 01 1 1403- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-935-1 01 1 1210- ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98204-877-0 01 1 1210-1402 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98258-536-0 01 1 1403- ● ●
