◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#109169) — 275 parça

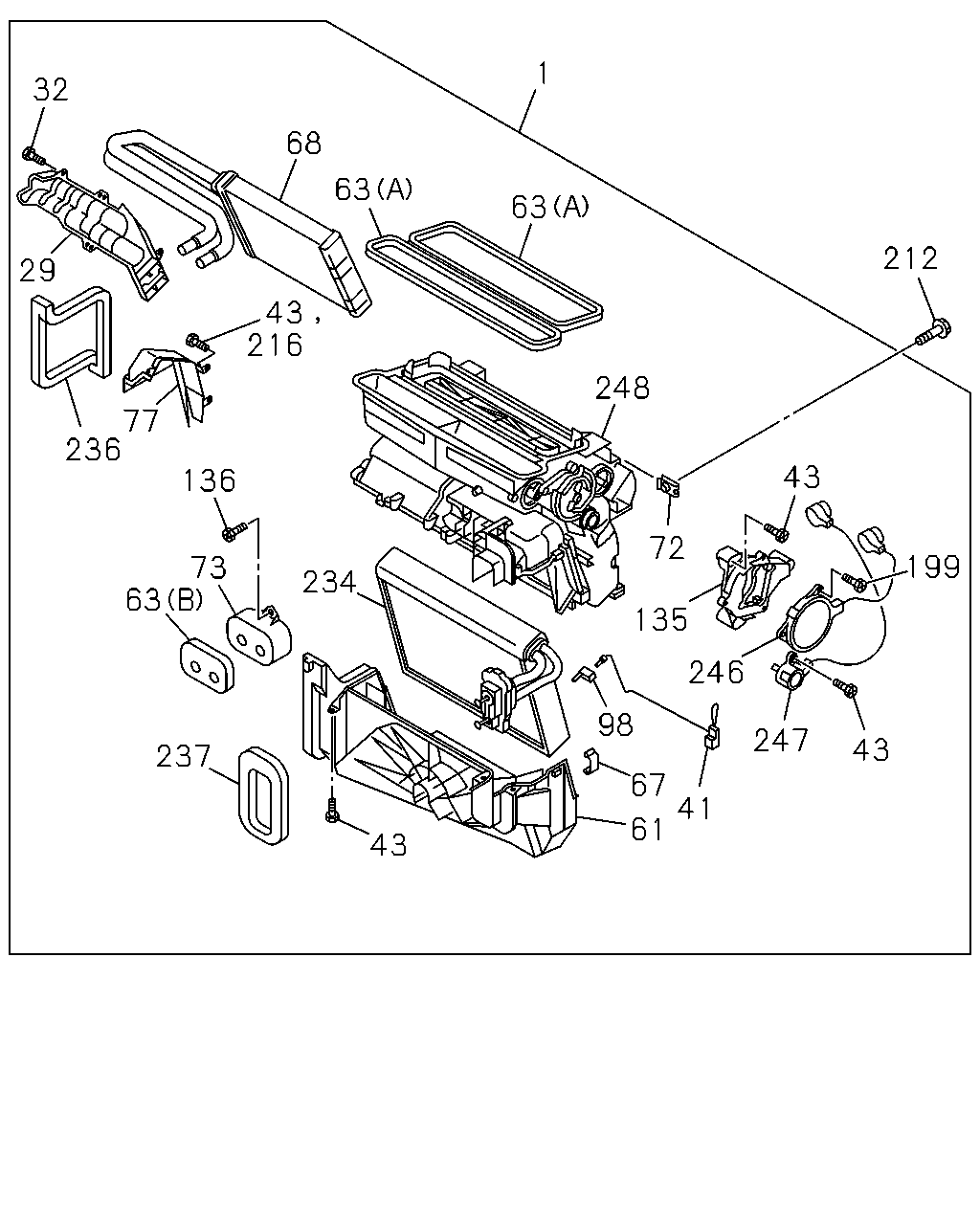

çizim 319306
43 247 246 135 72 43 199 212 41 61 67 98 63 248 1 63 68 43 216 136 234 43 237 63 73 236 77 29 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-353-0 01 1 1210-1212 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98233-590-0 01 1 1301- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-395-0 04 1 1210-1212 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98233-593-0 04 1 1301- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1210- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1210- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1210-1212 ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 21 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98165-406-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98139-358-1 02 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (C) 		8-98157-118-1 01 1 1210- ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1210- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-374-0 01 1 1210- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1210- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1210-1212 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98165-415-0 01 1 1210-1212 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98157-122-0 01 1 1210- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1210- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1210-1212 ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
08.852 		8-98139-395-0 03 1 1210-1212 ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1210- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-376-1 01 1 1210- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1210- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98157-124-2 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1210- ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-398-1 01 1 1210- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●

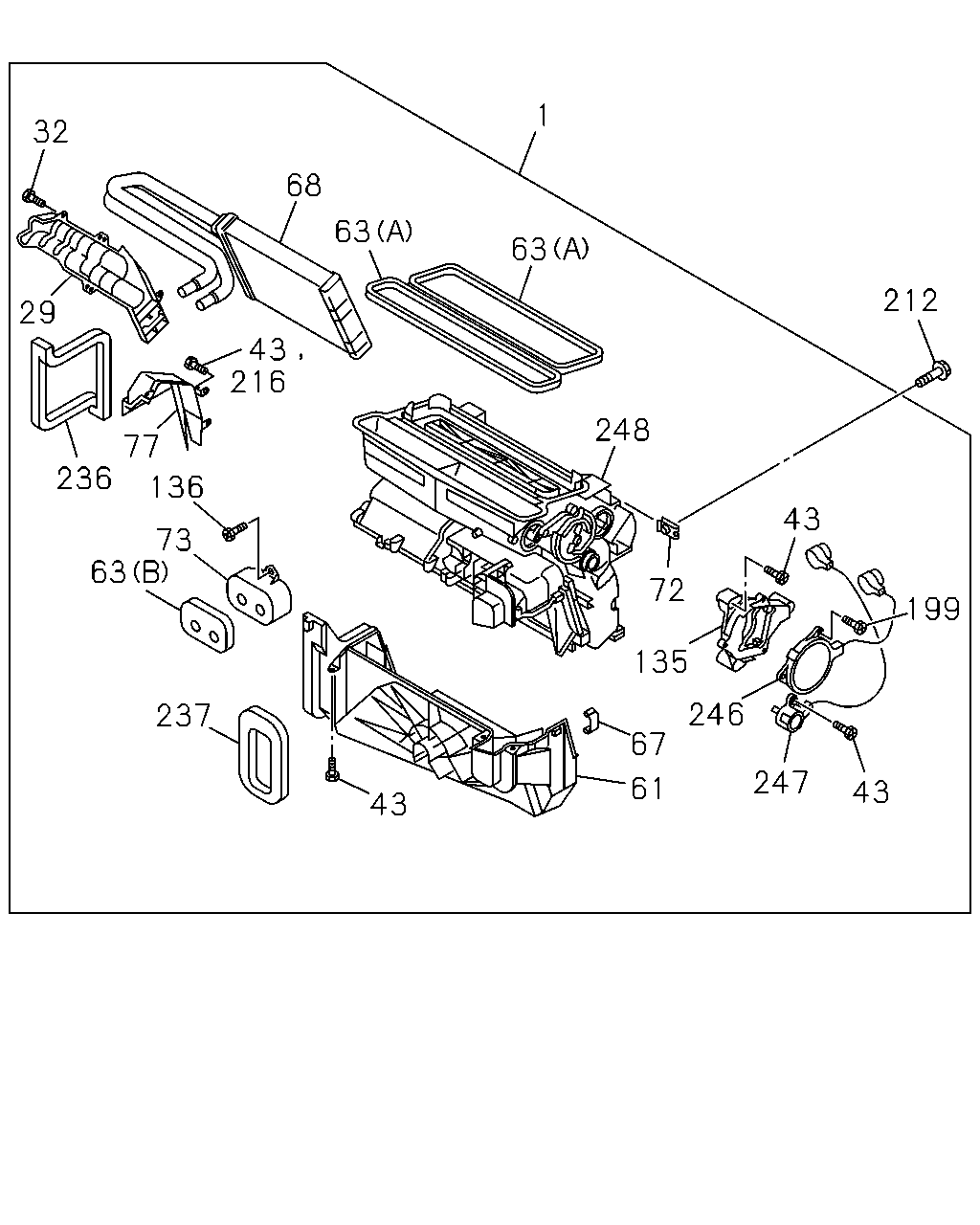

çizim 319309
43 199 43 212 247 246 135 67 61 43 237 63 136 73 77 236 216 43 63 68 32 29 1 63 248 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-353-0 01 1 1210-1212 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98233-590-0 01 1 1301- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-395-0 04 1 1210-1212 ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98233-593-0 04 1 1301- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1210-1212 ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 21 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98165-406-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98139-358-1 02 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (C) 		8-98157-118-1 01 1 1210- ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1210- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-374-0 01 1 1210- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1210- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1210-1212 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98165-415-0 01 1 1210-1212 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1210- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1210-1212 ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
08.852 		8-98139-395-0 03 1 1210-1212 ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1210- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1210- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98157-124-2 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1210- ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98139-398-1 01 1 1210- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●

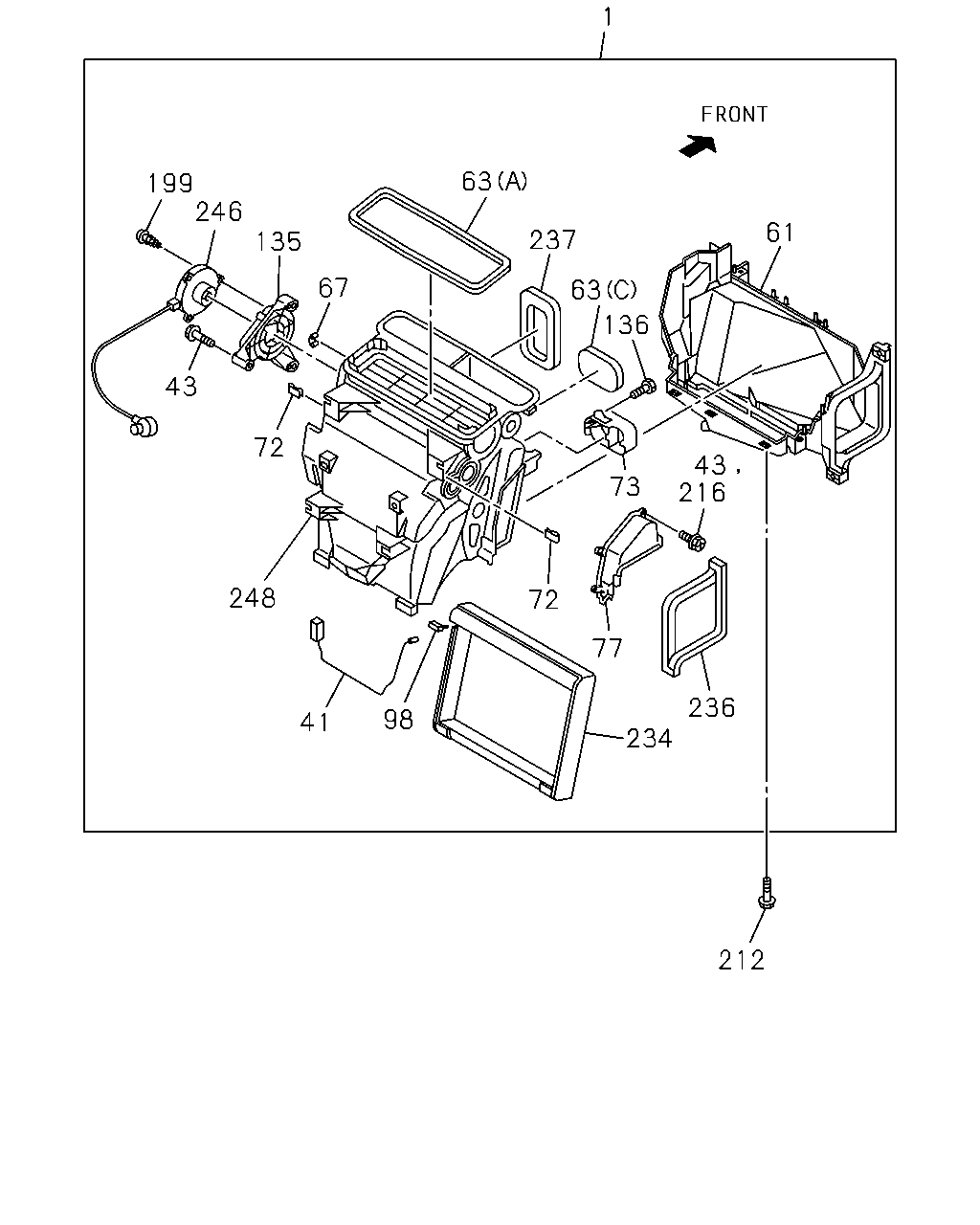

çizim 319311
212 234 236 77 72 216 73 43 61 136 63 237 63 1 98 41 248 72 43 67 135 246 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1210- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1210- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1210-1212 ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 21 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98165-406-0 01 1 1210-1212 ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98139-358-1 02 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1210- ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (C) 		8-98157-118-1 01 1 1210- ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1210- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1210- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98139-355-0 01 1 1210-1212 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98165-415-0 01 1 1210-1212 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98157-122-0 01 1 1210- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1210- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98139-395-0 02 1 1210-1212 ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
199 08.854 SCREW; ACTUATOR
08.852 		8-98139-395-0 03 1 1210-1212 ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1210- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-376-1 01 1 1210- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1210- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98157-124-2 01 1 1210- ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1210- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1210-1212 ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1210-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
