Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#109168) — 51 parça

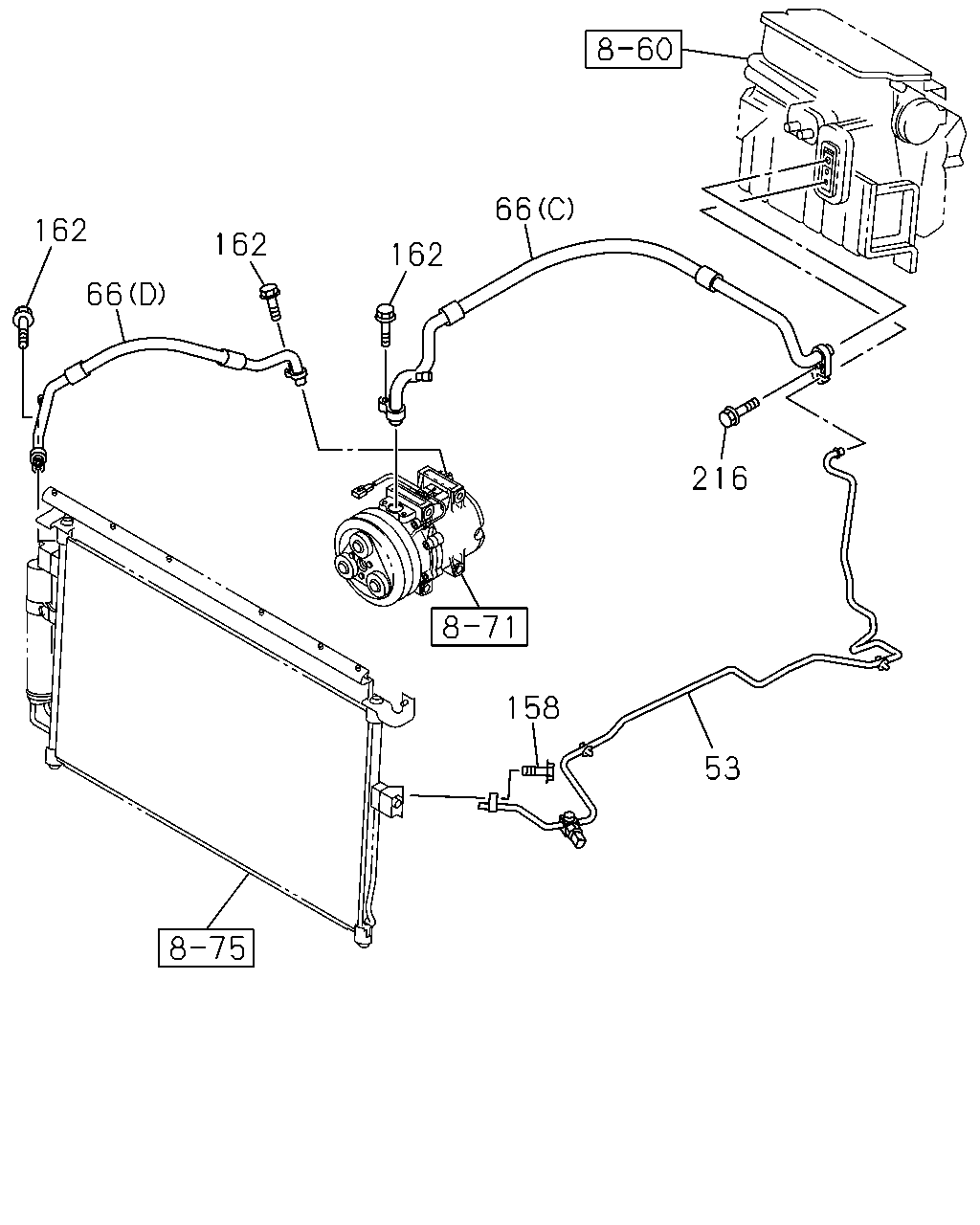

66 216 53 158 162 66 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98129-150-4	01	1	1210-	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98102-232-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B) HIGH PRESSURE	8-98129-345-1	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98102-233-3	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C) LOW PRESSURE	8-98102-234-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (D) HIGH PRESSURE	8-98102-236-2	01	1	1210-	●	●
158	09.220 BOLT; PIPE FIX 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1210-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1210-	●	●	●	●

123 146 67 67 147 67 66 66 53 67 147 202 122 146 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98129-150-4	01	1	1210-	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98102-232-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B) HIGH PRESSURE	8-98129-345-1	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98102-233-3	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C) LOW PRESSURE	8-98102-234-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (D) HIGH PRESSURE	8-98102-236-2	01	1	1210-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B)	8-98164-687-0	01	1	1210-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C)	8-98164-688-0	01	1	1210-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (A)	8-98193-624-0	02	1	1210-	●	●	●	●
122	09.225 GASKET AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-690-0	01	1	1210-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-689-0	02	1	1210-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98193-622-0	02	1	1210-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (A)	8-98193-623-0	01	1	1210-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B)	8-98193-625-0	01	1	1210-	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-691-0	01	1	1210-	●	●	●	●

123 146 146 202 122 123 53 66 66 67 147 67 147 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98129-150-4	01	1	1210-	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98102-232-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B) HIGH PRESSURE	8-98129-345-1	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98102-233-3	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C) LOW PRESSURE	8-98102-234-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (D) HIGH PRESSURE	8-98102-236-2	01	1	1210-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B)	8-98164-687-0	01	1	1210-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C)	8-98164-688-0	01	1	1210-	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (A)	8-98193-624-0	02	1	1210-	●	●	●	●
122	09.225 GASKET AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-690-0	01	1	1210-	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-689-0	02	1	1210-	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98193-622-0	02	1	1210-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (A)	8-98193-623-0	01	1	1210-	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B)	8-98193-625-0	01	1	1210-	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65)	8-98164-691-0	01	1	1210-	●	●	●	●

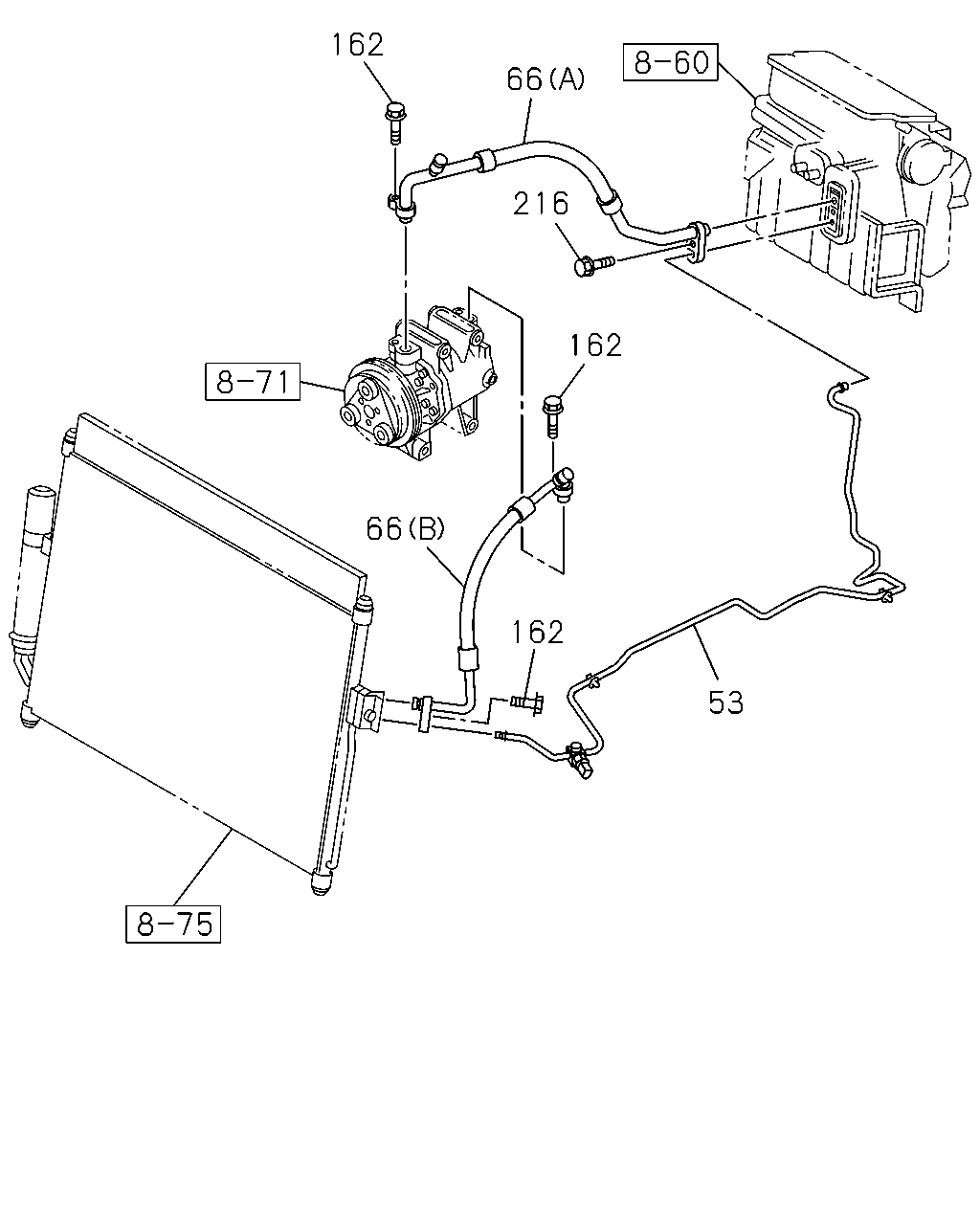

53 162 66 162 216 66 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98129-150-4	01	1	1210-	●	●	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) HIGH PRESSURE	8-98102-232-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE	8-98209-993-0	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (B) HIGH PRESSURE	8-98129-345-1	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) COOLER W/FRESH AIR(C65) (A) LOW PRESSURE	8-98102-233-3	01	1	1210-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (C) LOW PRESSURE	8-98102-234-2	01	1	1210-	●	●
66	09.225 HOSE; FLEX,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) (D) HIGH PRESSURE	8-98102-236-2	01	1	1210-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1210-	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1210-	●	●	●	●
