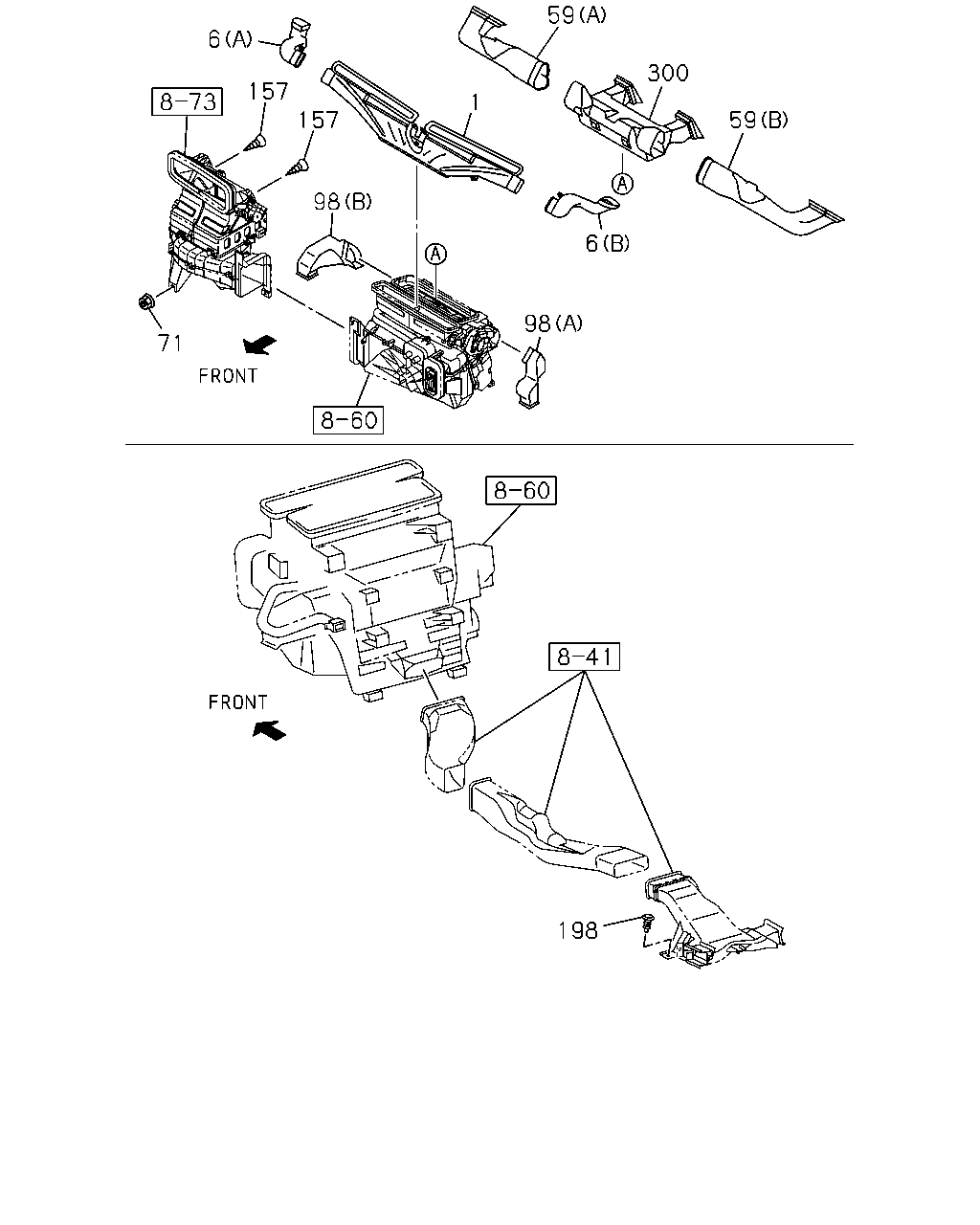

8-40 — HEATER SYSTEM (#109164) — 23 parça

198 98 6 59 300 59 1 157 157 71 98 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98187-101-2	01	1	1210-	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98187-102-0	01	1	1210-	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98187-103-0	01	1	1210-	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (A)	8-98187-099-0	01	1	1210-	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE (B)	8-98187-100-0	01	1	1210-	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH 03.417 M6 FLANGE	8-94279-514-0	01	1	1210-	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (B)	8-98129-461-2	01	1	1210-1212	●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98129-461-2	01	1	1210-1212		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (B)	8-98129-461-2	01	1	1210-1212		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (B)	8-98233-056-0	01	1	1301-	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (B)	8-98233-056-0	01	1	1301-		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (B)	8-98233-056-0	01	1	1301-		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B)	8-98233-056-0	01	1	1301-			●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (A)	8-98129-463-2	01	1	1210-1212	●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98129-463-2	01	1	1210-1212		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A)	8-98129-463-2	01	1	1210-1212		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT (A)	8-98233-057-0	01	1	1301-	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A)	8-98233-057-0	01	1	1301-		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (A)	8-98233-057-0	01	1	1301-		●		●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A)	8-98233-057-0	01	1	1301-			●
157	09.264 SCREW 16.650 M5X16	8-98167-220-0	02	1	1210-	●	●	●	●
198	09.787 CLIP; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98147-301-0	02	1	1210-		●		●
300	09.264 DUCT; VENT,CENTER	8-98187-098-0	01	1	1210-	●	●	●	●
