◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#109157) — 265 parça

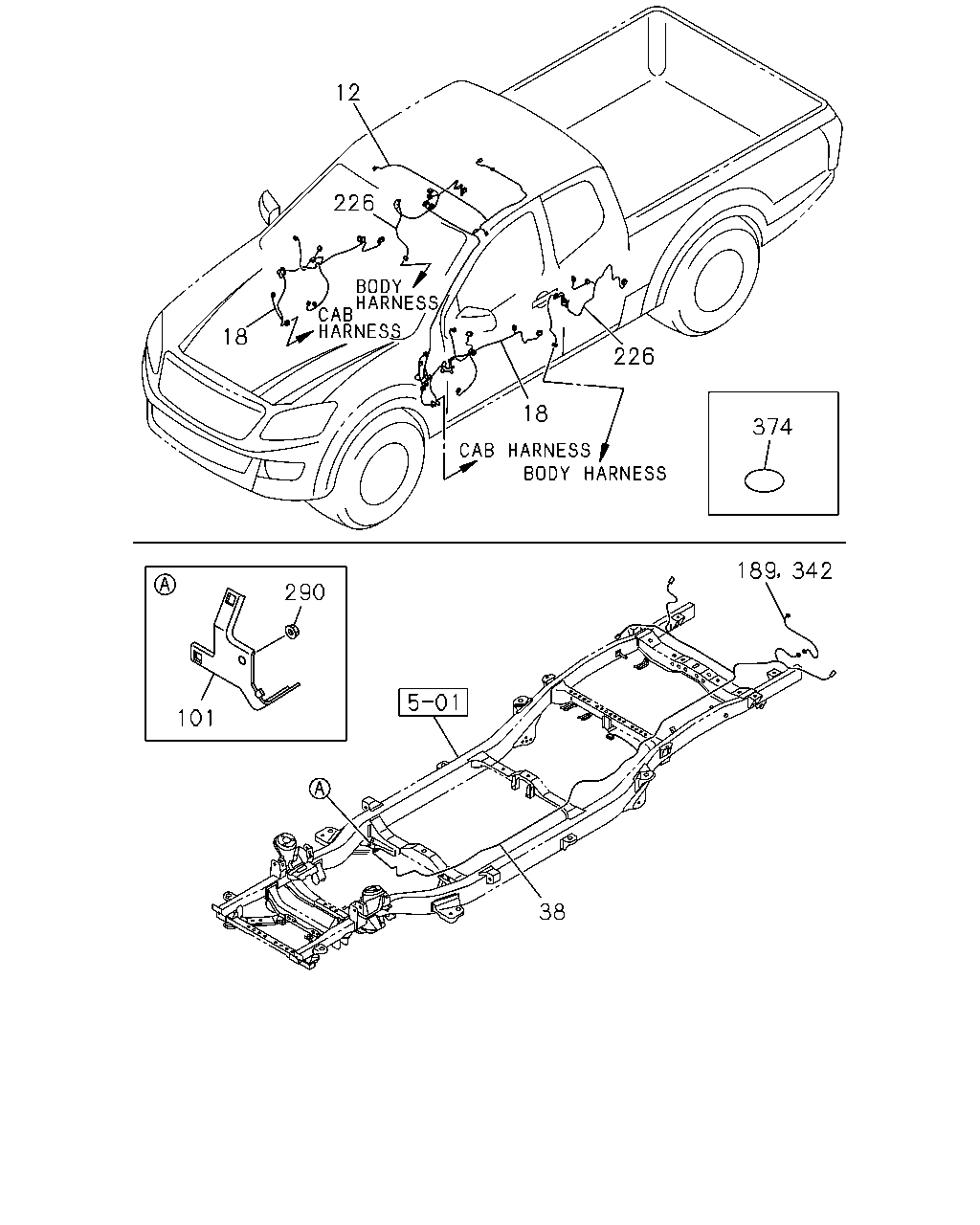

çizim 319280
12 226 18 226 18 374 342 189 38 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 02.480 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98159-332-0 01 1 1210- ● ●
12 02.480 HARNESS; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98159-331-0 01 1 1210- ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98159-476-2 01 1 1210-1403 ● ●
12 02.480 HARNESS; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98275-272-0 01 1 1404- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98159-478-2 01 1 1210-1403 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98275-274-0 01 1 1404- ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98159-475-2 01 1 1210-1403 ● ●
12 02.480 HARNESS; ROOF
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98275-271-0 01 1 1404- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-494-3 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-512-2 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-496-3 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-516-2 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-498-2 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-518-2 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-500-2 01 1 1210- ● ● ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-524-2 01 1 1210- ● ● ● ●
38 02.480 HARNESS; CHAS
REAR BODY FLAT BED(E39) 		8-98198-446-1 01 1 1210- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-318-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98159-317-2 01 1 1210- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98159-317-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1210- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98159-322-2 01 1 1210- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98159-322-2 01 1 1210- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1210- ● ● ● ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1210- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1210- ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98140-863-0 01 1 1210- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-533-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-534-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-527-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-528-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-535-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-536-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-525-3 01 1 1210- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-526-3 01 1 1210- ● ●
290 02.483 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1210- ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98137-579-2 01 1 1210- ● ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1210- ● ●

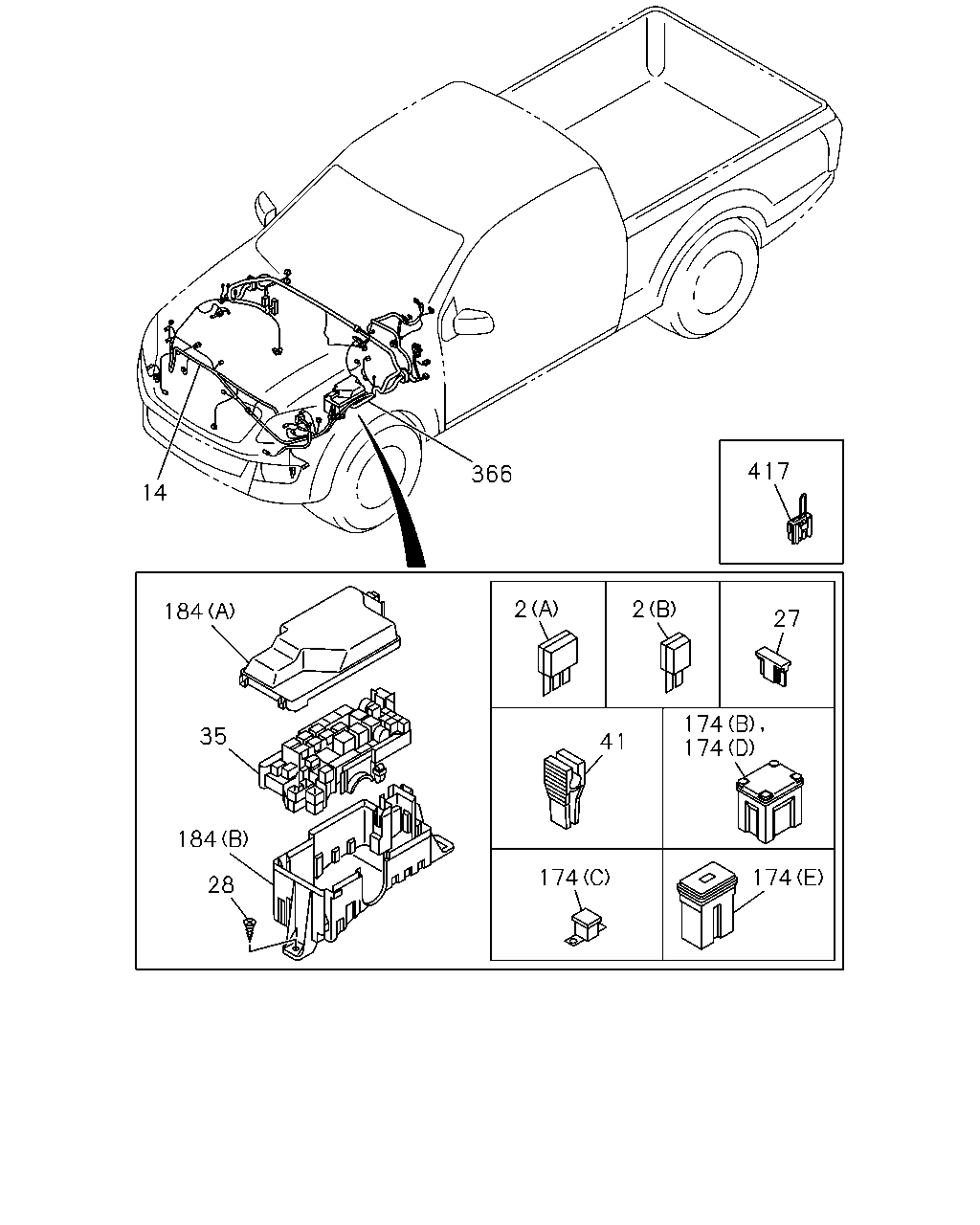

çizim 319281
14 366 417 27 2 2 174 174 41 174 174 28 184 35 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1210- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-349-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-341-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98159-348-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98159-347-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-339-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1210- ● ● ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEA M<8LH> 		8-98159-338-1 01 1 1210- ● ● ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1210- ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1210- ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1210- ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1210- ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1210- ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1210- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1210- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1210- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-495-7 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-496-5 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-124-2 01 1 1402- ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65) 		8-97362-918-0 01 1 1210- ● ● ● ●
çizim 319282
4 734 745 750 749
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1210- ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1210- ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1210- ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●

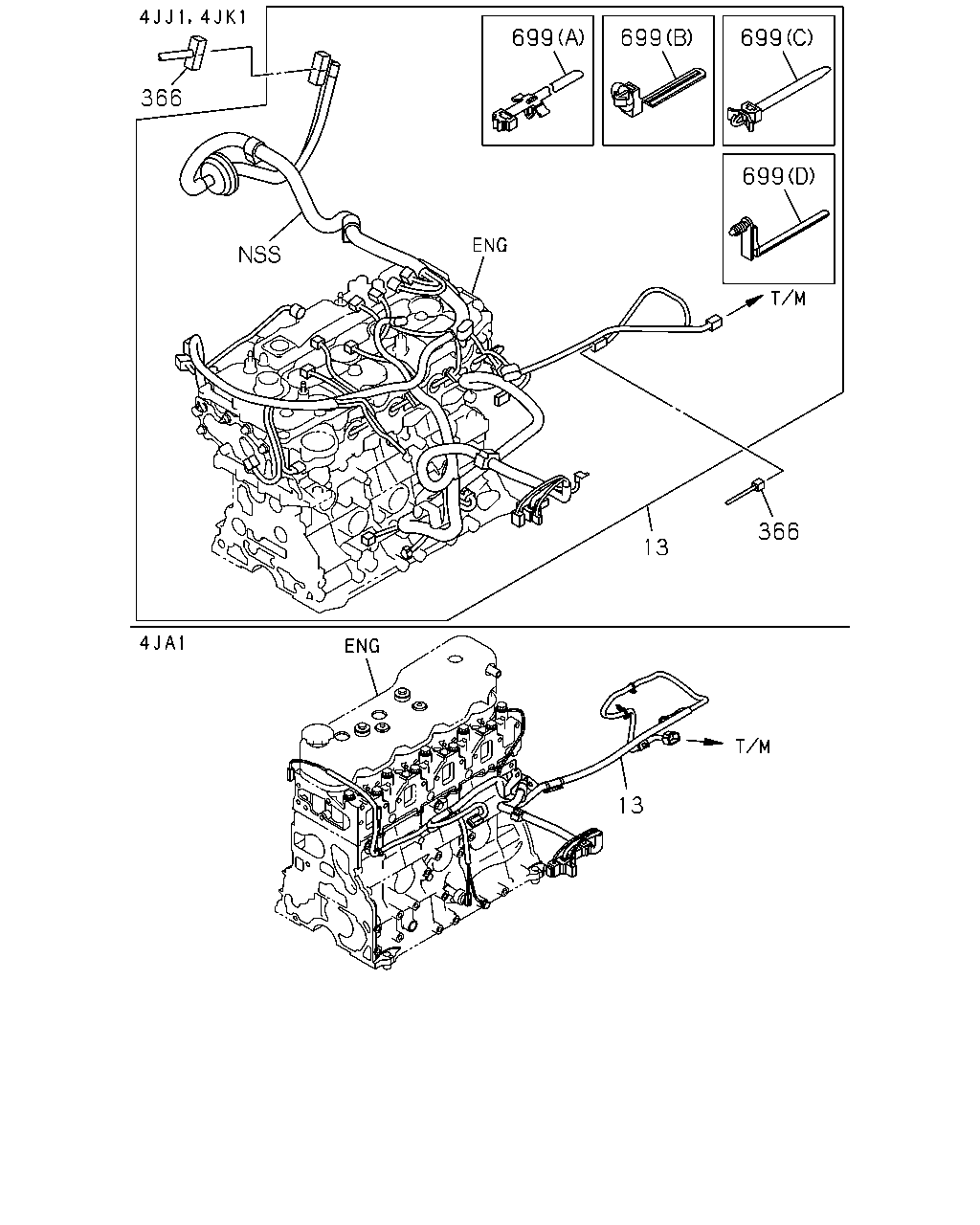

çizim 319283
366 699 699 699 699 366 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-628-2 01 1 1210- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-639-2 01 1 1210-1406 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) 		8-98224-639-2 01 1 1407- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-629-2 01 1 1210-1401 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-98260-533-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98224-638-2 01 1 1210-1401 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98260-542-0 01 1 1402-1406 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) 		8-98260-542-0 01 1 1407- ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 		8-98190-105-4 01 1 1210- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-495-7 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-496-5 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-124-2 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (D) 		8-98182-511-0 02 1 1210-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (D) 		8-98182-511-0 02 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) L=135 		8-94473-399-0 01 1 1210-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) L=135 		8-94473-399-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=155 		8-97173-307-0 02 1 1210-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=155 		8-97173-307-0 02 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=140 		8-97378-707-0 01 1 1210-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) L=140 		8-97378-707-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) L=146.2 		8-98052-677-0 01 1 1210-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) L=146.2 		8-98052-677-0 01 1 1402- ● ●
çizim 319284
366 736 738 739 741 743 742 744 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B C D
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-065-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-136-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-516-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-133-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98163-064-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-135-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-515-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-132-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-495-7 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-510-5 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-129-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-507-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-127-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-509-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-128-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-506-6 01 1 1210-1401 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98270-126-2 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98160-496-5 01 1 1210-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98270-124-2 01 1 1402- ● ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1210- ● ● ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1210- ● ● ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1210- ● ● ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1210- ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1210- ● ●
746 02.694 RELAY; ECM,MAIN
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1210- ● ● ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1210- ● ● ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1210- ● ● ● ●

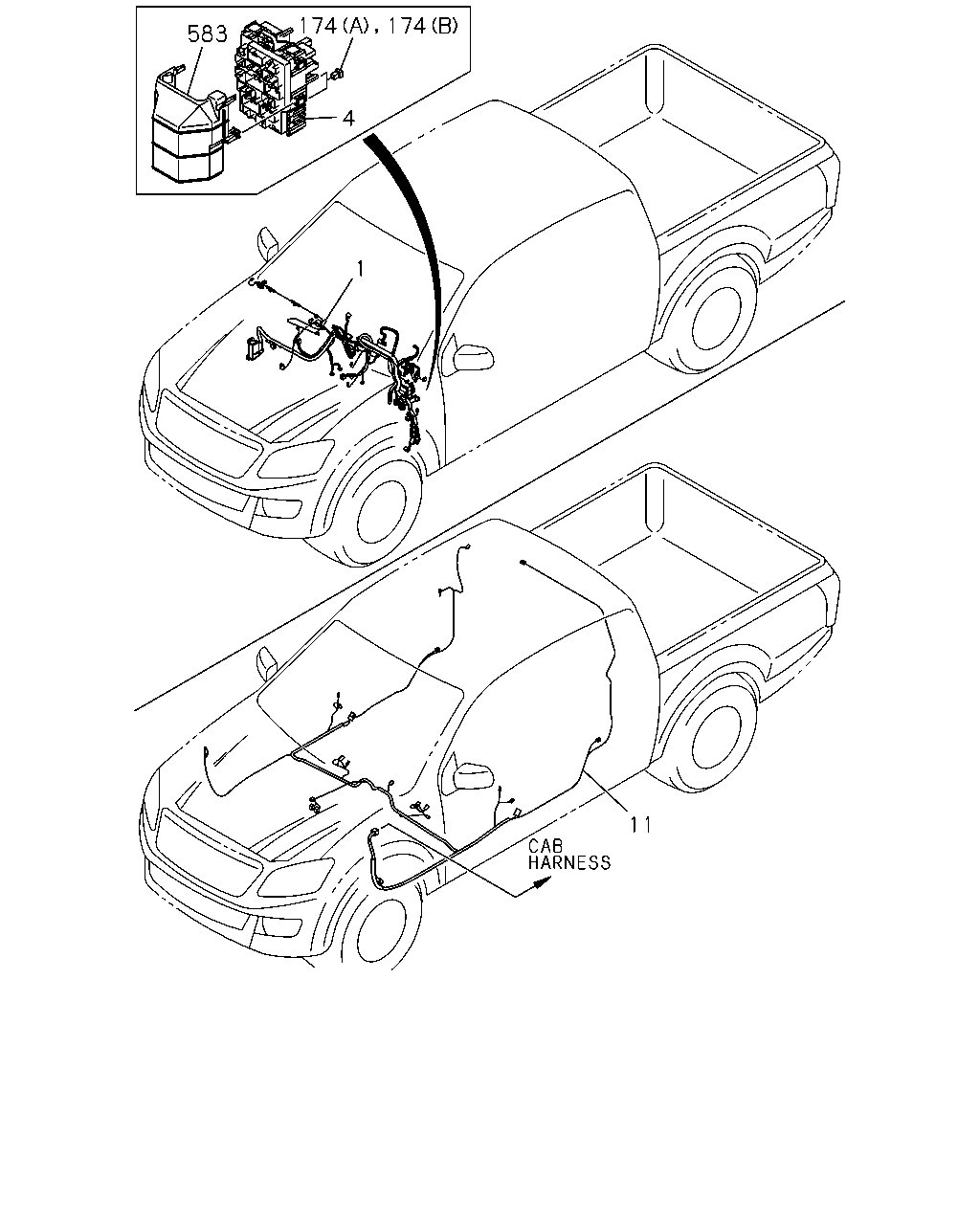

çizim 319382
174 174 4 583 1 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-479-7 01 1 1210- ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> 		8-98160-480-6 01 1 1210- ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-473-7 01 1 1210- ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> 		8-98160-474-7 01 1 1210- ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-478-7 01 1 1210- ● ● ● ●
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-476-1 01 1 1210- ● ●
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> 		8-98160-477-1 01 1 1210- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1210- ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-561-2 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-560-0 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-606-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-598-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-599-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-600-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-623-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-624-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-616-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-617-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-648-5 01 1 1210-1306 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> 		8-98160-648-5 01 1 1307-1312 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-648-5 01 1 1307-1312 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-648-5 01 1 1401- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1> 		8-98160-633-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49> 		8-98160-649-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-634-5 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-601-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-602-2 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-603-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-604-2 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-618-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-619-2 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-620-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-621-2 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-650-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1> 		8-98160-635-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49> 		8-98160-646-3 01 1 1210- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-636-3 01 1 1210- ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1210- ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1210- ● ● ● ●
583 02.559 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98179-407-0 01 1 1210- ● ●
583 02.559 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ) 		8-98179-407-0 01 1 1210- ● ●

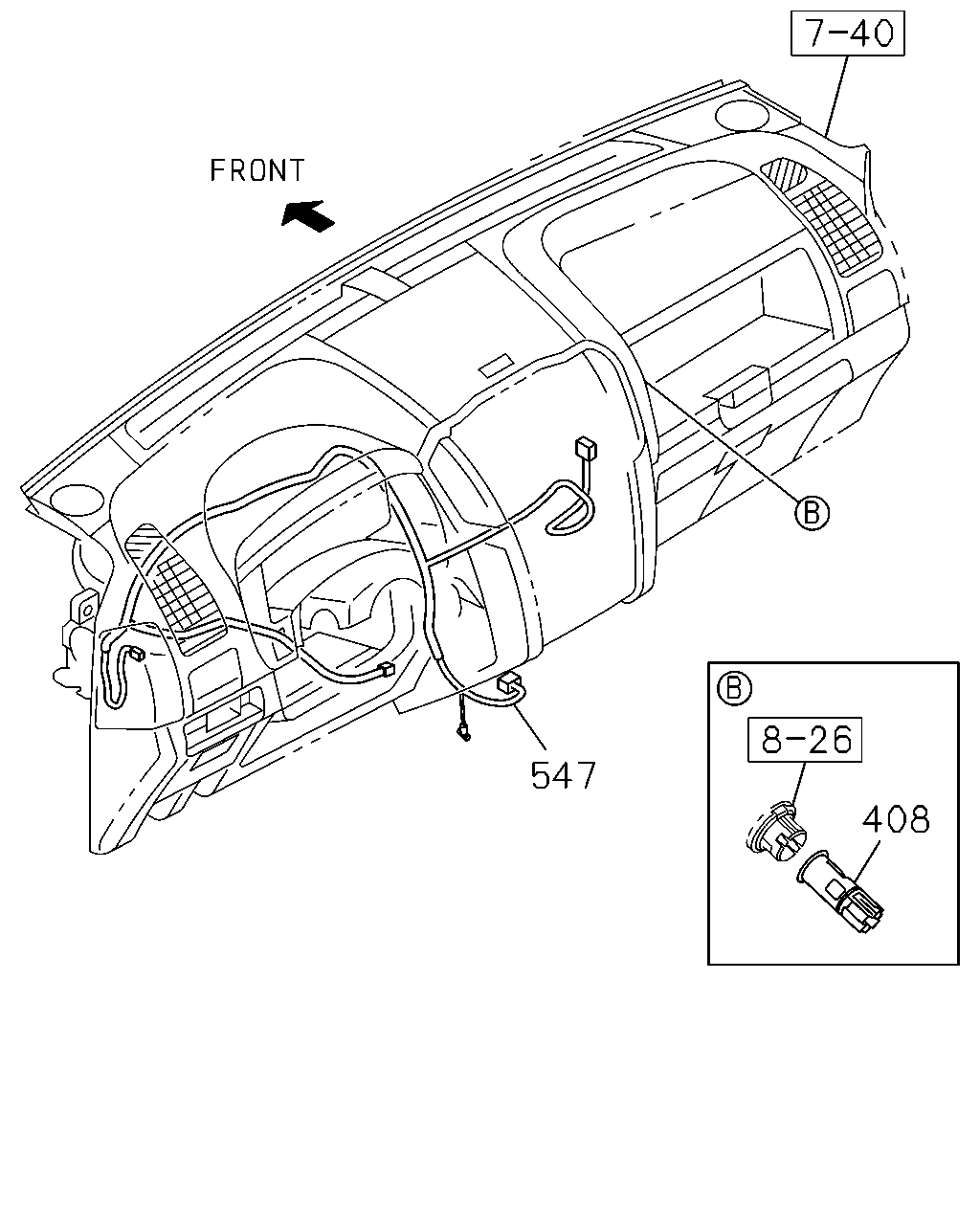

çizim 319402
547 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1210- ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-337-2 01 1 1210- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
