7-42 — ASH TRAY (#109148) — 9 parça

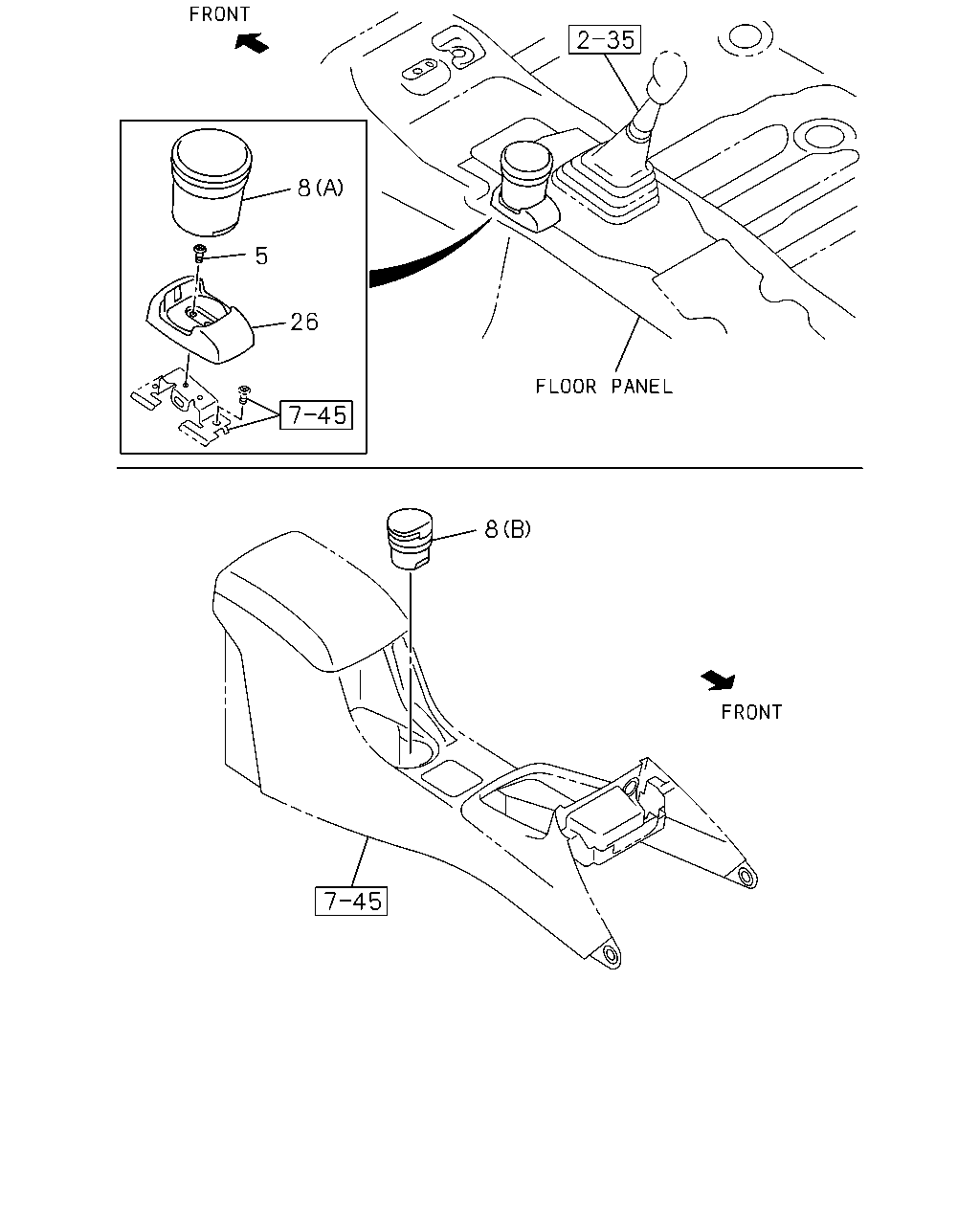

çizim 319264
8 26 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.120 SCREW; BRKT,ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1210- ● ● ● ●
8 16.120 TRAY ASM; ASH
FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97416-811-1 01 1 1210-1301 ● ●
8 16.120 TRAY ASM; ASH
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (B) BLACK 		8-97416-811-1 01 1 1210-1301 ● ●
8 16.120 TRAY ASM; ASH
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (B) BLACK 		8-97416-811-1 01 1 1302- ● ● ● ●
8 16.120 TRAY ASM; ASH
EXC. FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-634-2 01 1 1210-1301 ● ●
8 16.120 TRAY ASM; ASH
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-634-2 01 1 1210-1301 ● ●
8 16.120 TRAY ASM; ASH
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-634-2 01 1 1302- ● ● ● ●
26 16.120 HOUSING; ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-632-3 01 1 1210-1301 ● ● ● ●
26 16.120 HOUSING; ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-632-3 01 1 1302- ● ● ● ●
