◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#109147) — 104 parça

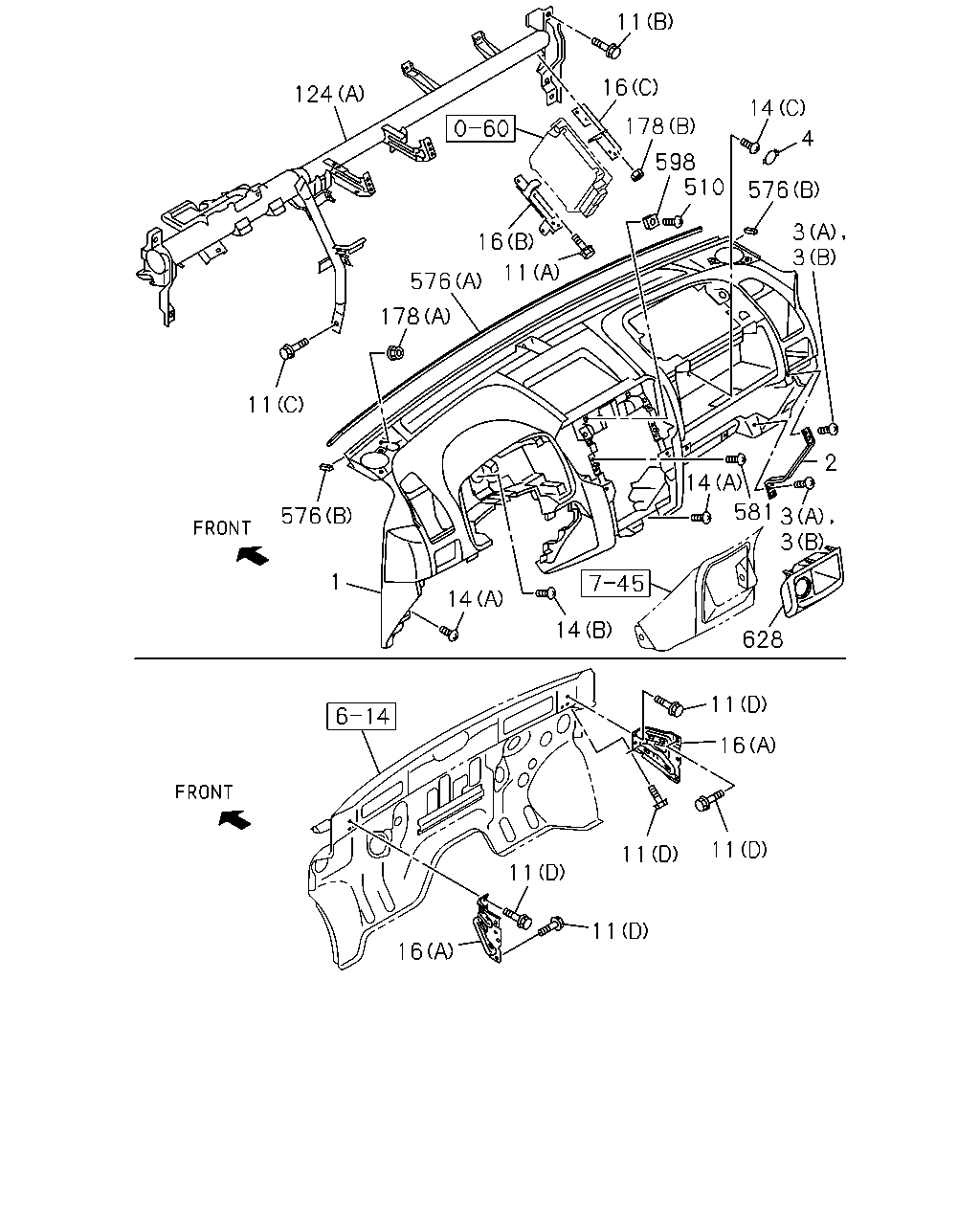

çizim 319263
124 11 178 11 576 16 16 11 178 510 598 14 576 3 3 576 1 14 14 11 11 11 11 11 16 3 3 628 581 14 4 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1210- ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-98232-644-1 01 1 1210- ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) M5X16 		8-98197-847-0 33 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) M5X16 		8-98246-739-0 31 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65) (A) M5X16 		8-98197-847-0 34 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 32 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) M5X16 		8-98197-847-0 37 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) M5X16 		8-98246-739-0 35 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (A) M5X16 		8-98197-847-0 38 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 36 1 1309- ● ● ● ●
4 16.080 COVER; INST PNL
16.165 BLACK 		8-97416-610-0 01 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
08.155 (B) M8X25 FLANGE 		0-28450-825-0 04 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
01.540 (D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1210- ● ● ● ●
11 16.090 BOLT; INST PNL
01.540 (D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1210- ● ● ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 03 1 1210- ● ● ● ●
14 16.085 SCREW; INST PNL
16.650 (A) M5X16 		8-98167-220-0 04 1 1210- ● ● ● ●
14 16.085 SCREW; INST PNL
08.083 (B) M5X16 TAPPING 		8-98167-449-0 06 1 1210- ● ● ● ●
14 16.085 SCREW; INST PNL
16.345 (C) M5X14 TAPPING 		8-98184-363-0 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) 		8-98119-432-2 01 1 1210- ● ● ● ●
16 16.085 BRACKET; INST PNL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (C) 		8-98119-429-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5) (A) 		8-98064-650-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-651-1 01 1 1210- ● ● ● ●
178 16.085 NUT; INST PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1210- ● ● ● ●
178 16.085 NUT; INST PANEL
08.915 (A) M6 FLANGE 		8-98055-704-0 03 1 1210- ● ● ● ●
510 16.081 SCREW; CENTER CLUSTER
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1210- ● ● ● ●
576 16.085 CUSHION
(A) 		8-98232-668-0 01 1 1210- ● ● ● ●
576 16.085 CUSHION
(B) 		8-98232-669-0 02 1 1210- ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1210- ● ● ● ●
581 09.744 SCREW
RADIO DELETE(UL5) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1210- ● ● ● ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1210- ● ● ● ●
628 09.743 BEZEL; INST LWR
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97416-618-2 01 1 1210- ● ●
628 09.743 BEZEL; INST LWR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-618-2 01 1 1210- ● ●
628 09.743 BEZEL; INST LWR
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97417-399-1 01 1 1210- ● ●
628 09.743 BEZEL; INST LWR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97417-399-1 01 1 1210- ● ●

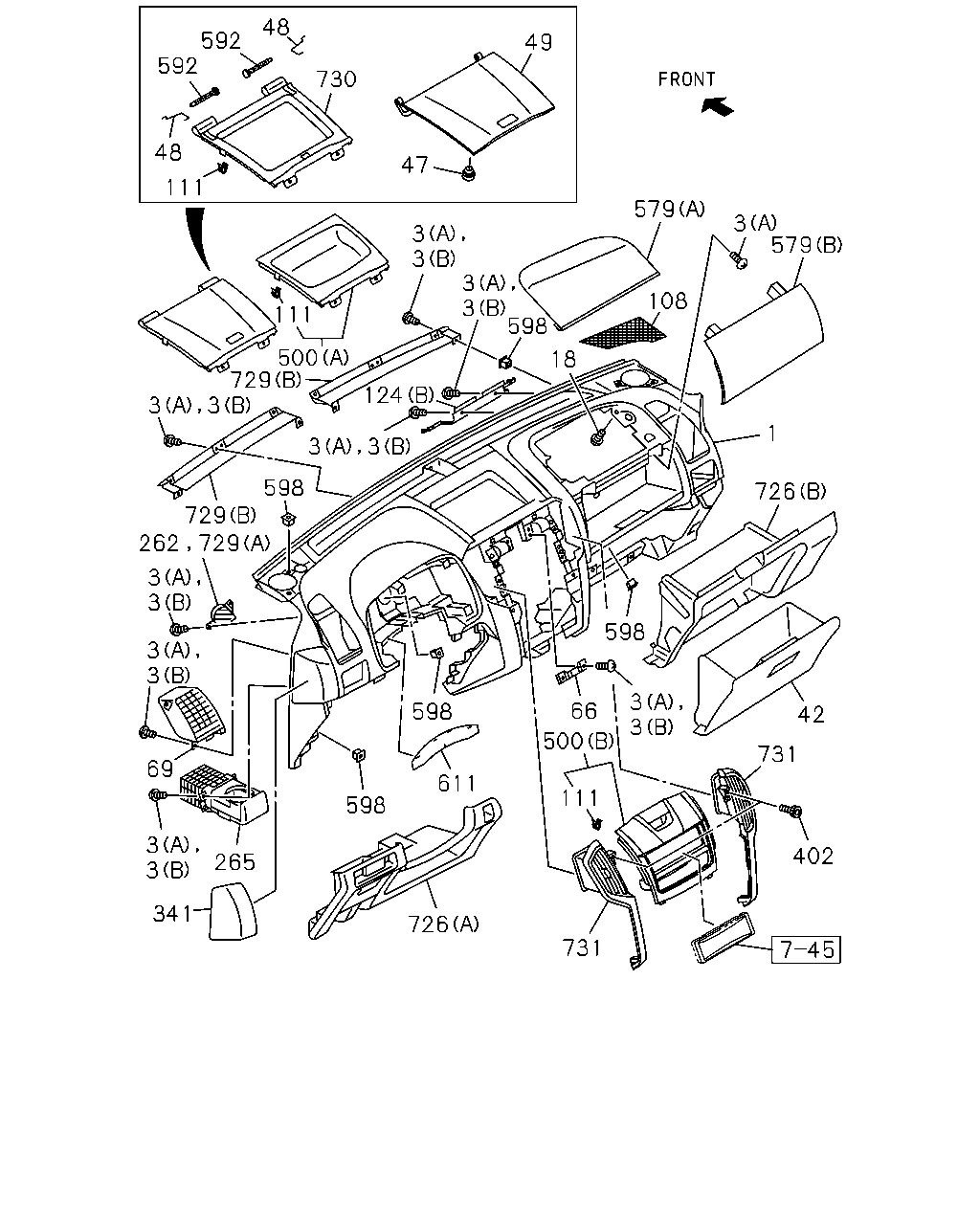

çizim 319365
49 47 3 3 3 3 598 579 579 3 108 1 726 42 731 402 111 3 3 500 598 66 611 598 598 69 3 3 3 262 3 729 729 598 3 124 3 3 3 729 500 111 48 592 592 48 730 111 3 726 265 731 3 341 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
BLACK 		8-97423-083-0 01 1 1210- ● ● ● ●
3 16.081 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) M5X16 		8-98197-847-0 33 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) M5X16 		8-98246-739-0 31 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65) (A) M5X16 		8-98197-847-0 34 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 32 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) M5X16 		8-98197-847-0 37 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) M5X16 		8-98246-739-0 35 1 1309- ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (A) M5X16 		8-98197-847-0 38 1 1210-1308 ● ● ● ●
3 16.081 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER W/FRESH AIR(C65) (B) M5X16 		8-98246-739-0 36 1 1309- ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 00.685 M8X40 FLANGE 		0-28650-840-0 02 1 1210- ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> BLACK 		8-97416-629-2 01 1 1210- ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> BLACK 		8-97416-631-2 01 1 1210- ● ● ● ●
47 16.100 STOPPER; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-179-1 03 1 1210- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-177-1 01 1 1210-1411 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-678-0 01 1 1412- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-178-1 01 1 1210-1411 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-679-0 01 1 1412- ● ● ● ●
49 16.110 LID; GLOVE BOX
INTERIOR CUSTOM(RBD) BLACK 		8-97423-320-1 01 1 1210- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98187-112-0 01 1 1210- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-071-2 01 1 1210- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-072-2 01 1 1210- ● ● ● ●
108 09.264 GRILLE; INST PNL
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> BLACK 		8-97416-625-2 01 1 1210- ● ● ● ●
108 09.264 GRILLE; INST PNL
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-627-2 01 1 1210- ● ● ● ●
108 09.264 GRILLE; INST PNL
BLACK 		8-97416-626-2 01 1 1210- ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.165 		8-98164-677-0 04 1 1210- ● ● ● ●
111 09.744 CLIP; CLUSTER PANEL,GRILLE
16.165 		8-98164-677-0 02 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO DELETE(UL5) (A) 		8-98064-648-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-649-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO DELETE(UL5) (A) 		8-98064-650-1 01 1 1210- ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-651-1 01 1 1210- ● ● ● ●
262 09.264 GRILLE; DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) BLACK 		8-97423-076-0 01 1 1210- ● ● ● ●
262 09.264 GRILLE; DEFROSTER
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) BLACK 		8-97423-077-0 01 1 1210- ● ● ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-073-0 01 1 1210- ● ● ● ●
265 16.100 HOLDER; CUP
BLACK 		8-97423-074-0 01 1 1210- ● ● ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-611-3 01 1 1210- ● ● ● ●
341 16.110 LID; FUSE BOX
BLACK 		8-97416-612-3 01 1 1210- ● ● ● ●
402 09.264 SCREW; VENT GRILLE,INST
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1210- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INTERIOR BASIC(RBA) (A) BLACK 		8-97416-622-4 01 1 1210- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO DELETE(UL5) (B) BLACK 		8-97416-624-2 01 1 1210- ● ● ● ●
500 16.081 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-621-1 01 1 1210- ● ● ● ●
579 16.080 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) BLACK 		8-97423-085-0 01 1 1210- ● ● ● ●
579 16.080 COVER; INST PNL
(B) BLACK 		8-97423-084-3 01 1 1210- ● ● ● ●
592 16.115 HINGE; LID
INTERIOR CUSTOM(RBD) 		8-98194-176-1 02 1 1210- ● ● ● ●
598 09.262 GROMMET; SCREW 8-98164-685-0 15 1 1210- ● ● ● ●
611 16.081 SHEET 8-98187-119-0 01 1 1210- ● ● ● ●
726 16.080 PANEL; INST LW
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) BLACK 		8-97423-424-0 01 1 1210- ●
726 16.080 PANEL; INST LW
REAR BODY DELETE(8HH) (A) BLACK 		8-97423-424-0 01 1 1210- ● ● ●
726 16.080 PANEL; INST LW
REAR BODY DBL WALL CTR PULL(E63) (A) BLACK 		8-97417-398-1 01 1 1210- ● ● ● ●
726 16.080 PANEL; INST LW
(B) BLACK 		8-97417-400-1 01 1 1210- ● ● ● ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (A) BLACK 		8-97423-079-0 01 1 1210- ● ● ● ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (A) BLACK 		8-97423-080-0 01 1 1210- ● ● ● ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (B) BLACK 		8-97423-081-0 01 1 1210- ● ● ● ●
729 16.085 COVER; GRILLE
COOLER W/FRESH AIR(C65) (B) BLACK 		8-97423-082-0 01 1 1210- ● ● ● ●
730 16.115 BEZEL; LID
INTERIOR CUSTOM(RBD) BLACK 		8-97423-319-0 01 1 1210- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-639-4 01 1 1210- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) 09.264 BLACK 		8-97416-640-4 01 1 1210- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-637-4 01 1 1210- ● ● ● ●
731 16.085 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) 09.264 SILVER 		8-97416-638-4 01 1 1210- ● ● ● ●
