◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#109134) — 7 parça

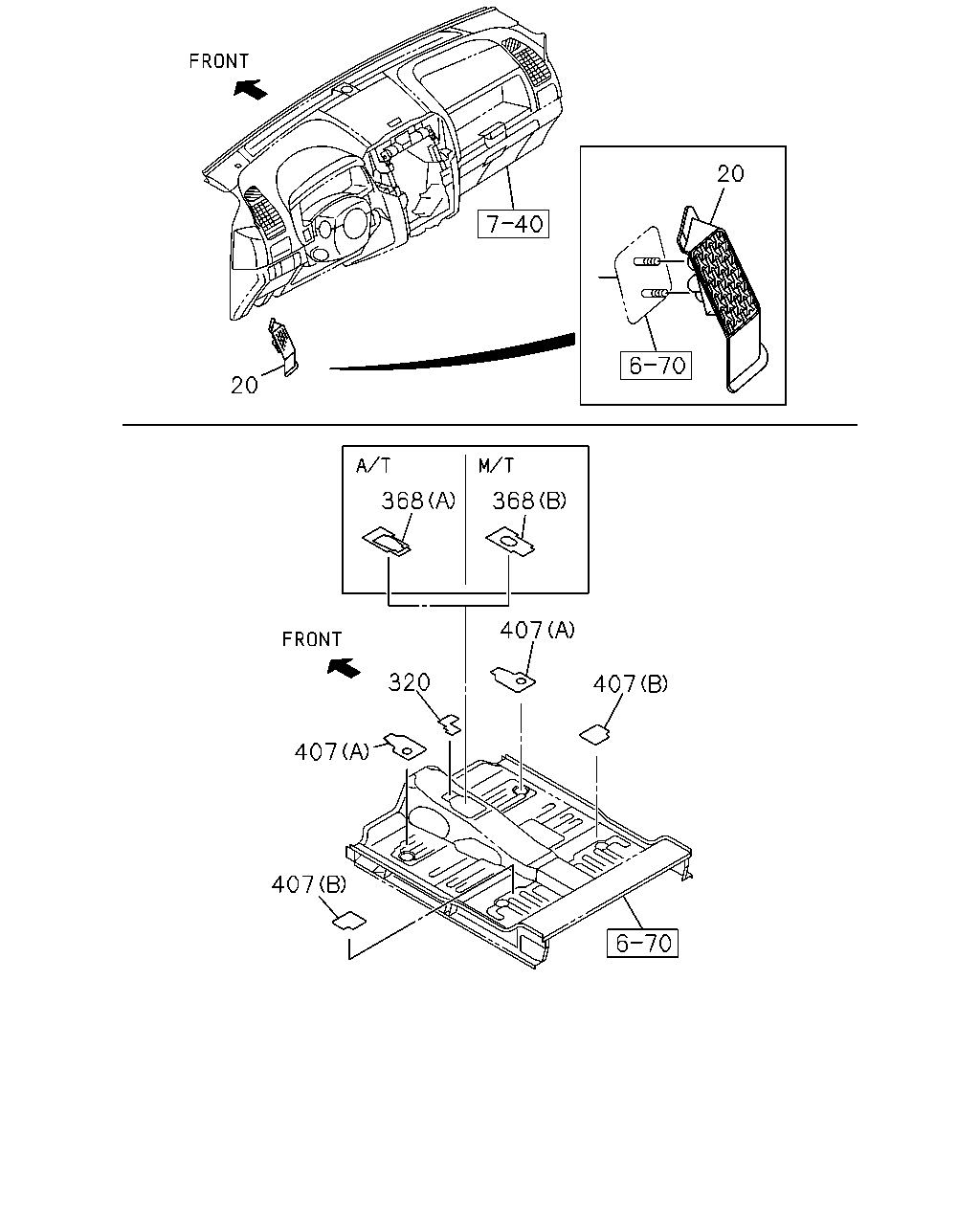

çizim 319249
20 20 407 407 368 368 320 407 407
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 16.547 REST; FOOT 8-98102-836-2 01 1 1210- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> 		8-98166-704-0 01 1 1210- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> 		8-98166-705-0 01 1 1210- ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (B) 		8-98166-706-0 01 1 1210- ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (A) 		8-98166-707-0 01 1 1210- ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1210- ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1210- ● ●
