Isuzu WW
▶
PICKUP
▶
TFR
▶
51408 - TFR/TFS MIDDLE EAST
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

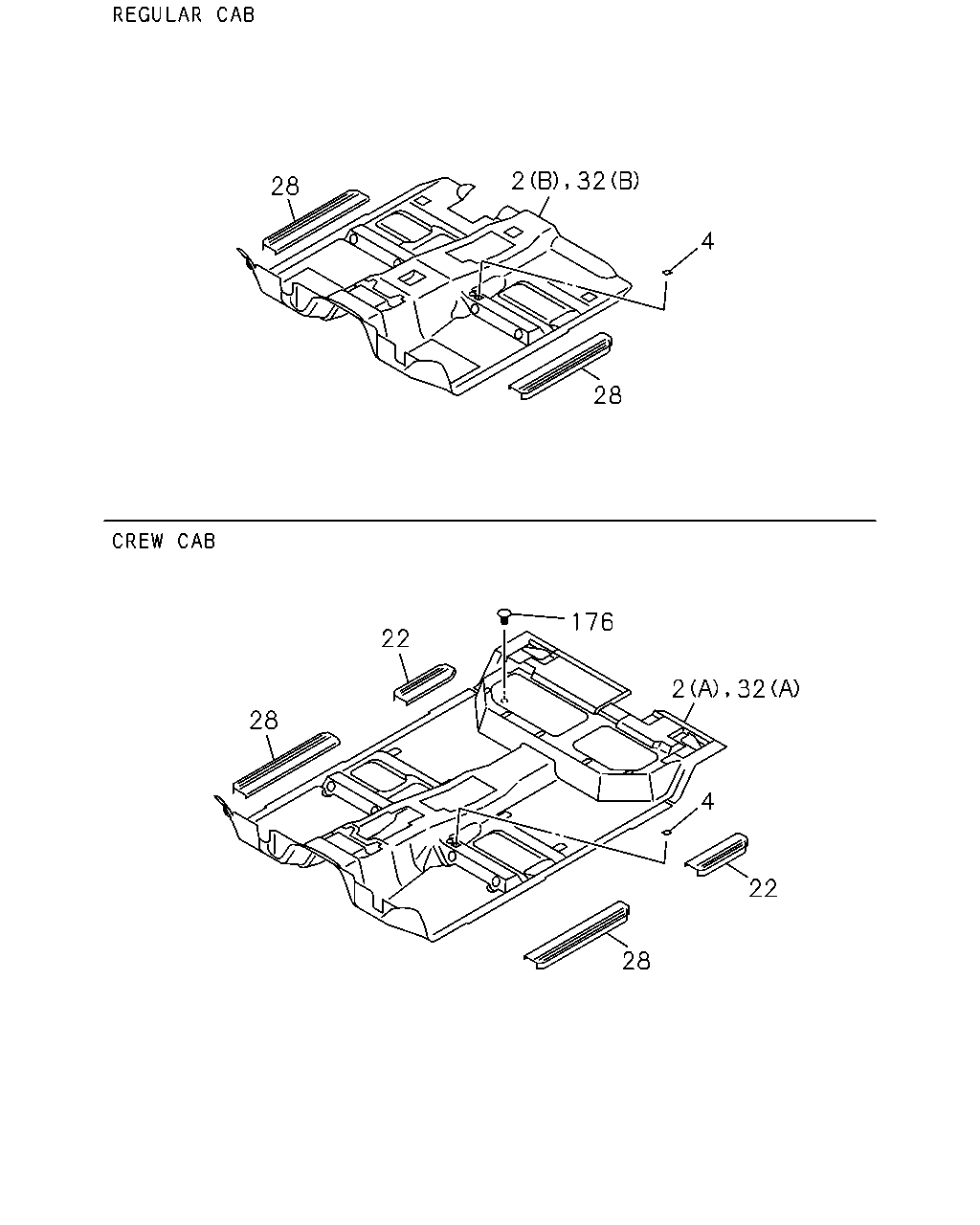

6-75 — MAT AND CARPET
(#109133) — 19 parça
Tümü
A - TFB6WF
B - TFS6WF
C - TFB6SF
D - TFS6SF
4
28
32
2
28
32
2
176
22
28
4
22
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (A) BLACK
8-97417-445-7
01
1
1210-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> (A) BLACK
8-97417-444-7
01
1
1210-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK
8-97417-448-7
01
1
1210-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK
8-97417-441-8
01
1
1210-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK
8-97417-446-7
01
1
1210-
●
●
2
16.800 MAT; FLOOR
COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK
8-97417-442-6
01
1
1210-
●
●
4
16.547 INSULATOR; FRT
8-98185-968-0
04
1
1210-
●
●
●
●
22
16.870 PLATE; SILL,RR
BLACK
8-97416-948-5
01
1
1210-
●
●
22
16.870 PLATE; SILL,RR
BLACK
8-97416-950-5
01
1
1210-
●
●
28
16.870 PLATE; SILL,FRT
BLACK
8-97416-944-3
01
1
1210-
●
●
●
●
28
16.870 PLATE; SILL,FRT
BLACK
8-97416-946-3
01
1
1210-
●
●
●
●
32
16.800 CARPET; FLOOR
EXC. COVERING FLOOR VINYL<B38>,CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (A) BLACK
8-97423-034-5
01
1
1210-
●
●
32
16.800 CARPET; FLOOR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLEW/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) BLACK
8-97423-033-5
01
1
1210-
●
●
32
16.800 CARPET; FLOOR
FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (A) BLACK
8-97423-035-5
01
1
1210-
●
●
32
16.800 CARPET; FLOOR
EXC. COVERING FLOOR VINYL<B38>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK
8-97417-438-6
01
1
1210-
●
●
32
16.800 CARPET; FLOOR
FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK
8-97417-439-5
01
1
1210-
●
●
32
16.800 CARPET; FLOOR
FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK
8-97417-423-5
01
1
1210-
●
●
176
16.870 RETAINER; CARPET
BLACK
8-97416-667-0
02
1
1210-
●
●
176
16.870 RETAINER; CARPET
BLACK
8-97416-667-0
10
1
1210-
●
●
