◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51408 - TFR/TFS MIDDLE EAST ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#109129) — 54 parça

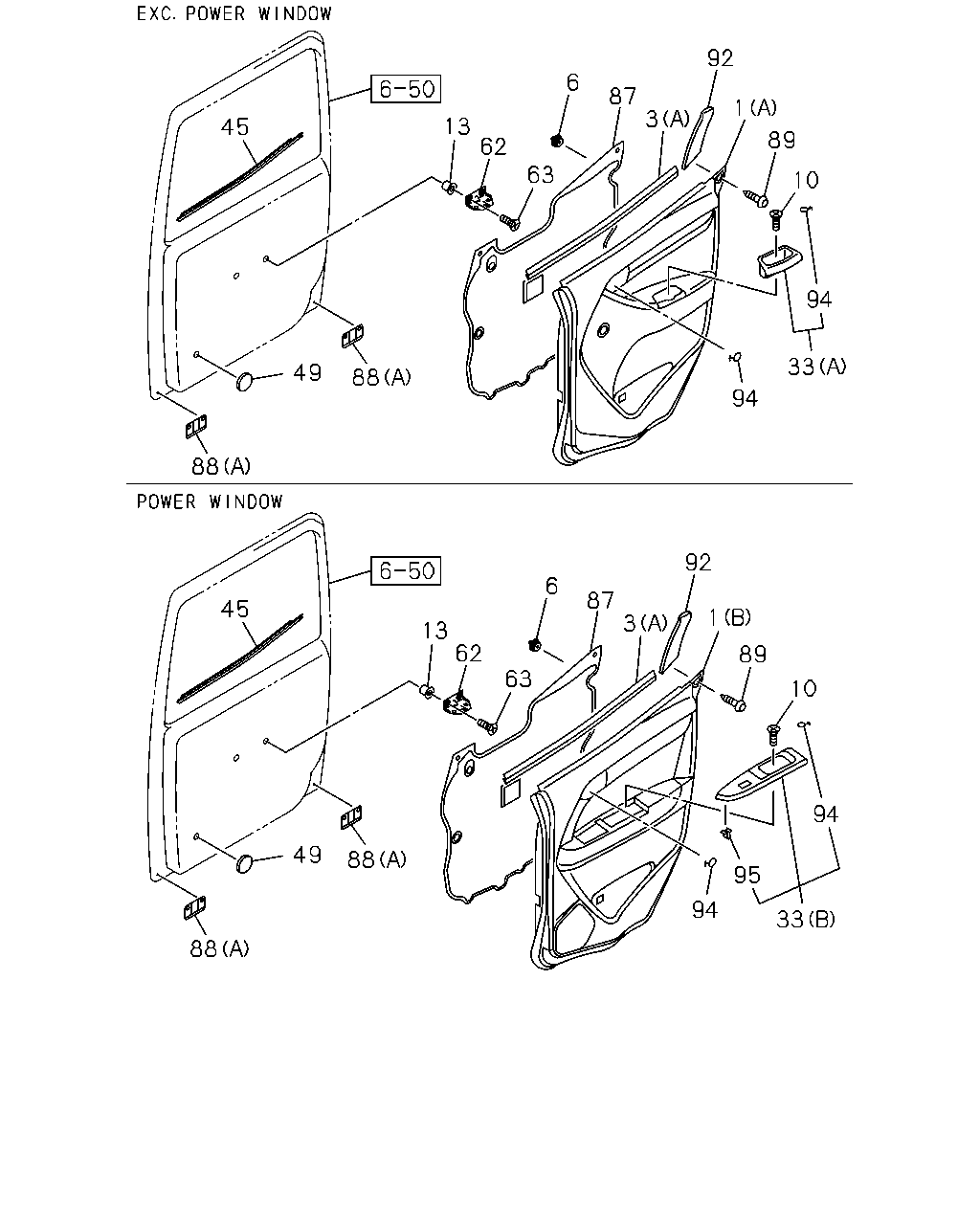

çizim 319242
88 49 45 88 13 63 62 6 92 87 1 3 89 94 33 94 10 88 45 49 88 13 62 63 6 87 3 92 1 89 10 94 33 95 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-007-4 01 1 1210- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-009-4 01 1 1210- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97417-006-5 01 1 1210- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97417-005-5 01 1 1210- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-011-4 01 1 1210- ● ●
1 16.165 PAD; TRIM,RR DOOR
INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-013-4 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-98109-546-2 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-98109-547-2 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM(RBD) (B) 		8-98165-114-1 02 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98052-203-3 01 1 1210-1405 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98282-674-1 01 1 1406- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98052-204-3 01 1 1210-1405 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98282-675-1 01 1 1406- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98052-209-4 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98052-210-4 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98201-893-0 02 1 1210- ● ●
6 16.165 CLIP; DOOR PAD 8-98160-729-0 14 1 1210- ● ●
10 16.155 SCREW; ARM REST
16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1210- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 		8-94152-494-0 04 1 1210- ● ●
33 16.165 BOX; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97416-989-3 01 1 1210- ● ●
33 16.165 BOX; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97416-990-3 01 1 1210- ● ●
33 16.165 BOX; RR DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97416-752-5 01 1 1210- ● ●
33 16.165 BOX; RR DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>, POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97416-753-5 01 1 1210- ● ●
45 16.183 FINISHER; RR DOOR 8-98052-207-2 01 1 1210- ● ●
45 16.183 FINISHER; RR DOOR 8-98052-208-2 01 1 1210- ● ●
49 16.165 SEAL; DOOR
6-SPEAKER SYSTEM BASE<UW5> OD=25 BLACK 		1-76798-019-0 02 1 1210- ● ●
62 16.165 BRACKET 8-98117-091-1 02 1 1210- ● ●
63 16.165 BOLT
16.345 M5X14 TAPPING 		8-98184-363-0 04 1 1210- ● ●
87 16.165 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98103-525-1 01 1 1210- ● ●
87 16.165 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98103-526-1 01 1 1210- ● ●
87 16.165 DEFLECTOR; RR DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-98103-527-2 01 1 1210- ● ●
87 16.165 DEFLECTOR; RR DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-98103-528-2 01 1 1210- ● ●
88 16.270 PLUG; DOOR
INTERIOR BASIC(RBA) 16.067 (B) 		8-94279-922-0 08 1 1210- ● ●
88 16.270 PLUG; DOOR
16.155 (A) 		8-98197-448-0 04 1 1210- ● ●
89 16.166 RETAINER; RR DOOR
BLACK 		8-97419-388-0 02 1 1210- ● ●
92 16.165 PANEL; RR DOOR
BLACK 		8-97416-987-0 01 1 1210- ● ●
92 16.165 PANEL; RR DOOR
BLACK 		8-97416-988-0 01 1 1210- ● ●
94 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1210- ● ●
94 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1210- ● ●
95 16.165 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98164-677-0 02 1 1210- ● ●

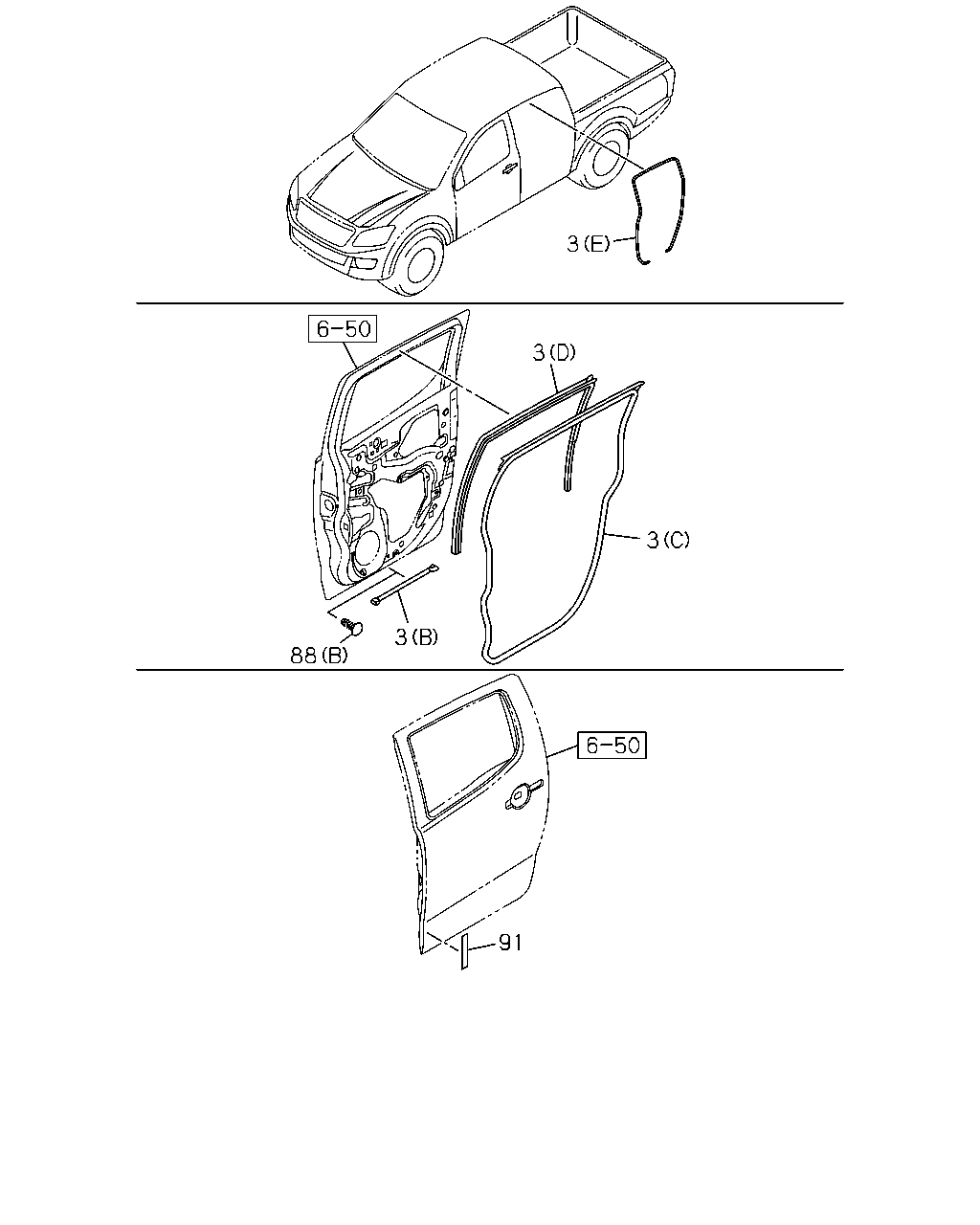

çizim 319377
3 3 3 3 88 91
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-98109-546-2 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-98109-547-2 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
INTERIOR CUSTOM(RBD) (B) 		8-98165-114-1 02 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98052-203-3 01 1 1210-1405 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98282-674-1 01 1 1406- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98052-204-3 01 1 1210-1405 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98282-675-1 01 1 1406- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98052-209-4 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98052-210-4 01 1 1210- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98201-893-0 02 1 1210- ● ●
88 16.270 PLUG; DOOR
INTERIOR BASIC(RBA) 16.067 (B) 		8-94279-922-0 08 1 1210- ● ●
88 16.270 PLUG; DOOR
16.155 (A) 		8-98197-448-0 04 1 1210- ● ●
91 16.165 TAPE
EXC. SIDE STEP<6TC> 		8-98165-205-1 01 1 1210- ● ●
91 16.165 TAPE
EXC. SIDE STEP<6TC> 		8-98165-206-1 01 1 1210- ● ●
